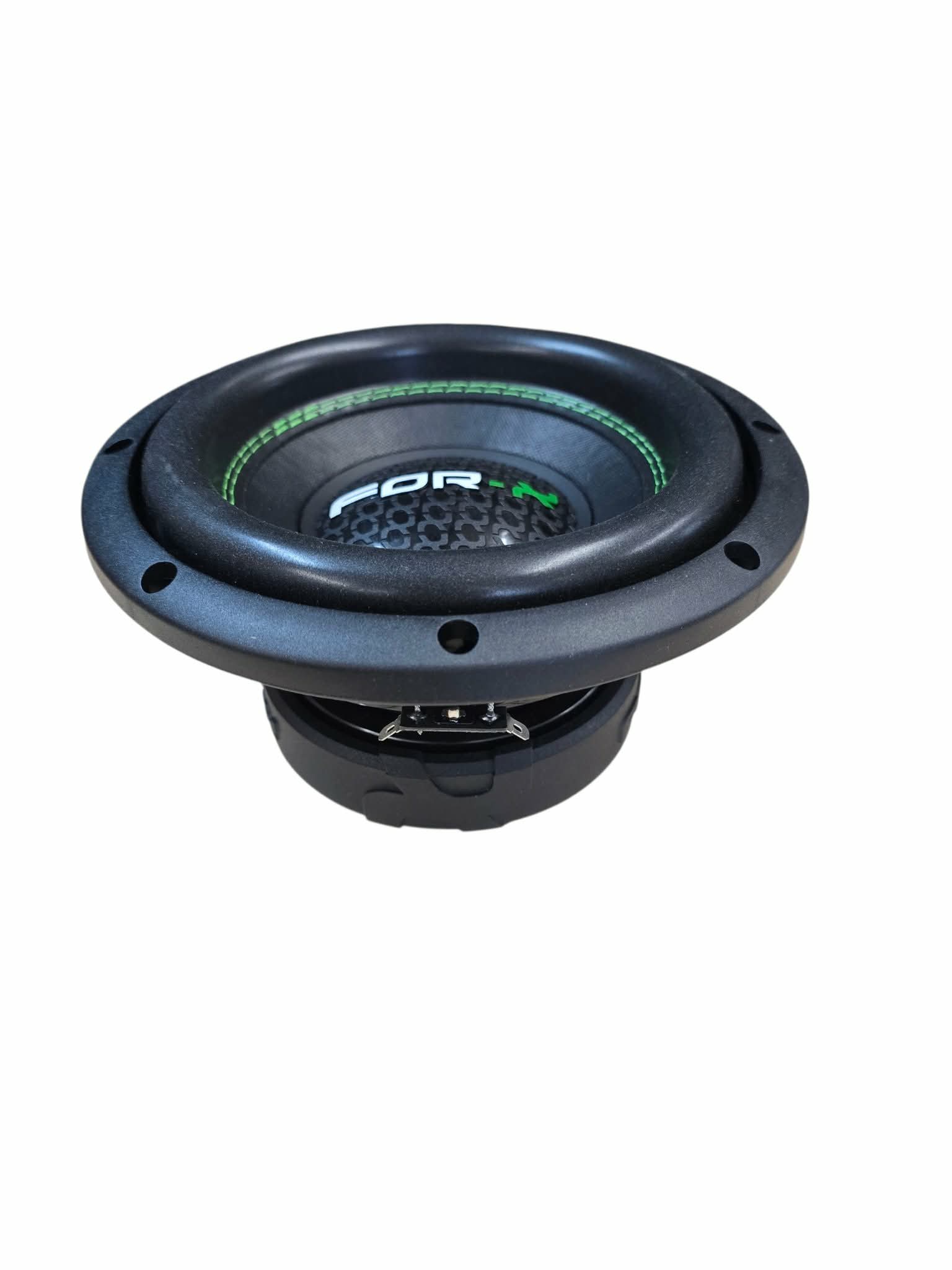

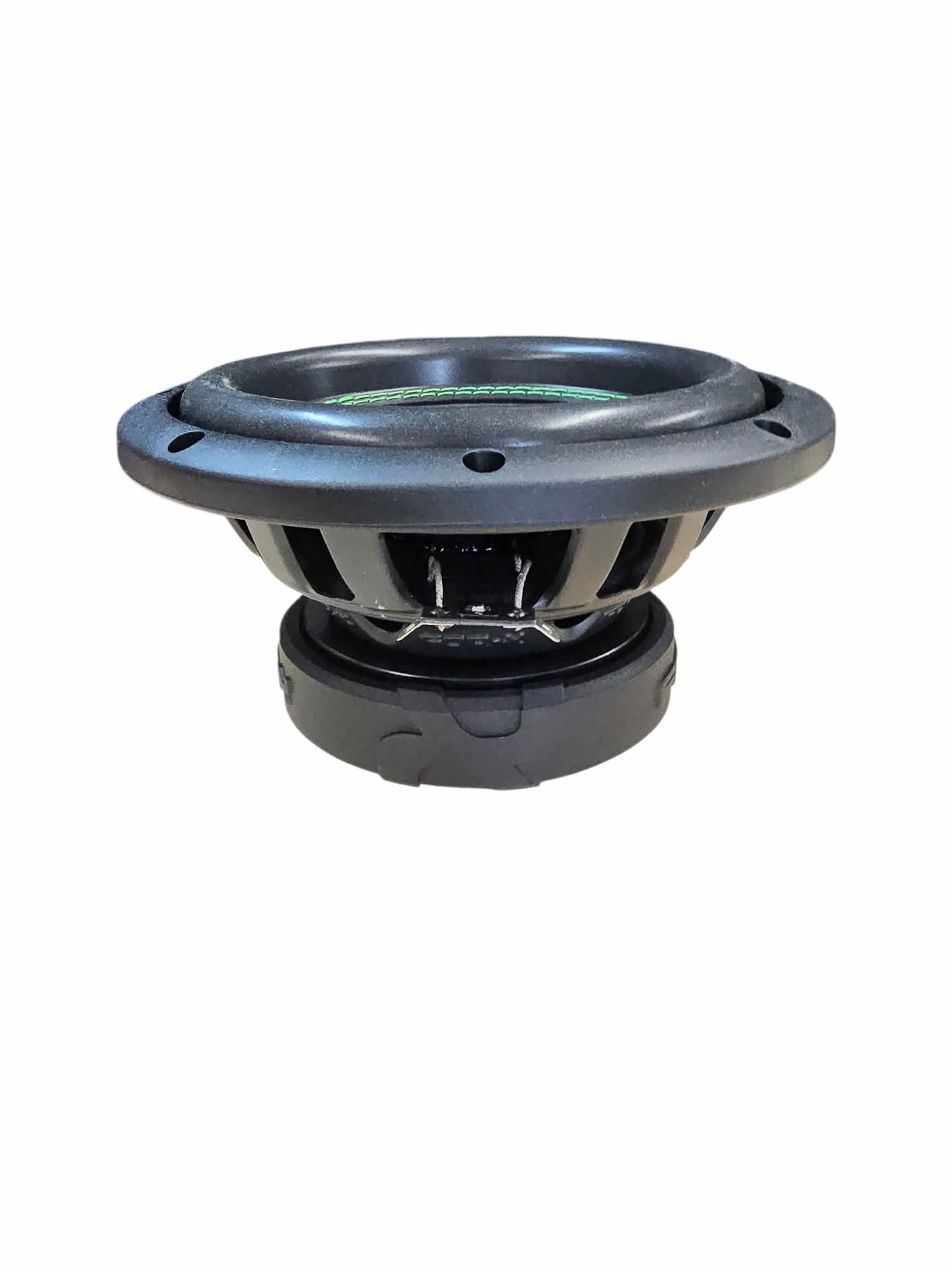

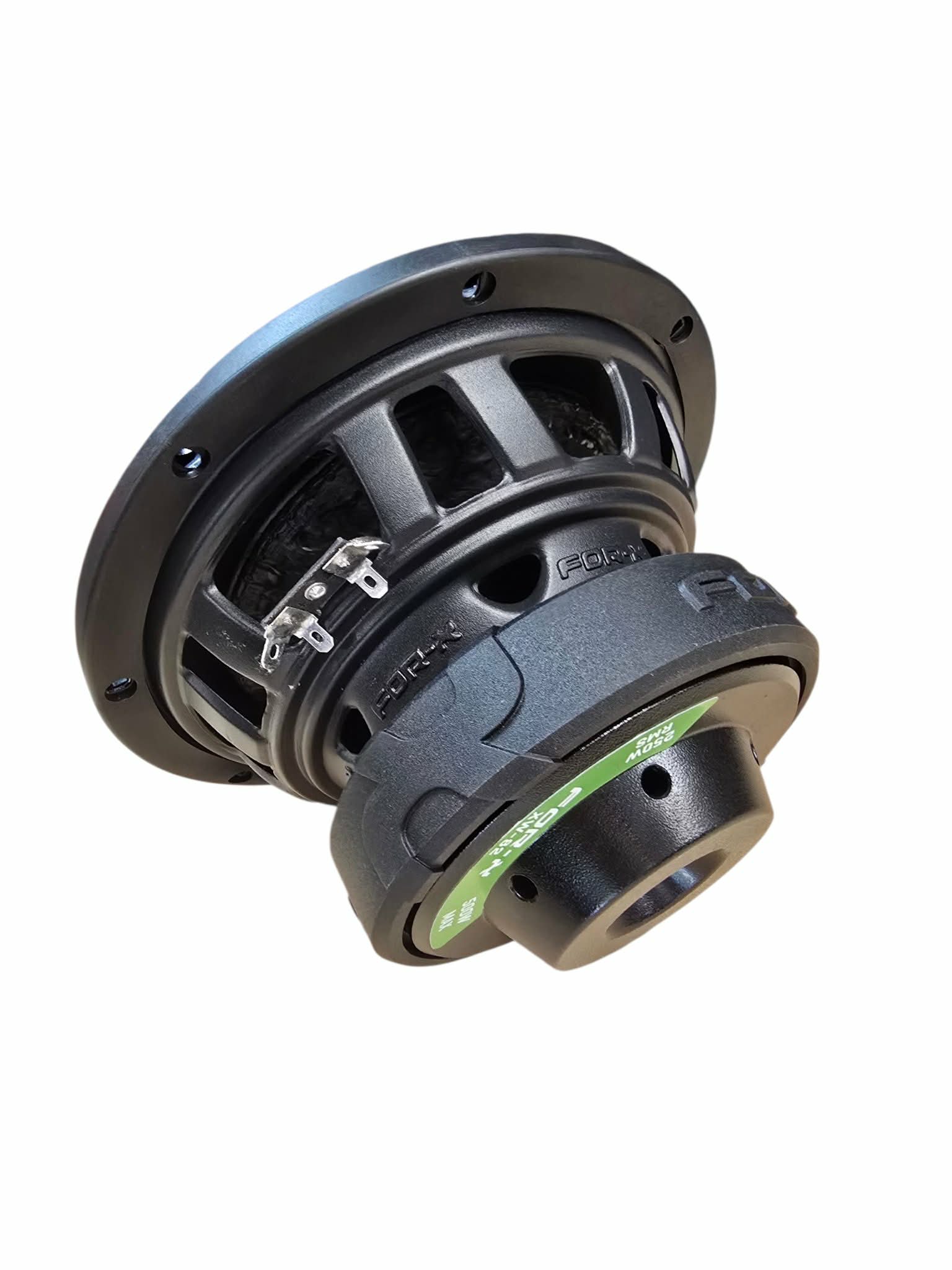

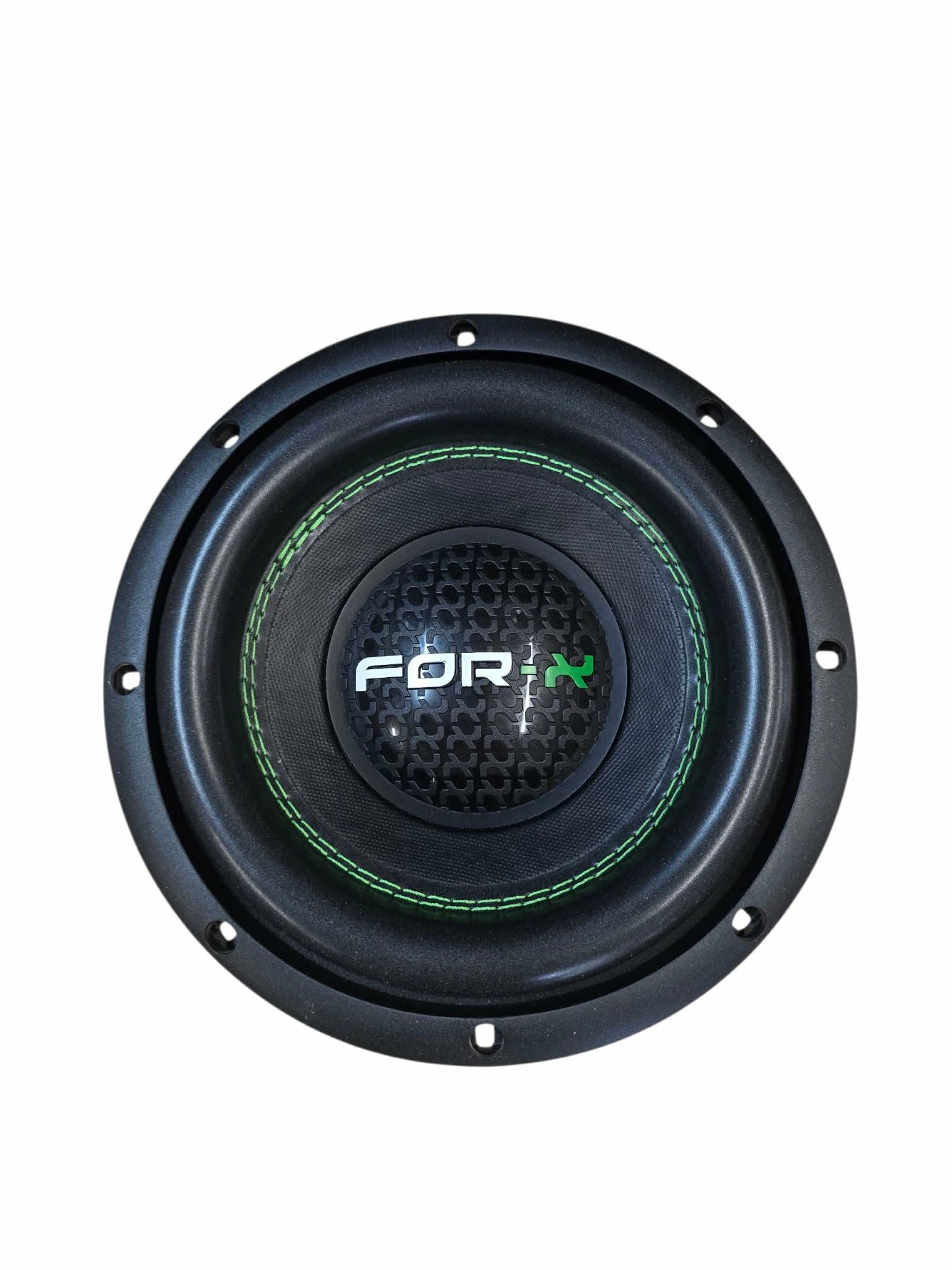

FOR-X XW-82S

General Data Overall Dimensions: 216 × 136 mm Nominal Power Handling: 250 W Transient Power (10 ms): 500 W Sensitivity: 82.6 dB Frequency Response: 46–300 Hz Cone Material: Paper Net Weight: 3 kg Electrical Data Nominal Impedance: 4 Ω DC Resistance (Re): 3.3 Ω Voice Coil & Magnet Parameters Voice Coil Diameter: 50.8 mm Voice Coil Height: 21.5 mm HE Magnet Gap Height: 8 mm Max Linear Excursion (Xmax): 6.75 mm Voice Coil Bobbin: Black Aluminium Voice Coil Wire: Copper Number of Layers: 4 Magnet System: Ferrite 40 oz BL Product: 12.88 T/S Parameters Resonant Frequency (Fs): 46 Hz Moving Mass (Mms): 110.3 g Suspension Compliance (Cms): 0.09 Mechanical Q (Qms): 5.58 Electrical Q (Qes): 0.66 Total Q (Qts): 0.59 Equivalent Air Volume (Vas): 5.71 L Effective Piston Area (Sd): 201 cm² Connection: Parallel
