FOR-X XW-8 D1
2 999 SEK
D1 ohms
700W RMS POWER
1400W MAX POWER
80.2dB SENSITIVITY
30-300 Hz FREQ. RESPONSE
D1 OHM IMPEDANCE
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeFOR-X
Beskrivning
Art.nr: FOR-X XW-8 D1
General Data

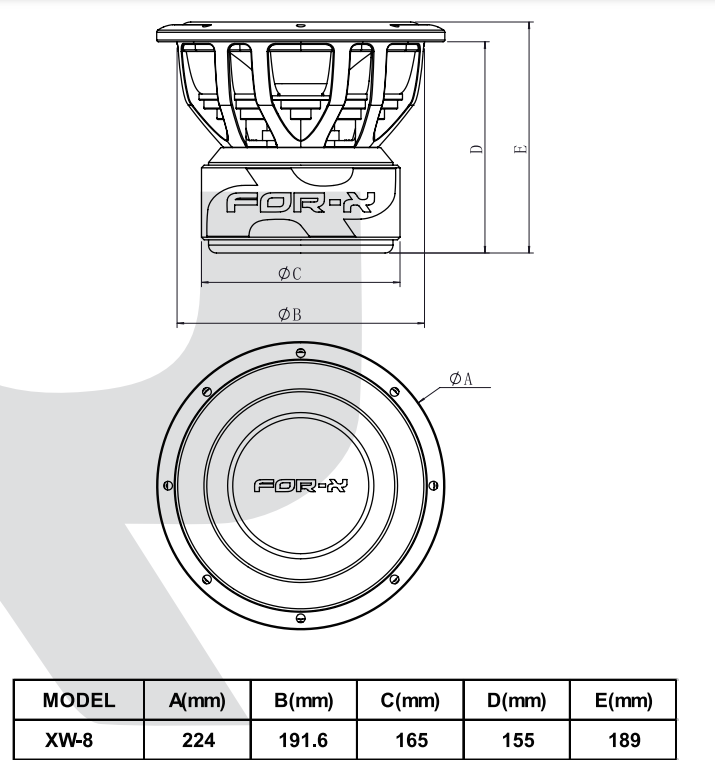

Overall Dimensions: 224*189mm
Nominal Power Handling: 700W
Transient Power 10ms: 1400W
Sensitivity: 80.2dB
Frequency Response: 30-300Hz
Cone Material: Paper
Net Weight: 9.8kg
Electrical Data
Nominal Impedance: Dual 1 Ohm
DC Resistance: Dual 1 Ohm
Voice Coil and Magnet Parameters
Voice Coil Diameter: 61.1mm
Voice Coil Height: 43mm
HE Magnetic Gap Height: 15mm
Max Linear Excursion: 14mm
Voice Coil Bobbin: Black Aluminium
Voice Coil Wire: Aluminum
Number of Layers: 6
Magnet System Type: Ferrite
BL Product: 11.38
T-S Parameters:
Resonant Frequency: 47
Moving Mass: 150.1
Suspension Compliance: 0.034
Mechancial Q Factor: 5.78
Electrical Q Factor: 0.75
Total Q Factor: 0.67
Eq.Cas Air Load (Liters): 1.55
Effective Piston Area(cm²): 176.7
