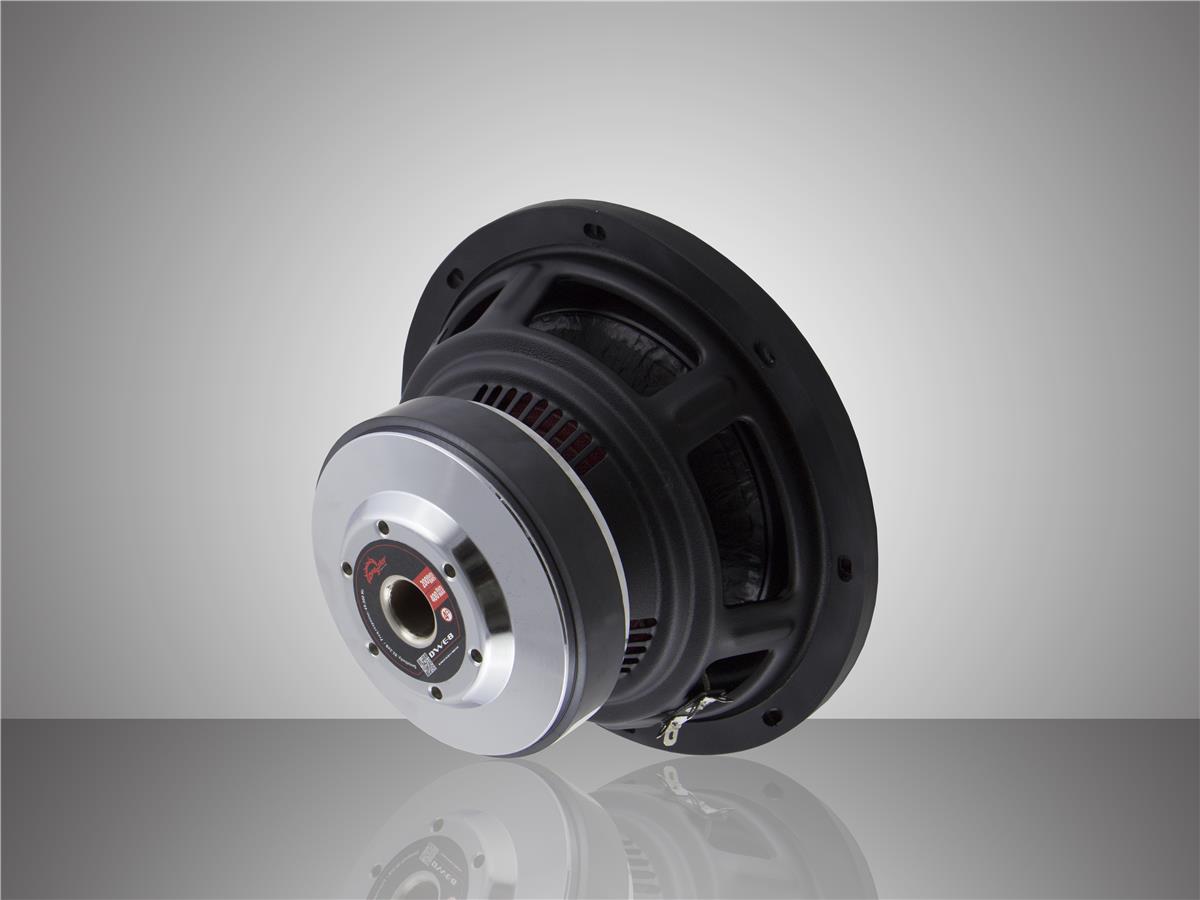

DRAGSTER DWE-8
949 SEK
4 ohm
200W RMS POWER
400W MAX POWER
82.2dB SENSITIVITY
4 OHM IMPEDANCE
Stamped Steel Basket
8 inch Ф 2.0″Voice Coil 4Ω
Sluten låda runt 9-10 liter för SQ

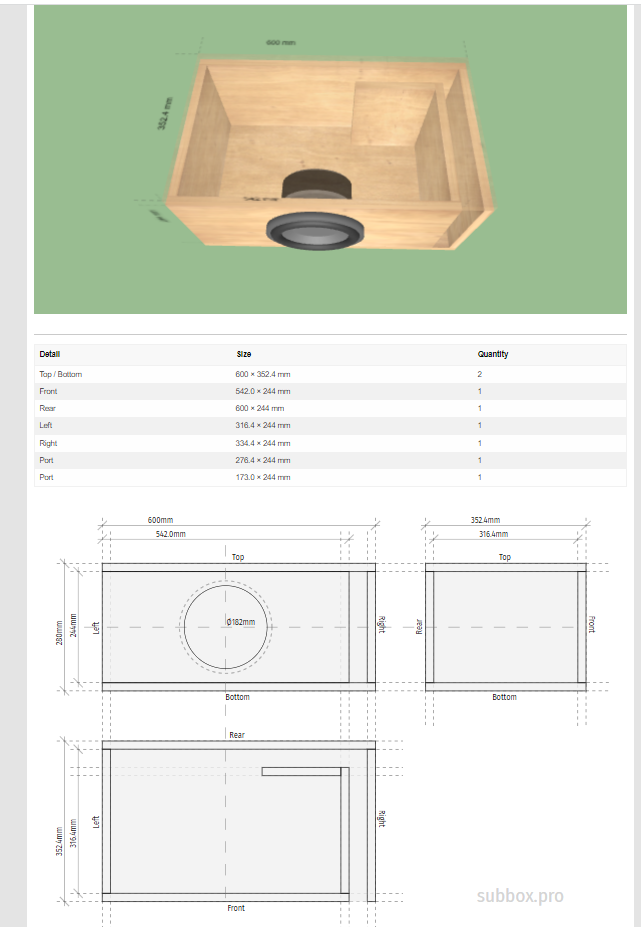

https://subbox.pro/en/b/VXUKeL9TF
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeDRAGSTER
Beskrivning
Art.nr: DRAGSTER DWE-8
General Data
Overall Dimensions: 214*127mm
Nominal Power Handling: 200W
Transient Power 10ms: 400W
Sensitivity: 82.2dB
Frequency Response: 49-300Hz
Cone Material: Paper
Net Weight: 3.03kg
Electrical Data
Nominal Impedance: 4 Ohm
DC Resistance: 3.3 Ohm
Voice Coil and Magnet Parameters
Voice Coil Diameter: 50.8mm
Voice Coil Height: 21.4mm
HE Magnetic Gap Height: 8mm
Max. Linear Excursion: 6.7mm
Voice Coil bobbin: Black Aluminium
Voice Coil Wire: Copper
Number Of Layers: 4 Layers
Magnet System Type: High Flux Ferrite
BL Product: 12.88 N.A
T-S Parameters
Suspension Compliance: Cms 0.095
Mechanical Q Factor: Qms 5.48
Electrical Q Factor: Qes 0.66
Total Q Factor: Qts 0.59
Moving Mass: Mms 107.04
Eq.Cas Air Load( liters): VAS 5.47 Liter
Resonant Frequency: Fs 49 Hz
Effective Piston Area: SD 201 cm²

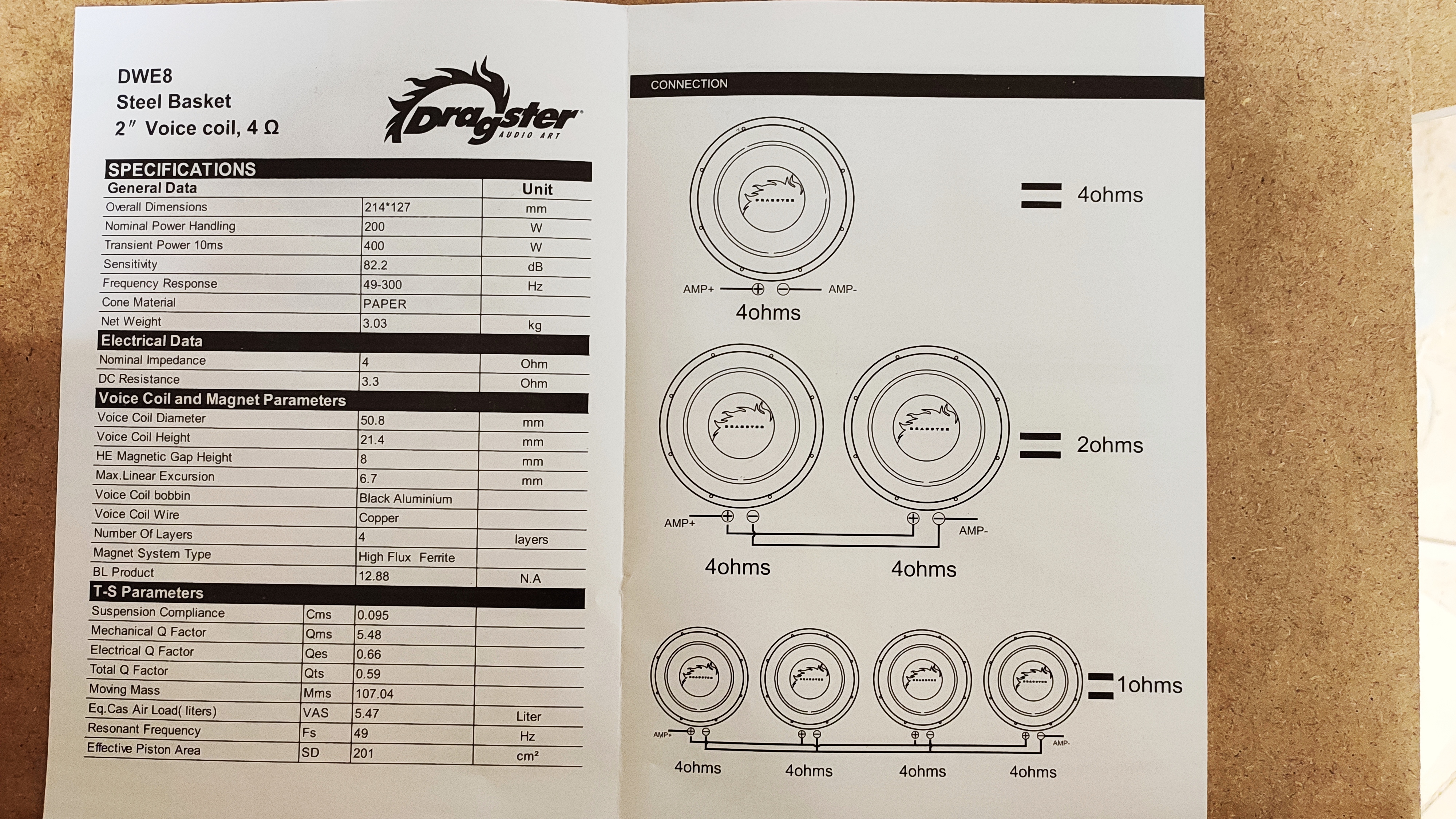

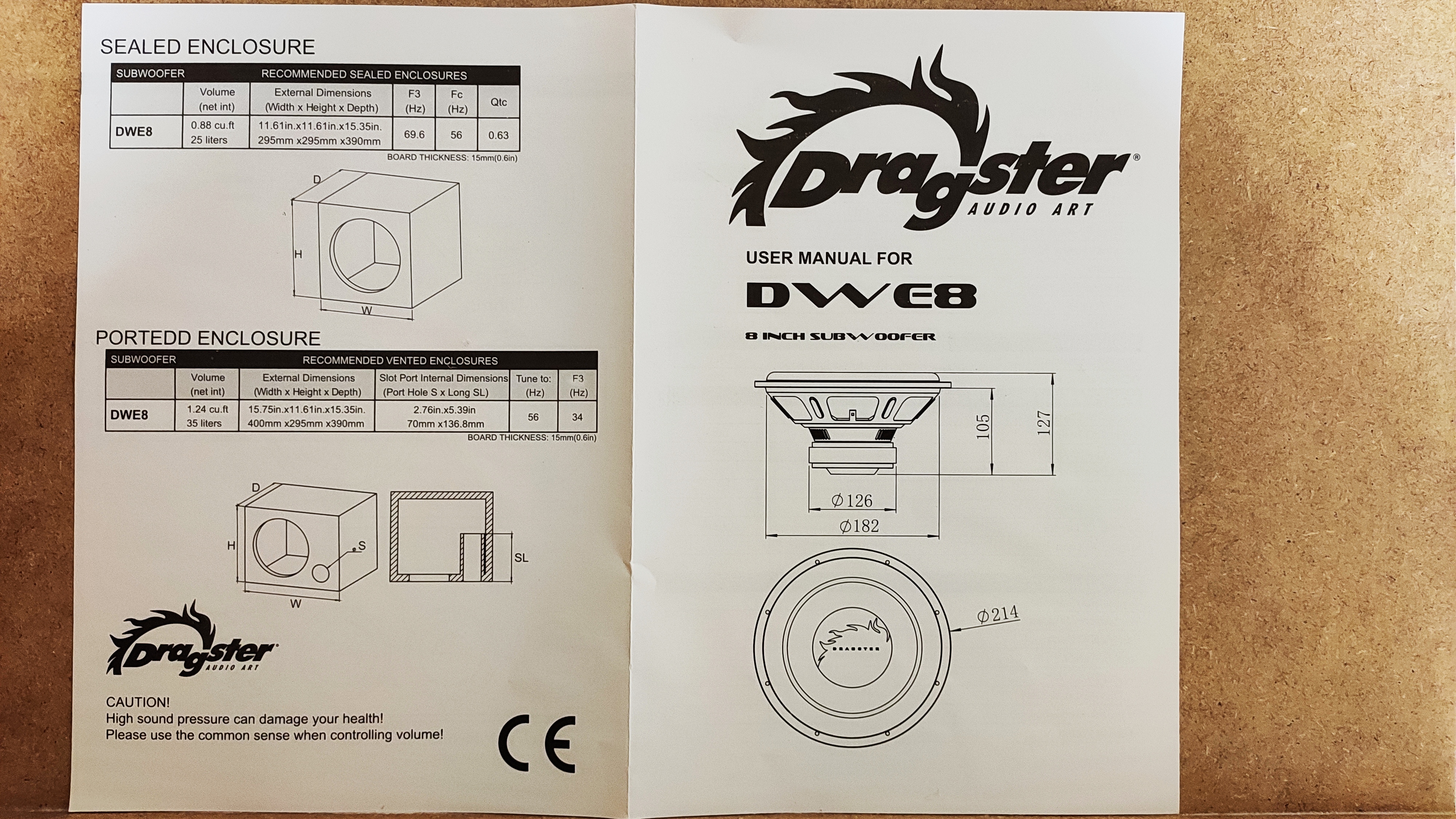

Instruktionsbok finns i bilderna ovan
Sluten låda runt 9-10 liter för SQ
