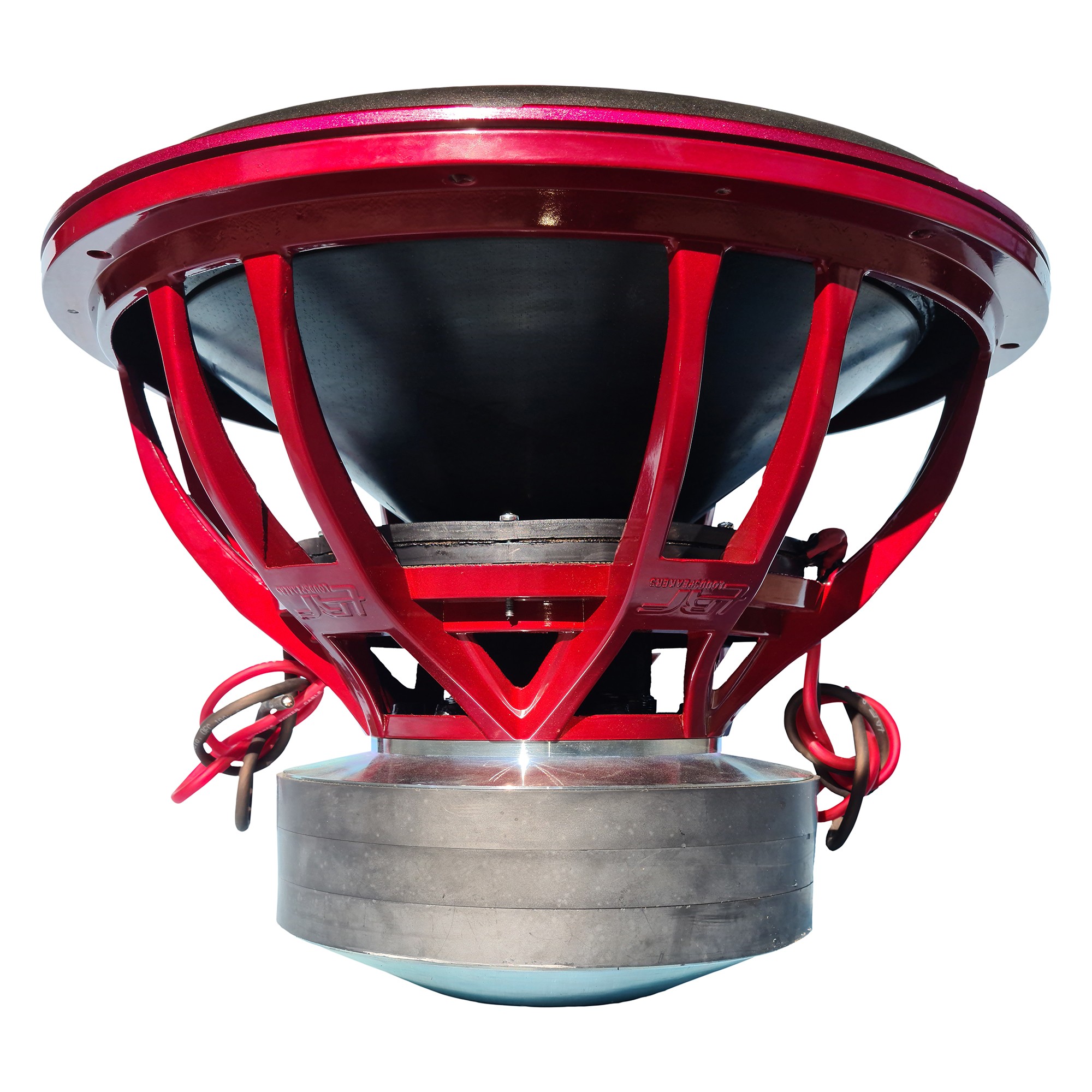

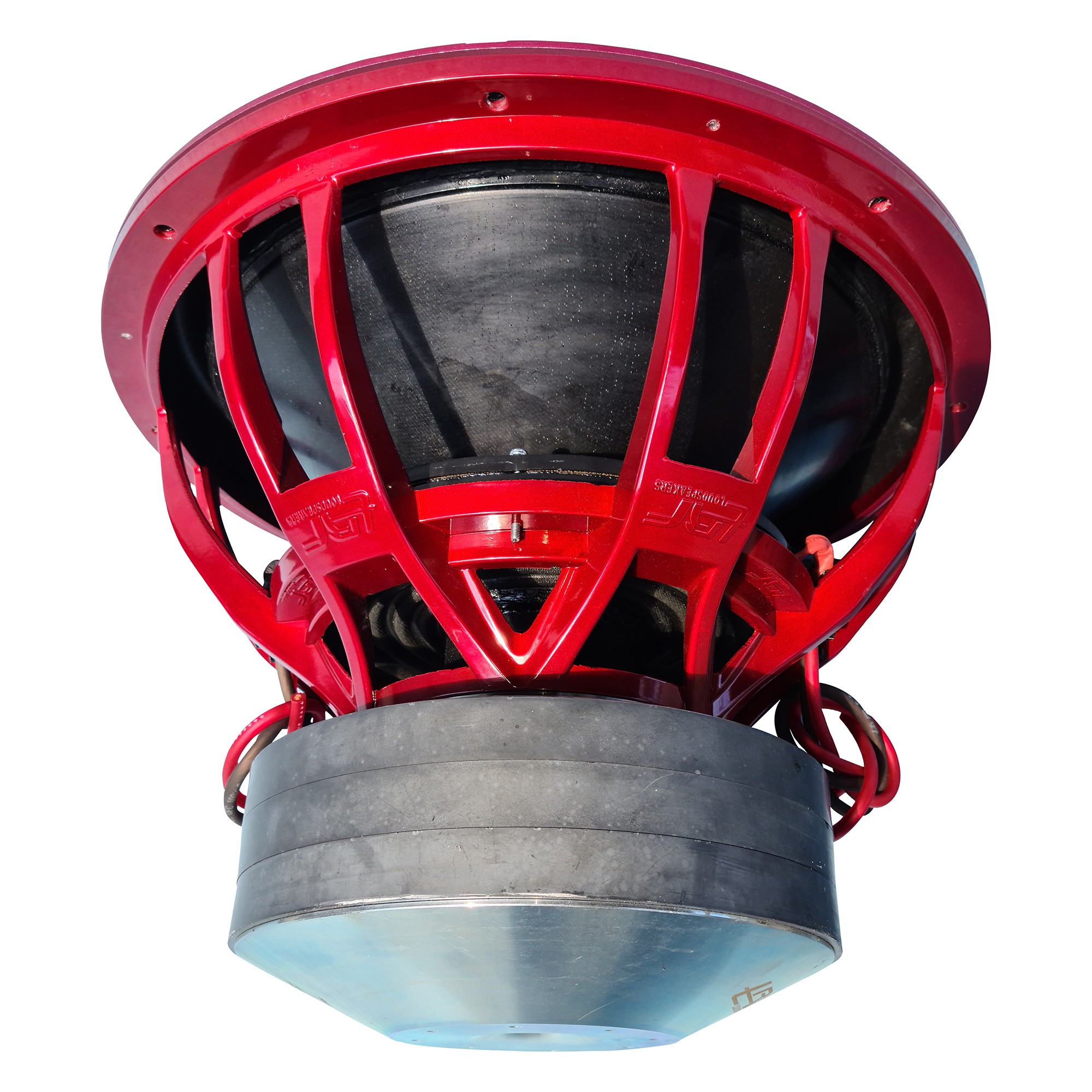

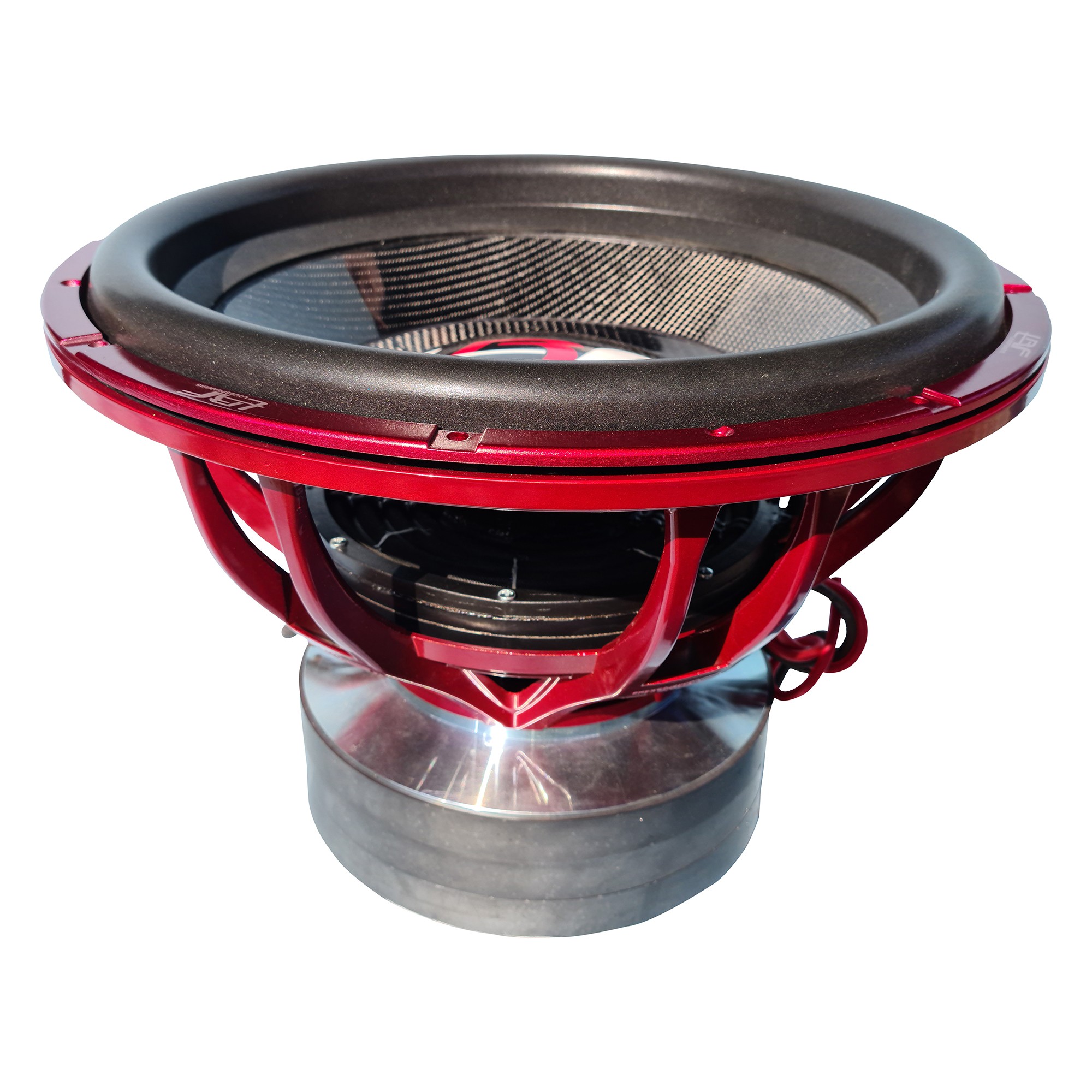

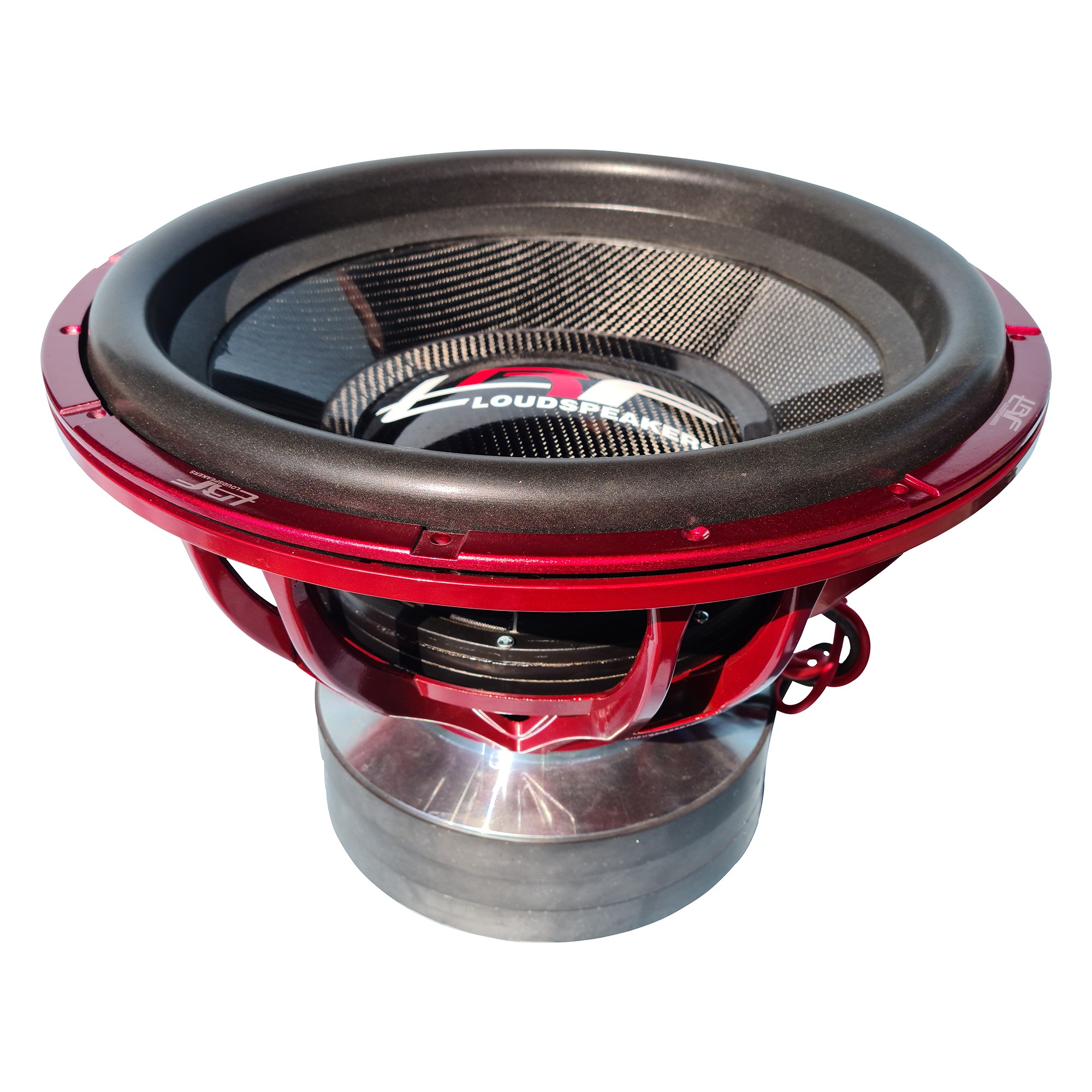

TRF SPL SW1865CC D0,7
14 999 SEK
Dual 0,7ohm
Handbyggs på beställning
Cone: Carbon FROM MADE IN EUROPE
Surround material: Foam
Voice coil made : MADE IN USA
Voice coil dimension : 4.0inch
Voice coil layer: 8layer
Dust cap : Carbon FROM MADE IN EUROPE
RMS Power: 6500wrms
RMS Program: 20.000 - 25.000wrms 3sec
MAX Watt: 13000wmax
Magnet dimension:Φ280*25mm X 3PCS
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeTRF
Beskrivning
Art.nr: SPLSW1865CCD07
SPECIFICATION:
Cone: Carbon FROM MADE IN EUROPE
Surround material: Foam
Voice coil made: MADE IN USA
Voice coil dimension: 4.0inch
Voice coil layer: 8layer
Dust cap: Carbon FROM MADE IN EUROPE
Nominal impedance: D0.5 OR D0.7 OR D1
Voice coil wire: aluminum
Spider dimension: 4''ID / 10''OD
Spider material: NOMEX
Spider layers: 5pcs x 2layers
RMS Power: 6500wrms
RMS Program: 20.000 - 25.000wrms 3sec
MAX Watt: 13000wmax
Sensitivity: dB
Resonance frequency (f0): - Hz
Mechanical Q factor (Qms):
Electrical Q factor (Qes):
Total Q factor: (Qts):
Xmax: mm
Force factor: N / A
Magnet Weight: -Oz
Net weight: 45kg
Basket: Die cast Alumium
Magnet: Ferrite
Magnet dimension: Φ280 * 25mm X 3PCS
1 = Outer Dimension: 450mm
2 = Mounting Depth: 341mm
3 = Magnet Dimension: 280mm
4 = Mounting Hole Dimension: 425mm
