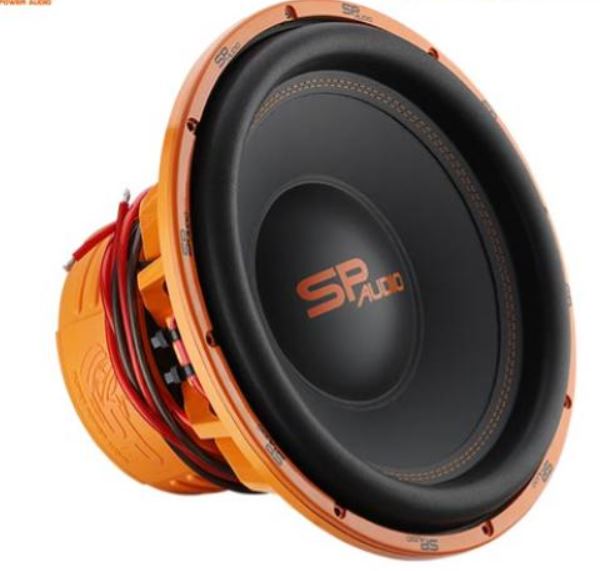

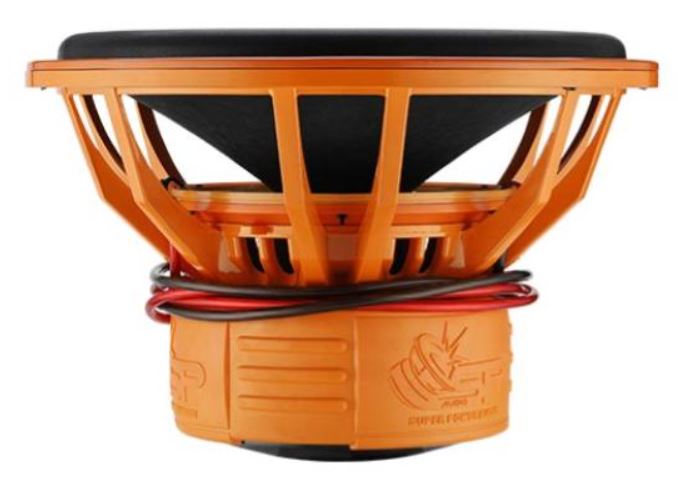

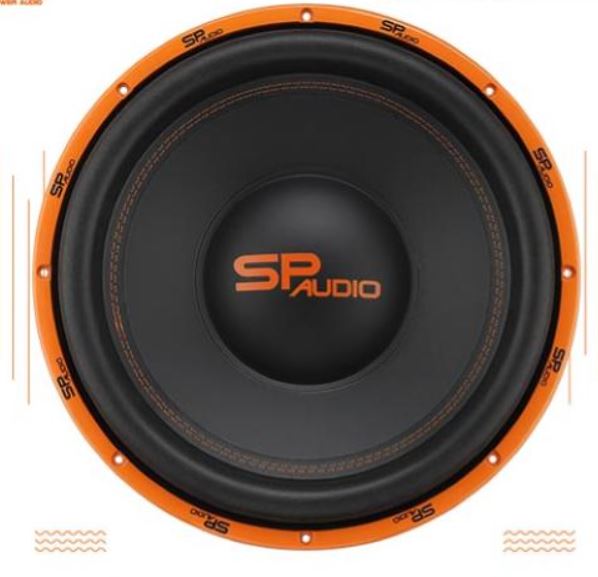

SPAUDIO SP15CX
5 799 SEK
Spolar: 2+2 Ohm
RMS/Peak: 3000W/6000W
Känslighet: 89 dB
Frekvensområde: 25-200Hz
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeSPAUDIO
Beskrivning

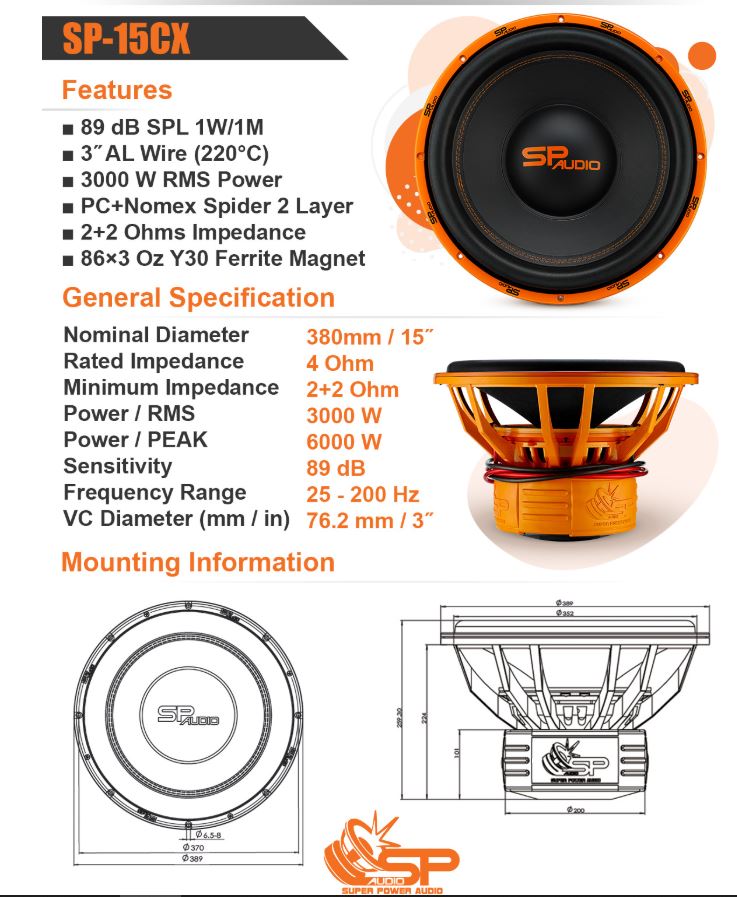

Art.nr: SPAUDIO SP15CX
89DB SPL 1W/1M
3"AL WIRE (220C)
3000 WATT RMS Power
PC+NOMEX spider 2 layer
2+2 Ohms impedance
86x3 OzY30 Ferrite Magnet

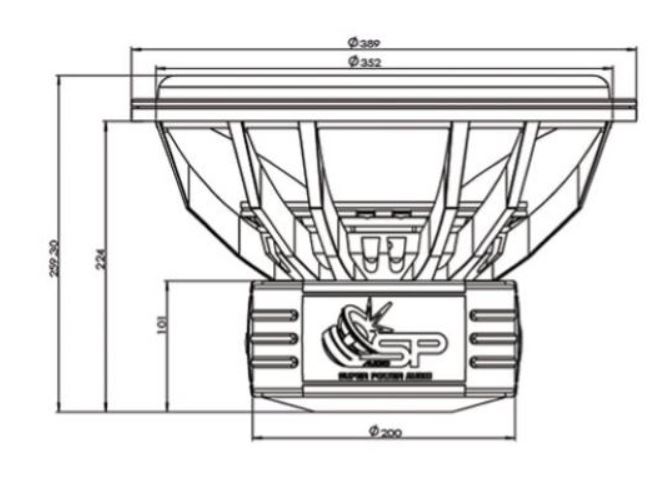

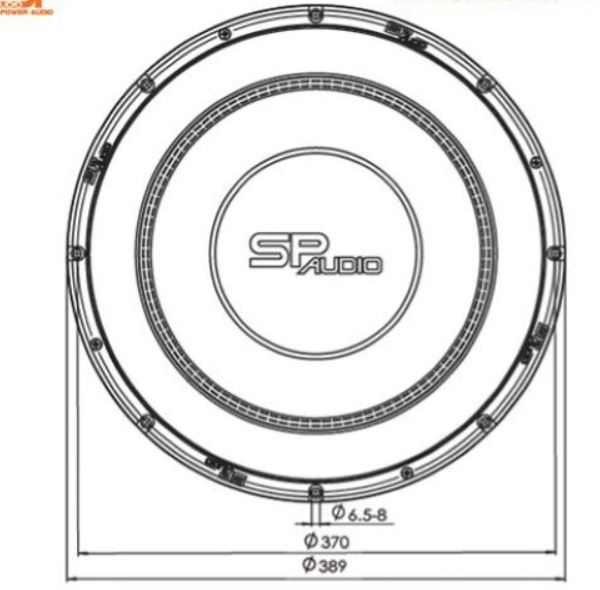

Nominal Diameter 380mm (15 Inch)
Rated impedance 4 Ohm
Minimum Impedance 2+2 Ohm
Rated power (RMS) 3000 Watt RMS
Peak Power 6000 Watt Peak
Sensitivity 89 db
Frequency Range (-10db) 25-200Hz
Vc Diameter (mm/in) 76,2mm/3"
Winding Material 220C Aluminium Wire
Suspension Large "R" Form
Cone Compress Paper+Fibreglass+Black painting

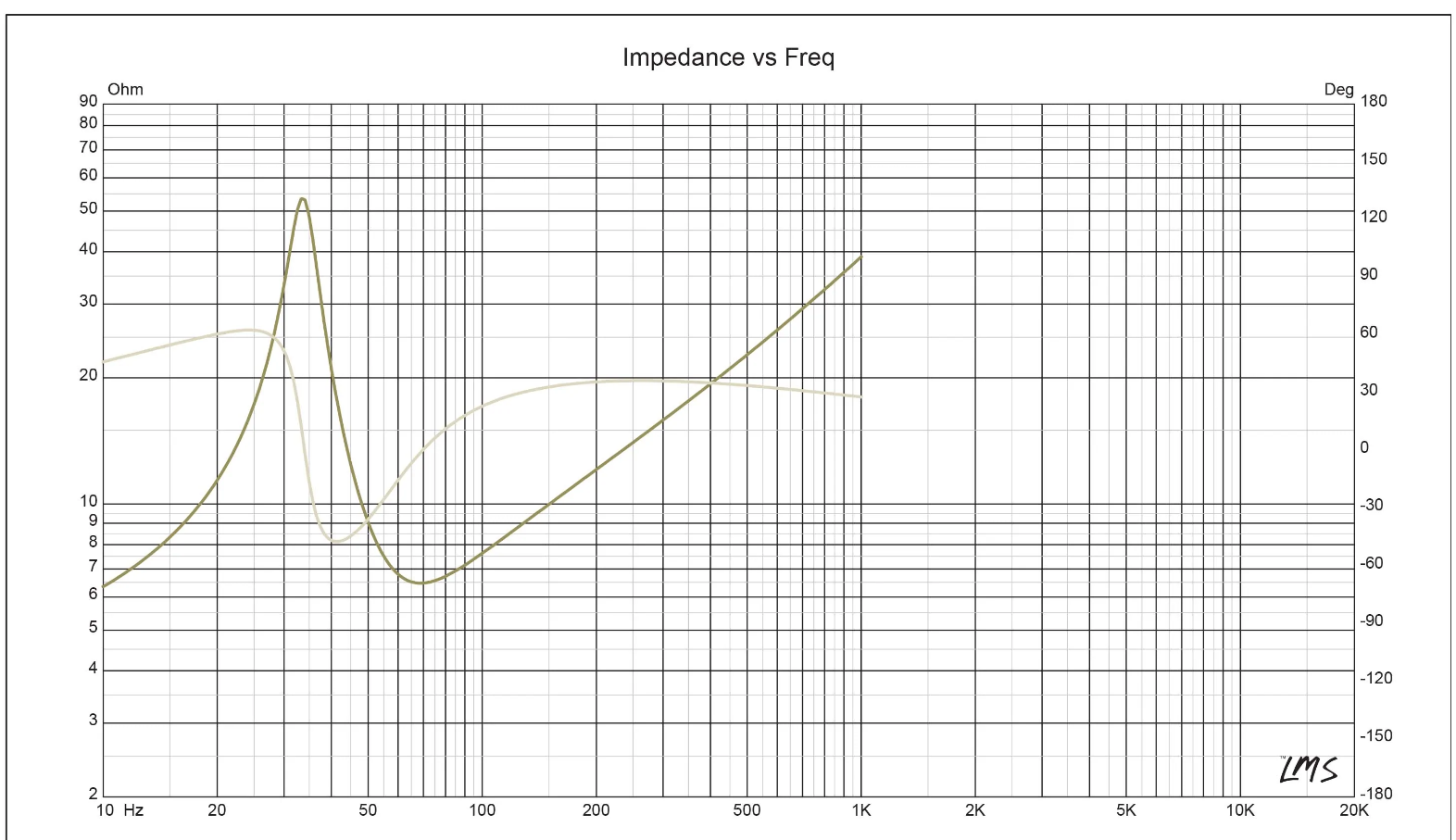

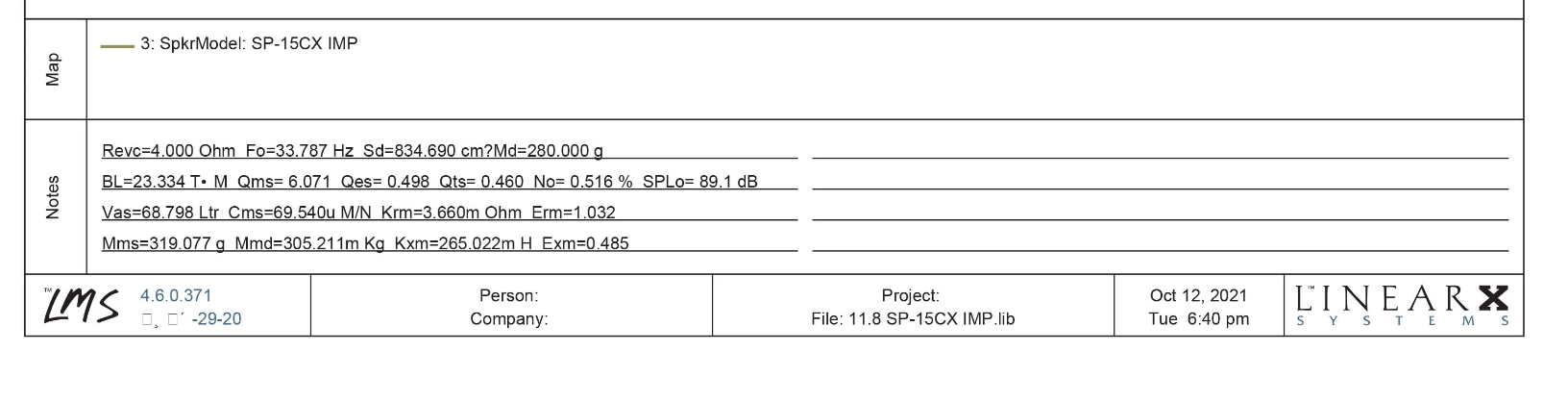

Parameters:
QTS=0.551
VAS=69.61
FS=35.00 Hz
Re=2+2 Ohm
Mms= 285.676 g
Xmax= 32 mm
Cms = 75.93 Um/MN
Qms=6.193
Qes= 0.605
SPL= 89db
Pe=3000 w
BL=20.14
Dd=32.00 cm
Sd=804.2cm2

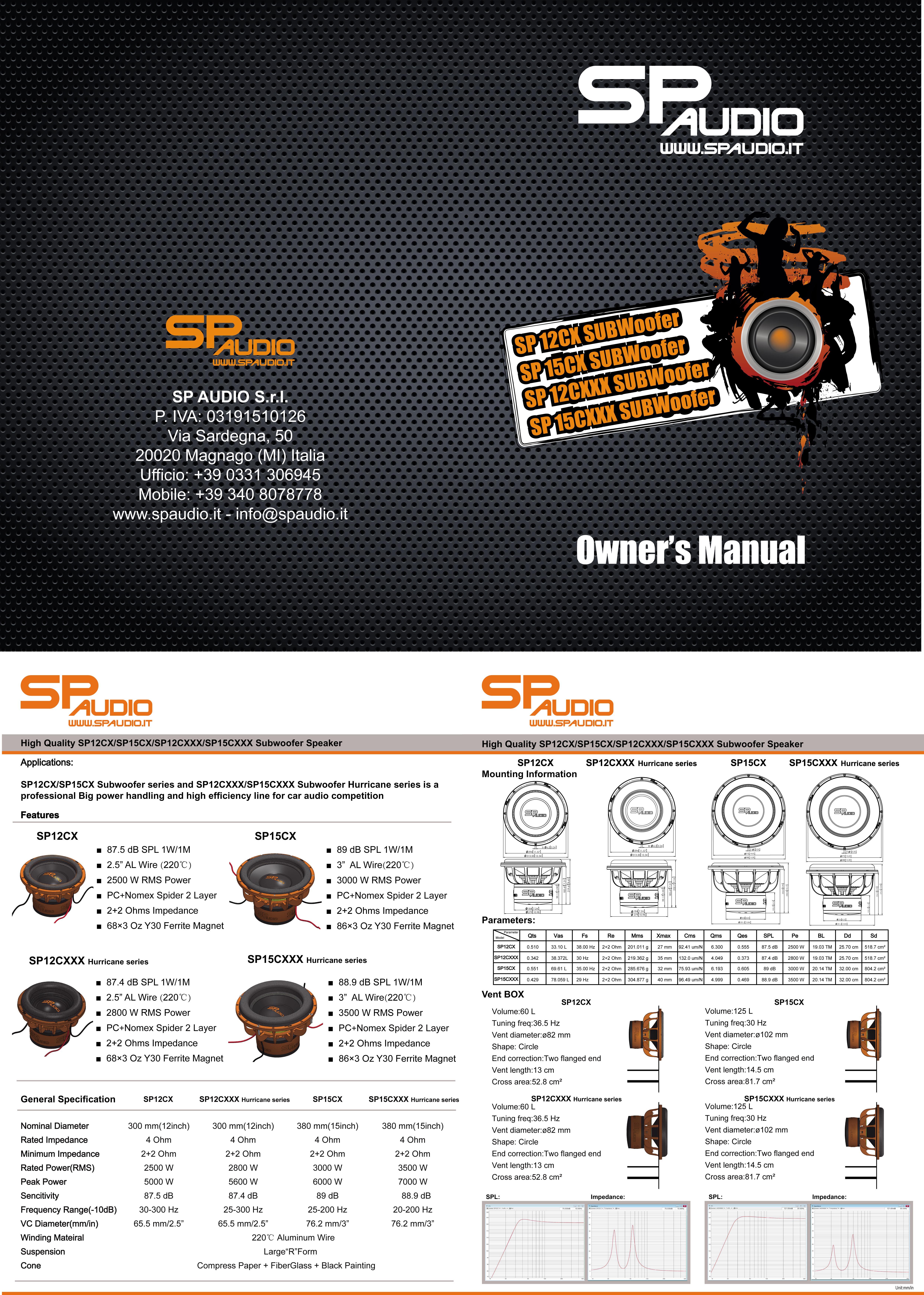

Filer och media
