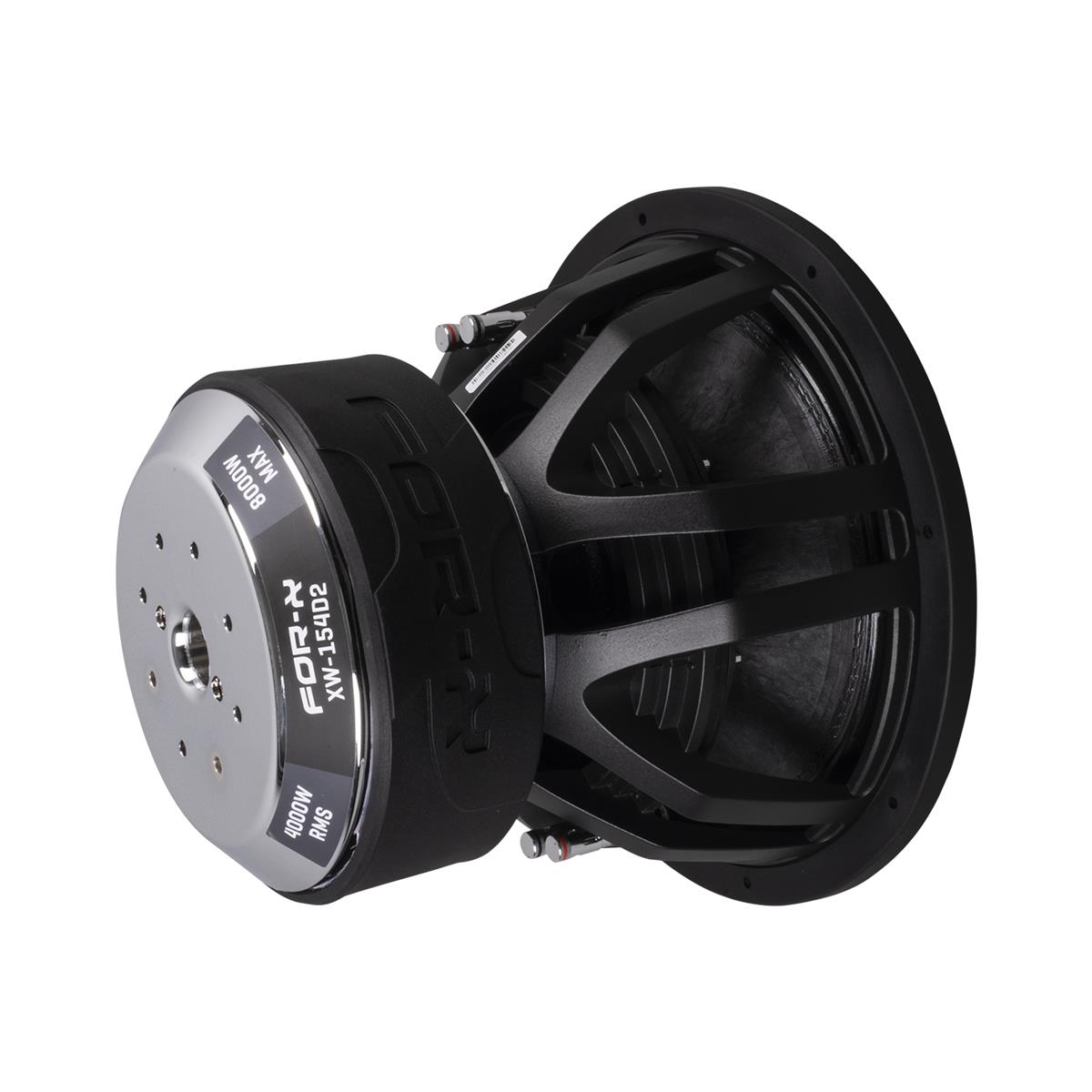

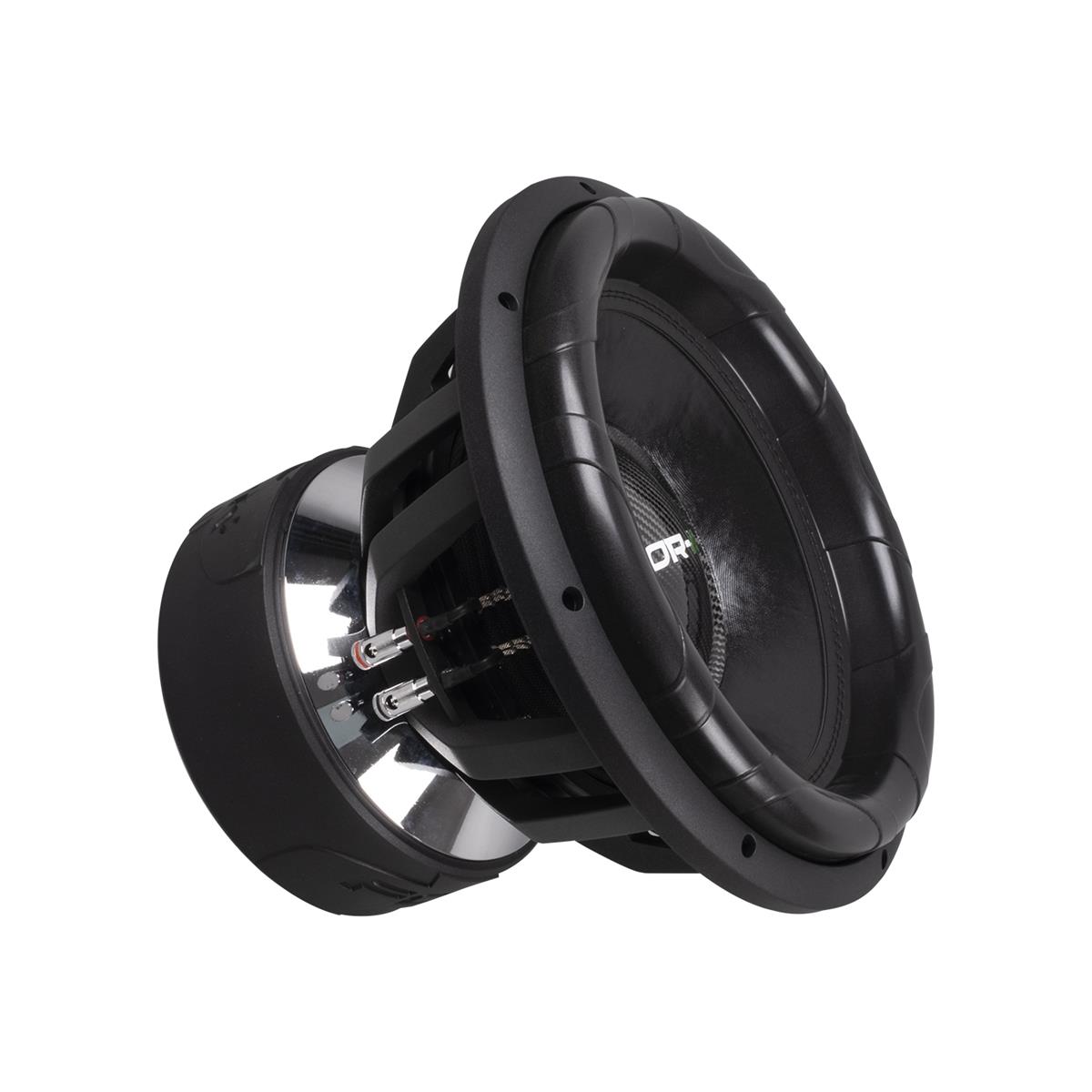

FOR-X XW-154 D2
8 799 SEK
D2
4000W RMS POWER
8000W MAX POWER

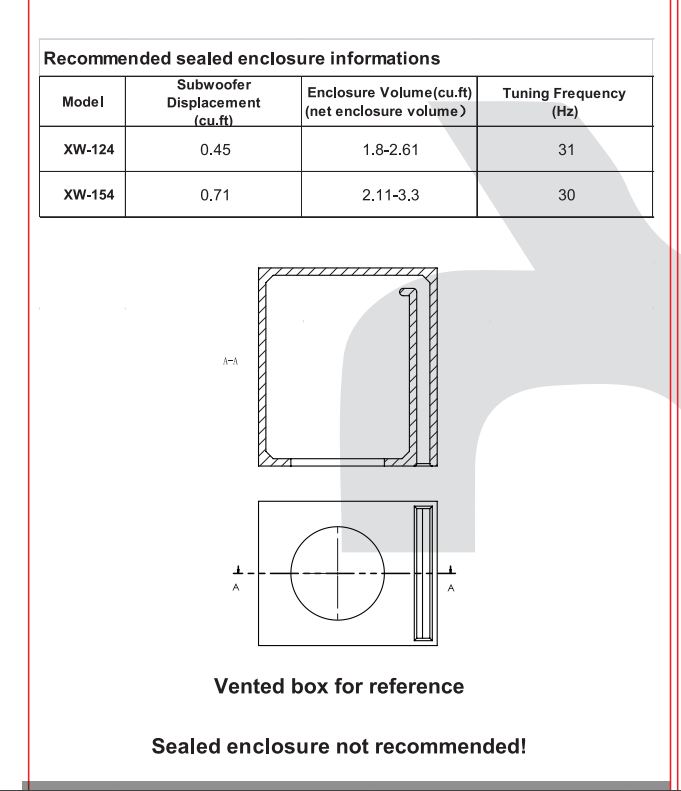

Rekommenderas inte för slutna lådor.
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeFOR-X
Beskrivning
Art.nr: FOR-X XW-154 D2
General Data
Overall Dimensions: 396*349mm
Nominal Power Handling: 4000W
Transient Power 10ms: 8000W
Sensitivity: 87.1dB
Frequency Response: 34-300hZ
Cone Material: Paper
Net Weight: 43.2kg
Electrical Data
Nominal Impedance: Dual 2 Ohm
DC Resistance: Dual 1.4 Ohm
Voice Coil and Magnet Parameters
Voice Coil Diameter: 99.3mm
Voice Coil Height: 93.8mm
HE Magnetic Gap Height: 35mm
Max.Linear Excursion: 24.4mm (One Way)
Voice Coil Bobbin: Black Aluminium
Voice Coil Wire: Flat Aluminium
Number of Layers: 4
Magnet System Type: Ferrite
BL Product: 26.8
T-S Parameters
Resonant Frequency: 34
Moving Mass: 538.6
Suspension Compliance: 0.04
Mechanical Q Factor: 3.52
Electrical Q Factor: 0.46
Total Q Factor: 0.41
Eq.Cas Air Load: 40.1
Effective Piston Area: 829.5cm²
Filer och media
 | Manual |
