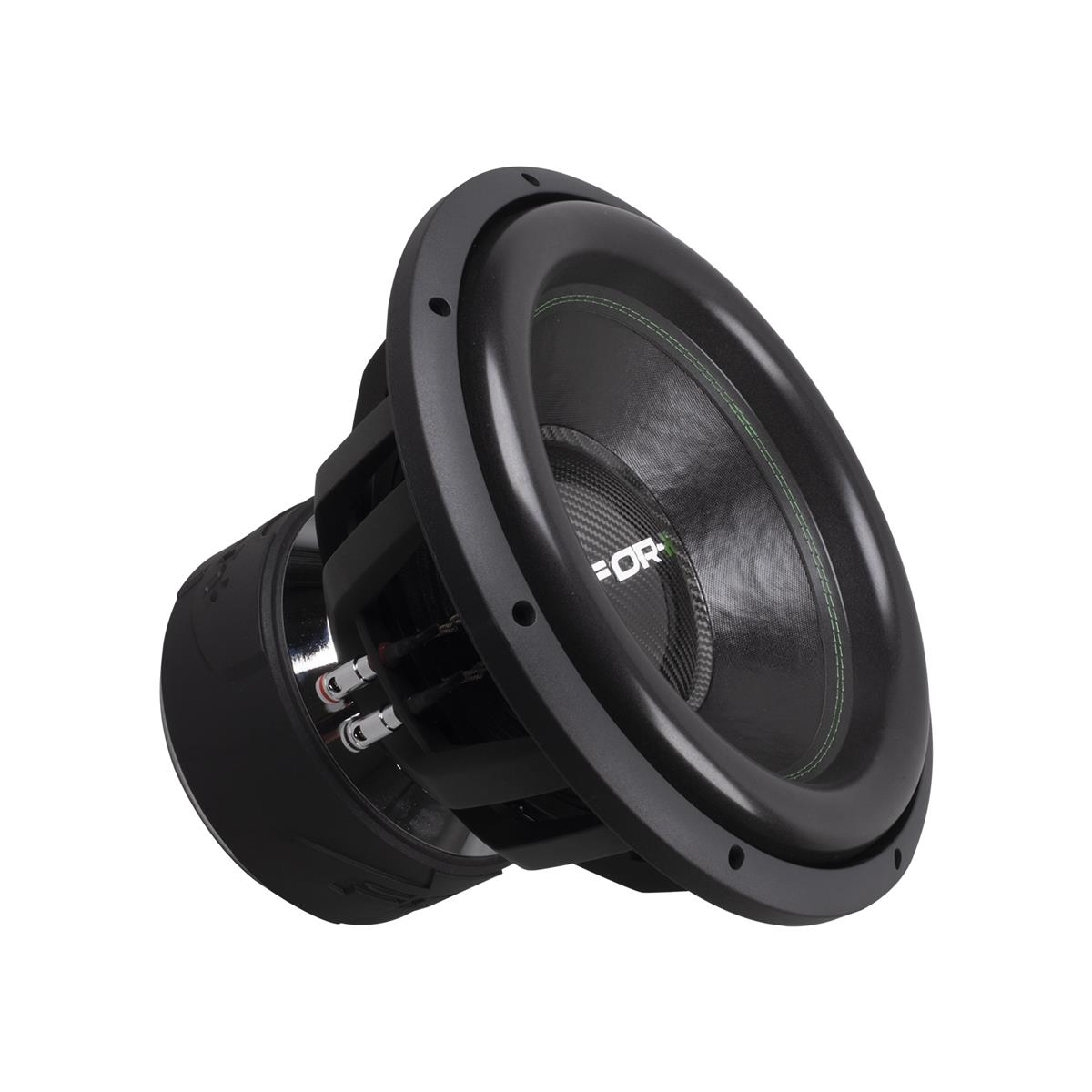

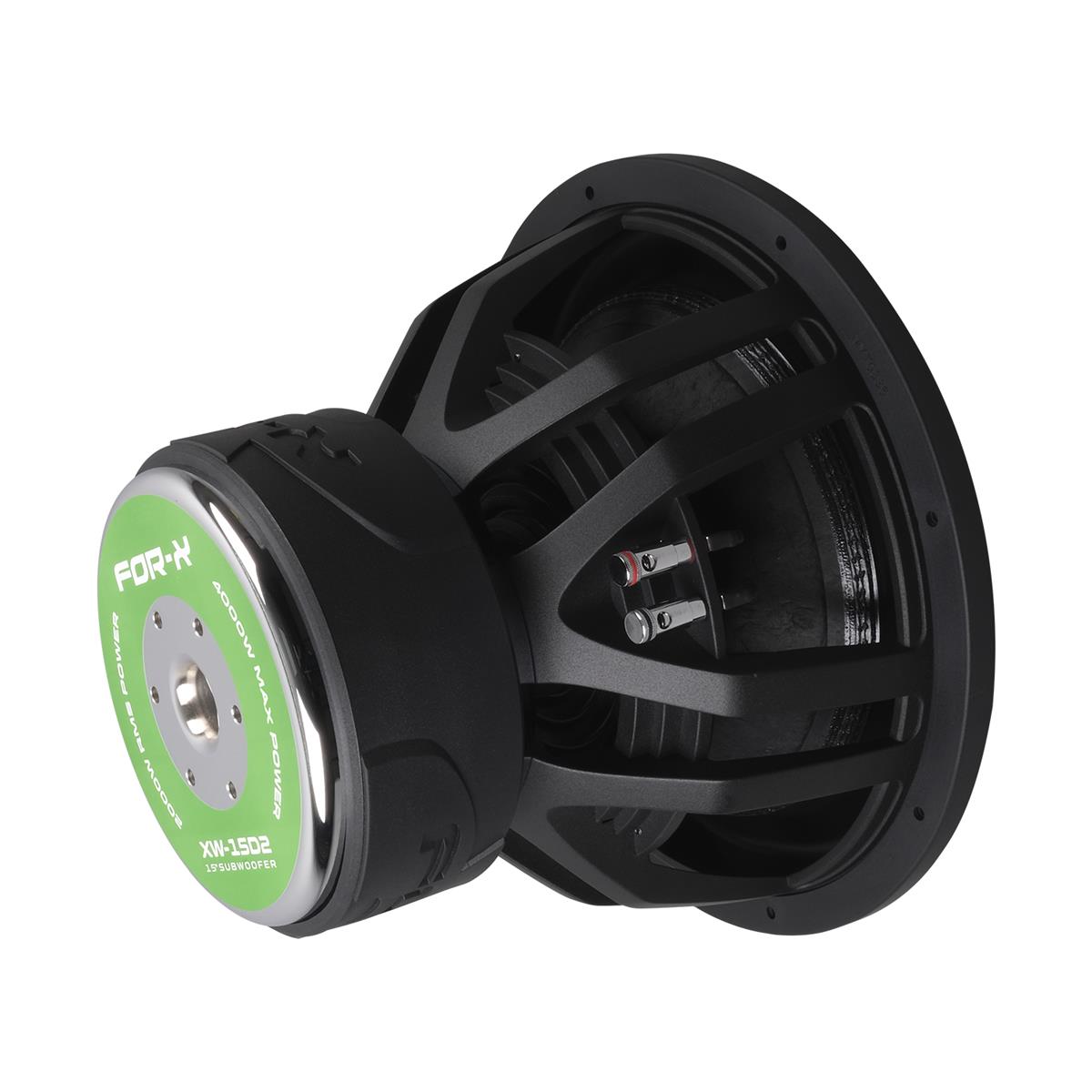

FOR-X XW-15 D2
6 999 SEK
D2 ohm
2000W RMS POWER
4000W MAX POWER
87.5dB SENSITIVITY
D2 OHMS IMPEDANCE
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeFOR-X
Beskrivning
Art.nr: FOR-X XW-15 D2
General Data
Overall Dimensions: 392*250mm
Nominal Power Handling: 2000W
Transient Power 10ms: 4000W
Sensitivity: 87.5dB
Frequency Response: 30-300Hz
Cone Material: Paper
Net Weight: 29.15kg
Electrical Data
Nominal Impedance: Dual 2 Ohm
DC Resistance: Dual 2 Ohm
Voice Coil and Magnet Parameters
Voice Coil Diameter: 76.5mm
Voice Coil Height: 63.5mm
HE Magnetic Gap Height: 25mm
Max Linear Excursion: 19.25mm
Voice Coil Bobbin: Black Aluminium
Voice Coil Wire: Flat Aluminium
Number of Layers: 8
Magnet System Type: Ferrite
BL Product: 32.3
T-S Parameters:
Resonant Frequency: 32
Moving Mass: 574.8
Suspension Compliance: 0.0034
Mechancial Q Factor: 4.26
Electrical Q Factor: 0.34
Total Q Factor: 0.31
Eq.Cas Air Load (Liters): 30.04
Effective Piston Area(cm²): 779.3
Filer och media
 | Manual |

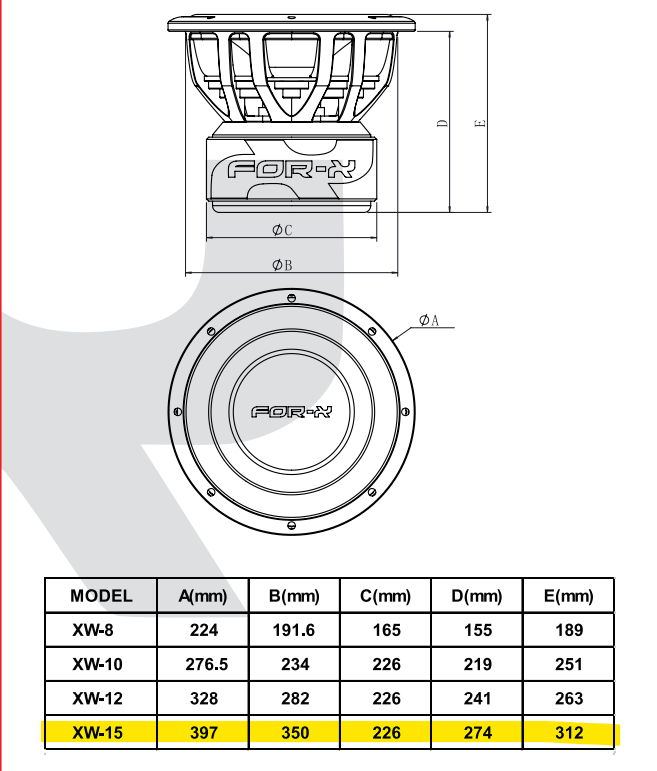

| Lådritning |
