FOR-X X-MAX15 D2
6 499 SEK
D2 ohms
2500W RMS POWER
5000W MAX POWER
Rekommenderas inte för slutna lådor.
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeFOR-X
Beskrivning
Art.nr: FOR-X X-MAX15 D2
General Data

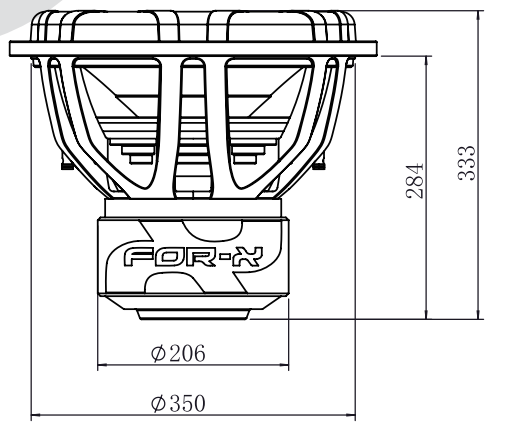

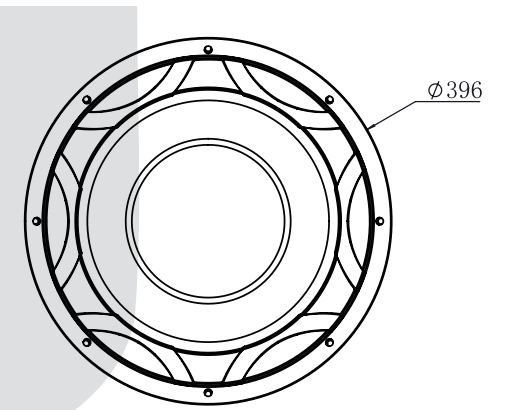

Overall Dimensions: 396*333mm
Nominal Power Handling: 2500W
Transient Power 10ms: 5000W
Sensitivity: 87.1dB
Frequency Response: 34-300Hz
Cone Material: Paper
Net Weight: 25.1kg
Electrical Data
Nominal Impedance: Dual 2 Ohm
DC Resistance: Dual 2 Ohm
Voice Coil and Magnet Parameters
Voice Coil Diameter: 76.5mm
Voice Coil Height: 75mm
HE Magnetic Gap Height: 25mm
Max Linear Excursion: 25mm (One Way)
Voice Coil Bobbin: Black Aluminium
Voice Coil Wire: Flat Aluminium
Number of Layers: 8
Magnet System Type: Ferrite
BL Product: 24.9
T-S Parameters:
Resonant Frequency: 30
Moving Mass: 570.5
Suspension Compliance: 0.04
Mechancial Q Factor: 3.89
Electrical Q Factor: 0.49
Total Q Factor: 0.46
Eq.Cas Air Load (Liters): 56.3
Effective Piston Area(cm²): 829.5
Filer och media
 | Manual |
