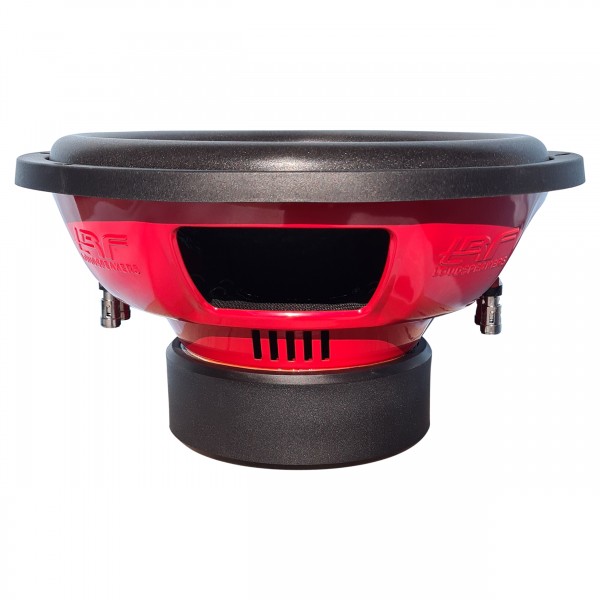

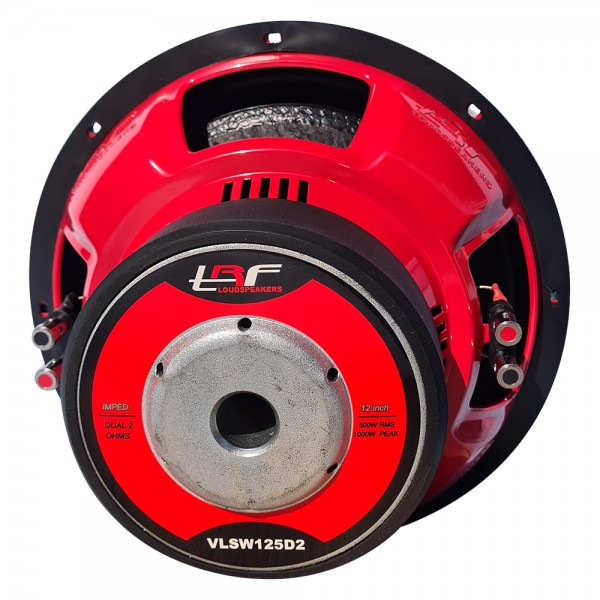

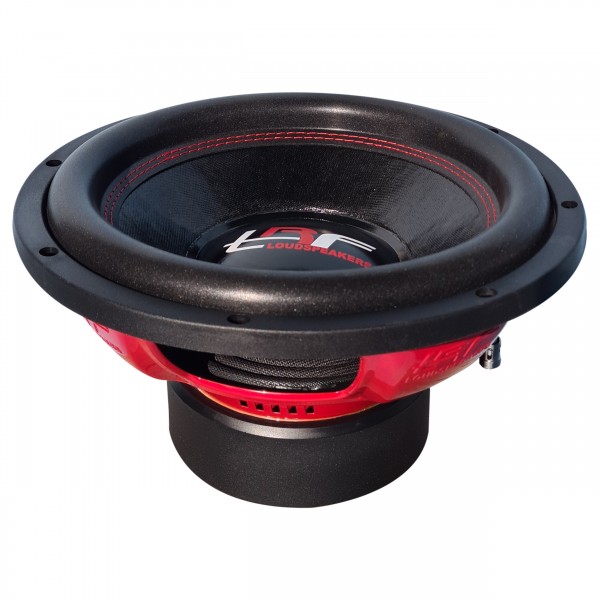

TRF VL SW125 D2
1 349 SEK
Dual 2 ohm
RMS Power: 500wrms
MAX Watt: 1000wmax
Cone: Competition Grade paper
Surround material: Foam
Voice coil dimension : 2.5inch
Voice coil layer: 4layer
Dust cap : PVC
Nominal impedance: dual 2ohm
Voice coil wire: COOPER
Spider dimension : 2.5''ID / 8''OD
Spider material : NOMEX
Spider layers :1pcs x 3layers
Sensitivity: 88.2dB
Resonance frequency(f0): 35.3Hz
Mechanical Q factor(Qms): 5.62
Electrical Q factor(Qes): 0.49
Total Q factor:(Qts): 0.45
Xmax: 11mm
Force factor: 14.3N/A
Magnet Weight: 100 Oz
Net weight: 6.8kg
Basket: IRON
Magnet: Ferrite
Magnet dimension:Φ160*20mm X 2PCS
1=Outer Dimension: 318mm - 12.52"
2=Mounting Depth: 150mm - 5.9"
3=Magnet Dimension: 162mm - 6.38"
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeTRF
Beskrivning
Art.nr: TRF VL SW125 D2
Filer och media

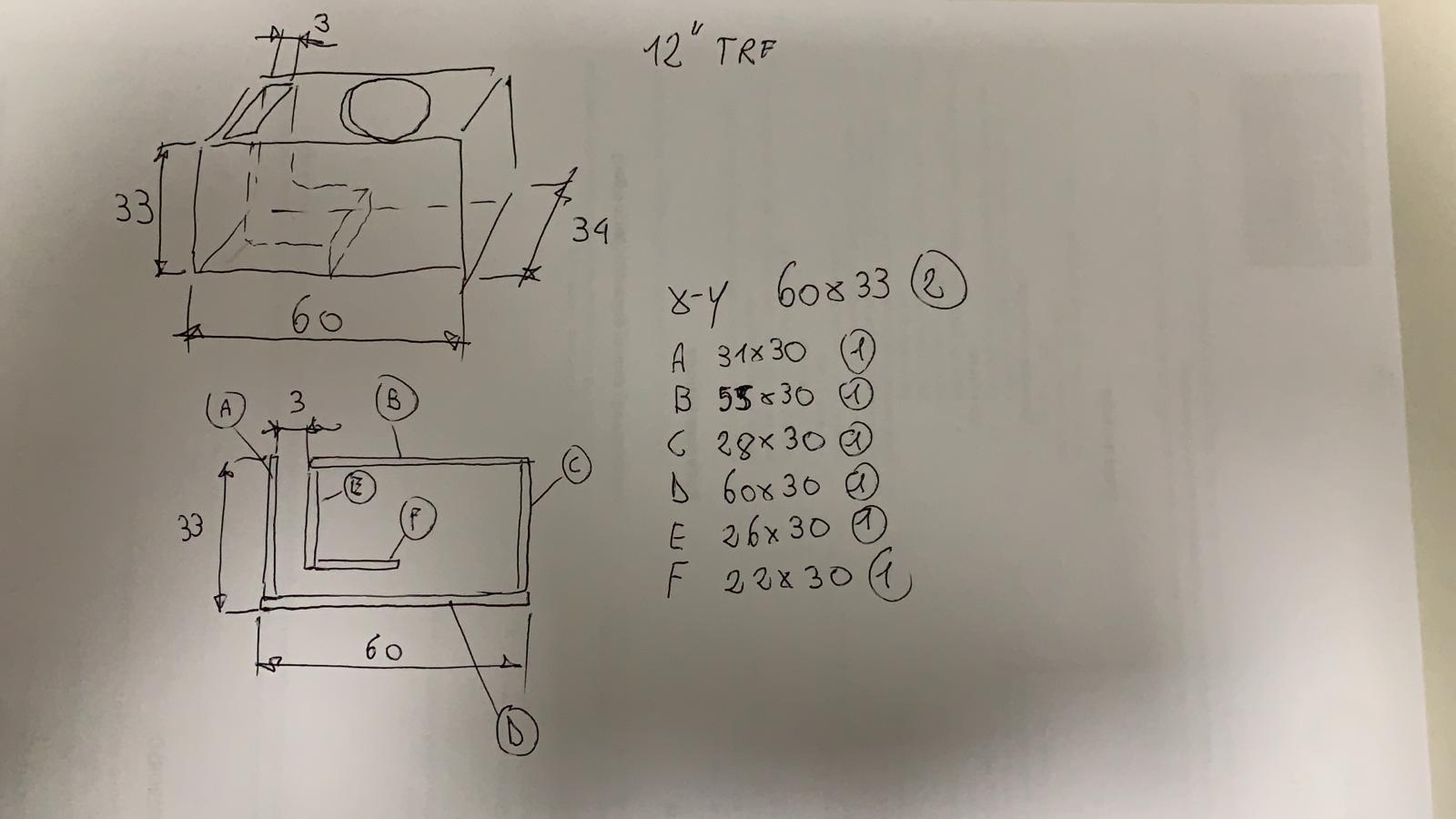

 | LÅDRITNING |
