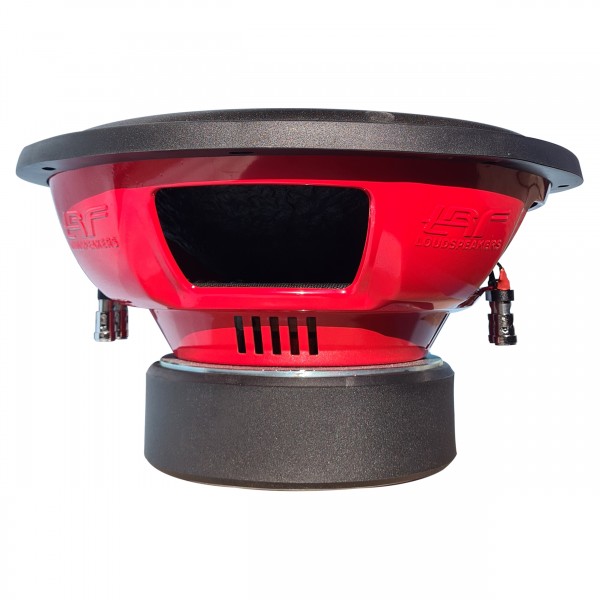

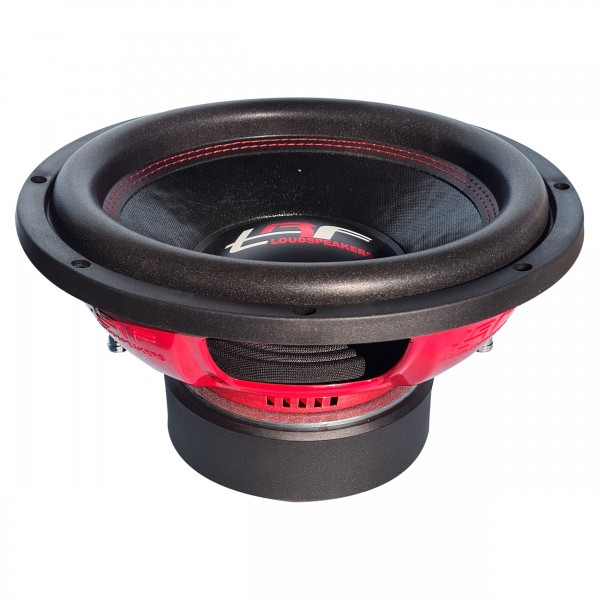

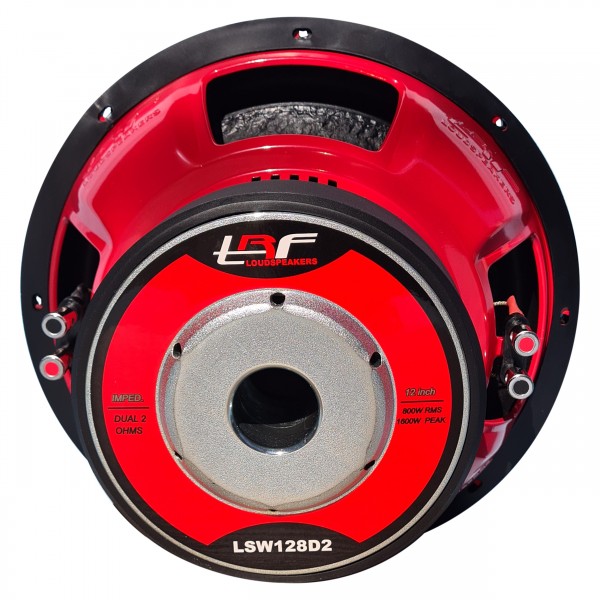

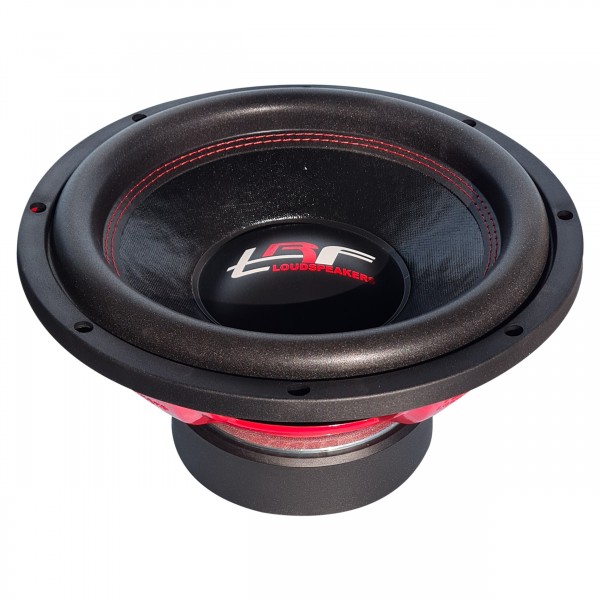

TRF L SW128D1
1 799 SEK
Dual 1 ohm
RMS Power: 800wrms
MAX Watt: 1600wmax
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeTRF
Beskrivning
Art.nr: TRF L SW128D1

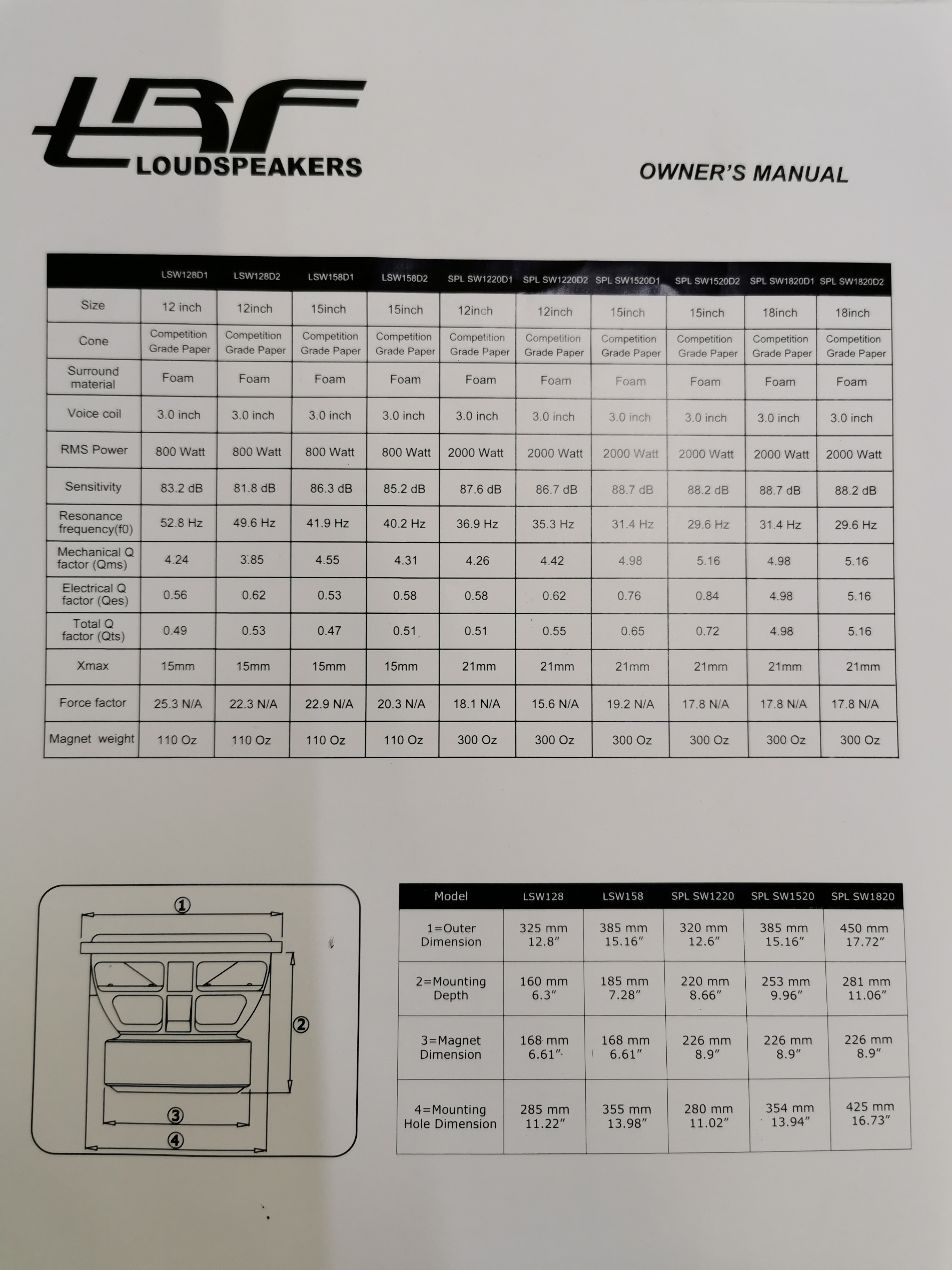

Cone: Competition Grade Paper
Surround material: Foam
Voice coil: 3.0inch
Voice coil layer: 4 layers
Nominal impedance: dual 1ohm
Voice coil wire: Copper
RMS Power: 800wrms
MAX Watt: 1600wmax
Sensitivity: 86.5dB
Resonance frequency (f0): 35.8Hz
Mechanical Q factor (Qms): 5.84
Electrical Q factor: (Qes): 0.56
Total Q factor: (Qts): 0.52
Xmax: 15mm
Force factor: 15..1N/A
Magnet Weight: 110 Oz
1=Outer Dimension: 325mm - 12.8"
2=Mounting Depth: 155mm - 6.1"
3=Magnet Dimension: 176mm - 6.90"
4=Mounting Hole Dimension: 280mm - 11.02"
Filer och media

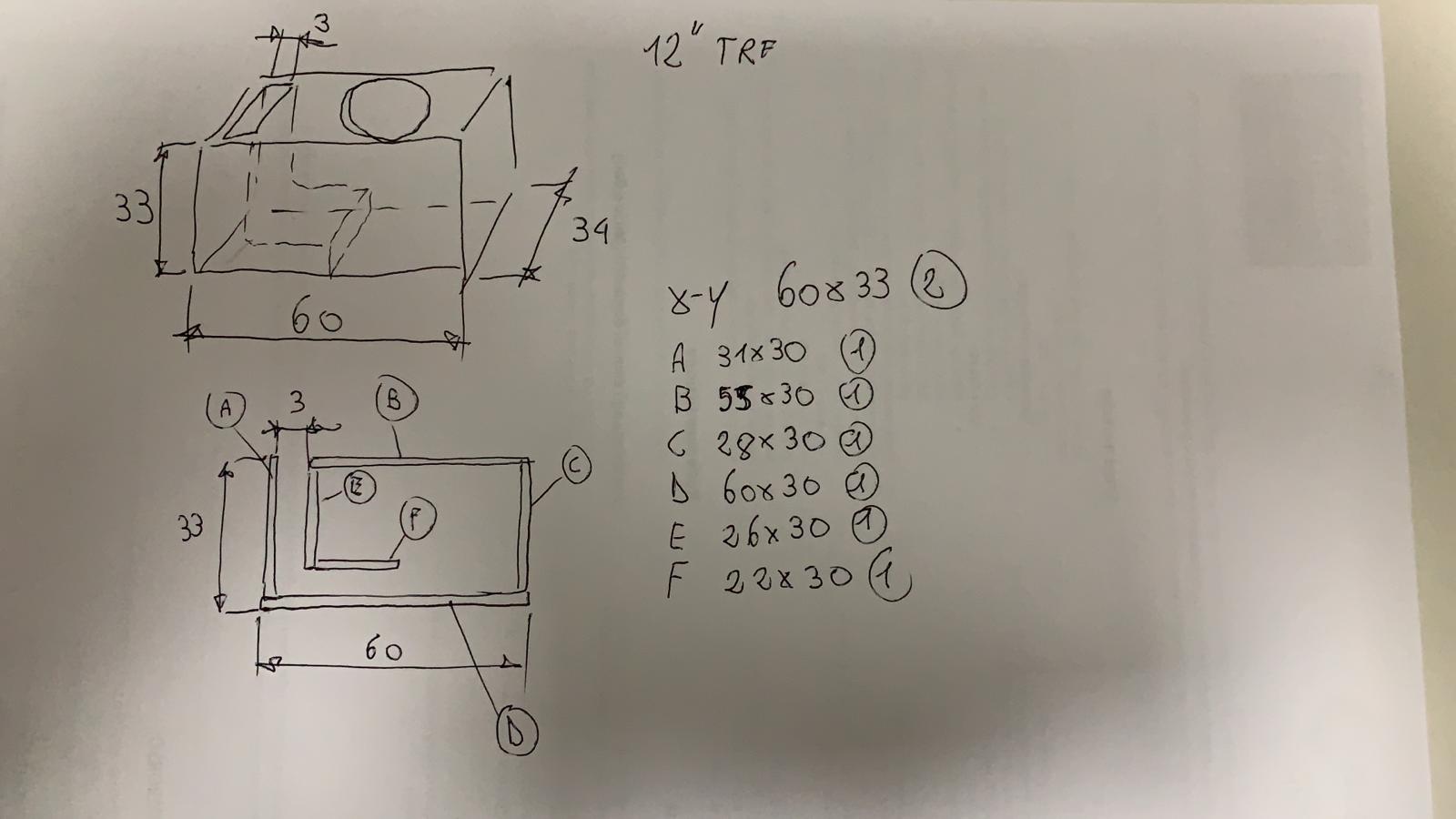

 | LÅDRITNING |
