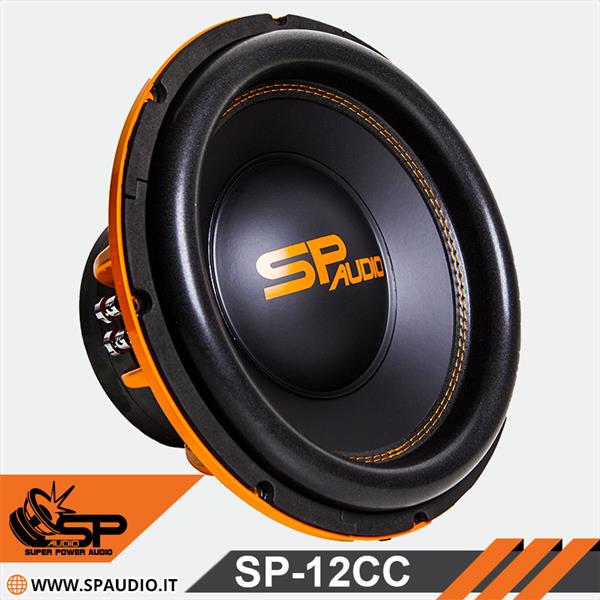

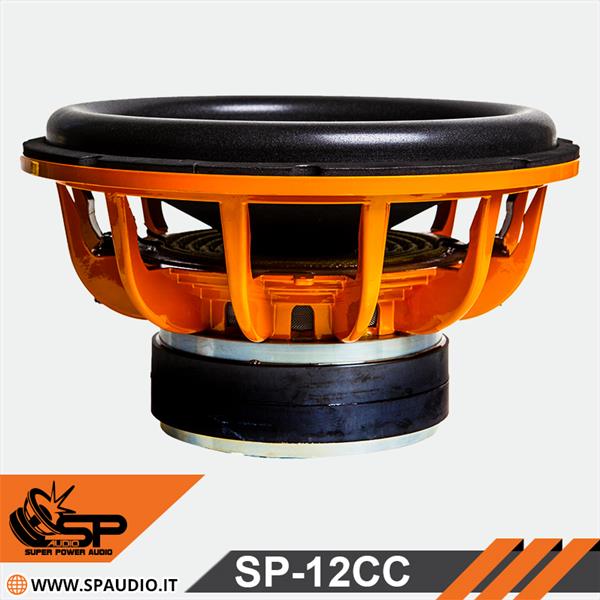

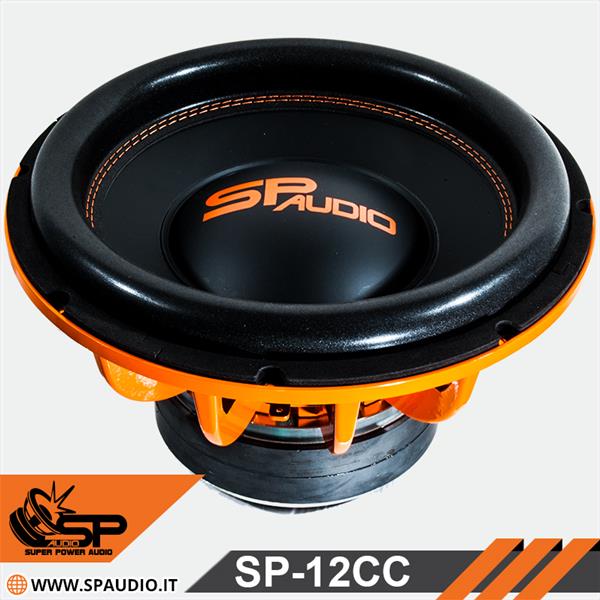

SPAUDIO SP-12CC
2 399 SEK
D2
Rated Power (RMS): 800W
Peak Power: 1600W
Sensitivity: 88.5dB
Frequency Range: 25-300Hz
Fs: 42.50Hz
Volume: 50L
Tuning freq: 40Hz
Vent Diameter: Φ82mm
Shape: Circle
End correction: Two flanged end
Vent length: 14CM
Cross Area: 52.8cm^2
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeSPAUDIO
Beskrivning
Art.nr: SPAUDIO SP-12CC

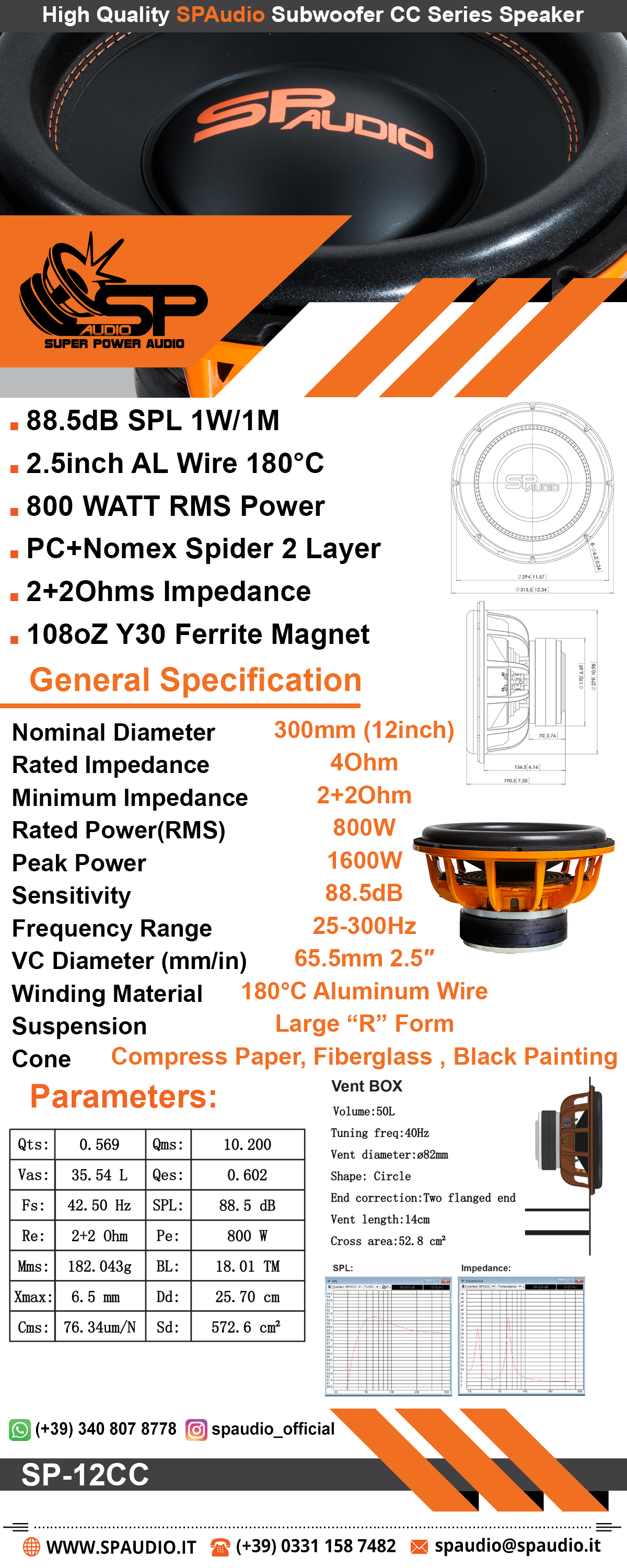

General Specification:

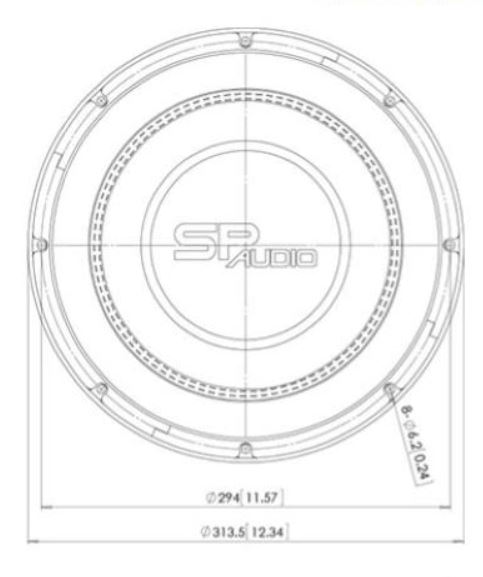

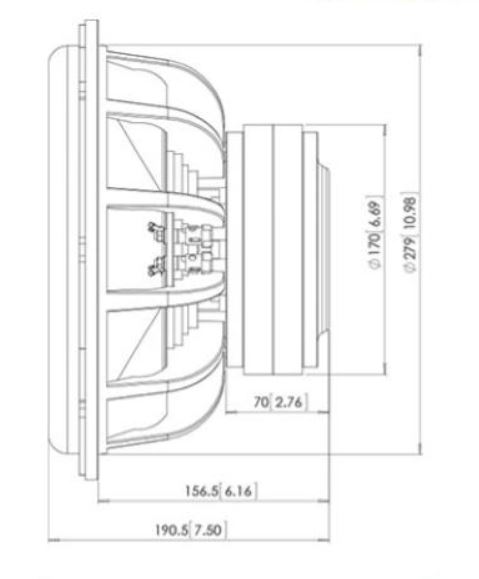

Nominal Diameter: 300mm (12inch)
Rated Impedence: 4Ohm
Minimum Impedence: 2+2Ohm
Rated Power (RMS): 800W
Peak Power: 1600W
Sensitivity: 88.5dB
Frequency Range: 25-300Hz
VC Diameter (mm/in): 65.5mm 2.5"
Winding Material: 180°C Aluminum Wire
Suspension: Large "R" Form
Cone: Compress Paper, Fiberglass, Black Painting

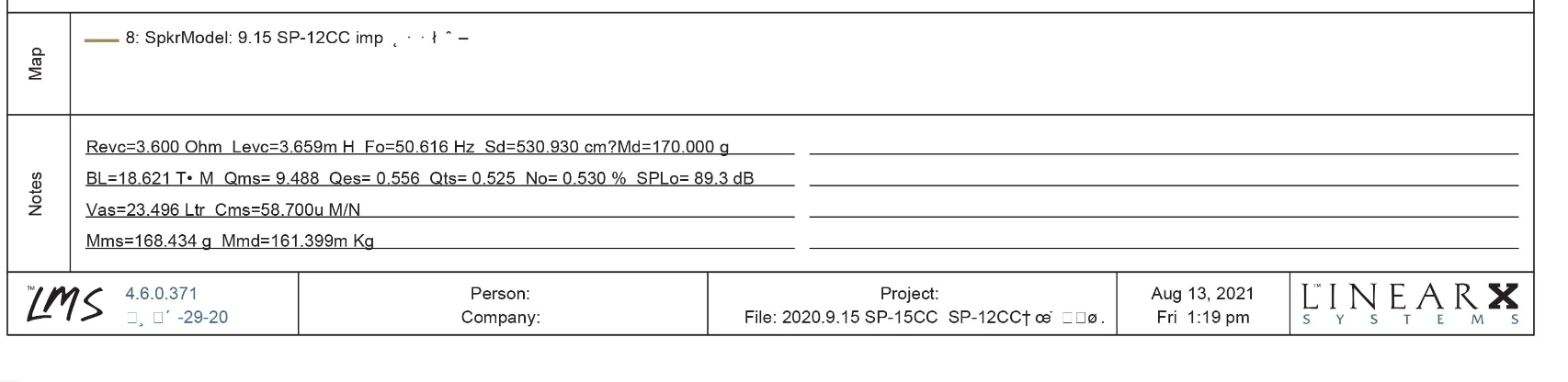

Parameters:
Qts: 0.569
Vas: 35.54L
Fs: 42.50Hz
Re: 2+2ohm
Mms: 182.043g
Cms: 76.34um/N
Qms: 10.200
Qes: 0.602
SPL: 88.5db
Pe: 800W
BL: 18.01TM
Dd: 25.70cm
Sd: 572.6cm^2
88.5dB SPL 1W/1M
2.5inch AL Wire 180°C
800 WATT RMS Power

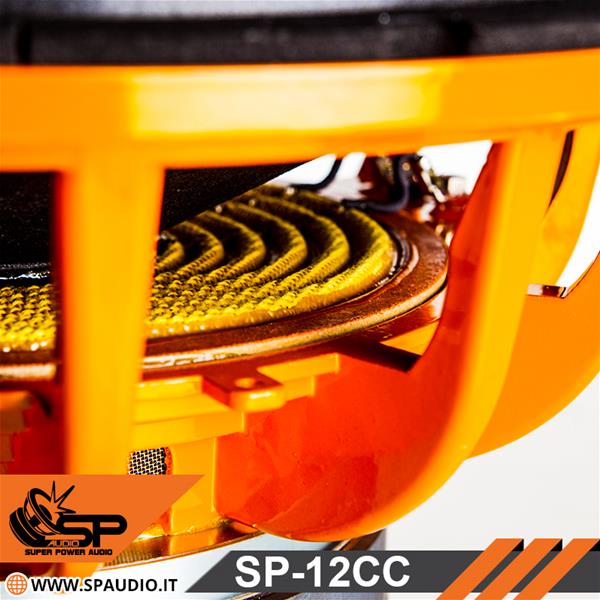

PC+Nomex Spider 2 Layer
2+2Ohms Impedence

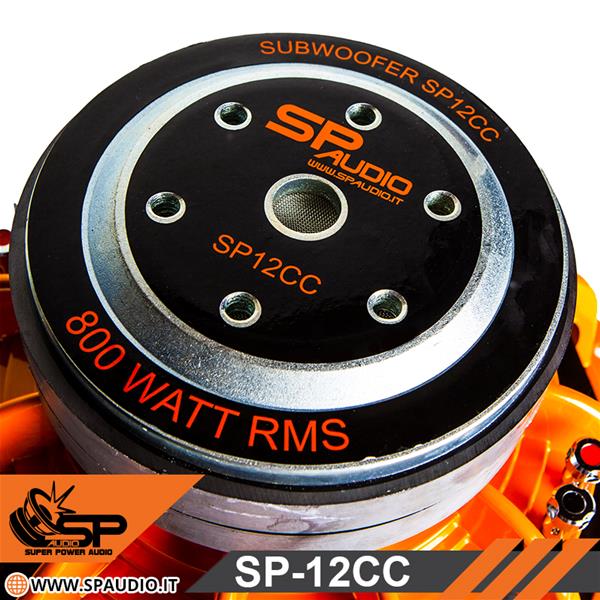

108oZ Y30 Ferrite Magnet
