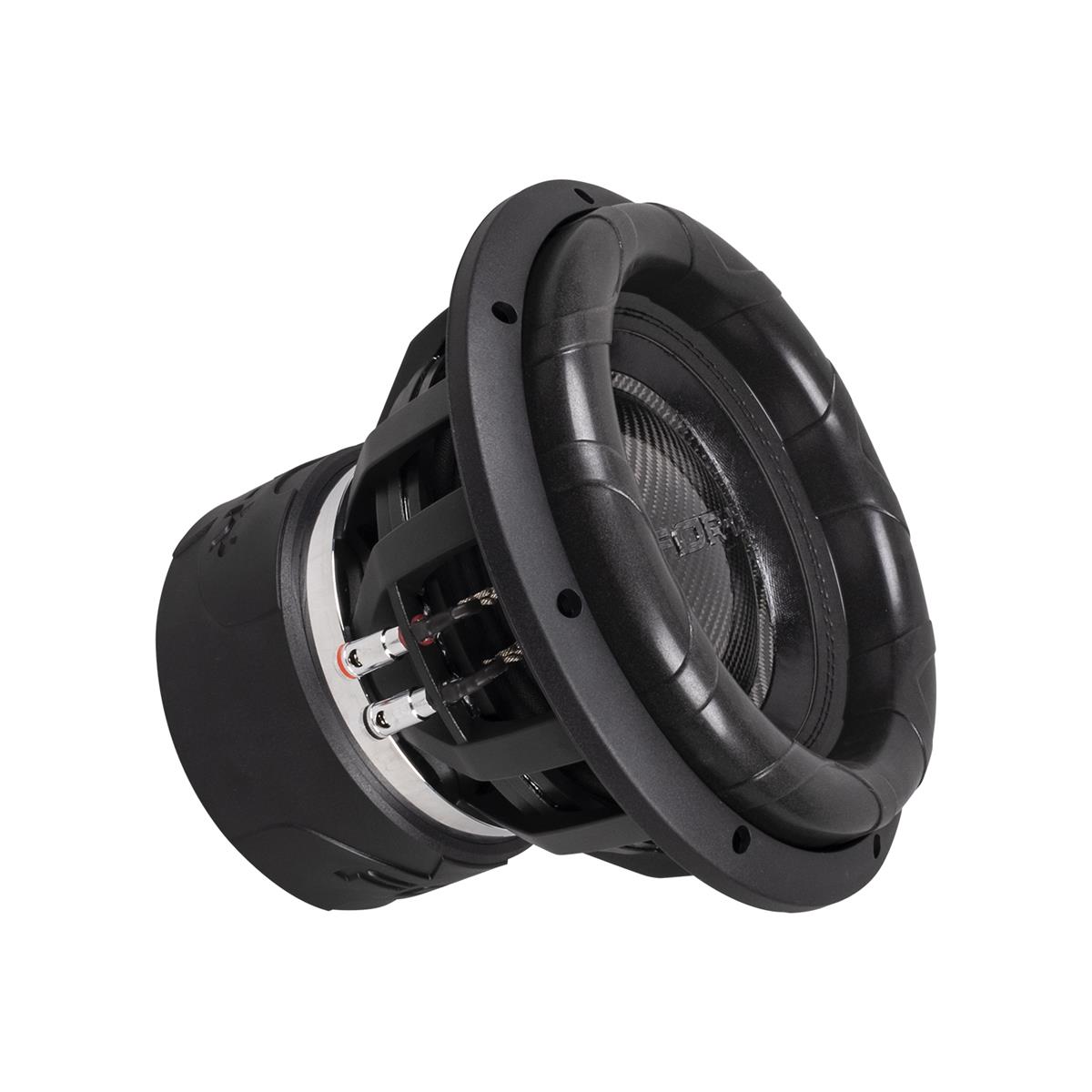

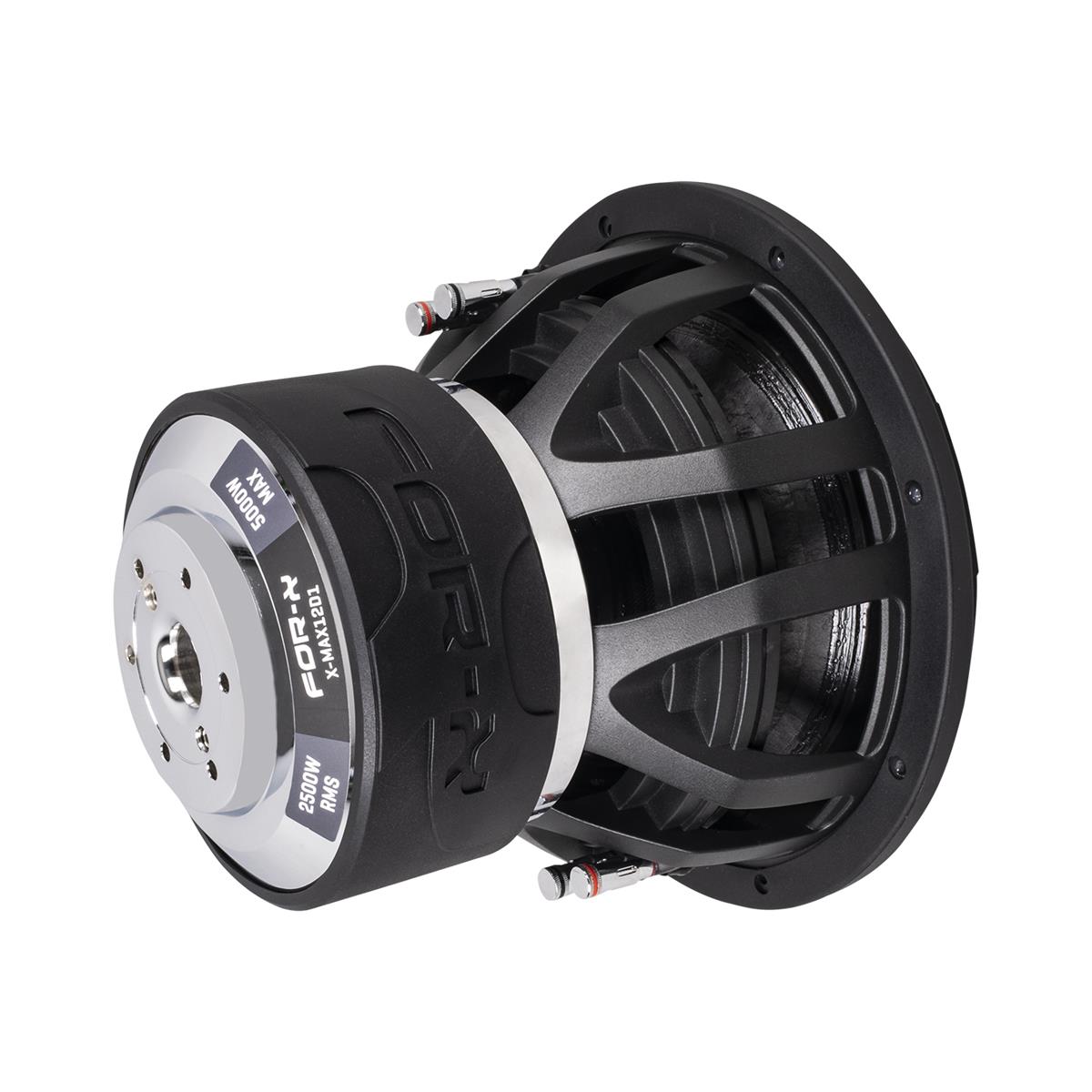

FOR-X X-MAX12 D1
5 999 SEK
D1 ohms
2500W RMS POWER
5000W MAX POWER
Rekommenderas inte för slutna lådor.
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeFOR-X
Beskrivning
Art.nr: FOR-X X-MAX12 D1
General Data

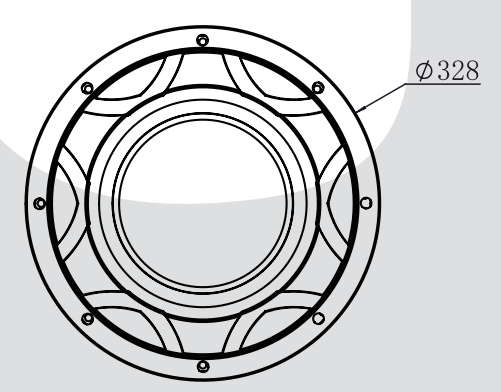

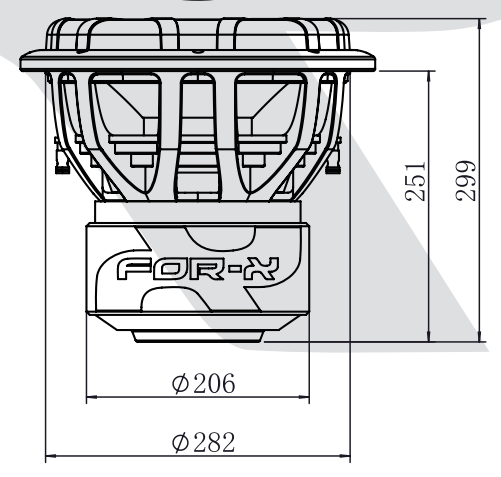

Overall Dimensions: 328*299mm
Nominal Power Handling: 2500W
Transient Power 10ms: 5000W
Sensitivity: 84.5dB
Frequency Response: 38-300Hz
Cone Material: Paper
Net Weight: 23.95kg
Electrical Data
Nominal Impedance: Dual 1 Ohm
DC Resistance: Dual 0.75 Ohm
Voice Coil and Magnet Parameters
Voice Coil Diameter: 76.5mm
Voice Coil Height: 75mm
HE Magnetic Gap Height: 25mm
Max Linear Excursion: 25mm (One Way)
Voice Coil Bobbin: Black Aluminium
Voice Coil Wire: Flat Aluminium
Number of Layers: 8
Magnet System Type: Ferrite
BL Product: 22.48
T-S Parameters:
Resonant Frequency: 38
Moving Mass: 525.8
Suspension Compliance: 0.02
Mechancial Q Factor: 3.12
Electrical Q Factor: 0.39
Total Q Factor: 0.35
Eq.Cas Air Load (Liters): 13.5
Effective Piston Area(cm²): 510.7
