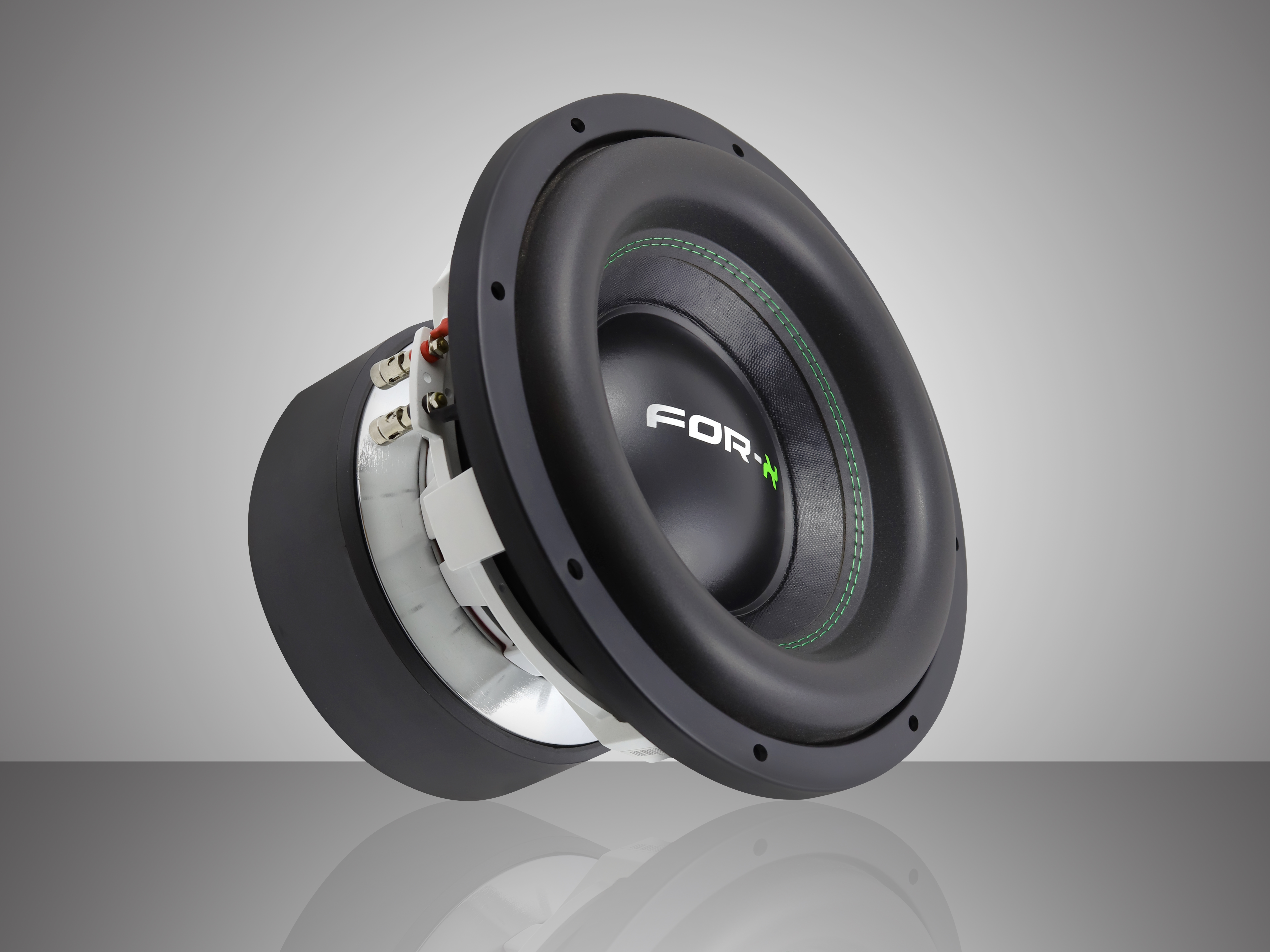

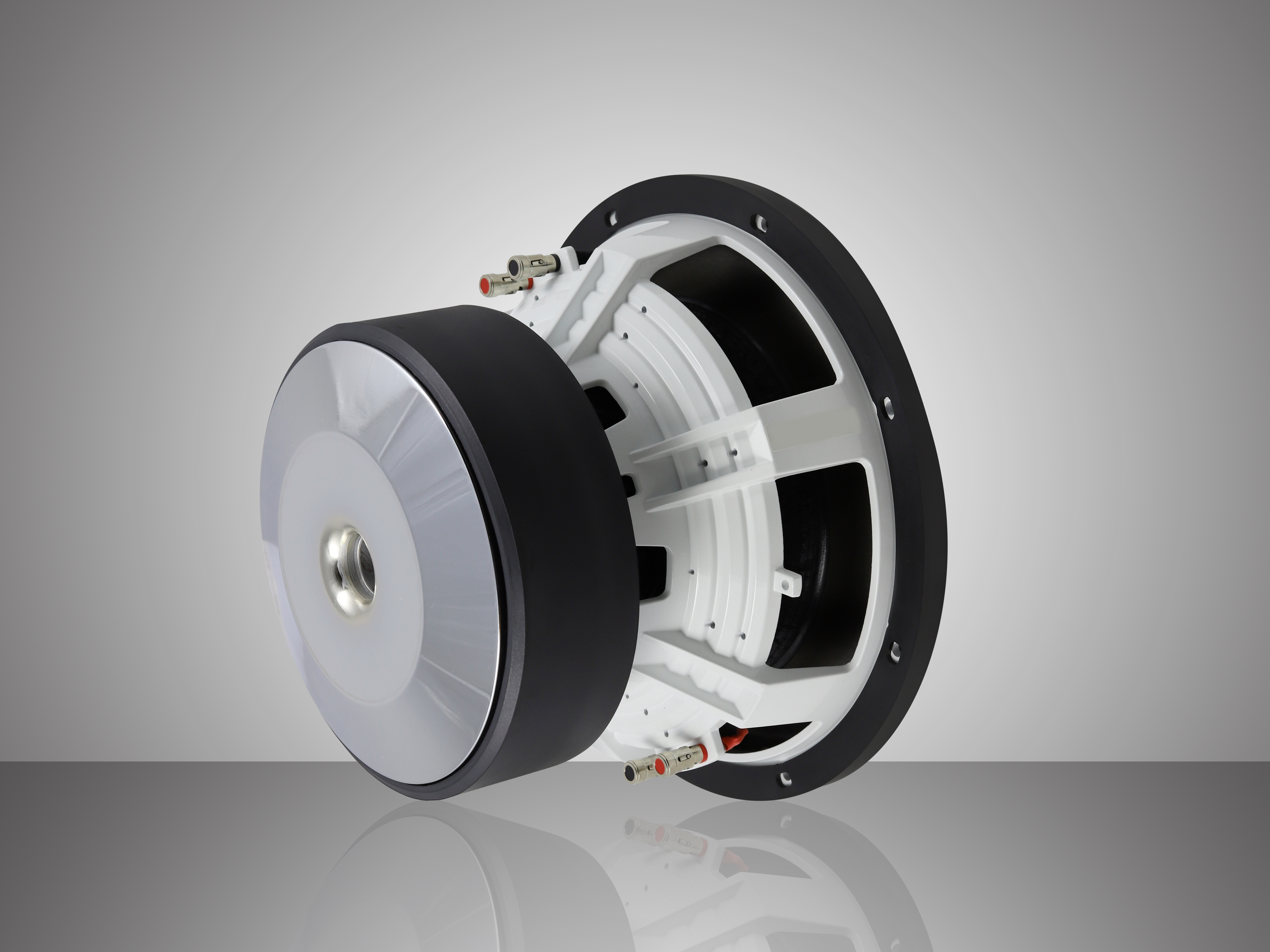

FOR-X X-512 SPL D2
3 799 SEK
Dual 2 ohm
1500 RMS
Resonant Frequency 32.7 | 35.3 Hz
Effective X-max 50 | 50 mm

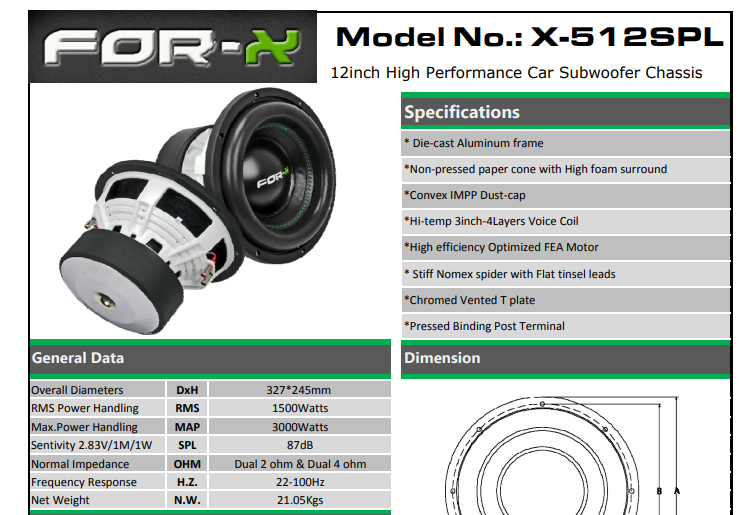

Alla fakta finns på bilderna och även som bifogad fil nedanför.
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeFOR-X
Beskrivning
Art.nr: FOR-X X-512 D2

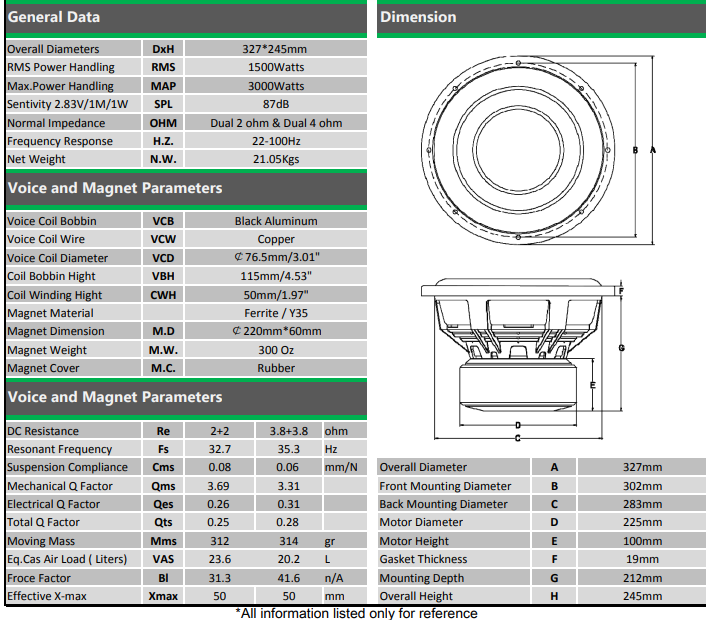

GENERAL DATA
Overall Diameters 327*245mm
RMS Power Handling 1500 Watts
Max Power Handling 3000 Watts
Sensitivity 2.83V/1M/1W 87dB
Normal Impedance Dual 2 ohm & Dual 4 ohm
Frequency Response 22-100 Hz
Net Weight 21.05 kg
VOICE AND MAGNET PARAMETERS
Voice Coil Bobbin Black Aluminium
Voice Coil Wire Copper
Voice Coil Diameter 76.5 mm
Coil Bobbin Height 115 mm
Coil Winding Height 50 mm
Magnet Material Ferrite / Y35
Magnet Dimensions 220mm*60mm
Magnet Weight 300 Oz
Magnet Cover Rubber
DC Resistance 2+2 | 3.8+3.8 ohm
Resonant Frequency 32.7 | 35.3 Hz
Suspension Compliance 0.08 | 0.06 mm/N
Mechanical Q Factor 3.69 | 3.31
Electrical Q Factor 0.26 | 0.31
Total Q Factor 0.25 | 0.28
Moving Mass 312 | 314 gr
Eq.Cas Air Load 23.6 | 20.2 L
Froce Factor 31.3 | 41.6 n/A
Effective X-max 50 | 50 mm
