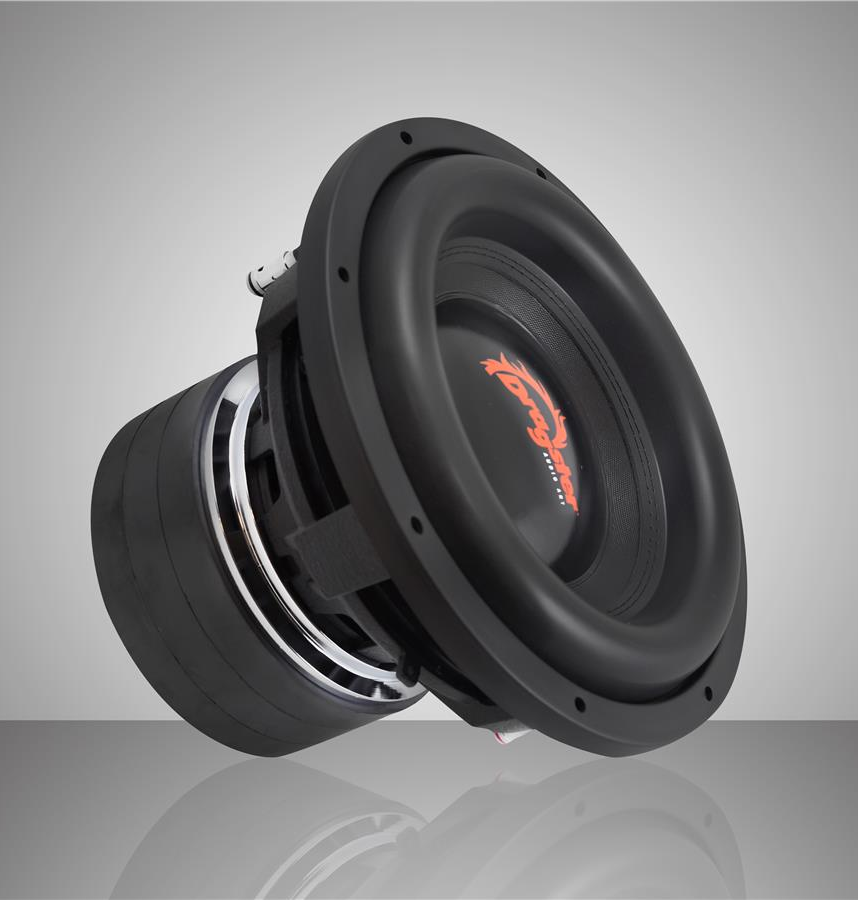

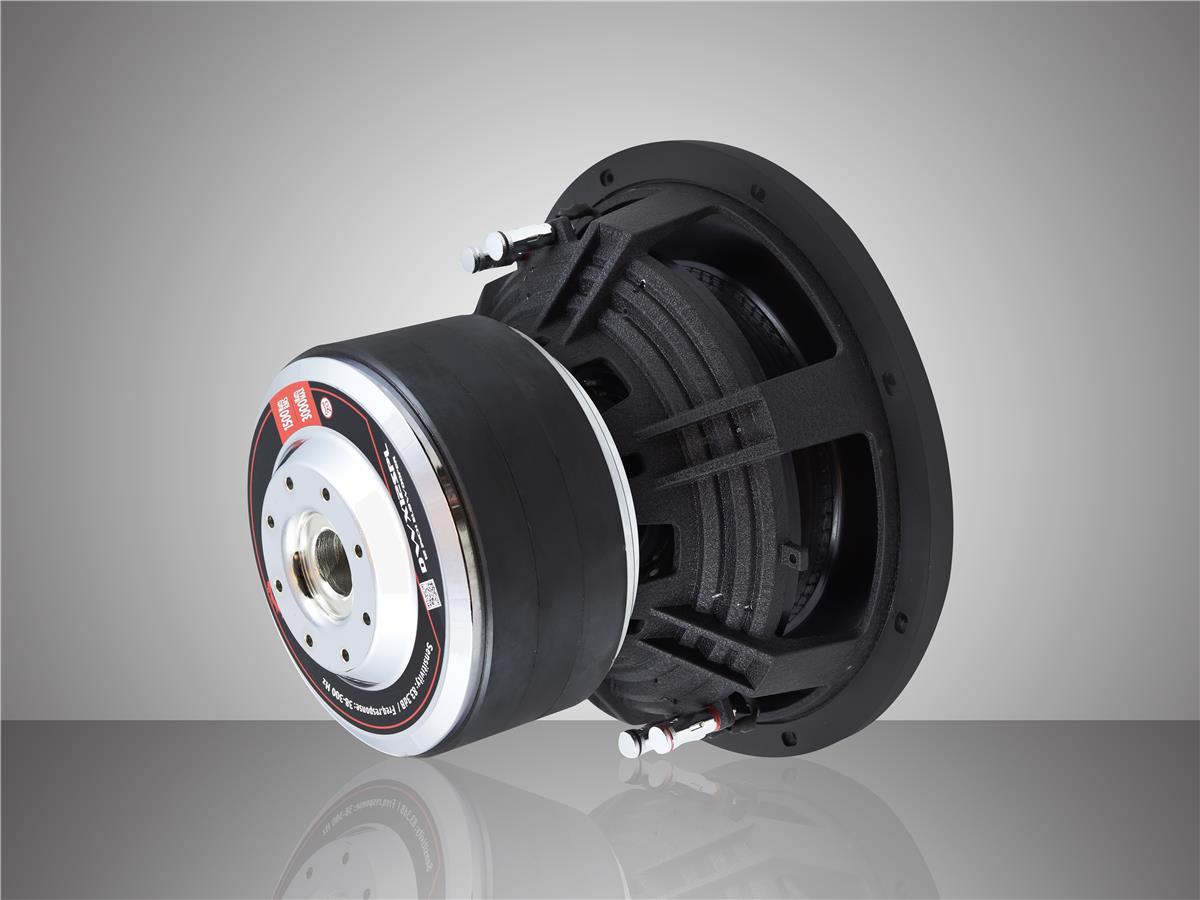

DRAGSTER DWX-12SPL
4 999 SEK
Dual 2 ohm
Nominal Power Handling 1500 W
Maximum Power 3000 W
Sensitivity 83.3 db
Frequency Response 38-300 Hz
Resonant Frequency 38 Hz
Cone Material Paper
Net Weight 19.6 kg
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeDRAGSTER
Beskrivning
Art.nr: DRAGSTER DWX-12SPL
Electrical Data
Nominal Impedance Dual 2 ohm
DC Resistance Dual 1.5 ohm
Voice Coil and Magnet Parameters
Voice Coil Diameter 76.5 mm
Voice Coil Height 64.7 mm
HE magnetic Gap Height 20 mm
Max Linear Excursion 22.35 mm
Voice Coil bobbin Black Aluminium
Number of Layers 8L
Magnet System Type High Flux Ferrite
BL Product 21.06 N.A
T-S Parameters
Suspension Compliance 0.045
Mechanical Q Factor 6.01
Electrical Q Factor 0.6
Total Q Factor 0.55
Moving Mass 367.1
Eq.Cas Air Load ( liters) 14.43 L
Resonant Frequency 38 Hz
Effective Piston Height 471.4 cm^2
