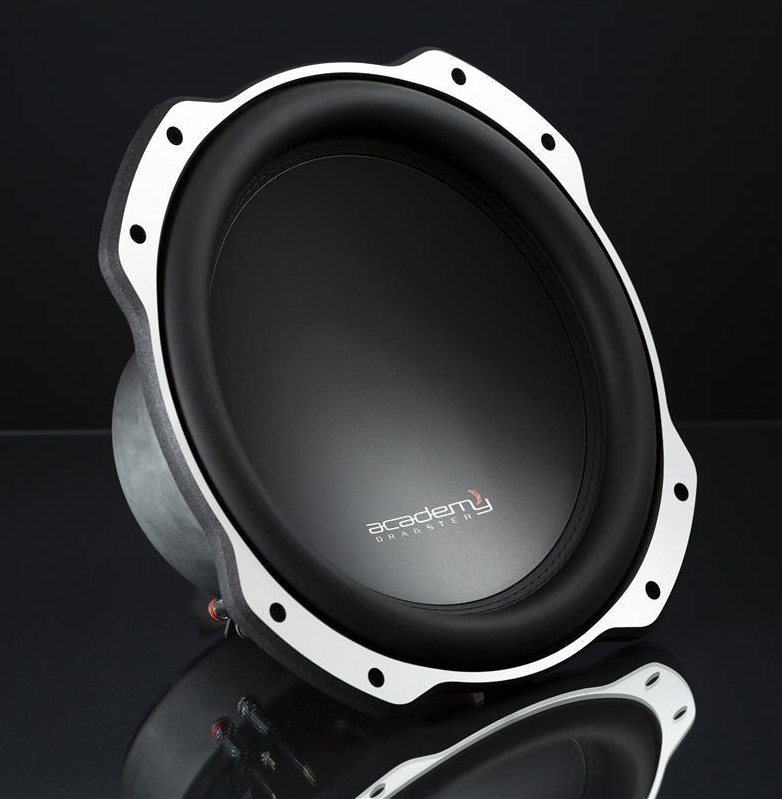

ACADEMY DRAGSTER AW-12SQ
3 599 SEK
Dual 2 ohm
Vi använder dom i våra bilar som tävlar på EM.
12" SQ Subwoofer
FEM optimized open motor, provide low distortion and highly motor efficiency
7.5 "PC dampers
Fiber Constriction paper cone,
2.5" diameter 4 layer coil
400W RMS, 800W MAX, Dual 2 Ohms
Mounting Depth: 157mm
https://youtu.be/MIIP0hKqHKA
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeDRAGSTER
Beskrivning
Art.nr: ACADEMY DRAGSTER AW-12SQ
General Data
Overall Dimensions: 319mm*174mm
Nominal Power Handling: 400 W
Transient Power 10ms: 800 W
Sensitivity: 85.1 dB
Frequency Response: 30-300 Hz
Cone Material: Paper
Net Weight: 6.8 kg
Electrical Data
Nominal Impedance: Dual 2 Ohm
DC Resistance: Dual 1.9 Ohm
Voice Coil and Magnet Parameters
Voice Coil Diameter: 61.1 mm
Voice Coil Height: 32 mm
HE Magnetic Gap Height: 8 mm
Max.Linear Excursion: 12 mm
Voice Coil bobbin: Black Aluminium
Voice Coil Wire: Copper
Number Of Layers: 4 layers
Magnet System Type: High Flux Ferrite
BL Product: 15.46 N.A
T-S Parameters
Suspension Compliance: Cms, 0.24
Mechanical Q Factor: Qms, 4.62
Electrical Q Factor: Qes, 0.75
Total Q Factor: Qts, 0.64
Moving Mass: Mms, 245
Eq.Cas Air Load (liters): VAS, 52.5 Liter
Resonant Frequency: Fs, 30 Hz
Effective Piston Area: SD, 593.9 cm^2
