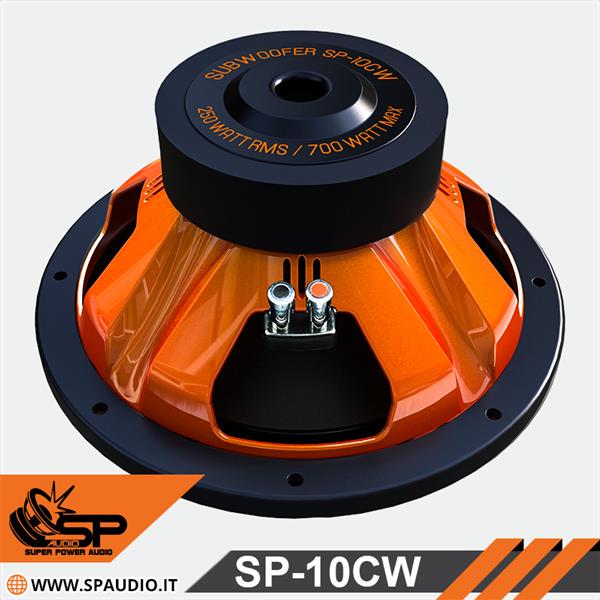

SPAUDIO SP-10CW
899 SEK
2+2Ohms Impedance
200 WATT RMS Power
87dB SPL 1W/1M
Volume: 23L
Tuning freq: 37.4Hz
Vent Diameter: Φ76mm
Shape: Circle
End correction: one flanged end
Vent length: 16CM
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeSPAUDIO
Beskrivning
Art.nr: SPAUDIO SP-10CW

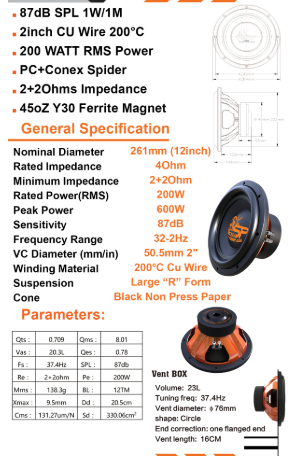

General Specification:

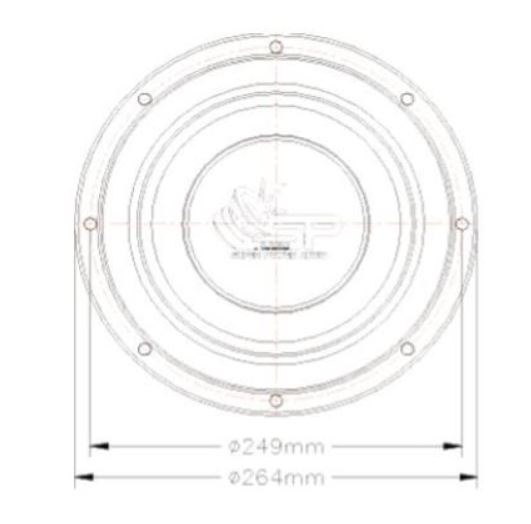

Nominal Diameter: 261mm (12inch)
Rated Impedence: 4Ohm
Minimum Impedence: 2+2Ohm
Rated Power (RMS): 200W
Peak Power: 600W
Sensitivity: 87dB
Frequency Range: 32-2Hz
VC Diameter (mm/in): 50.5mm 2"
Winding Material: 200°C Cu Wire
Suspension: Large "R" Form
Cone: Black Non Press Paper

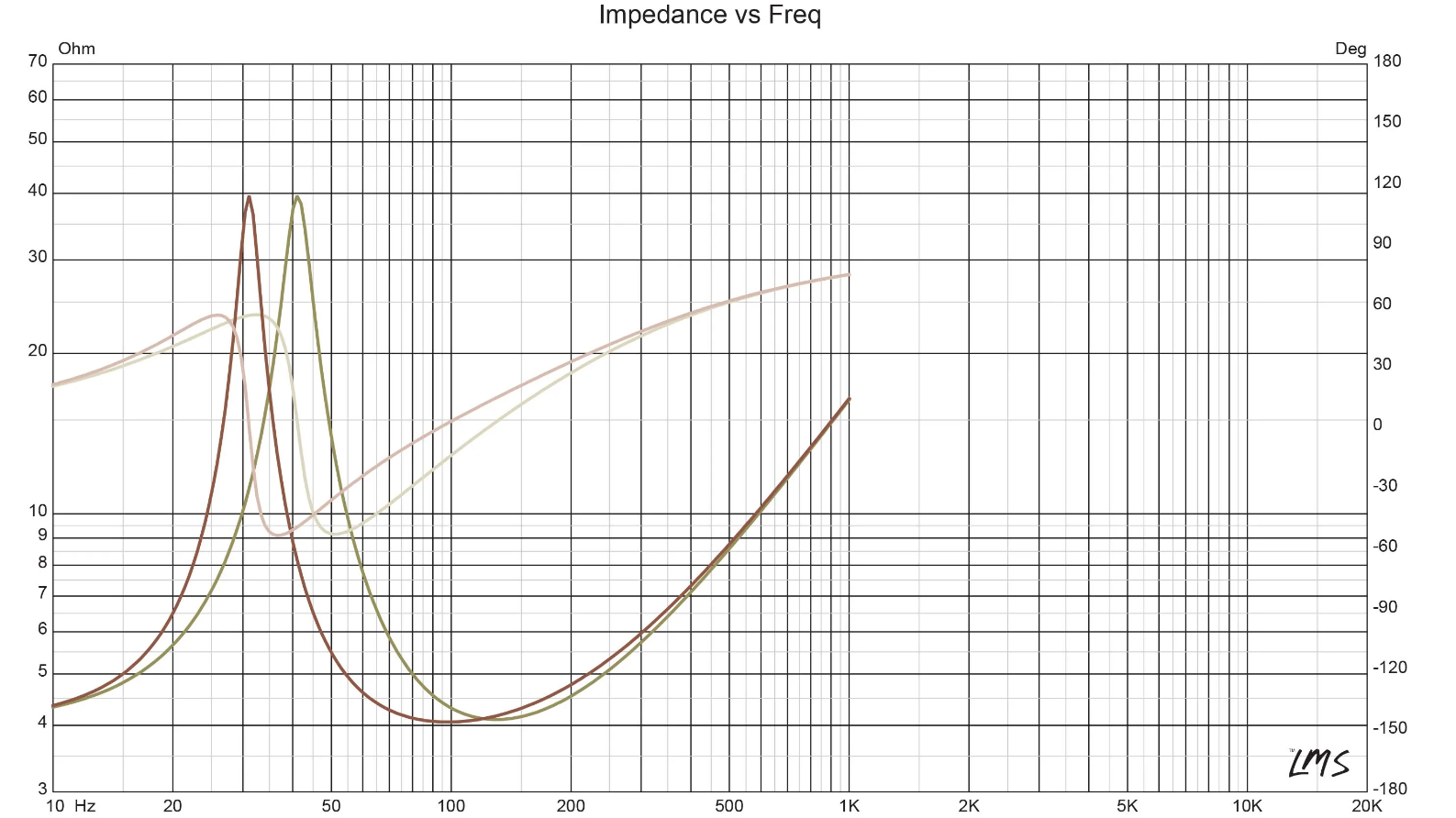

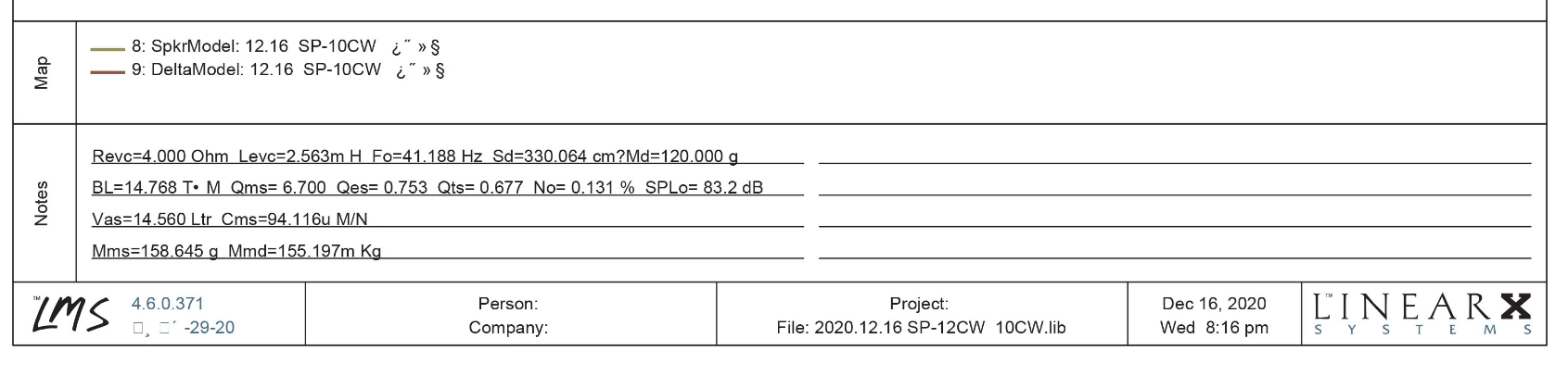

Parameters:
Qts: 0.709
Vas: 20.3L
Fs: 37.4Hz
Re: 2+2ohm
Mms: 138.3g
Xmax: 9.5mm
Cms: 131.27um/N
Qms: 8.01
Qes: 0.78
SPL: 87db
Pe: 200W
BL: 12TM
Dd: 20.5cm
Sd: 330.06cm^2
2inch CU Wire 200°C
PC+Conex Spider
45oZ Y30 Ferrite Magnet
