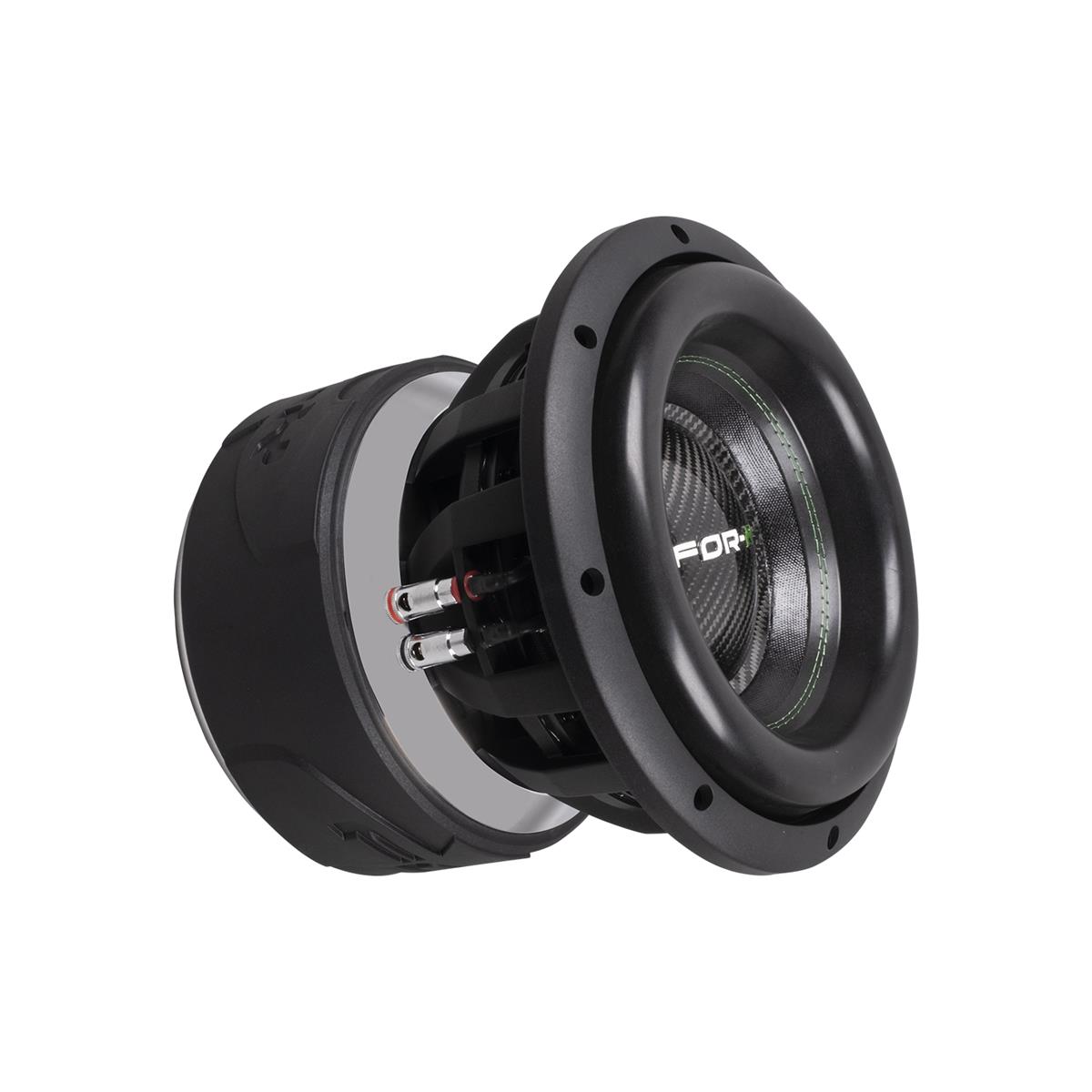

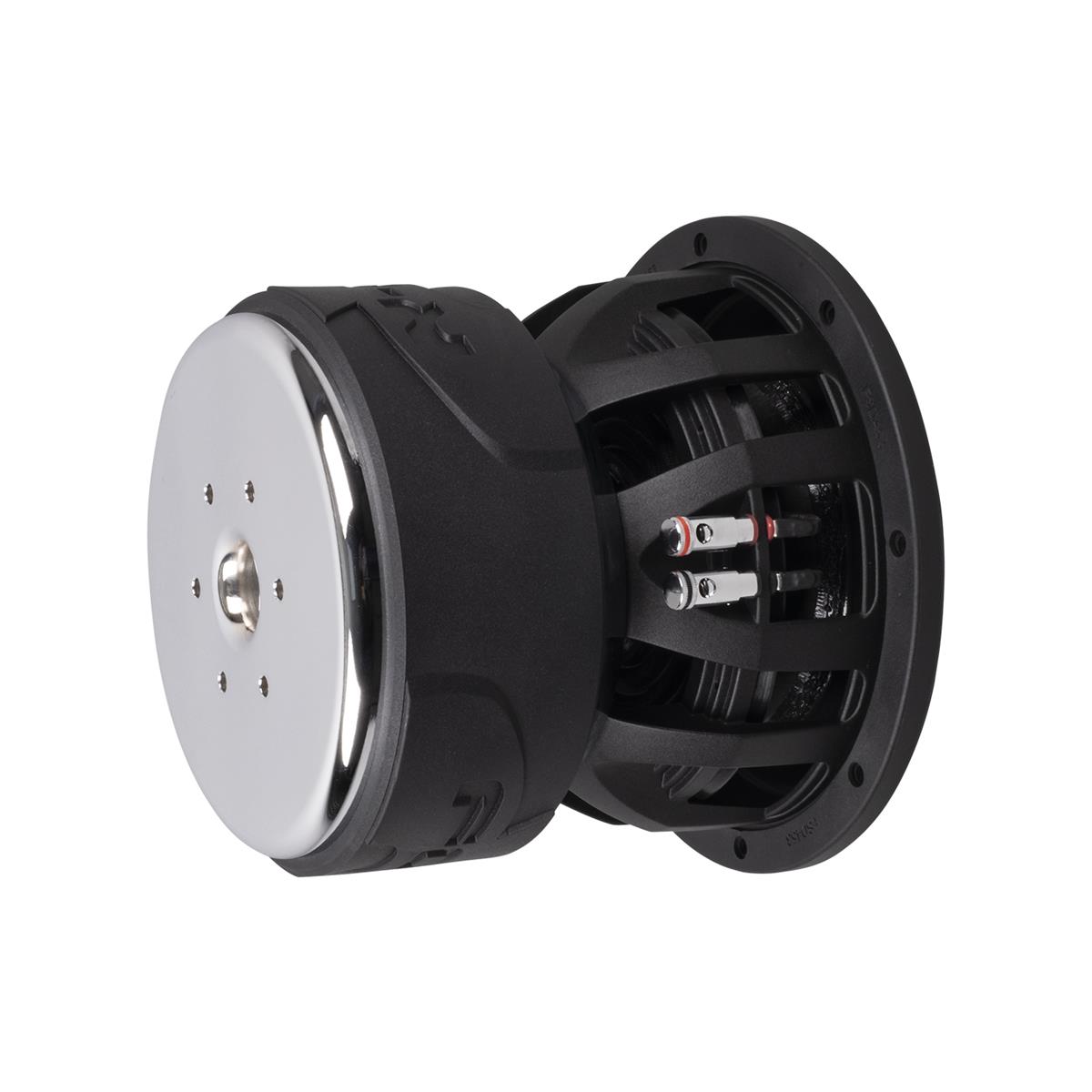

FOR-X XW-10 D1
5 999 SEK
D1 ohms
2000W RMS POWER
4000W MAX POWER
83.5dB SENSITIVITY
D1 OHMS IMPEDANCE
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeFOR-X
Beskrivning
Art.nr: FOR-X XW-10 D1
General Data

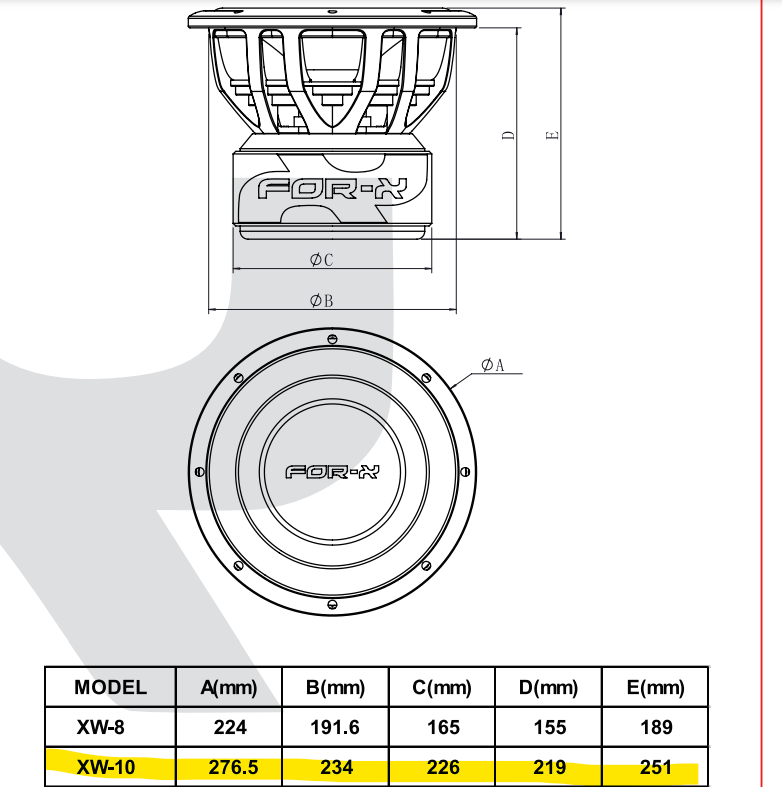

Overall Dimensions: 277*218mm
Nominal Power Handling: 2000W
Transient Power 10ms: 4000W
Sensitivity: 83.5dB
Frequency Response: 30-300Hz
Cone Material: Paper
Net Weight: 27.45kg
Electrical Data
Nominal Impedance: Dual 1 Ohm
DC Resistance: Dual 1 Ohm
Voice Coil and Magnet Parameters
Voice Coil Diameter: 76.5mm
Voice Coil Height: 63.5mm
HE Magnetic Gap Height: 25mm
Max Linear Excursion: 19.25mm
Voice Coil Bobbin: Black Aluminium
Voice Coil Wire: Flat Aluminium
Number of Layers: 8
Magnet System Type: Ferrite
BL Product: 24.12
T-S Parameters:
Resonant Frequency: 42
Moving Mass: 408.7
Suspension Compliance: 0.027
Mechancial Q Factor: 3.27
Electrical Q Factor: 0.31
Total Q Factor: 0.28
Eq.Cas Air Load (Liters): 4.32
Effective Piston Area(cm²): 330.06
Filer och media
 | Manual |
| Lådritning |
| Lådritning |
