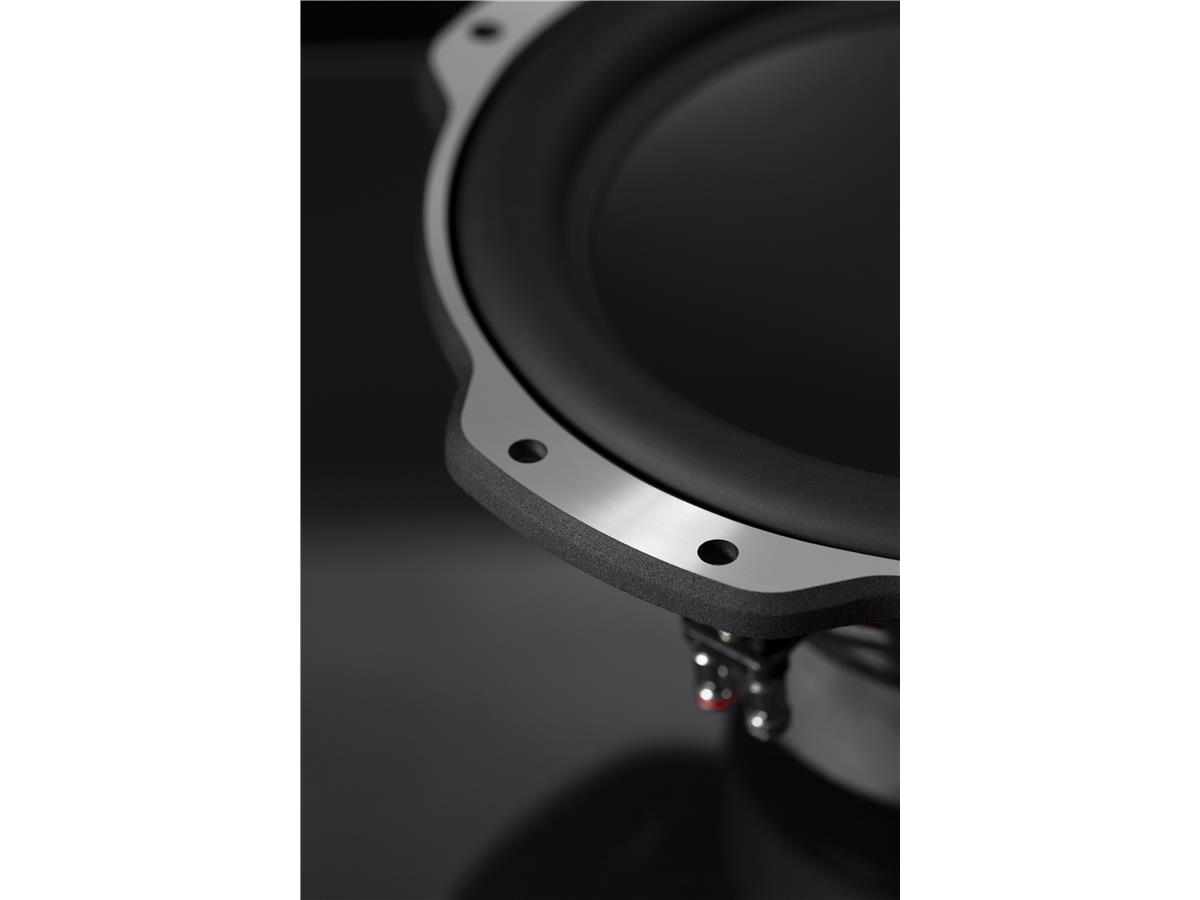

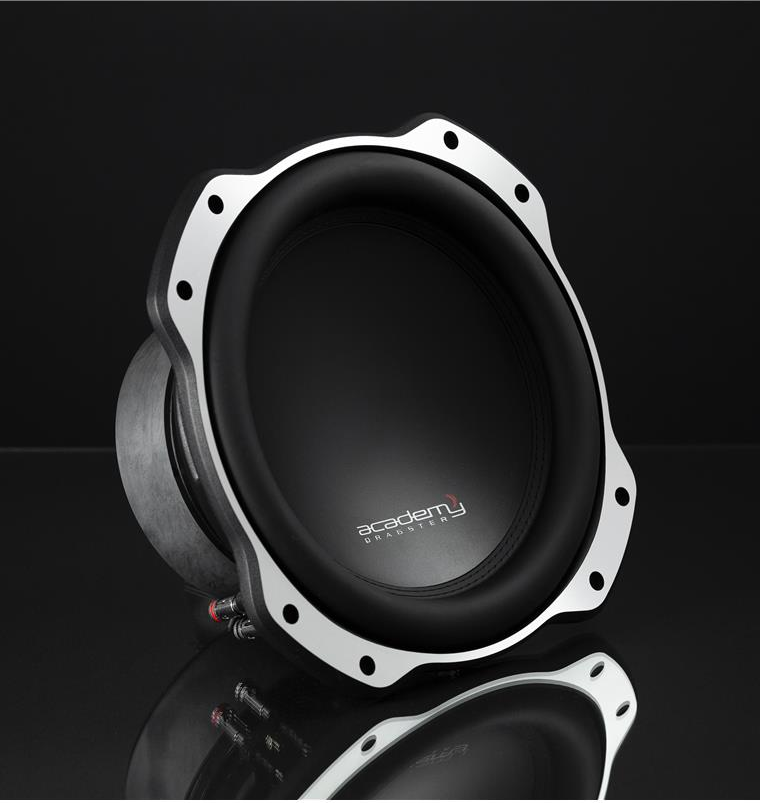

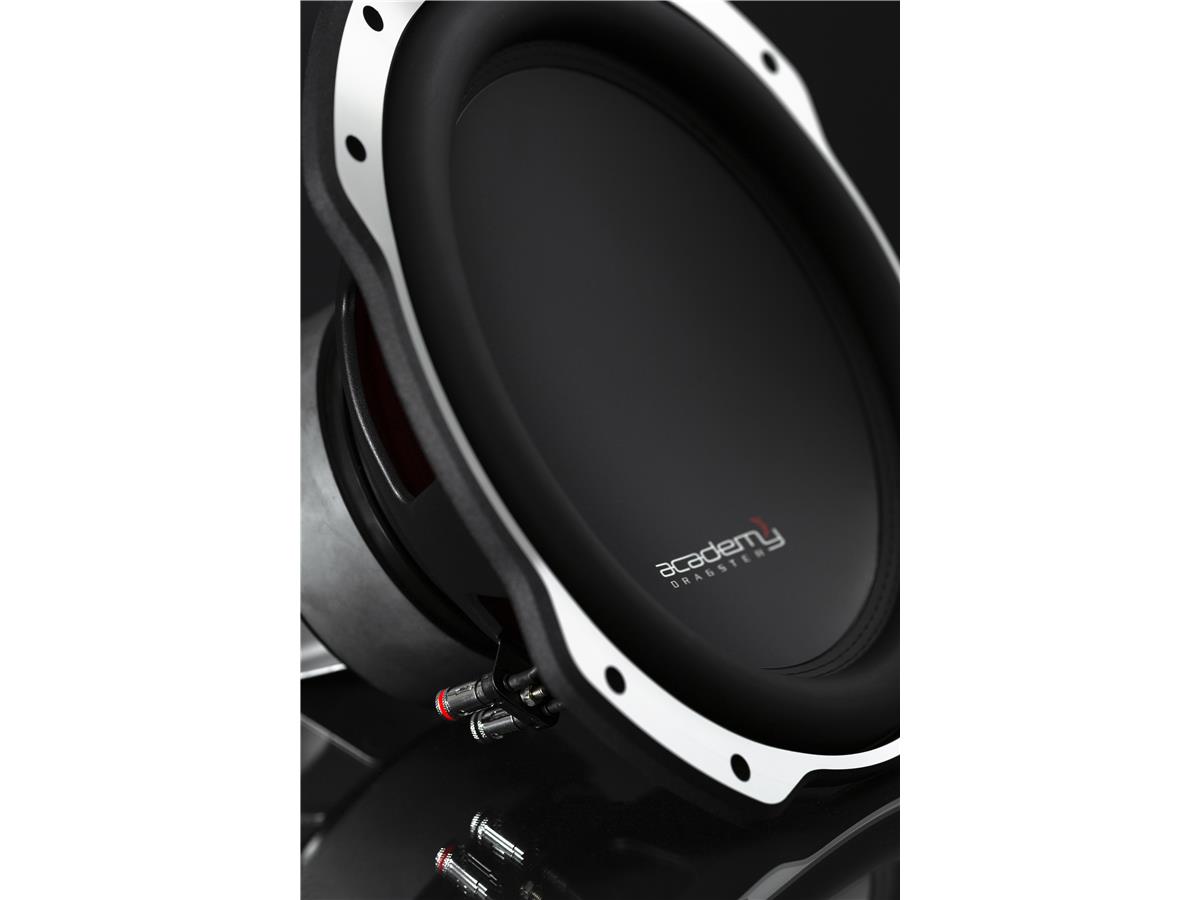

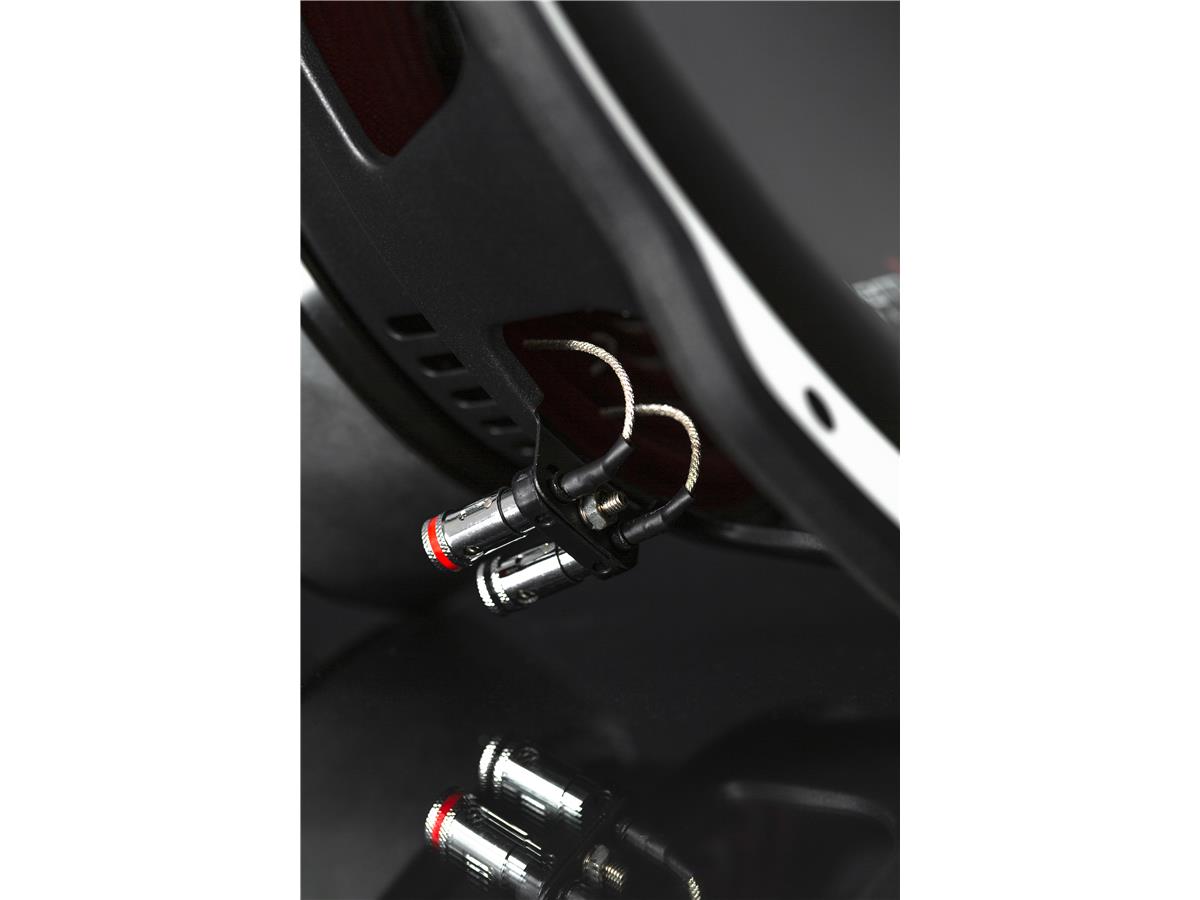

ACADEMY DRAGSTER AW-10SQ
3 299 SEK
Dual 2 ohm
Vi använder dom i våra bilar som tävlar på EM.
10" SQ Subwoofer
FEM optimized open motor, provide low distortion and highly motor efficiency
7.2 "PC dampers
Fiber Constriction paper cone
2.5 inch diameter 4 layer coil
400W RMS, 800W MAX, Dual 2 Ohms
Mounting Depth: 145mm
30 liter slutet för SQ
https://youtu.be/WXqCUYRU27U
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeDRAGSTER
Beskrivning
Art.nr: ACADEMY DRAGSTER AW-10SQ
General Data
Overall Dimensions: 268mm*160mm
Nominal Power Handling: 400 W
Transient Power 10ms: 800 W
Sensitivity: 84.5 dB
Frequency Response: 33-300 Hz
Cone Material: Paper
Net Weight: 6.5kg
Electrical Data
Nominal Impedance: Dual 2 Ohm
DC Resistance: Dual 1.9 Ohm
Voice Coil and Magnet Parameters
Voice Coil Diameter: 61.1mm
Voice Coil Height: 32mm
HE Magnetic Gap Height: 8mm
Max.Linear Excursion: 12mm
Voice Coil bobbin: Black Aluminium
Voice Coil Wire: Copper
Number Of Layers: 4 layers
Magnet System Type: High Flux Ferrite
BL Product: 14.09 N.A
T-S Parameters
Suspension Compliance: Cms, 0.16
Mechanical Q Factor: Qms, 4.72
Electrical Q Factor: Qes, 0.64
Total Q Factor: 0.56
Moving Mass: Mms, 161.3
Eq.Cas Air Load (liters): VAS, 31.9 Liter
Resonant Frequency: Fs, 33 Hz
Effective Piston Area: SD, 397.6 cm^2
