TRF SMD 5000.1D 6800wrms
6 699 SEK
Fullrange
6800wrms 14,4volt
BURRBROWN OP AMP IC
4 HAND-WOUND POWER TRANSFORMERS.
Till skillnad mot konkurrenternas fullrangesteg.
RMS 1X2100 4ohm
RMS 1X3800 2ohm
RMS 1X6800 1ohm
TEST VOLTAGE & THD:14.4V -1%THD
RMS 1X1580 4ohm
RMS 1X2850 2ohm
RMS 1X5300 1ohm
TEST VOLTAGE & THD:12.6V -1%THD
https://youtu.be/sFUYYP9S2XA
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeTRF
Beskrivning
Art.nr: TRF SMD 5000.1D
RMS 1X2100 4ohm
RMS 1X3800 2ohm
RMS 1X6800 1ohm
TEST VOLTAGE & THD:14.4V -1%THD
RMS 1X1580 4ohm
RMS 1X2850 2ohm
RMS 1X5300 1ohm
TEST VOLTAGE & THD:12.6V -1%THD
Freguncy response:10Hz-20KHz
Signal to Noise : 100dB <
Damping Factor : 800 <
Working impedance : 1ohm mono
Input Sensitivity : 0.2V to6V
Crossover : 18db oct/ slope
Bandpass Filter:
hi Pass Filter : 15Hz to 80KHz
low Pass Filter : 80Hz to 20KHz
BASS BOOST: 0 to 12 db
BAST BOOST FREQ: 35Hz to 70Hz

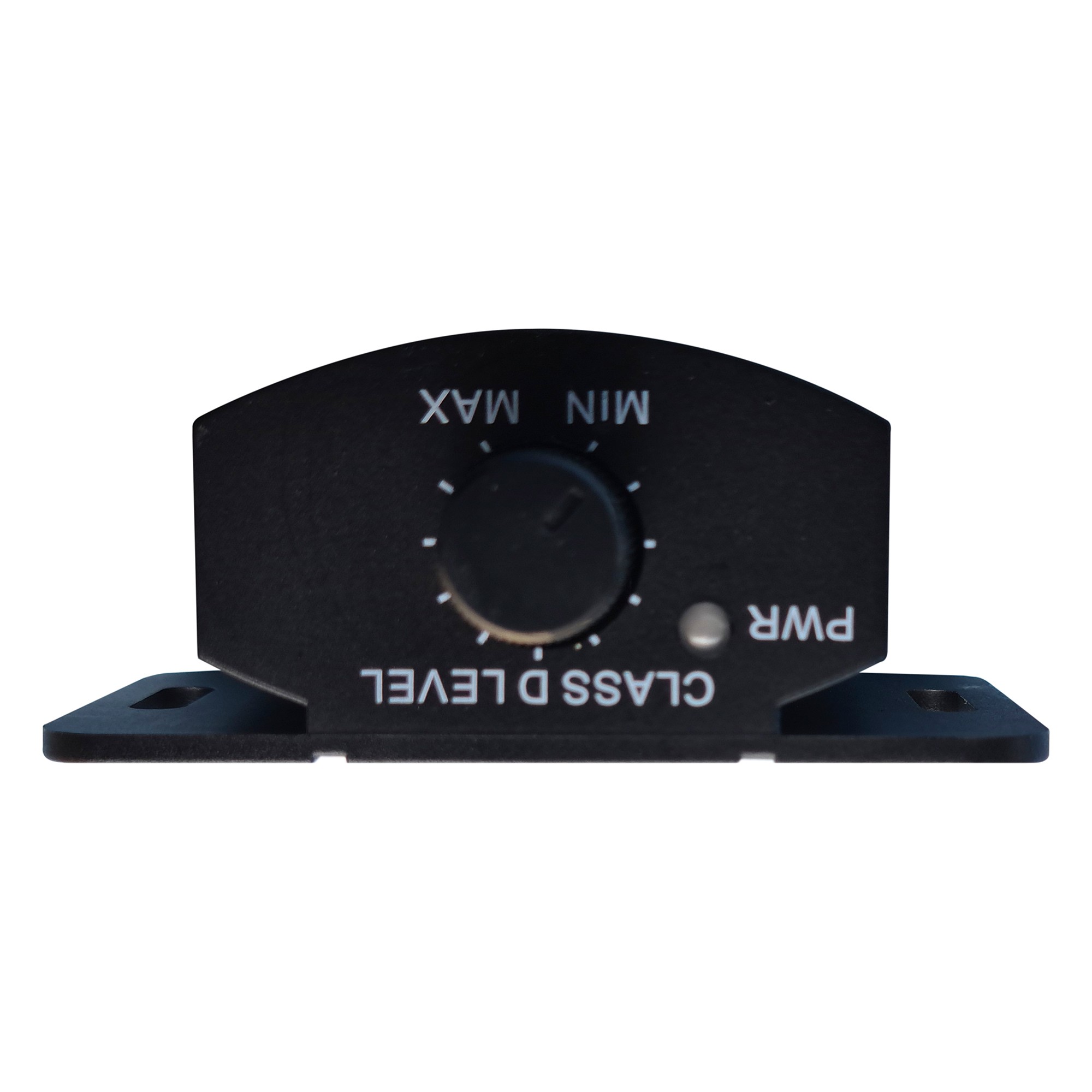

Remote controller CHECK:
VOLTAGE/TEMP - PWR,PRT,CLIP .
1X0 gauge power & speaker terminals
2 oz copper printed circuit board
Heavy-duty heatsink
3way protection :DC offset , Thermal , speaker shot .
BURRBROWN OP AMP IC
4 HAND-WOUND POWER TRANSFORMERS.
Tested Voltage & THD : 14.4V & Less than 1% THD
Working voltage : 8.5V to16V
FUSE RATING : 580AMPER
Height: 65mm
Width: 225mm
Lenght: 300mm
50mm² anslutning
