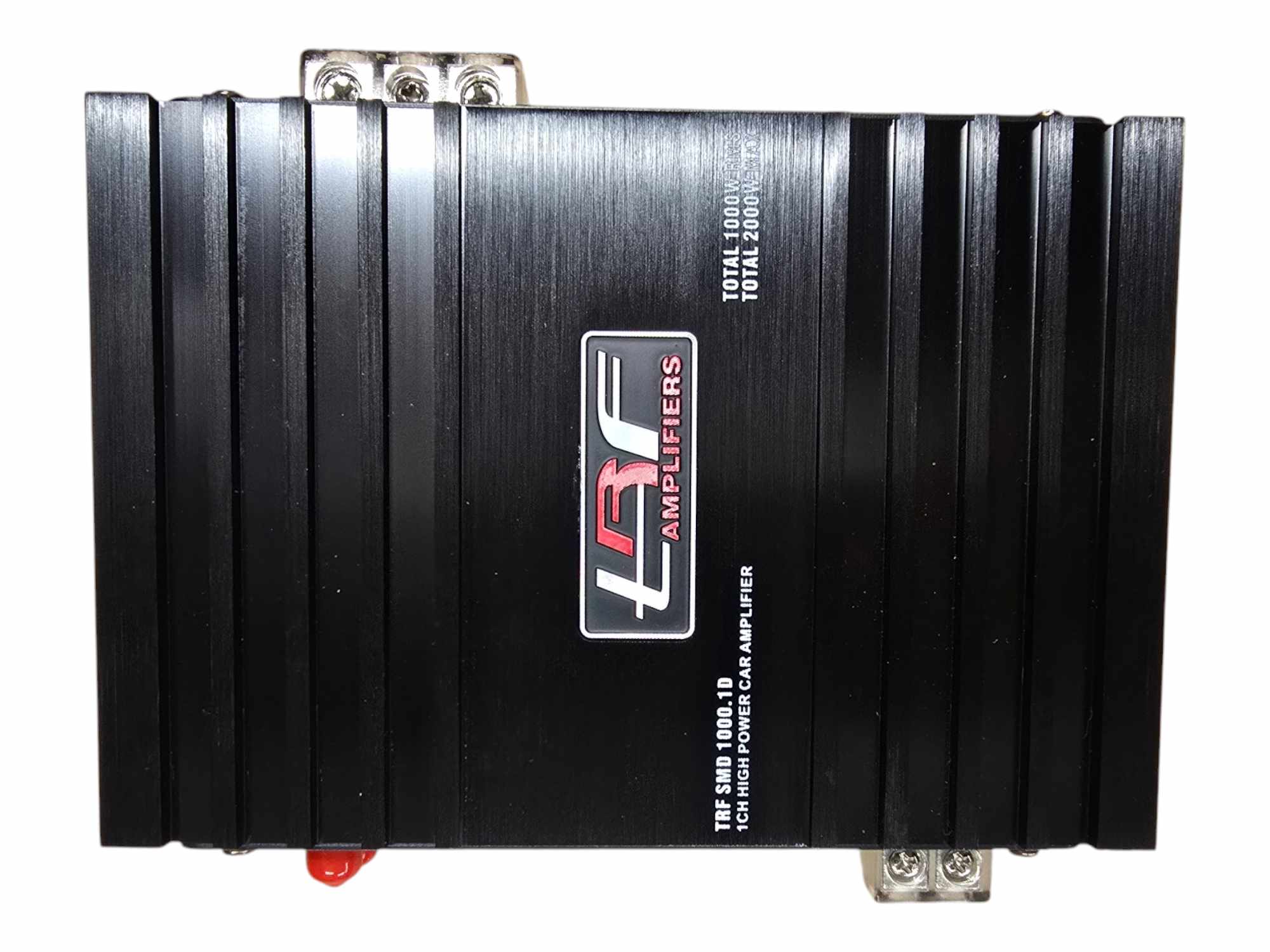

TRF SMD 1000.1D 1300wrms
1 899 SEK
Fullrange
RMS 1X410 4ohm
RMS 1X720 2ohm
RMS 1X1300 1ohm
TEST VOLTAGE % THD:14.4V-1%THD
BURRBROWN OP AMP IC
4 HAND-WOUND POWER TRANSFORMERS.
Till skillnad mot konkurrenternas fullrangesteg.
RMS 1X320 4ohm
RMS 1X610 2ohm
RMS 1X1100 1ohm
TEST VOLTAGE & THD:12.6V-1%THD
MAX 1X820 4ohm
MAX 1X1440 2ohm
MAX 1X2600 1ohm
TOTAL 2600WMAX
TEST VOLTAGE & THD:14.4V-1%THD
35mm² anslutningar
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeTRF
Beskrivning
Art.nr: TRF SMD 1000.1D

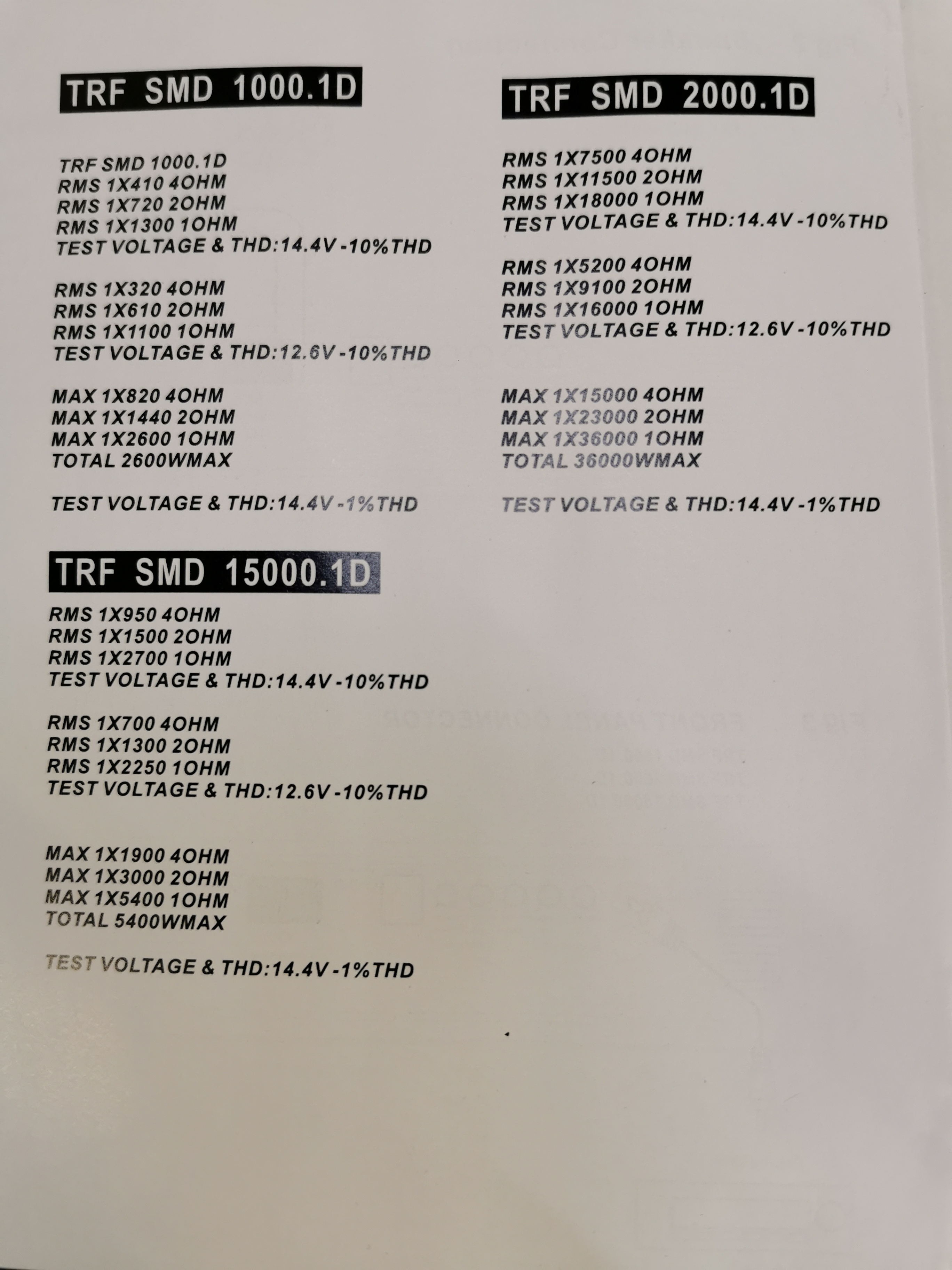

RMS 1X410 4ohm
RMS 1X720 2ohm
RMS 1X1300 1ohm
TEST VOLTAGE % THD:14.4V-1%THD
RMS 1X320 4ohm
RMS 1X610 2ohm
RMS 1X1100 1ohm
TEST VOLTAGE & THD:12.6V-1%THD
MAX 1X820 4ohm
MAX 1X1440 2ohm
MAX 1X2600 1ohm
TOTAL 2600WMAX
TEST VOLTAGE & THD:14.4V-1%THD
Freguncy response:10Hz-20KHz
Signal to Noise : 100dB <
Damping Factor : 800 <
Working impedance : 1ohm mono
Input Sensitivity : 0.2V to6V
Crossover : 18db oct/ slope

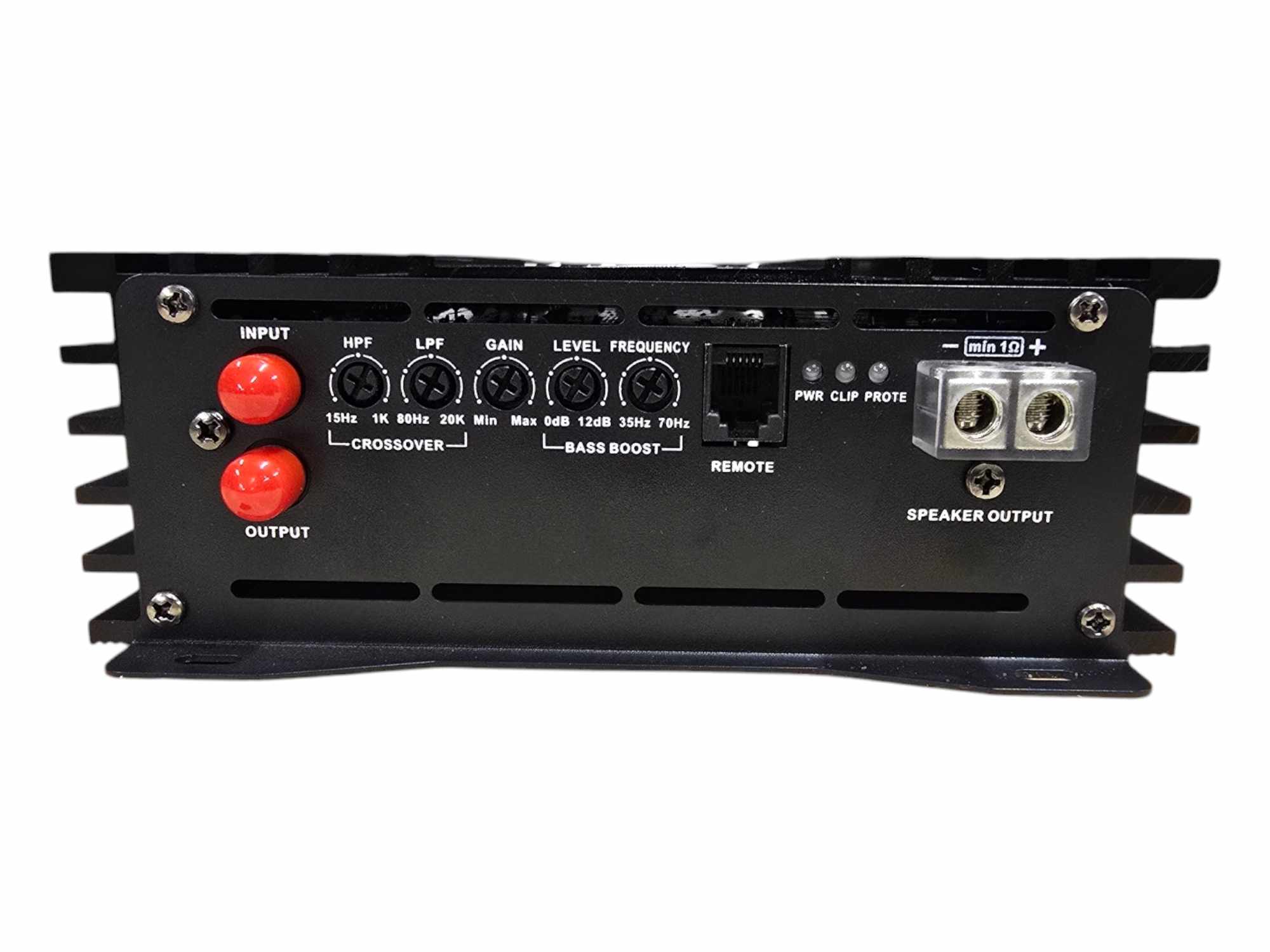

Bandpass Filter:
hi Pass Filter : 15Hz to 1KHz
low Pass Filter : 80Hz to 20KHz
BASS BOOST: 0 to 12 db
BAST BOOST FREQ: 35Hz to 70Hz

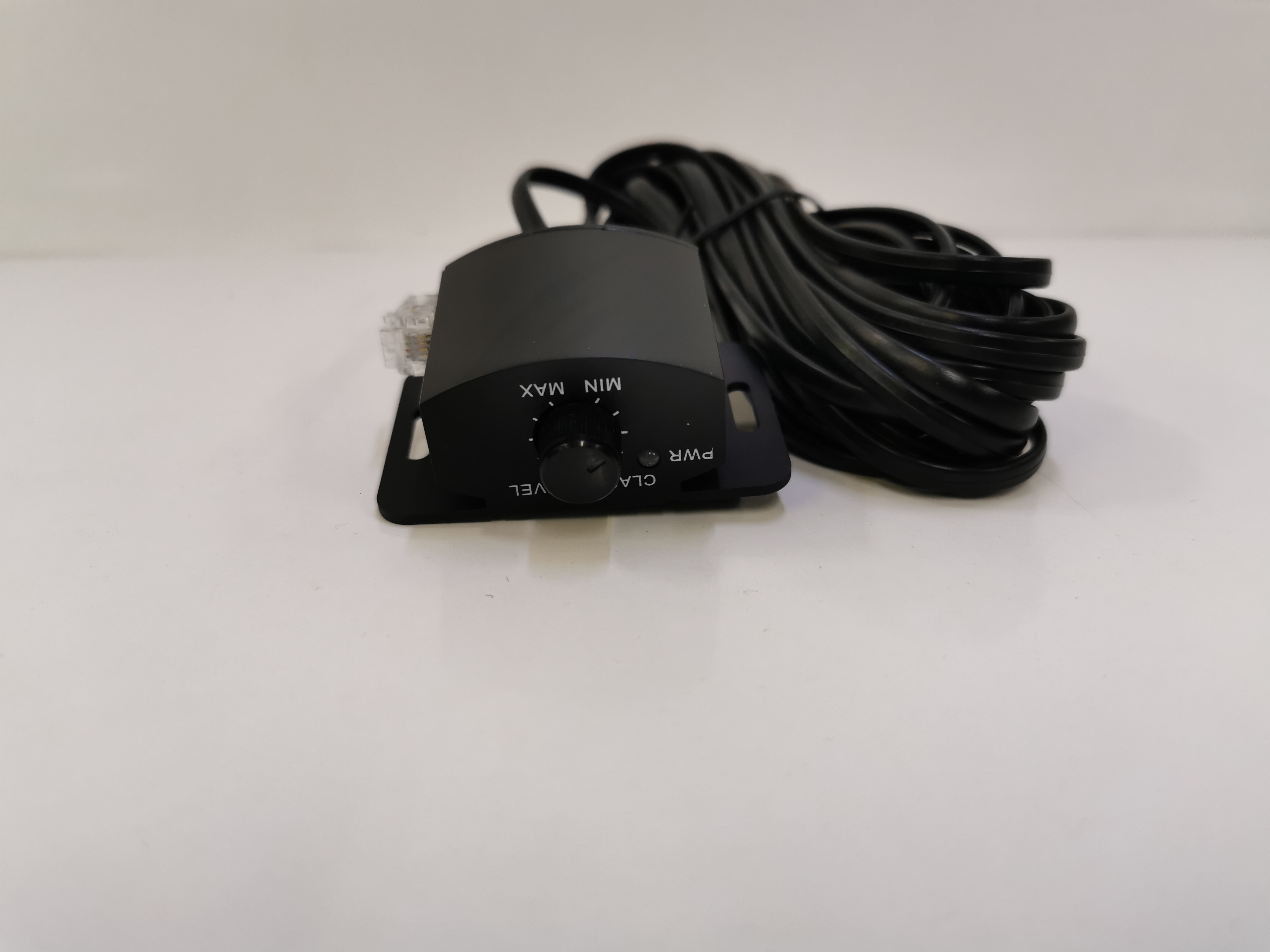

Remote controller CHECK:
VOLTAGE/TEMP - PWR,PRT,CLIP .

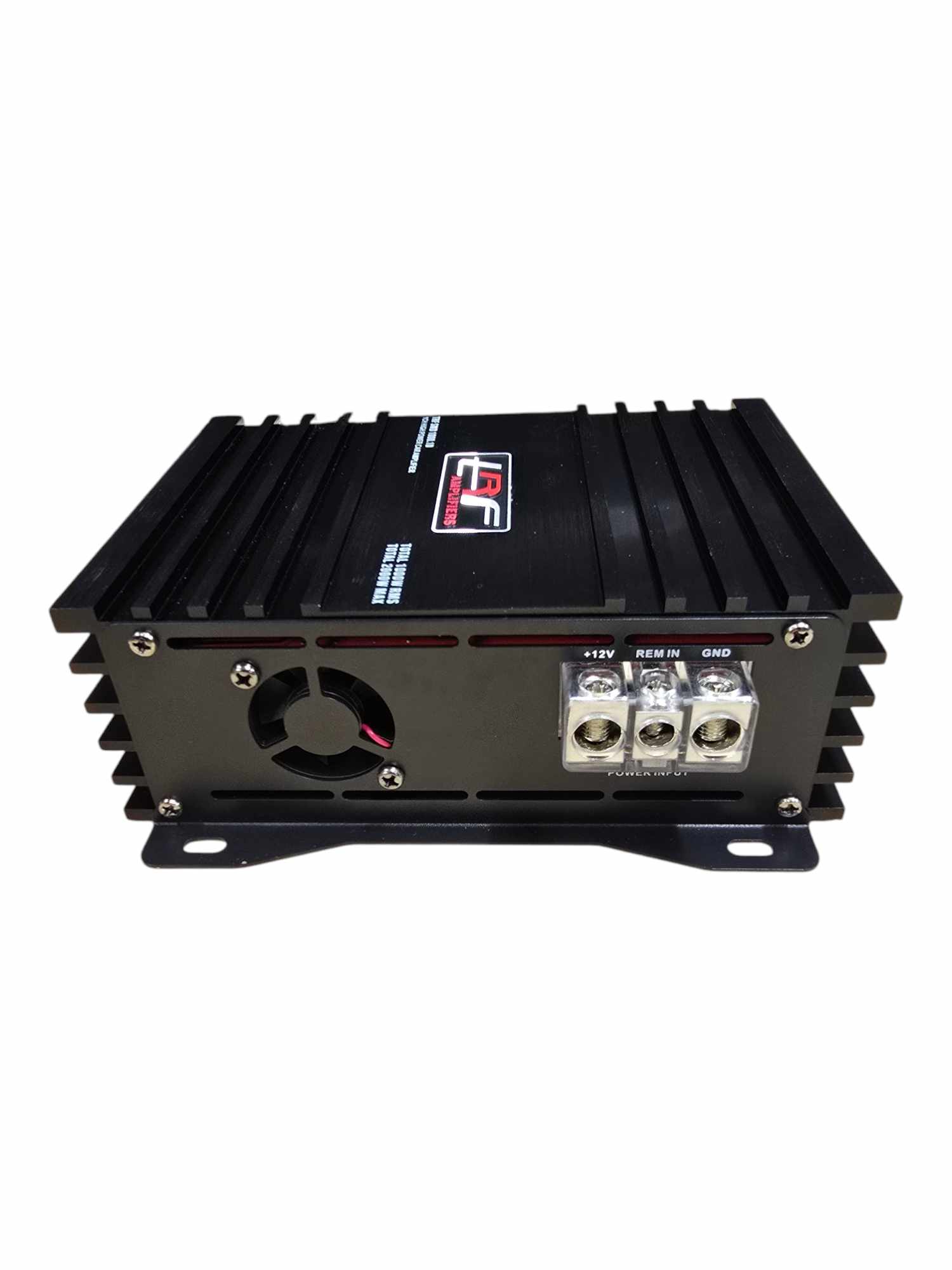

1X2 gauge power & speaker terminals
2 oz copper printed circuit board
Heavy-duty heatsink
3way protection :DC offset , Thermal , speaker shot .
BURRBROWN OP AMP IC
4 HAND-WOUND POWER TRANSFORMERS.
Tested Voltage & THD : 14.4V & Less than 1% THD

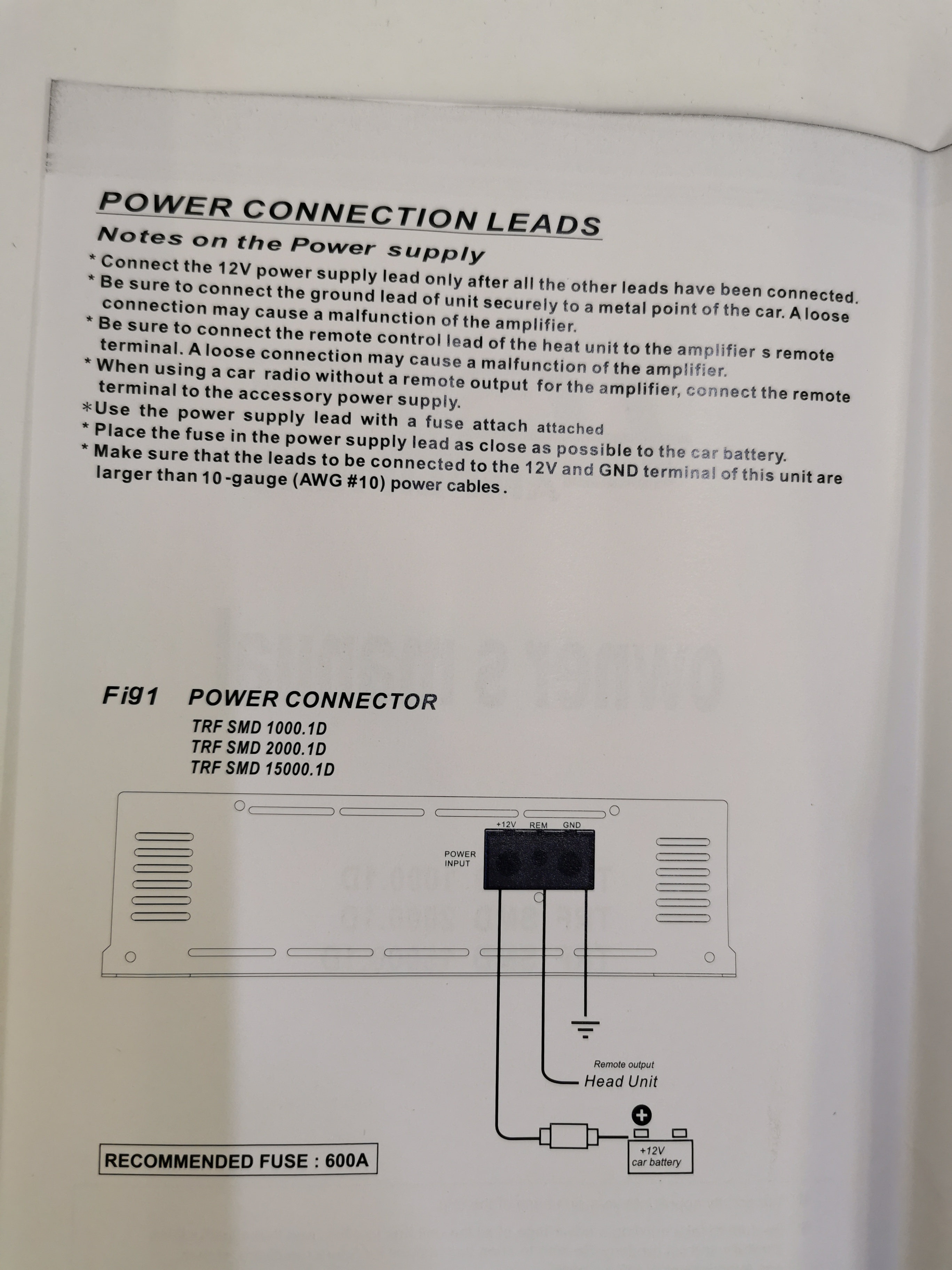

Working voltage : 8.5V to16V
FUSE RATING : 65 AMPER
Height: 63mm
Width: 120mm utan kontaktstyckena
Lenght: 170mm
33mm² anslutning
