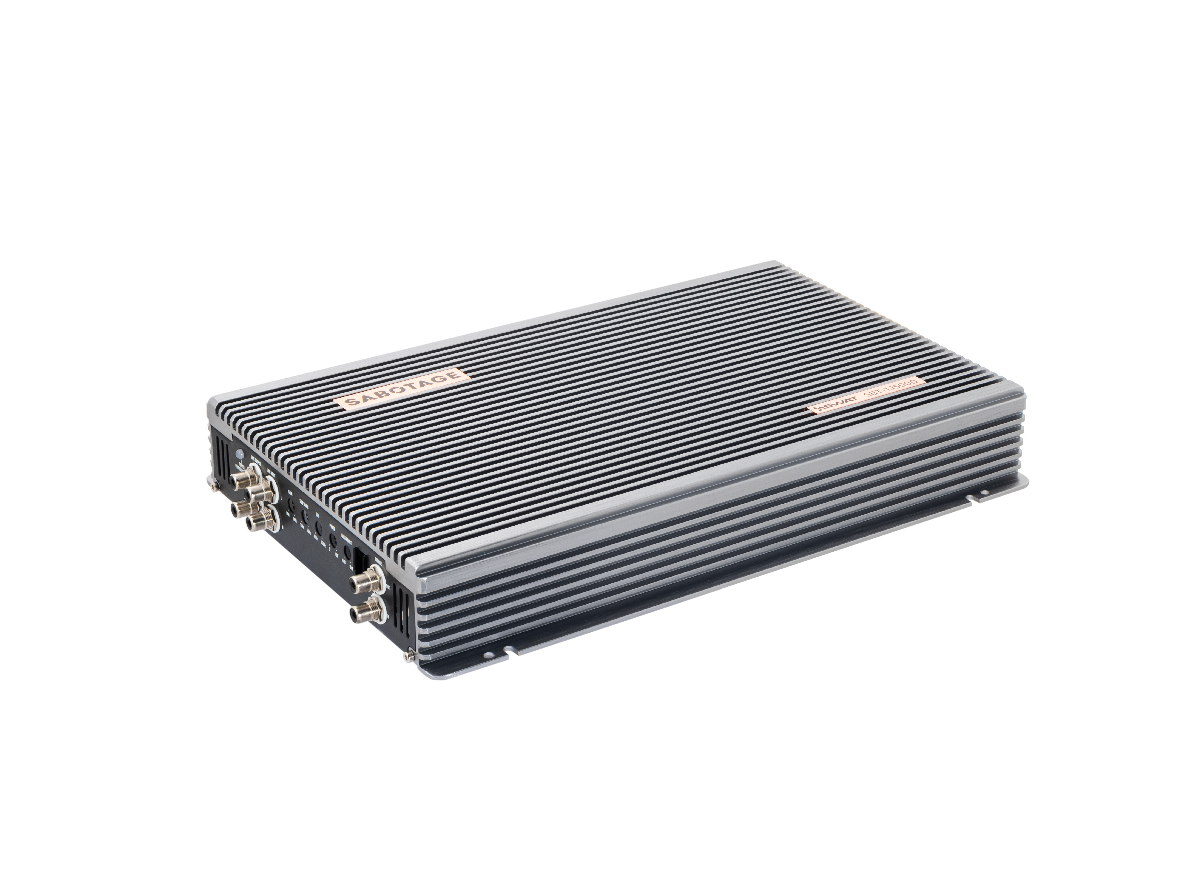

Series Sabotage
vendor code SWAT SBT-1.1500D
Amplification class D
RMS Power (4 Ohm) 1 x 600 W
RMS Power (2 Ohm) 1 x 1010 W
RMS power (1 ohm ) 1 x 1520 W
frequency range 15 Hz - 250 Hz
Input sensitivity 0.2-6V
Crossover modes LPF
Low pass filter 40 Hz - 250 Hz (24 dB / oct)
Sabsonik 15 Hz - 50 Hz (24 dB / oct)
Bass boost 0-18 dB (continuously adjustable)
Phase shifter 0 -180 ° (continuously adjustable)
Harmonic distortion ⩽0.1%
Signal to noise ratio > 90 dB

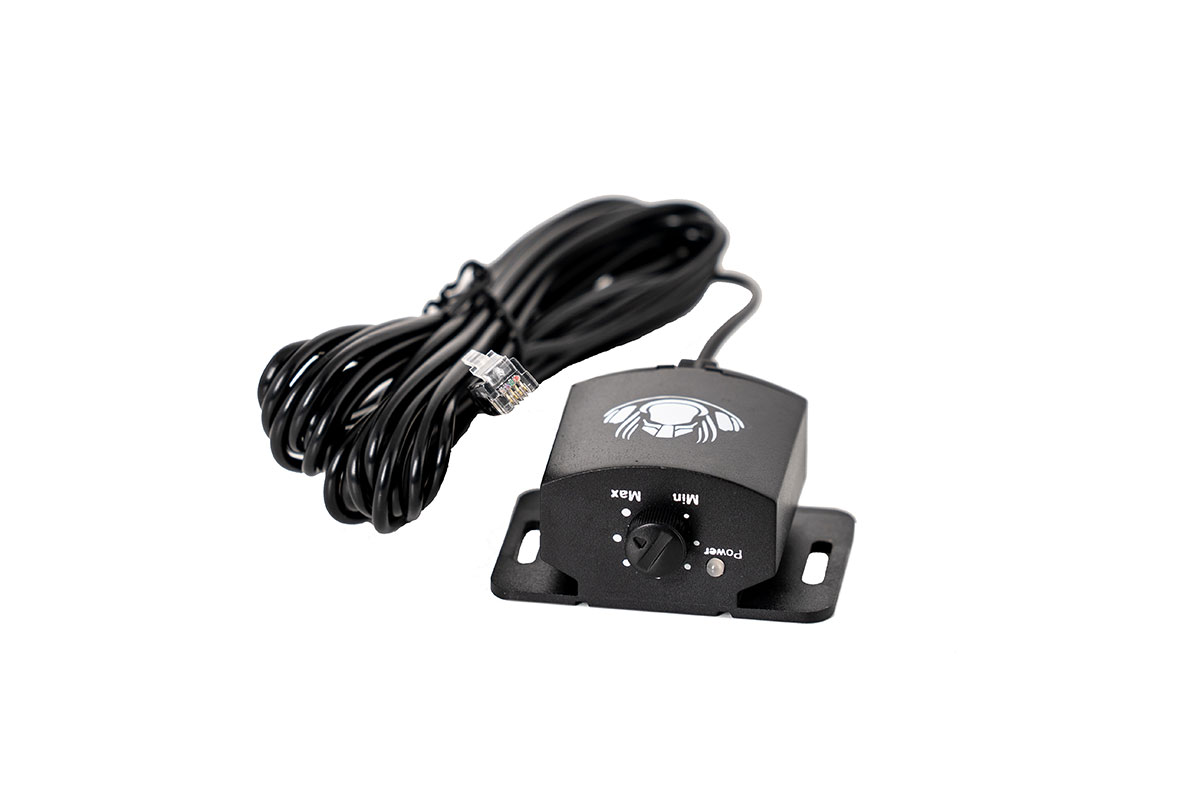

Remote level control there is
Pairing (Master - Slave) there is
Line out there is
Protection from overvoltage, short circuit of outputs, overheating
Supply voltage 10 - 16V
Dimensions (L x W x H) 385 x 236 x 53
The weight 4,800
33mm² anslutning
