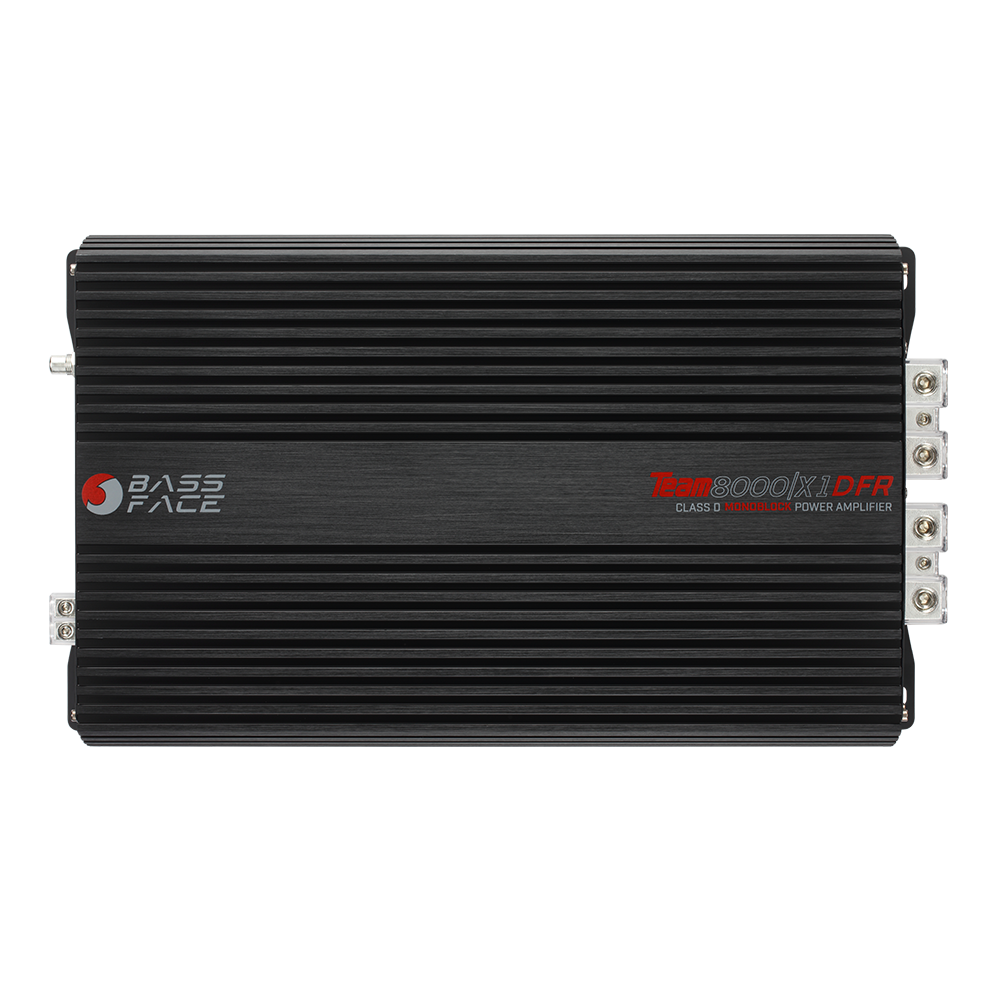

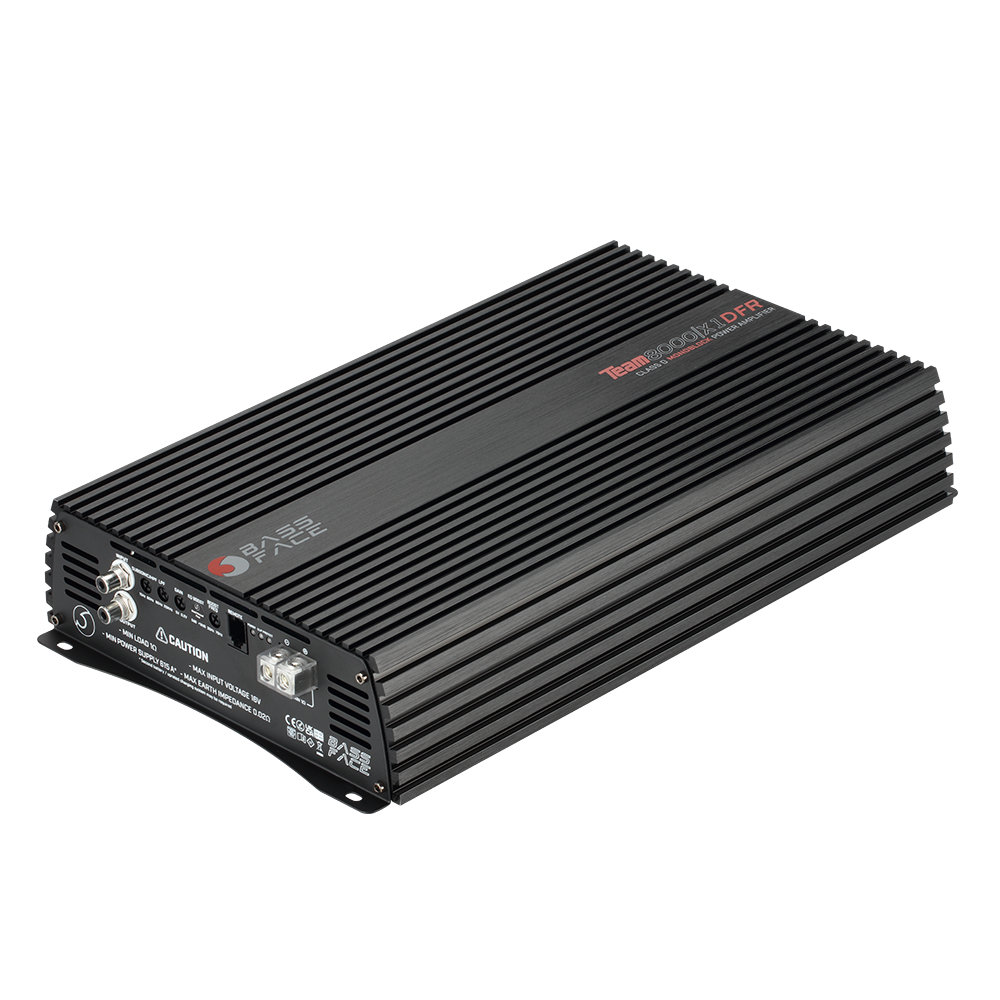

BASSFACE TEAM 8000/X1DFR 8000wrms
5 399 SEK
Class D Transformer - Ultimate Power Full Range Mono Amplifier
Power Output 1 x 8000W RMS @ 1 Ohm Load
Power Output 1x7000W RMS @ 2 Ohm Load
New Gen Architecture Produces Amazing Power At All Impedances, Combatting Box Rise

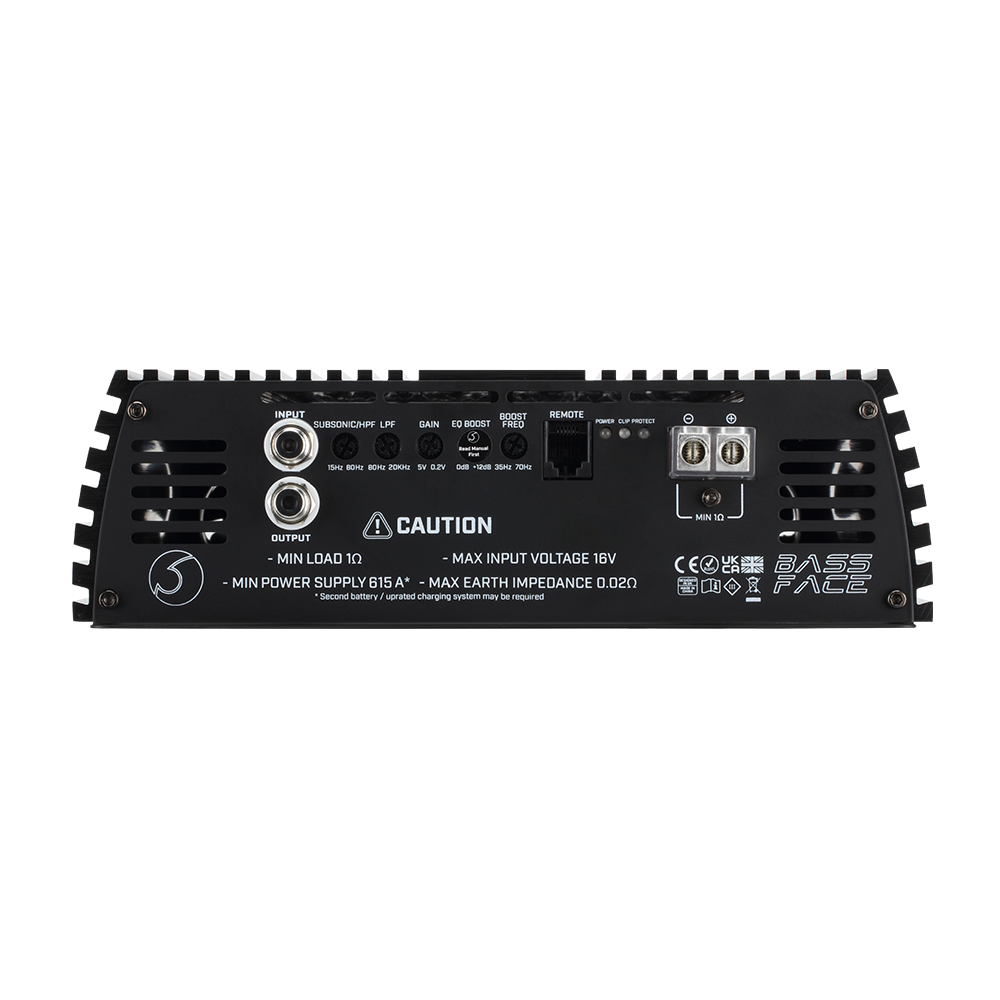

6.5V Stable RCA Input + Line Output
80>20000Hz LPF / 15>80Hz HPF Crossovers

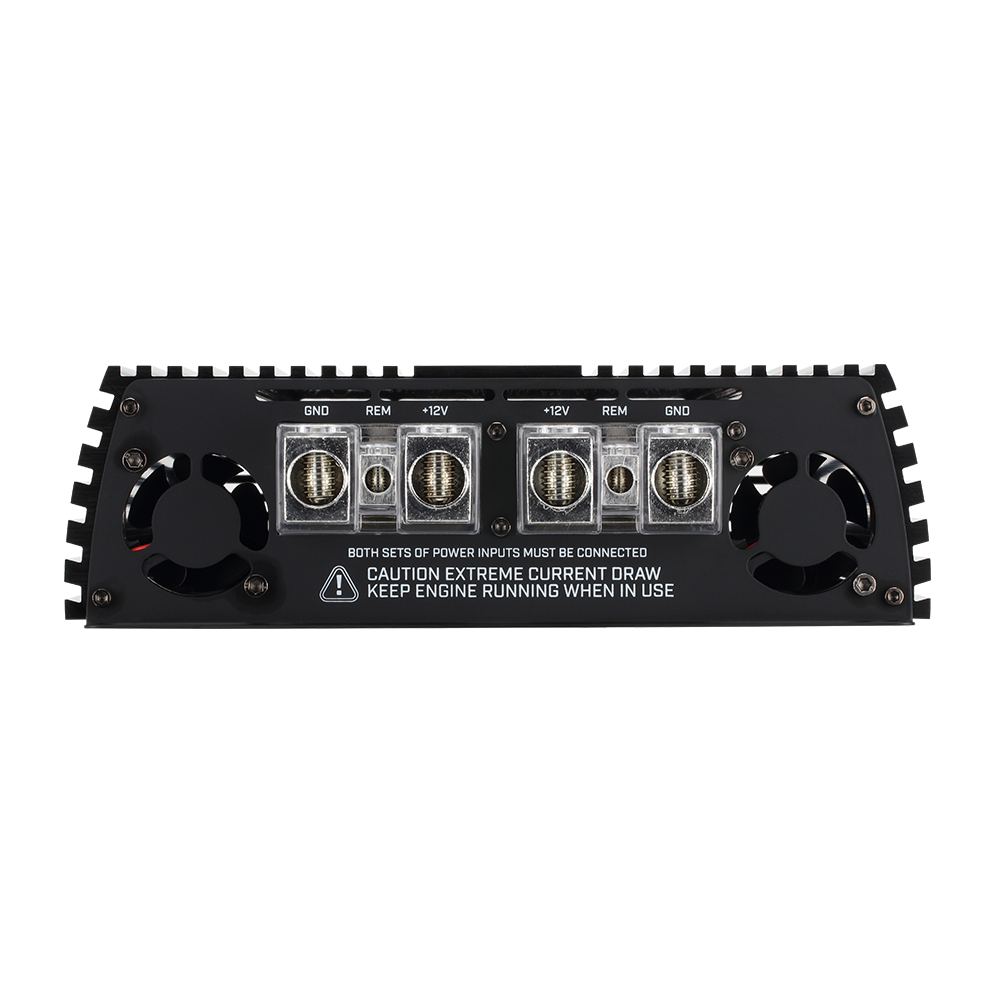

Minimum Power Supply 615A via 2x 0AWG Inputs
20>22000Hz Response / 88dB Signal To Noise Ratio
16.2V Capable Power Input

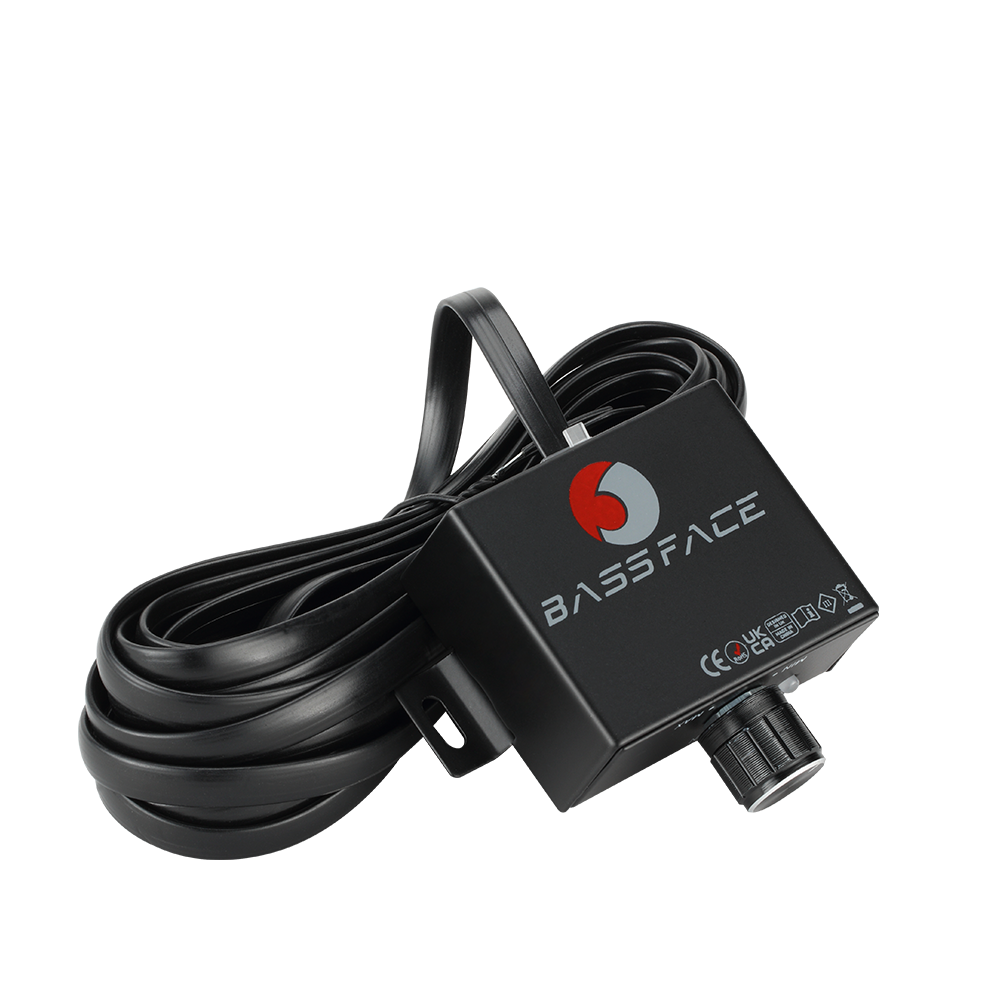

Included Bass Remote & Cable
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeBASSFACE
Beskrivning
Art.nr: TEAM8000X1D
These are no details spared high performance amplifiers using transformer class technology allowing for a compact design while offering huge power. Featuring a sleek satin finish the new Team Series delivers ultimate performance in an unbelievably compact package. Do not let the size of these amplifiers fool you – the current requirements for this level of output are considerable. Installation using the exactly correct cables, batteries and alternator is essential. The amplifiers offer wide crossover adjustments and will accommodate high power RCA and main voltage input. Top quality RCA terminals, power connections and speaker terminal blocks are standard, as is individual factory burn in per amplifier and QC stamp with serial number. The amplifiers are supplied in high quality packaging for protection, and come with printed instructions and comprehensive data sheets as well as having additional important information printed on the body of the units. Finally, output power is rated correctly – what you read is what you get – the Team Series offers stellar performance at an affordable price. This is a full range model, ideal for running arrays of mid range speakers. This model incorporates our latest technology, which produces muh more power at higher impedances than traditional amplifiers. This offers more flexibility in terms of installation, and massively combats the onset of "box rise" impedance changes during playback, maintaining enormous output accross a wider frequency spectrum.
Genuine Useable RMS Power, 1Ohm (Watts), < 1%THD, 14v 8000x1
7000wmrs @ 2 ohms
Frequency Response (Hz) 20>22000
LPF (Hz) 80>20000
Bass Boost (Db) 0>12
Boost Frequency (Hz) 35>70
Subsonic Filter (Hz) 15>80
Audio Signal Input Voltage (V) 0.22>6.5
LPF Slope (Db/Oct) 12
Subsonic Filter Slope (Db/Oct) 12

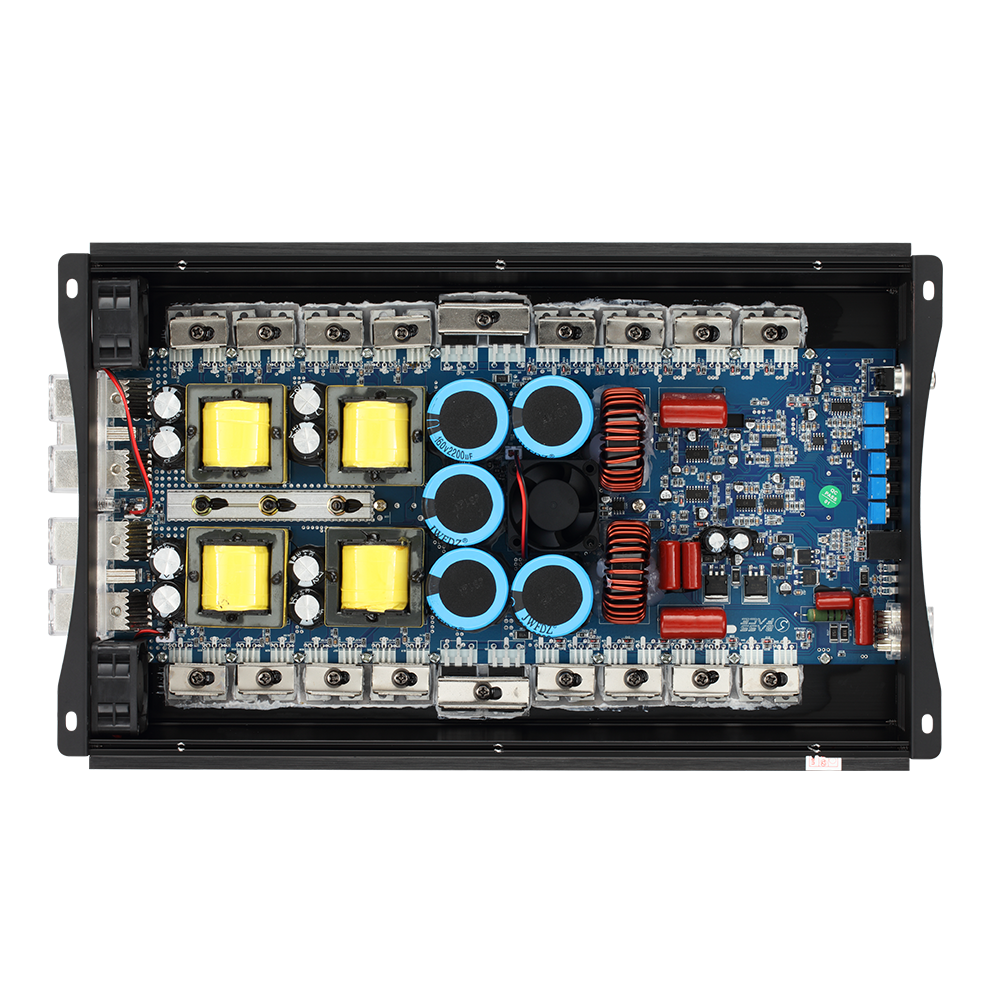

Amplifier Topology Class D Transformer
Maximum Input Voltage (V) 16.2
Fuse Rating (Amps) Unfused
Power Wire Input Gauge (AWG) 2x 0
Minimum Recommend Final Load Per Channel (Ohms) 1 Mono
Input Impedance (KOhms) 20
