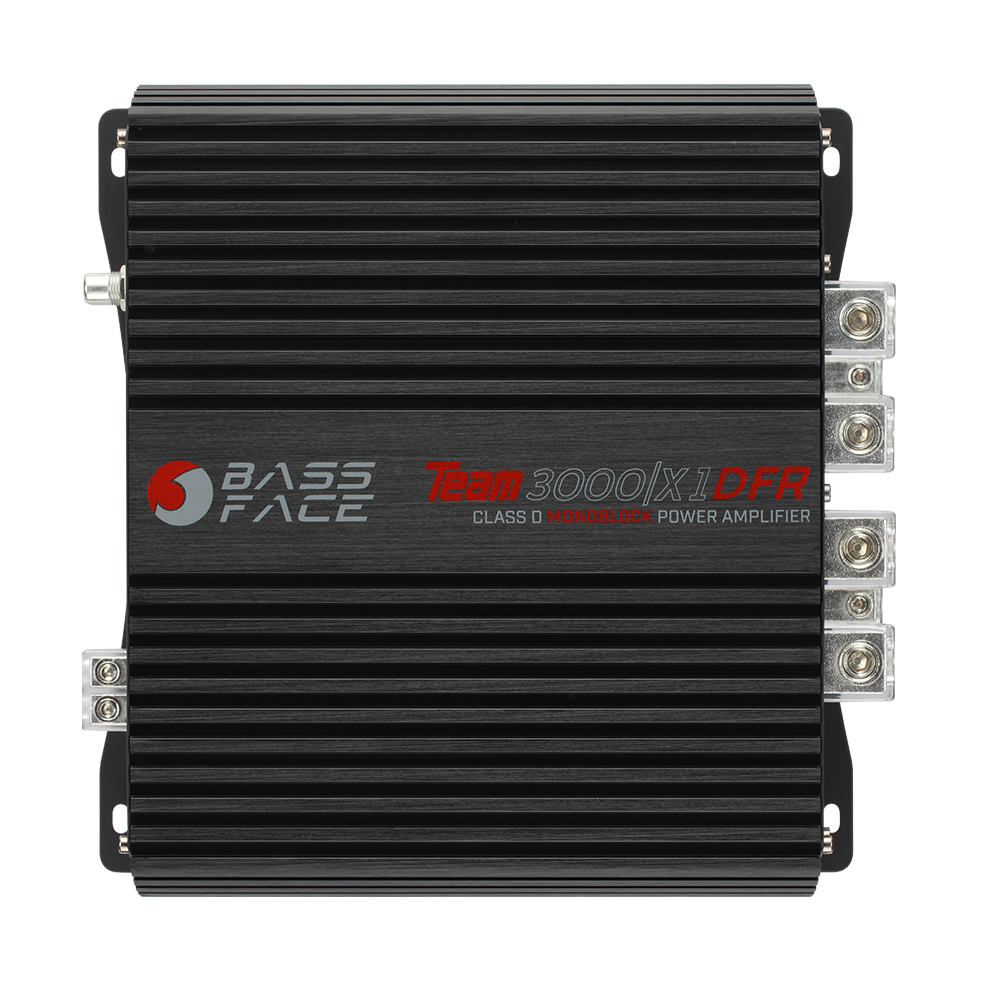

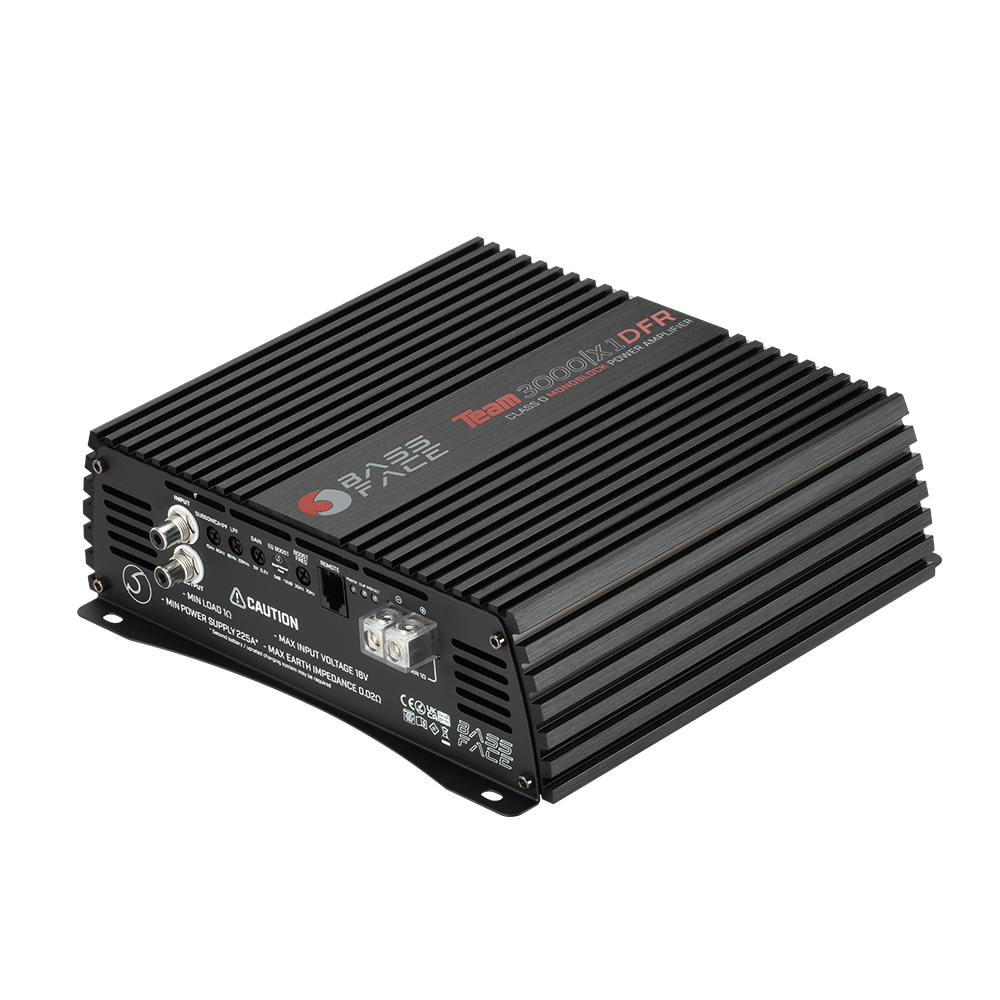

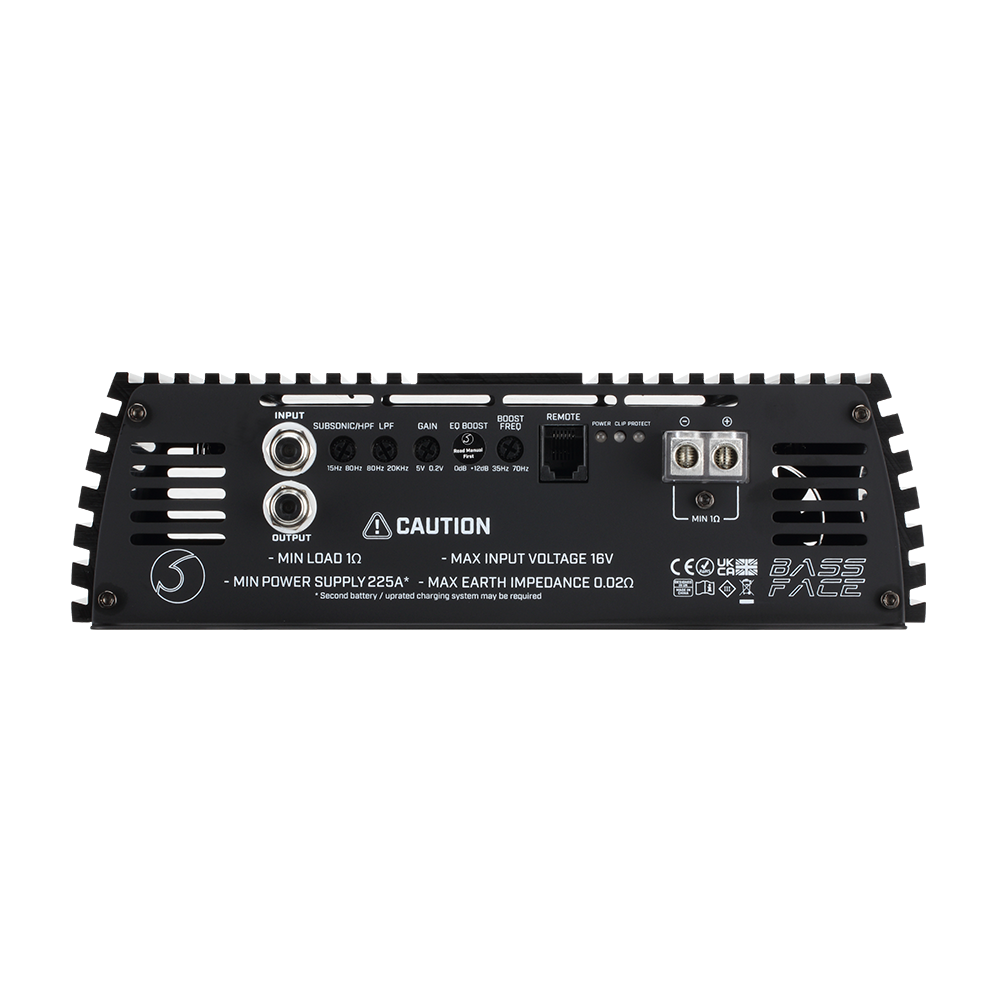

Class D Transformer - Ultimate Power Full Range Mono Amplifier
Power Output 1 x 3000W RMS @ 1 Ohm Load
2000wrms @ 2 ohms
6.5V Stable RCA Input + Line Output
Minimum Power Supply 225A via 1x 0AWG Input
20>22000Hz Response / 88dB Signal To Noise Ratio
16.2V Capable Power Input

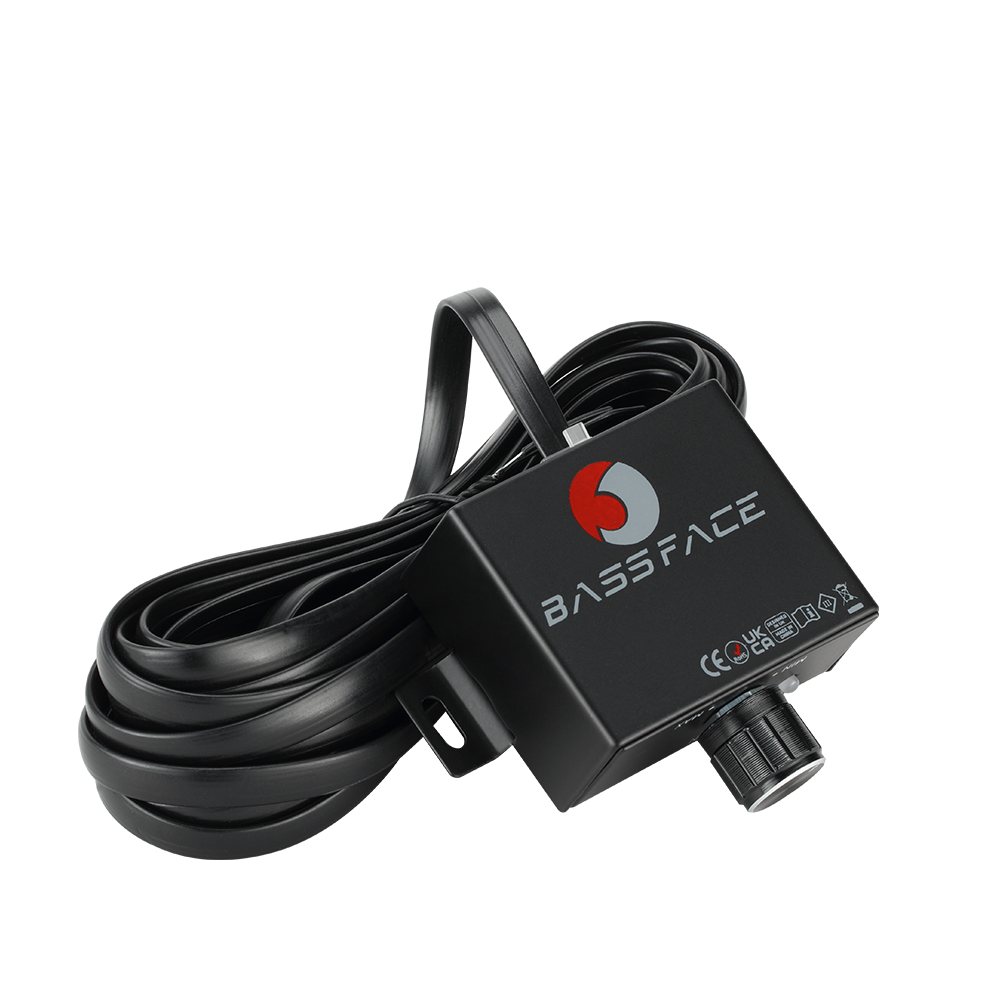

Included Bass Remote & Cable
New Gen Architecture Produces Amazing Power At All Impedances, Combatting Box Rise
Genuine Useable RMS Power, 1Ohm (Watts), < 1%THD, 14v 3000x1
Frequency Response (Hz) 20>22000
LPF (Hz) 80>20000
Bass Boost (Db) 0>12
Boost Frequency (Hz) 35>70
Subsonic Filter (Hz) 15>80
Audio Signal Input Voltage (V) 0.22>6.5
LPF Slope (Db/Oct) 12
Subsonic Filter Slope (Db/Oct) 12

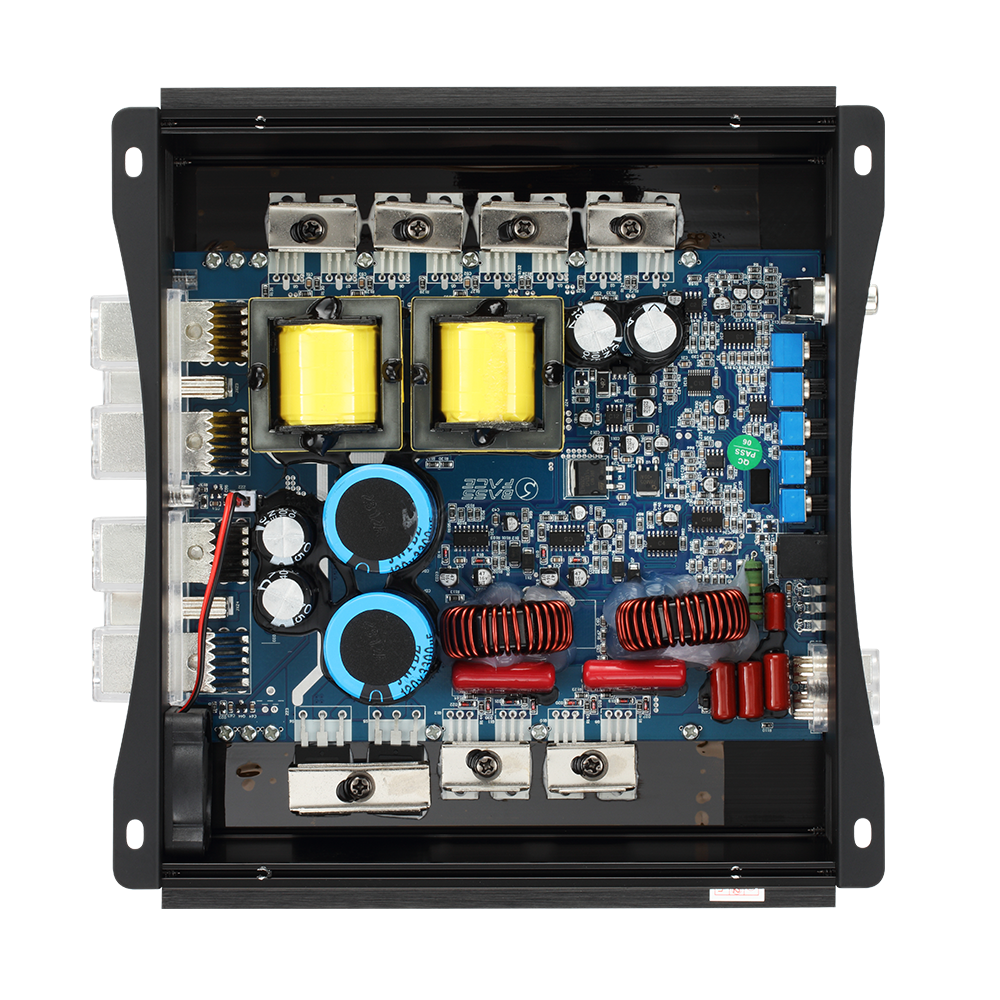

Amplifier Topology Class D Transformer
Maximum Input Voltage (V) 16.2
Fuse Rating (Amps) Unfused

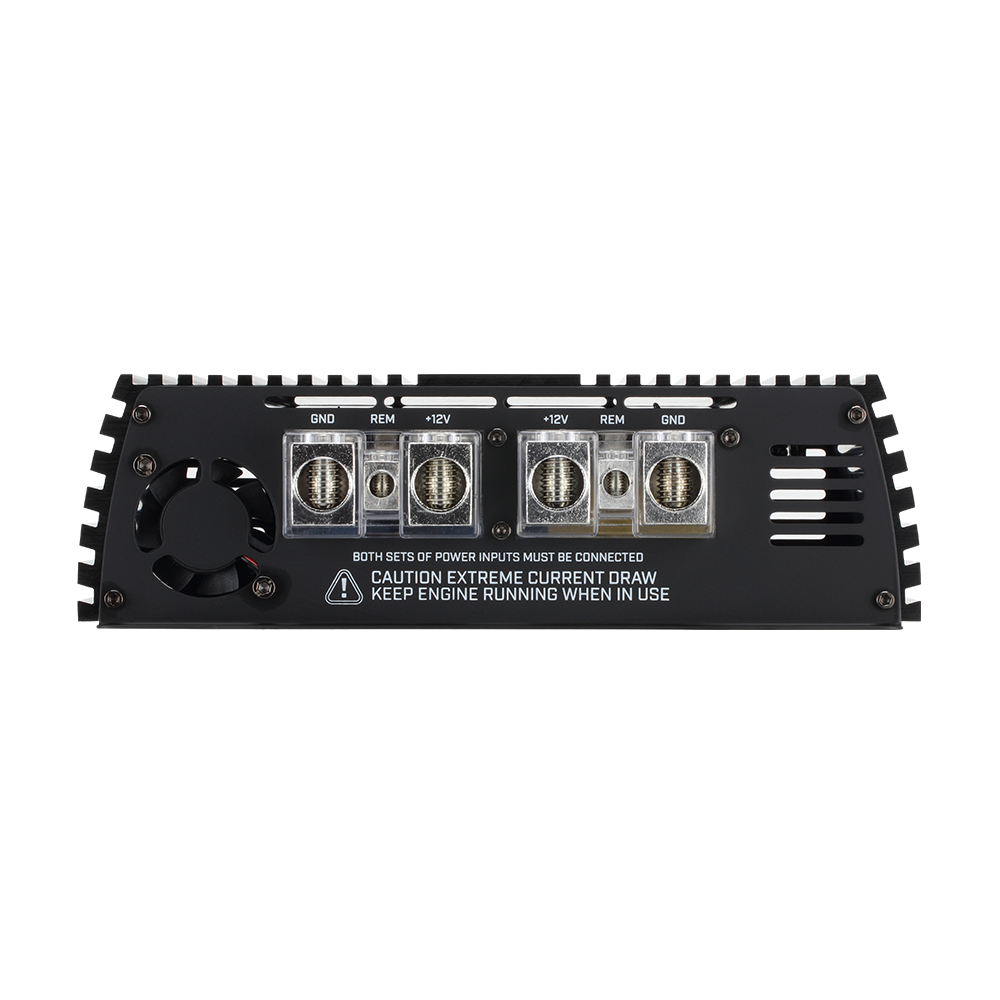

Power Wire Input Gauge (AWG) 2x 0
Minimum Recommend Final Load Per Channel (Ohms) 1 Mono
Input Impedance (KOhms) 20
