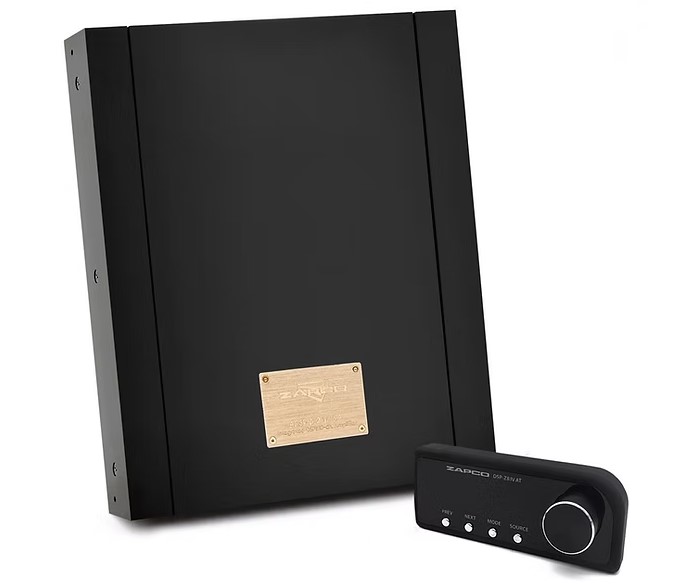

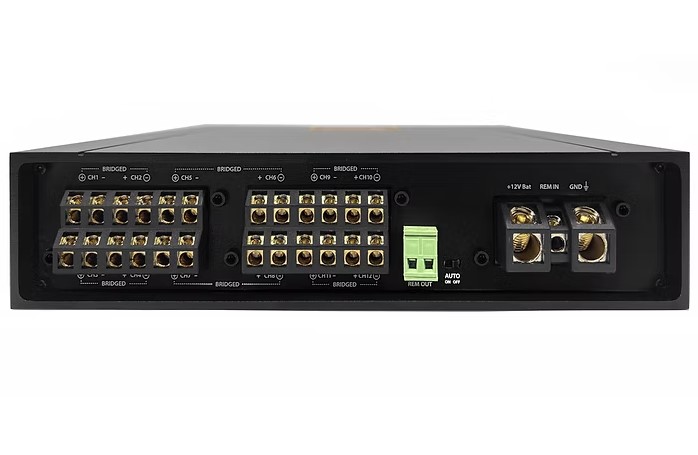

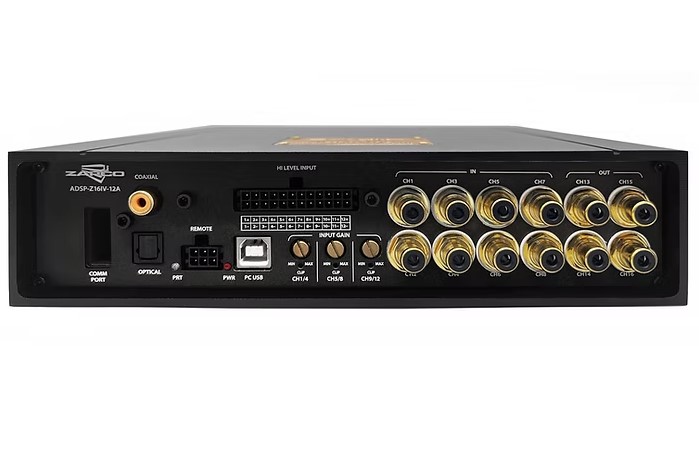

ZAPCO ADSP-Z16 IV-12A

- DSP Processor: Cirrus Logic CS47048 - Power: 150 MHz/32 bit/192 KHz - 16-Channels - ADC: Cirrus Logic CS47048 32 bit/192 KHz - ADC Dynamic Range/THD: 108 dB/-98 dB - DAC: Cirrus Logic CS47048 32 bit/192 KHz - DAC Dynamic Range/THD: 140 dB/-120 dB - Low level (Pre)/Sensitivity: 1-5 VRMS - High Level (Spk In)/Sens.: 2-20 V - Optical Digital IN: 24 bit-192 KHz - Coaxial Digital IN: 24 bit-192 KHz - Frequency Response (-3dB): 10 Hz - 22.5 KHz - S/N Input: 110 dBA (D) - 106 dBA (A) - S/N Ratio Amp + DSP at max. power: 95 dBA - THD+N Input: 0,002% (D) - 0,005% (A) - THD+N Amplif. + DSP Analog Input: 0,07 % - Crosstalk at 1 Khz only DSP: 90 dB - Crosstalk Amplifier + DSP: 45 dB - Amp Power @ 4Ω: 12 x 80 watts - Amp Power @ 2Ω: 12 x 120 watts - Amp Power @ 4Ω Bridged: 6 x 240 watts - F/R EQ: 1-6 ch Gr. & Par./31 poles - Effect EQ: 7-8 ch Gr. & Par./11 poles - Mute/Solo: Yes, each channel - Time Align. (Range/Steps): 0/15 ms / 0.02 ms - Max Delay (Cm/Steps): 515 cm / 0.68 cm - Polarity: 0/180° - Remote Control included - HD-BT Streaming (with optional HD-BT II-D) - PC/Display Connection: USB/6-pin Mini DIN - Unit Dimensions: 213(W) x 291(L) x 50(H)
