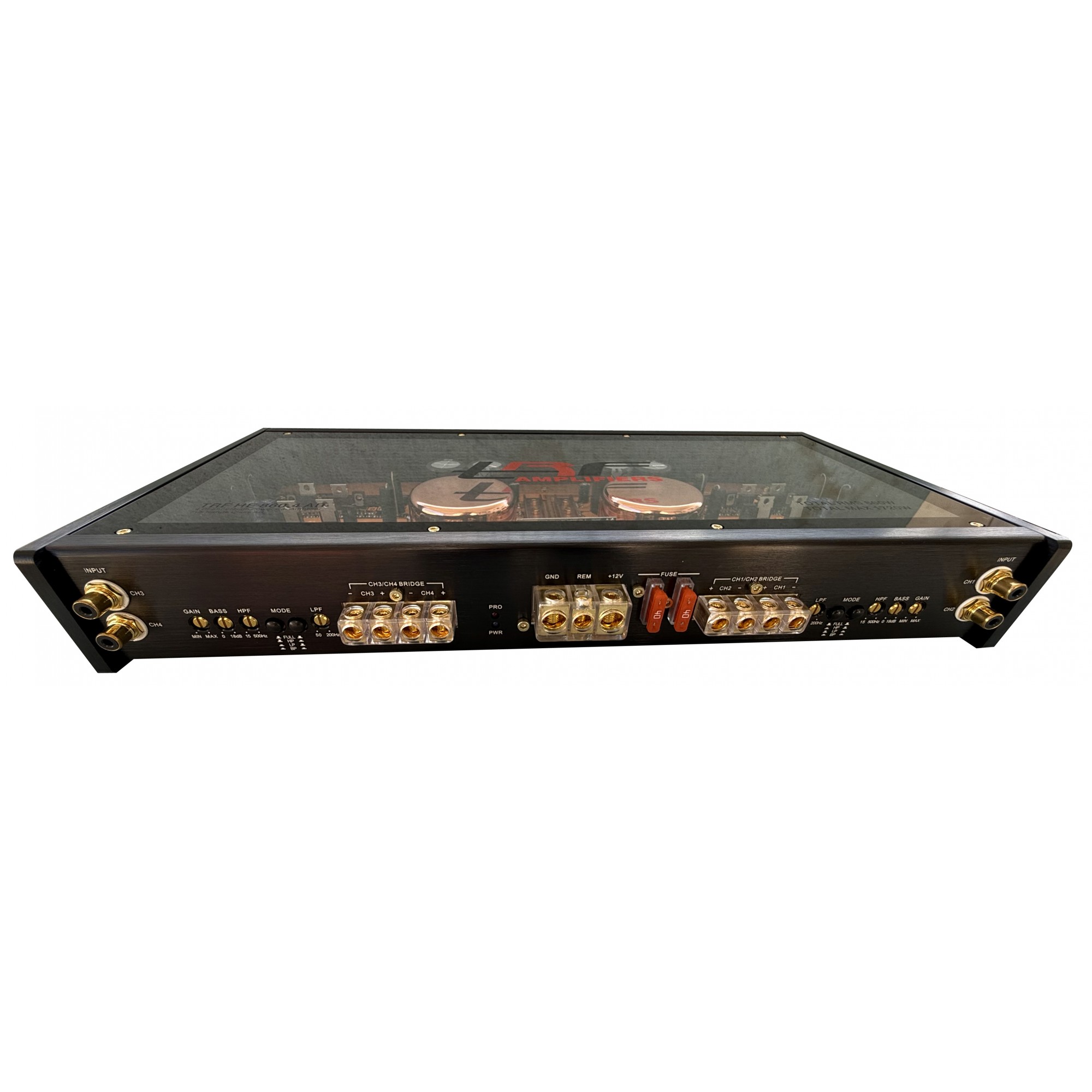

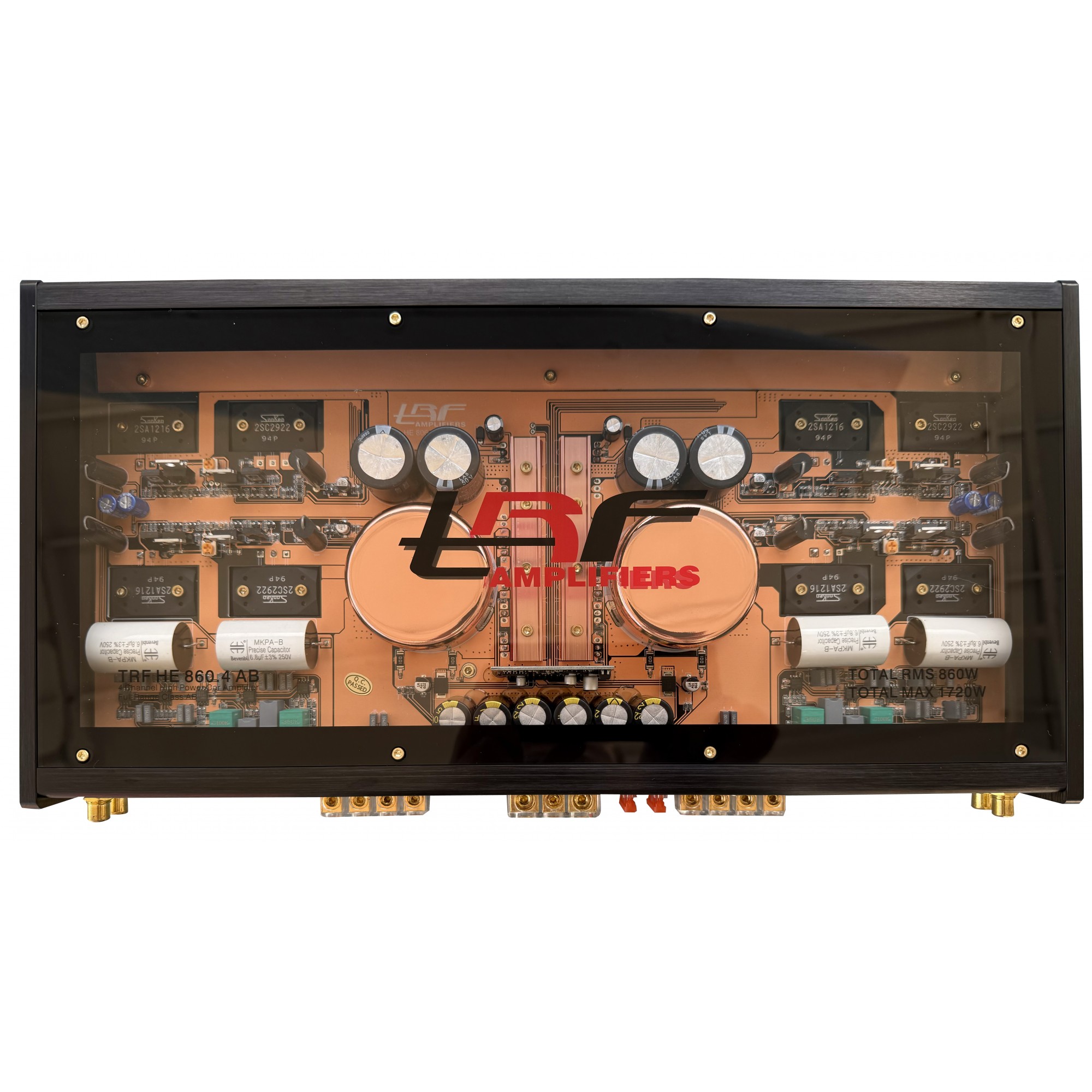

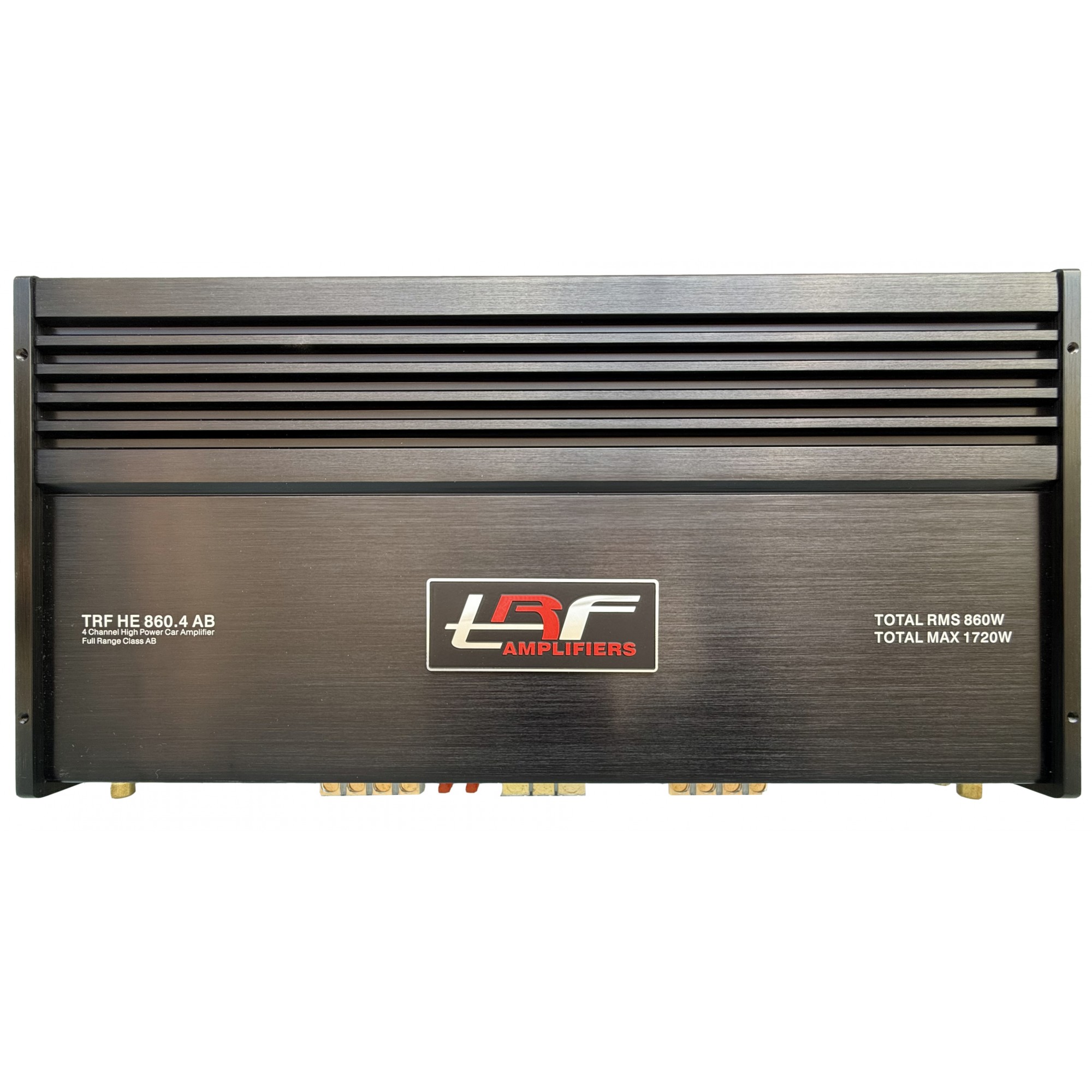

TRF HE 860.4AB

TRF HE 860.4AB 860Watt RMS POWER RMS 4ohm 140W X4 POWER RMS 2ohm 215W X4 POWER RMS(bridged)4ohm 430W X2 1720Watt MAX POWER MAX 4ohm 280W X4 POWER MAX 2ohm 430W X4 POWER MAX(bridged)4ohm 860W X2 SIGNAL TO NOISE:93dB INPUT SENSITIVITY:0.2v to 6v CROSSOVER:12db oct/slope 4 channel operation 4/3/2 channel operation Selectable FULL/HPF/LPF/BPF crossovers CH1/2 variable bass boost:0 to 18dB variable low pass filter:15Hz to 200Hz variable HI pass filter:50Hz to 500Hz Selectable FULL/HPF/LPF/BPF crossovers CH3/4 variable bass boost:0 to 18dB variable low pass filter:50Hz to 200Hz variable HI pass filter:50Hz to 500Hz 1x6 gauge power & speaker terminals FUSE : 80AMP LED power (green) and protect (red) indicator lights Tested voltage & THD: 14.4v & Less than 2% THD Working voltage :8.5v to 15v Dimension : 410x215x60mm
