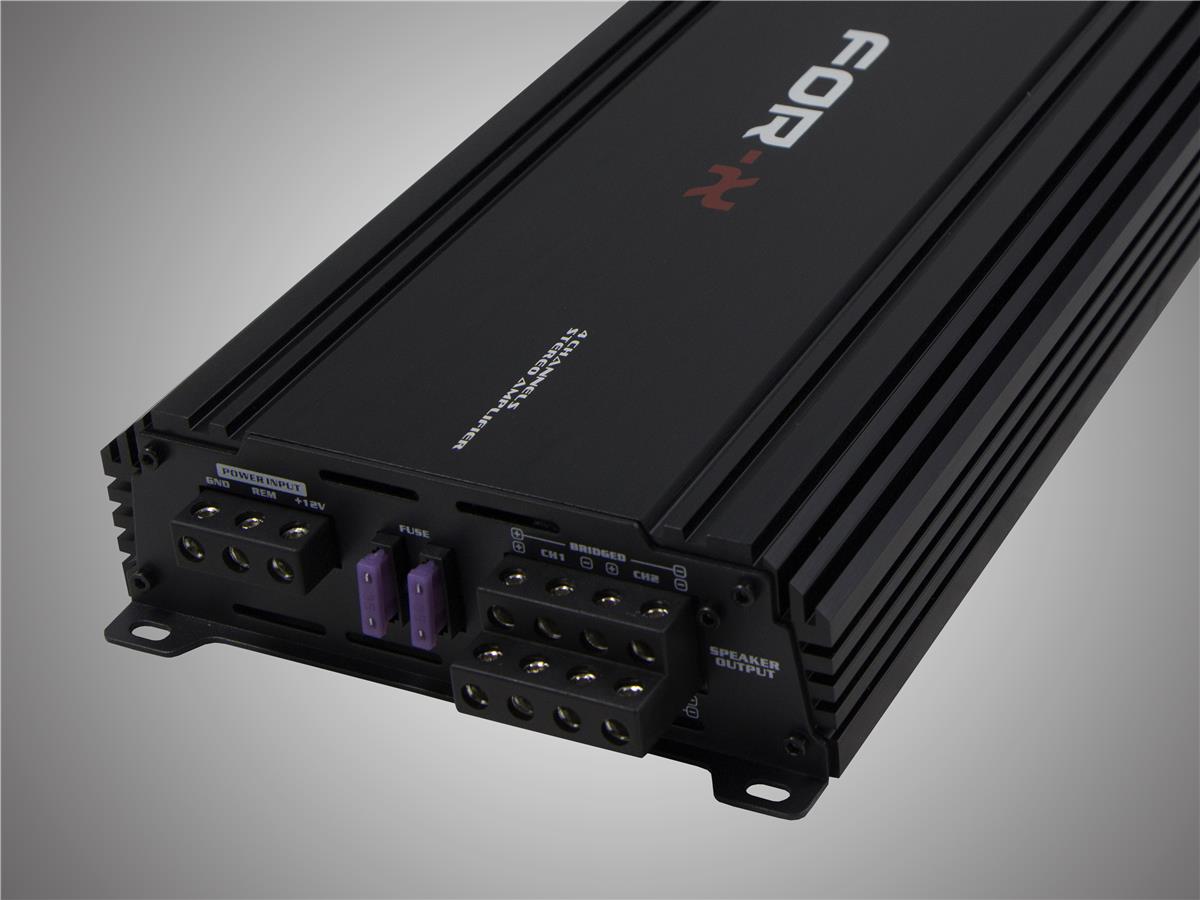

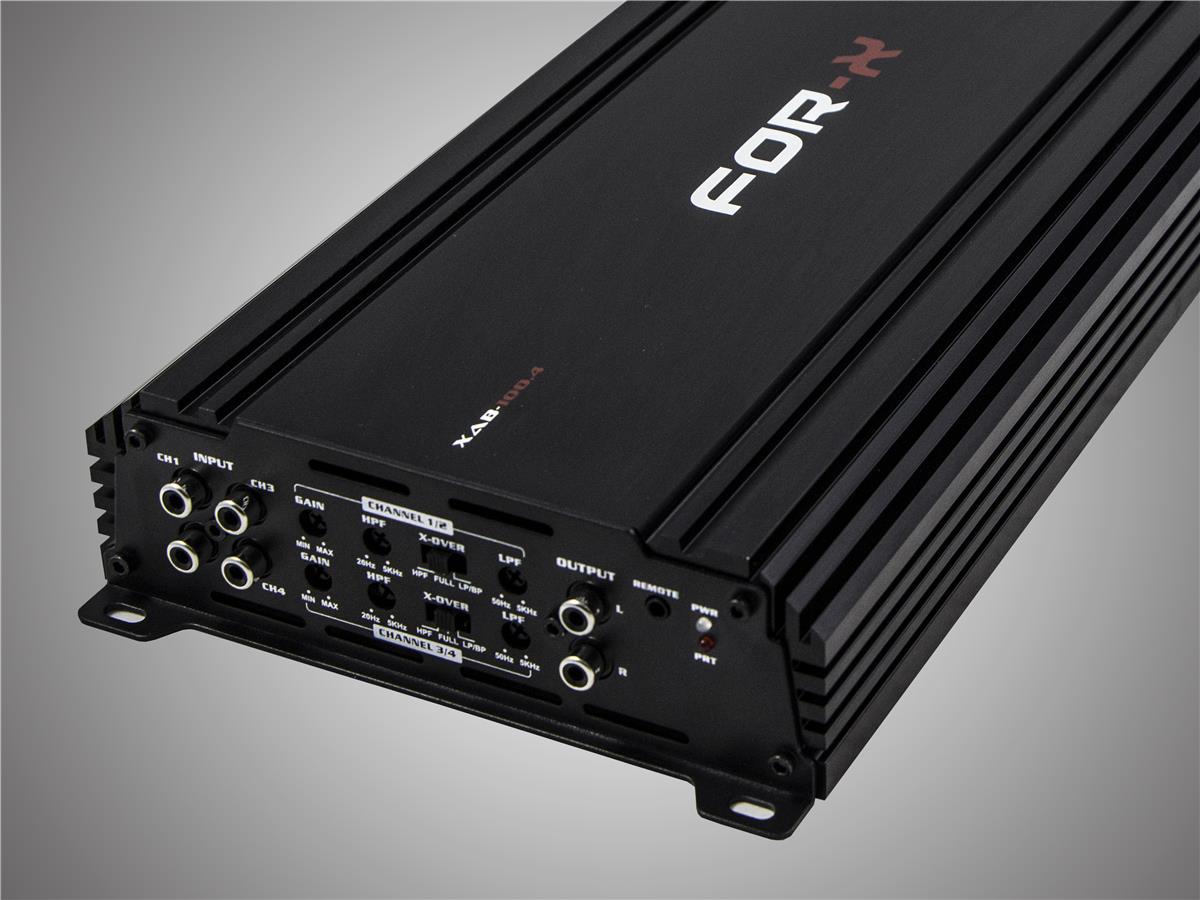

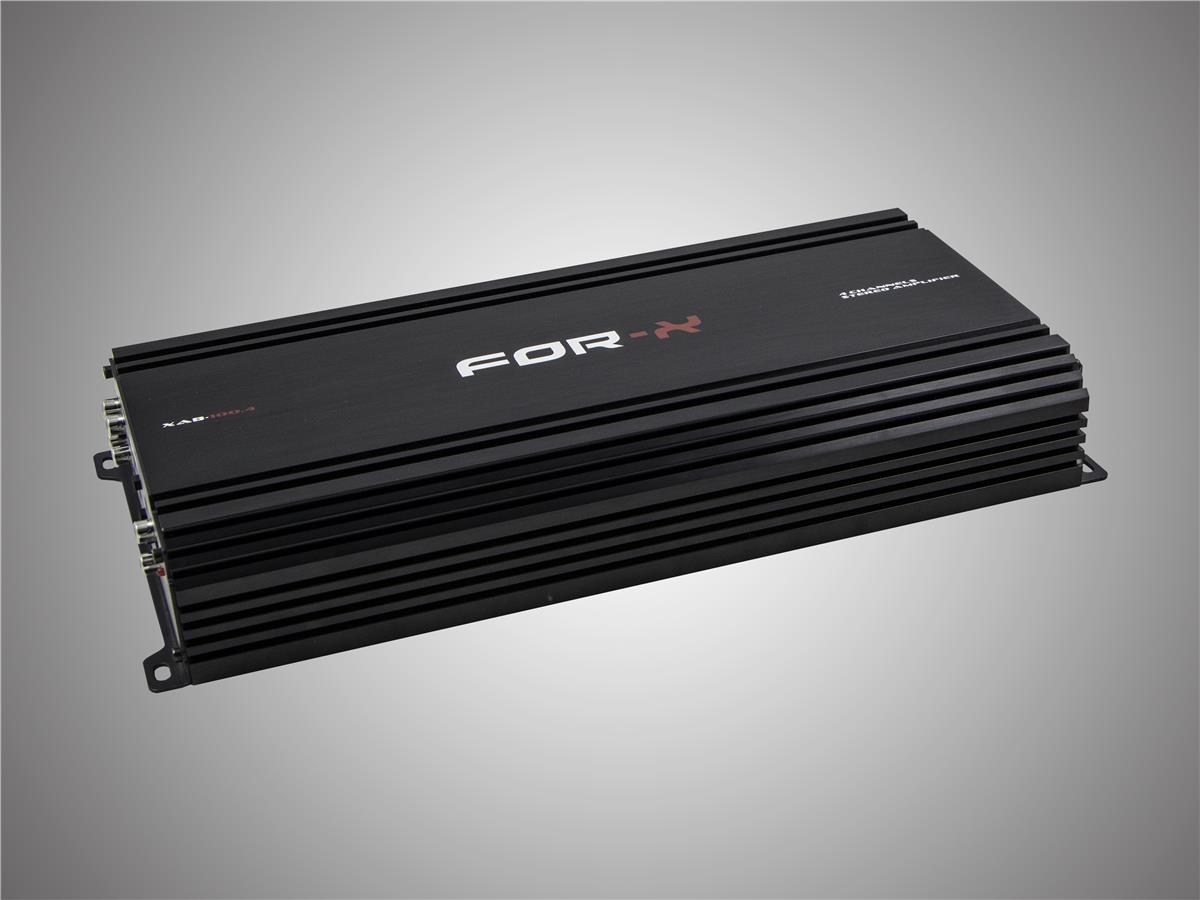

FOR-X XAB-100.4 4*140wrms
2 399 SEK
Class AB
RMS Power @4 Ohm 100Wx4CH
RMS Power @2 Ohm 140Wx4CH
RMS Power @4 Ohm Mono 280Wx2CH
Bandpassfilter 20-5000hz
Multiple ways of protection design, Eliminate hidden dangers!
Class AB PCB Design, Sound good with Strong bass, and achieve the treble is pure and bright.
Design of wide operating voltage from 9v-16v, Widely usable.
Adjustable and selectable LPF/HPF, Wide adjustable range.
Double sided PCB design and SMT technology, reliable and stable performance.
2 Ohms minimum load for full range.
Remote control design.
Bandpass filter.
https://youtu.be/BDfKodHQNbc
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeFOR-X
Beskrivning
Art.nr: FOR-X XAB-100.4
RMS power @ 4 ohm: 100 W x 4
RMS power @ 2 ohm: 140 W x 4
RMS power @ 1 ohm: -
RMS power @ 4 ohm mono: 280 W x 2
Minimum load impedance: 2 ohm stable
Input Sensitivity: 6 V - 0.2 V
High Pass Filter: 20 Hz - 5K Hz
Low Pass Filter: 50 Hz - 5K Hz
Bandpass Filter
Subsonic Filter: -
Bass Boost: -
Frequency Response: 10 Hz - 26K Hz
Signal to Noise Ratio: ≥ 90 dB
THD @ 4ohm: ≤ 0.1%
Damping Factor: > 120
Working Voltage: 9 V - 16 V
Fuse Rating: 70 A
Dimensions ( L inches) : 13.78
7.09 W x 2.19 H inches
We recommend using 2GA FOR-X COPPER OFC POWER CABLES.
10mm² anslutning
