TRF MH 1000.2D 2x500wrms
3 599 SEK
Perfekt när du vill koppla 8 högtalare på samma steg.
Obs, bättre ljudkvalitet än sk brassesteg.
BURRBROWN OP AMP IC
4 HAND-WOUND POWER TRANSFORMERS.
POWER RMS at 1ohm: 500W x2
POWER RMS at 2ohm: 300W x2
POWER RMS at 4ohm: 175W x2
POWER RMS at 4ohm mono: 600W x1
POWER RMS at 2ohm mono: 1000W x1
POWER MAX at 4ohm: 350W x2
POWER MAX at 2ohm: 600W x2
POWER MAX at 1ohm: 1000W x2
POWER MAX at 4ohm mono: 1200W x1
POWER MAX at 2ohm mono: 2000W x1
TEST VOLTAGE & THD: 14.4V-1%THD
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeTRF
Beskrivning
Art.nr: TRF MH 1000.2D
MODEL: TRF MH 1000.2D
Power RMS at 4 ohm : 175W x 2
Power RMS at 2 ohm : 300W x 2
Power RMS at 1 ohm : 500W x 2
Power RMS at 4ohm mono : 600W x 1
Power RMS at 2ohm mono : 1000W x 1
Power MAX at 4 ohm : 350W x 2
Power MAX at 2 ohm : 600W x 2
Power MAX at 1 ohm : 1000W x 2
Power MAX at 4ohm mono : 1200W x 1
Power MAX at 2ohm mono : 2000W x 1
Frequency response: 10Hz- 20KHz
Signal to Noise : 95dB <
Damping Factor : 400 <
Working impedance : 1ohm stereo or 2ohm mono
Input Sensitivity : 0.2V to6V
Crossover : 18db oct/ slope
Bandpass Filter:
hi Pass Filter : 50Hz to 8KHz
low Pass Filter : 50Hz to 8KHz

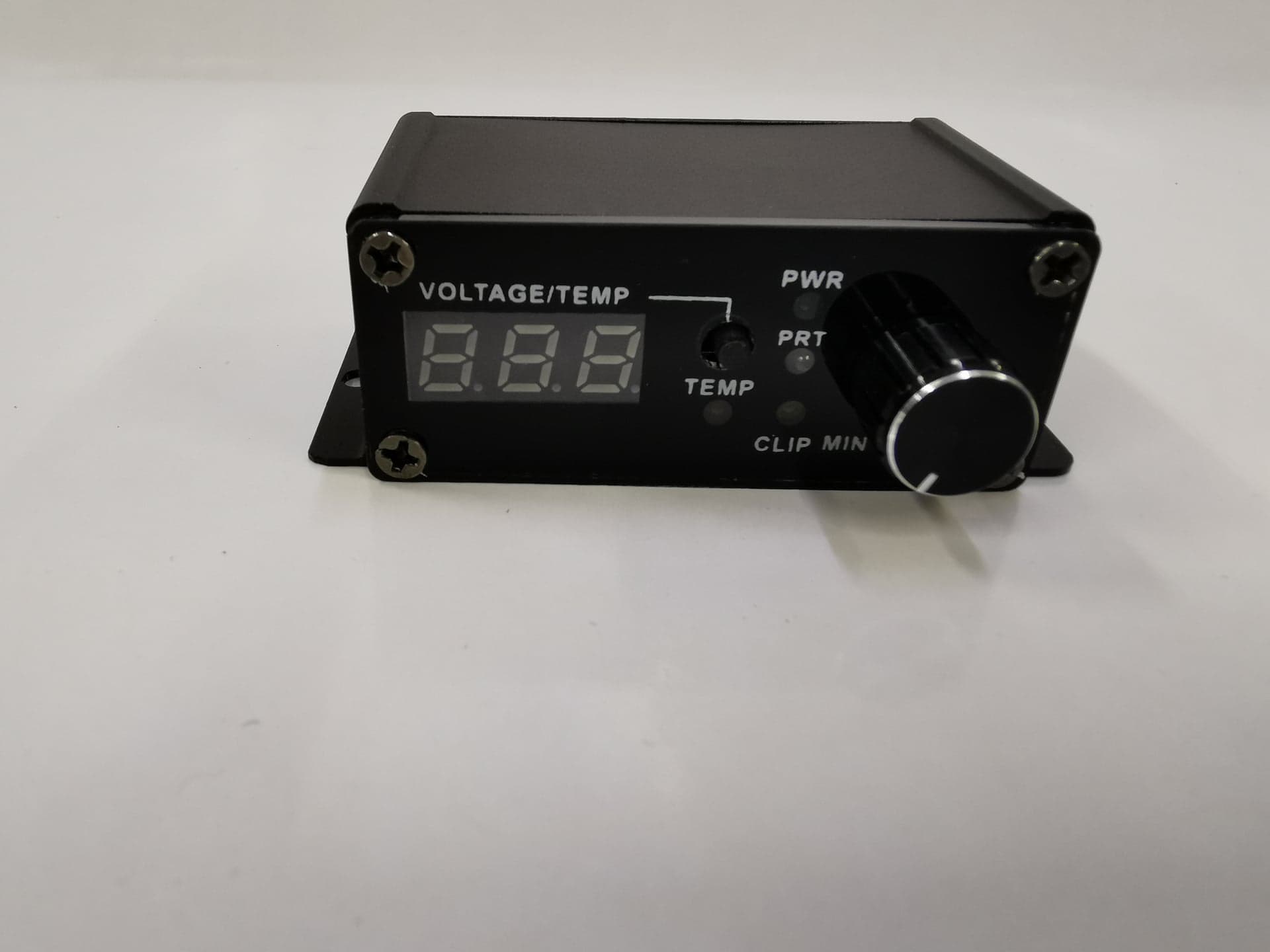

Remote controller CHECK:
VOLTAGE/TEMP - PWR,PRT,CLIP .

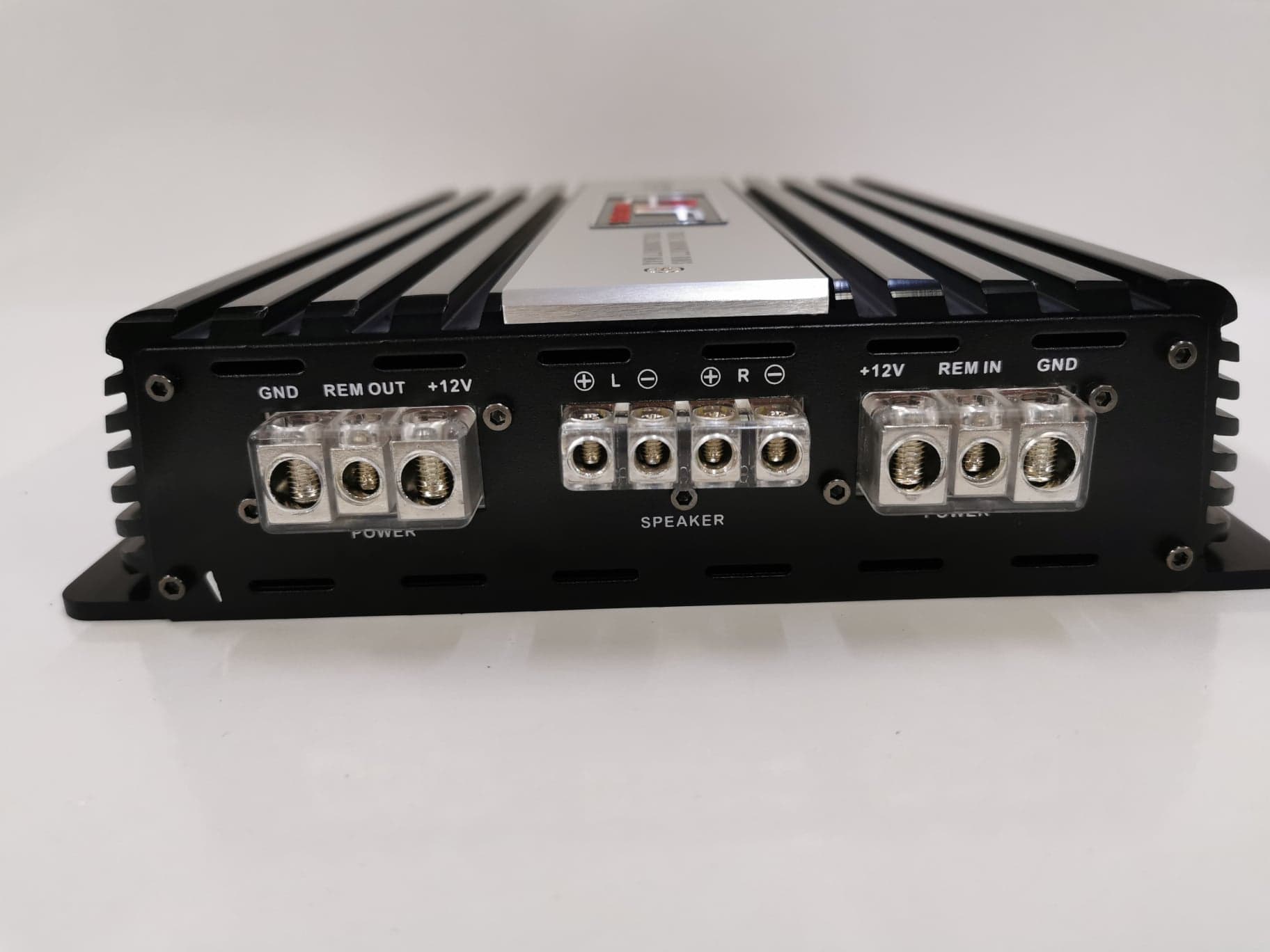

2X4 gauge power & speaker terminals
2 oz copper printed circuit board
Heavy-duty heatsink
3-way protection: DC offset, Thermal, speaker shot.
BURRBROWN OP AMP IC
4 HAND-WOUND POWER TRANSFORMERS.
Tested Voltage & THD : 14.4V & Less than 1% THD
Working voltage : 8.5V to16V
FUSE RATING : 120 AMPER
Dimension : 333X253X64 mm.
33mm² anslutning
