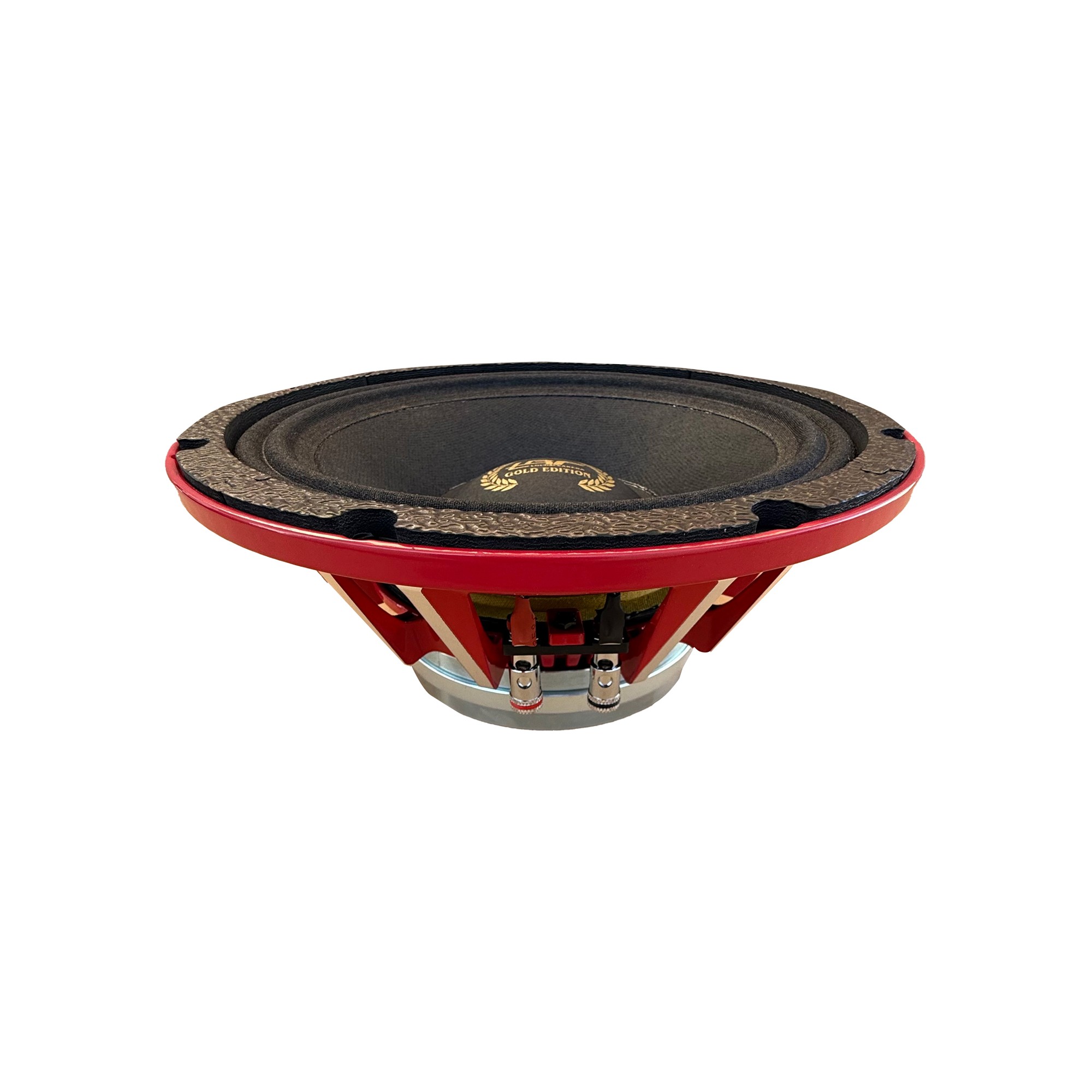

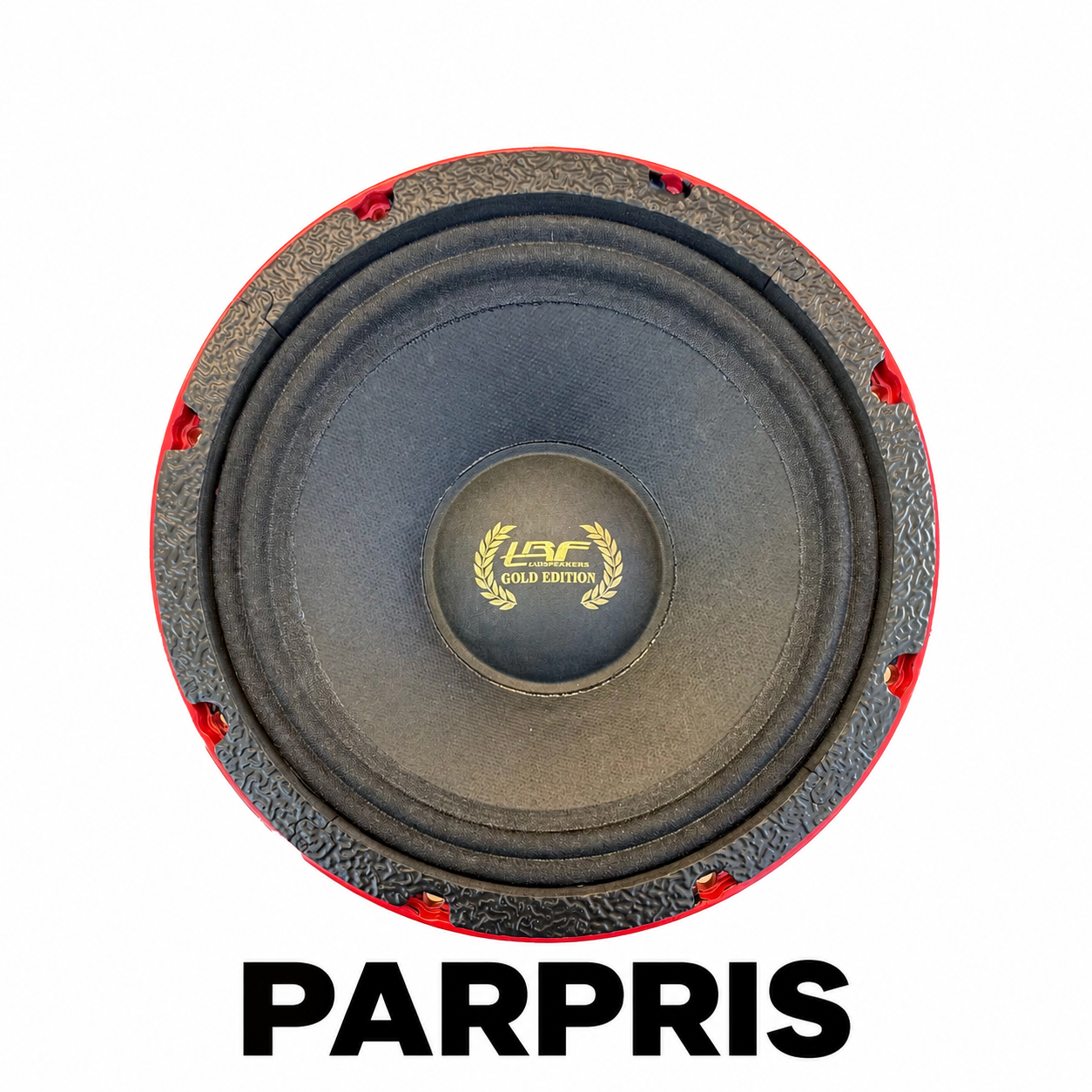

TRF 8MR600ND X4
3 900 SEK
MODEL: TRF 8MR600ND X4
Nominal diameter:8" (203mm)
MAX Power Handling:600W
RMS Power Handling:300W
Frequency response:110Hz-8KHZ
Nominal impedance:4Ω
Sensitivity: 100.5 dB
Magnet: Neodymium
Voice coil diameter:2.5"
Voice coil wire: CCAW
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeTRF
Beskrivning
Art.nr: 8MR600ND

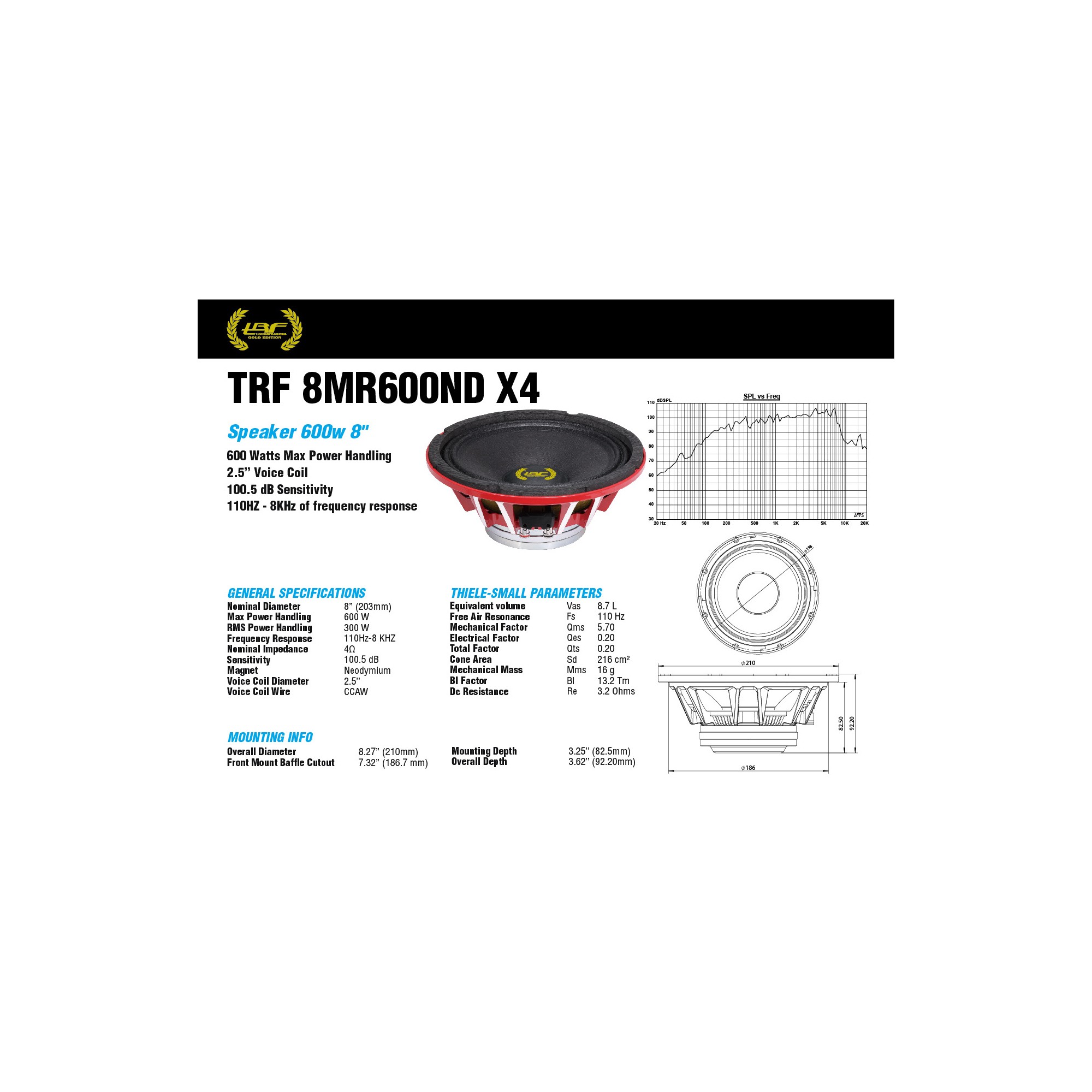

MODEL: TRF 8MR600ND X4
Nominal diameter:8" (203mm)
MAX Power Handling:600W
RMS Power Handling:300W
Frequency response:110Hz-8KHZ
Nominal impedance:4Ω
Sensitivity: 100.5 dB
Magnet: Neodymium
Voice coil diameter:2.5"
Voice coil wire: CCAW
Equivalent volume:Vas 8.7 L
Free Air Resonance:Fs 110 Hz
Mechanical Factor: Qms 5.70
Electrical Factor:Qes 0.20
Total Factor:Qts 0.20
Cone Area:Sd 216cm
Mechanical Mass:Mms 16g
BI Factor:BI 13.2Tm
Dc Resistance:Re 3.2 Ohms
Overall Diameter:8.27"(210mm)
Front Mount Baffle Cutout:7.32"(186.7mm)
Mounting Depth:3.26"(83mm)
Overall Depth:3.62"(92mm)
