TRF 8MR400ND NEO
2 699 SEK
400wrms
Date 20210926
Break in: yes
FS 80hz

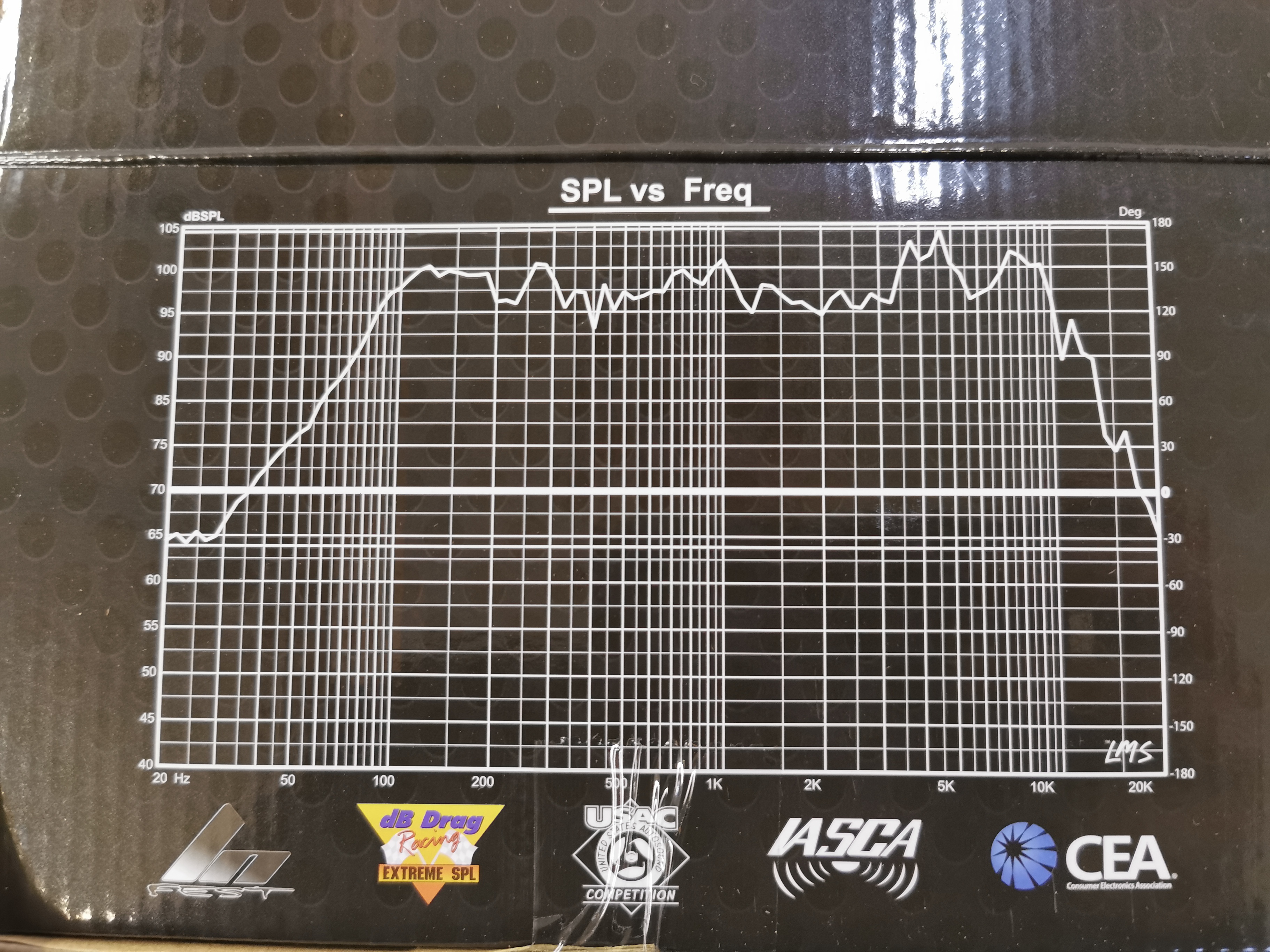

Effectiv range 90-6600hz
On axis 90-7000hz
Of axis 45 grader simulate door install 90-4500hz
Power pink noise 200wmrs 70hz 12db
Power pink noise 400wrms 90hz 12db
Recommended filter general use 80hz 12db
1w/1m Sensitivity 96db
Component feeling alot volume of enclosure yes
Optimal sealed volume 6,8 liter
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeTRF
Beskrivning
Art.nr: TRF 8MR400ND
Voice coil diameter: Φ 50.88 mm
Magnet dimension: Φ102 * 7mm X 1PCS
Xmax: ± 4mm
Nominal impedance: 4Ω
Re (DC): 3.3Ω
Basket: Die cast Alum
Cone and dust cap: Paper
Surround: Cloth
Voice coil wire : CCAR
Voice coil bobbin: KSV
Magnet: NEO

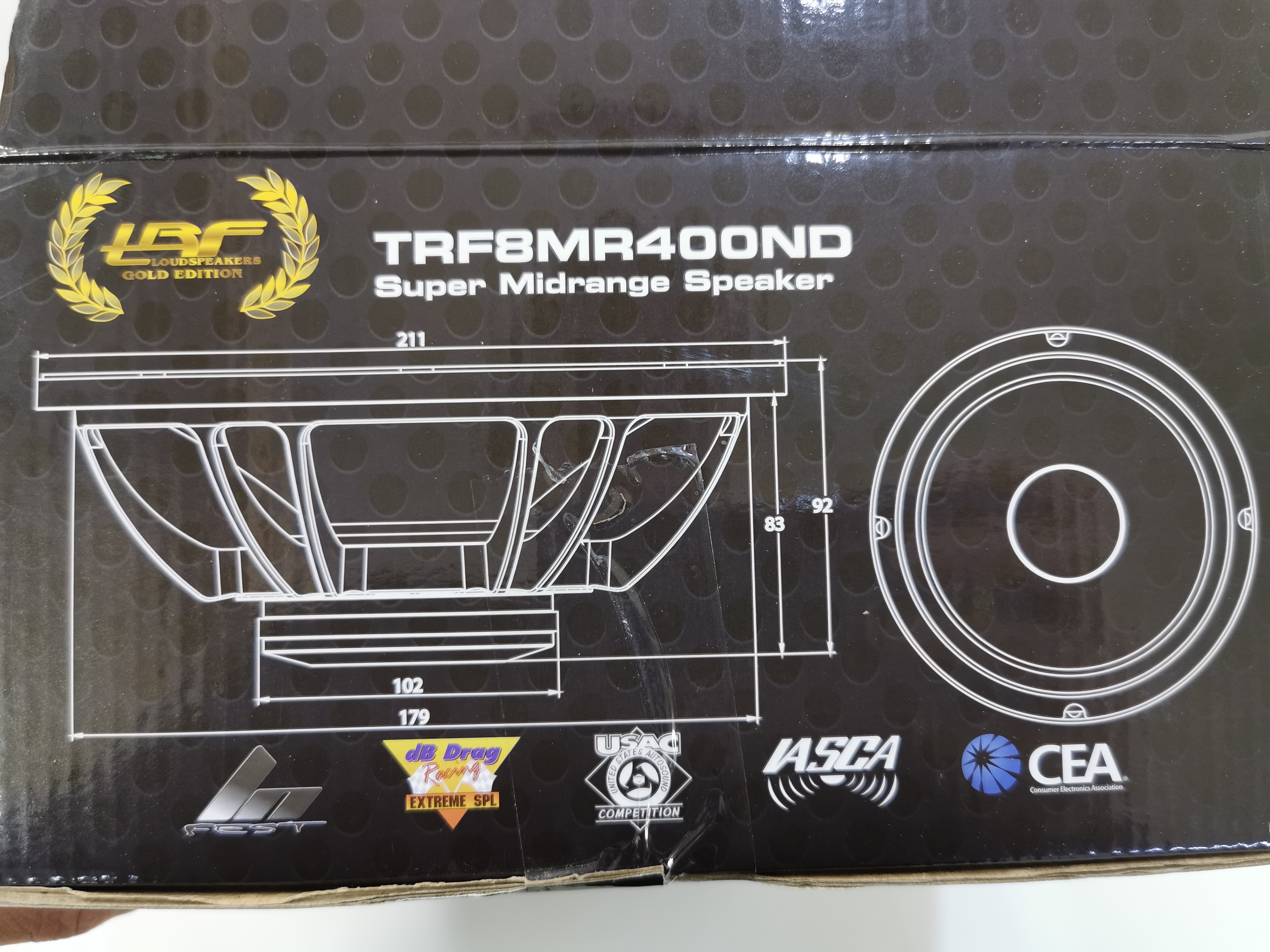

Over all diameter: Φ211mm
Bolt circle diameter: 4holes-Φ5.5 mm Φ197 mm
Cut out diameter: Φ186 mm
Depth: 84 mm
Net weight: 1.5 kg
VOICE COIL IS FLAT WIRE ALUMINUM
400WATT RMS,
THE SPEAKER IS VERY GOOD QUALITY,
USE TOP MATERIALS AND TECHNOLOGY FOR THE CONSTRUCTION OF SPEAKER
NEODYMIUM MAGNET MATERIALS WITH PARTICULAR HIGH SENSITIVITY (100db).
ALUMINUM CHASSIS.
WITH COIL DIAMETER 2 inches
THE SENSITIVITY OF THE SPEAKER RANGES ACCORDING TO THE FREQUENCY FROM-TO 97.5-105 db w / m.
