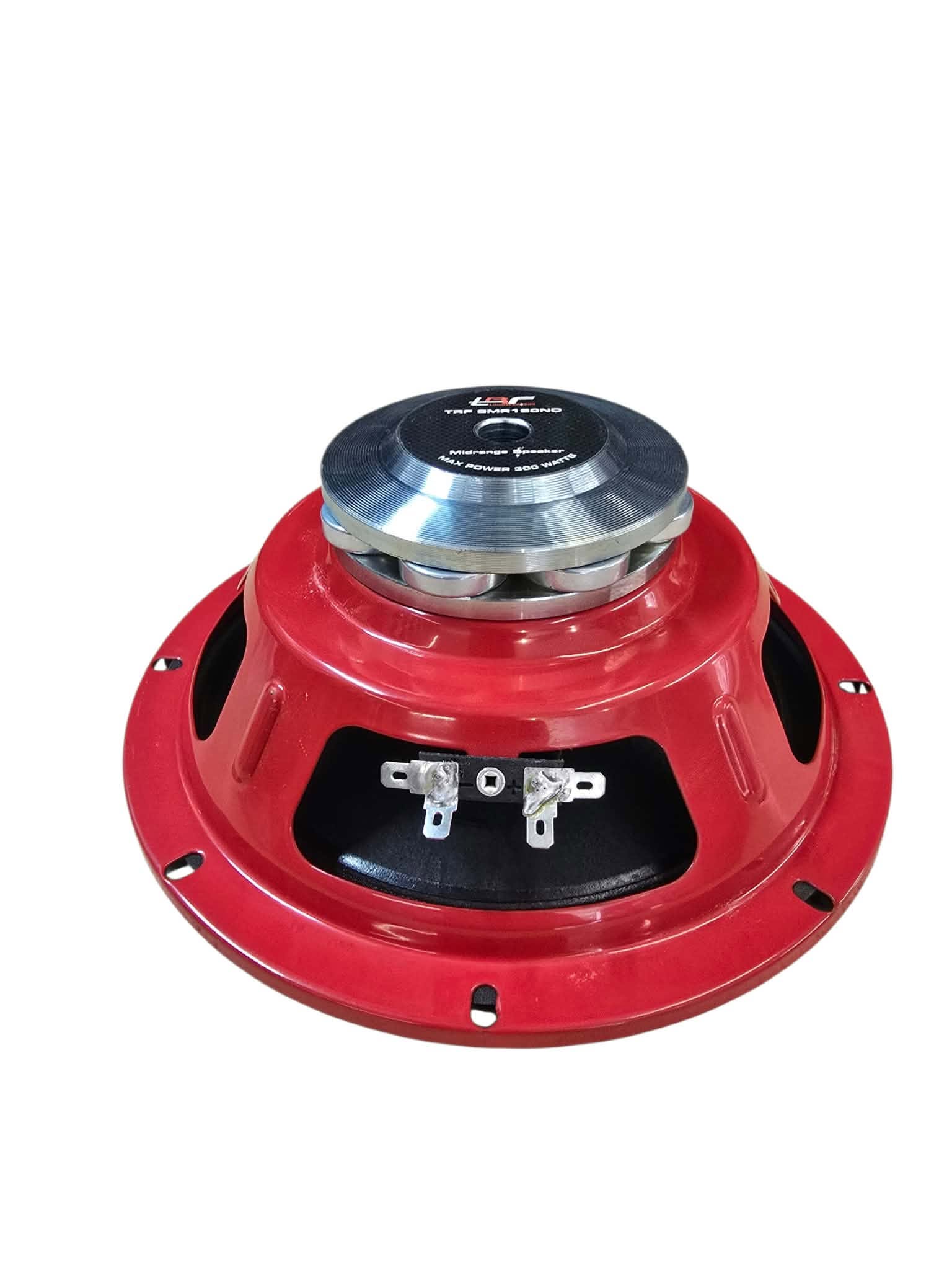

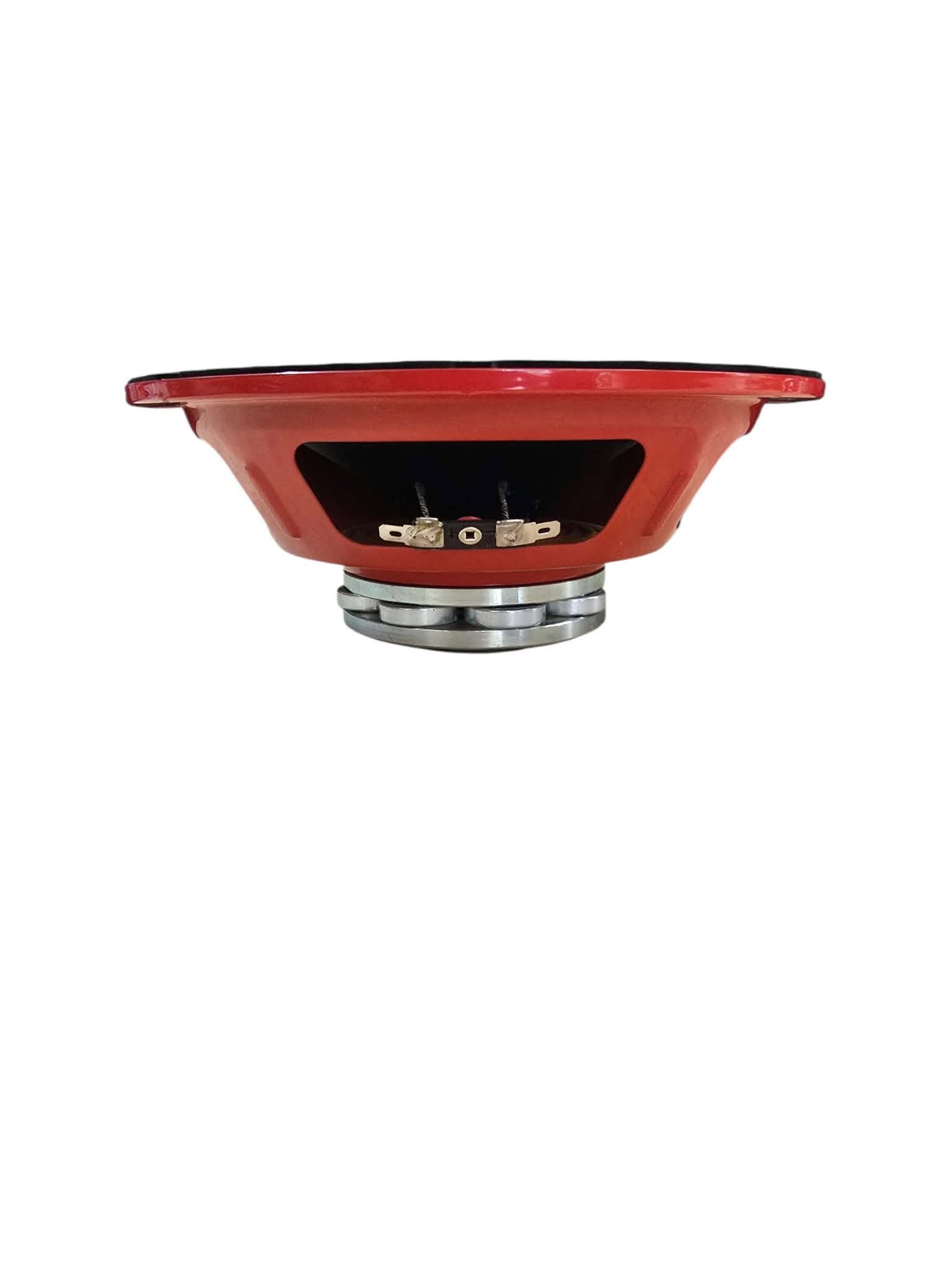

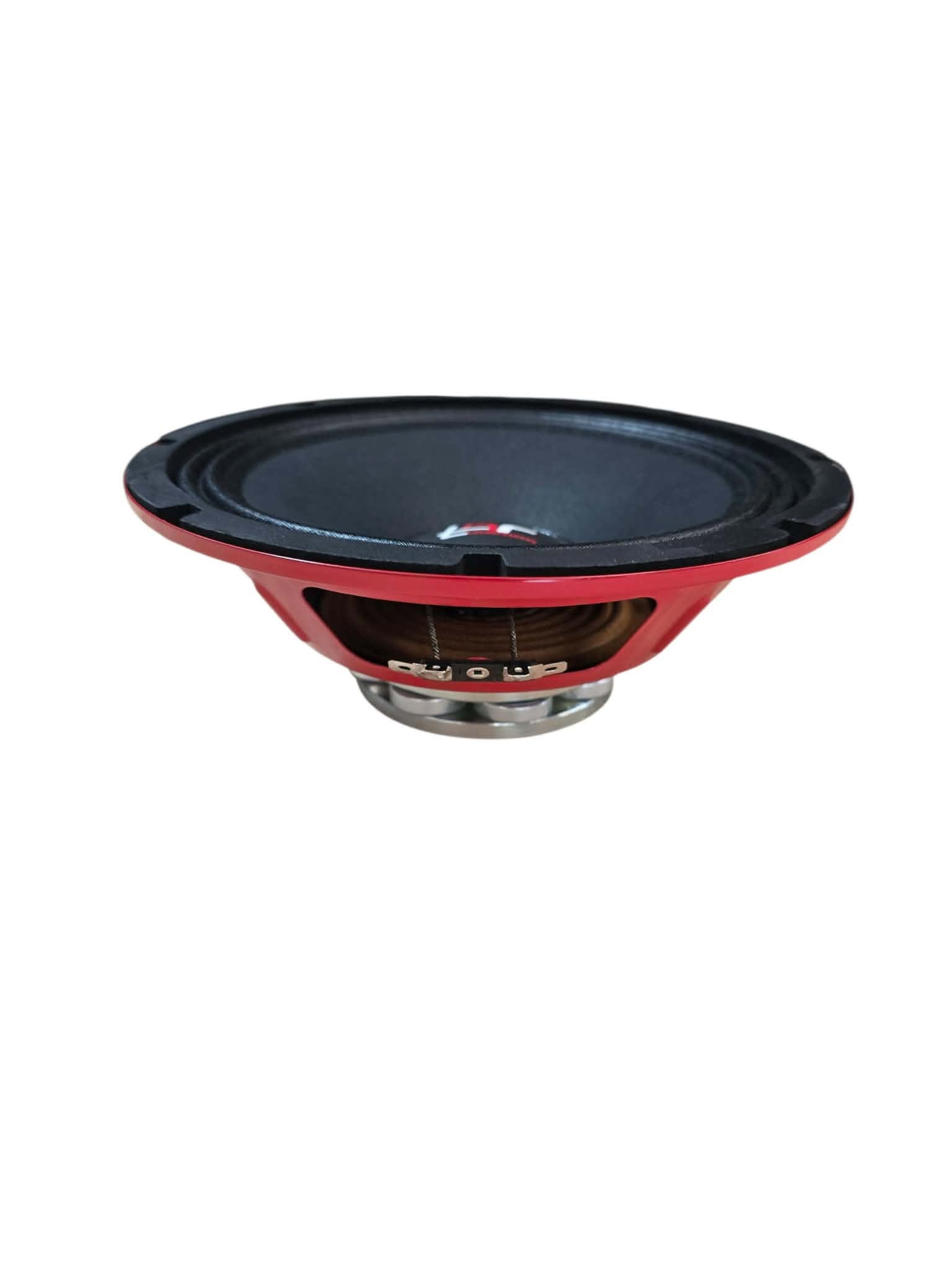

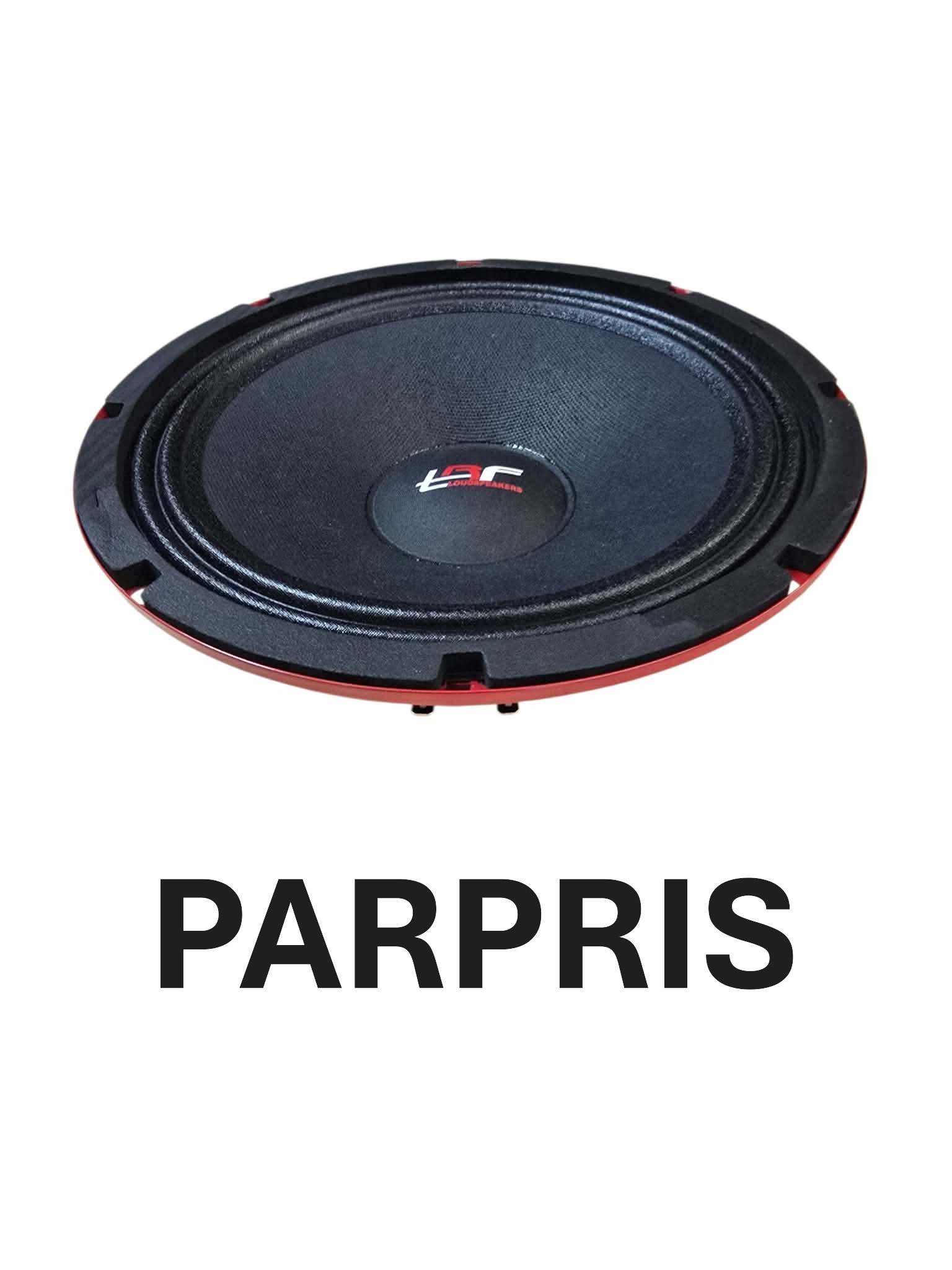

TRF 8MR180ND

Nominal impedance: 4Ω Nominal Power Handling: 100W Power PROGRAM RMS: 200W Max Power Handling: 300W Sensitivity (1w/1m): 100 Frequency range: 100-7000 Hz Voice coil diameter: Φ38.55 mm Magnet dimension: Φ90*6mmX1PCS Fs: 100 Hz Re (DC): 3.3Ω Basket: Die cast IRON Cone and dust cap: Paper Surround: Cloth Voice coil wire: CCAR Voice coil bobbin: KSV Magnet: ND Over all diameter: Φ209mm Bolt circle diameter: 8holes-Φ5X9 mm Φ197 mm Cut out diameter: Φ186 mm Depth: 74 mm Net weight: 1 kg Xmax: ± 5mm Component feeling alot volume of enclosure: yes Optimal sealed volume 6 liter
