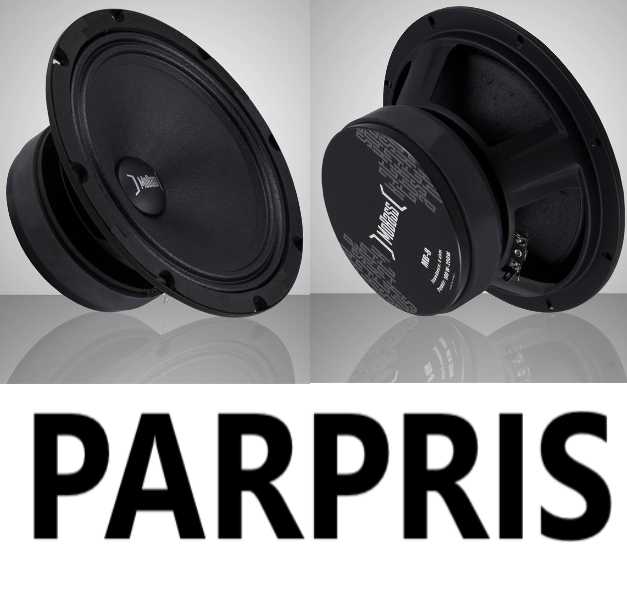

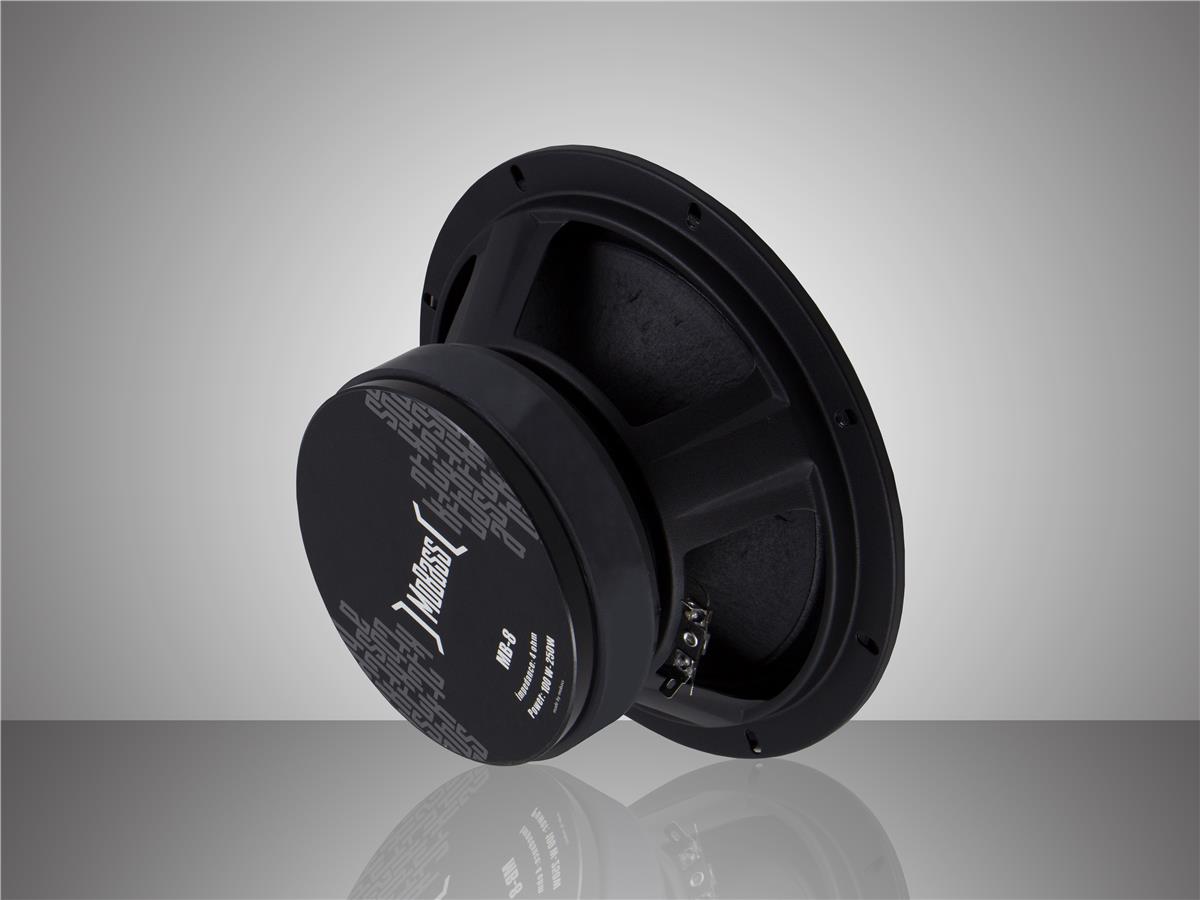

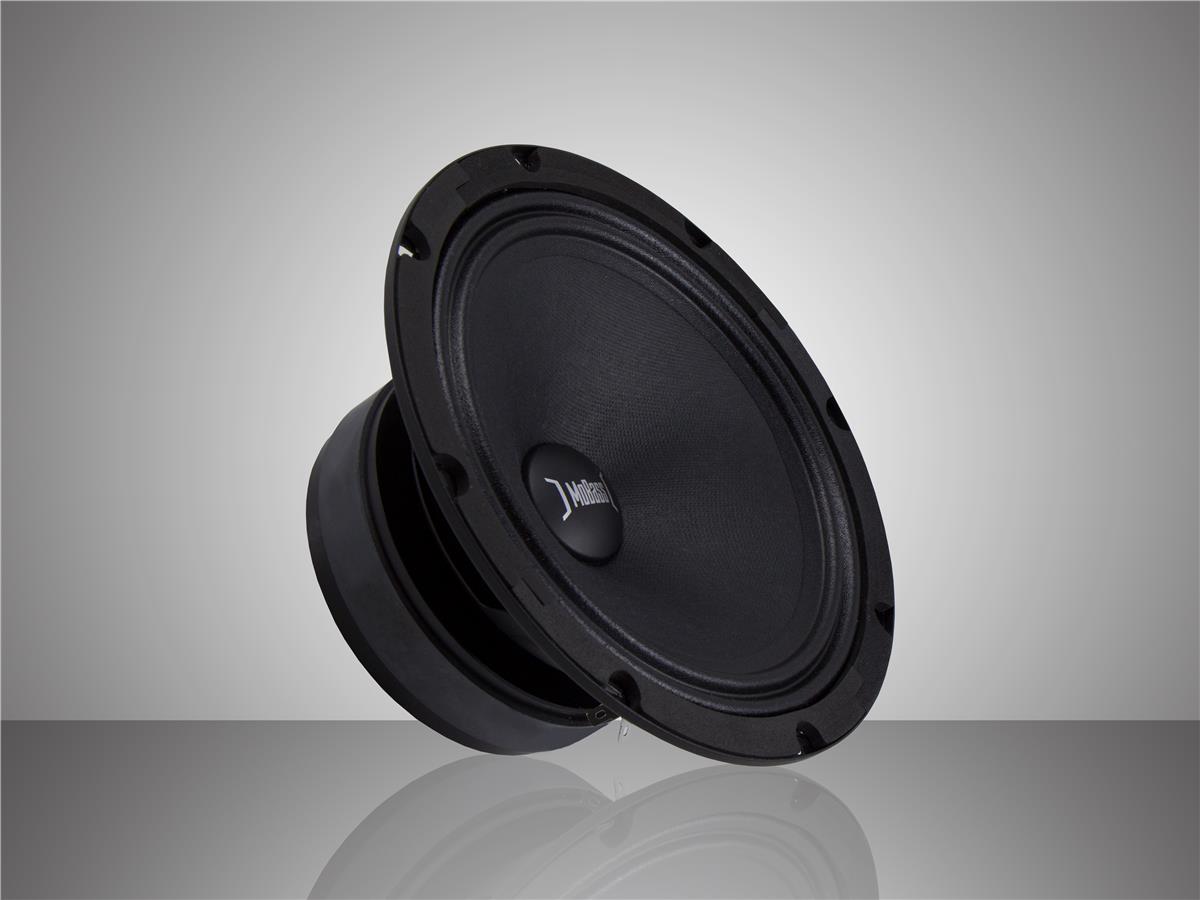

MOBASS MB-8
1 499 SEK
150wrms
TESTED 20201004
Break in: Yes
Fs: 72hz
Effective range 80-8000hz
On axis: 82-8600hz
Out of axis 45: 90-6000hz
Power pink noise >70hz/12dB 100wrms
Power pink noise >90hz/12dB 150wrms
Recommended filter general use >80hz 12dB
1w/1m Sensitivity 96,4dB
Component feeling a lot volume of enclosure: Yes
Optimal sealed volume: 9 liter
Good for ported also
Med Galler
https://youtu.be/hr4aE13NzGg
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeMOBASS

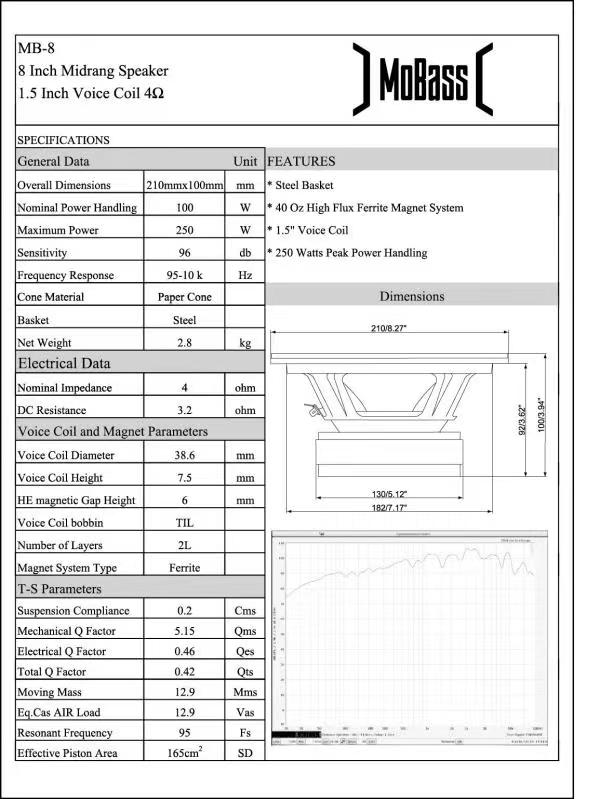

Beskrivning
Art.nr: MOBASS MB-8
8 Inch Midrange Speaker
Steel Basket
40 Oz High Flux Ferrite Magnet System
1.5" Voice Coil
General Data
Overall Dimensions: 210*100 mm
Sensitivity: 96 dB
Frequency Response: 75-10K Hz
Cone Material: Paper Cone
Basket: Steel
Net Weight: 2.8 kg
Electrical Data
Nominal Impedance: 4 Ohm
DC Resistance: 3.2 Ohm
Voice Coil and Magnet Parameters
Voice Coil Diameter: 38.6 mm
Voice Coil Height: 7.5 mm
HE Magnetic Gap Height: 6 mm
Voice Coil bobbin: TIL
Number Of Layers: 2 layers
Magnet System Type: Ferrite
T-S Parameters
Suspension Compliance, Cms: 0.2
Mechanical Q Factor, Qms: 5.15
Electrical Q Factor, Qes: 0.46
Total Q Factor, Qts: 0.42
Moving Mass, Mms: 12.9
Eq. Cas Air Load (liters), VAS: 12.9 Liter
Resonant Frequency, Fs: 95 Hz
Effective Piston Area, SD: 165 cm^2
10-12 liters per speaker sealed.
