FOR-X XMD-3080
949 SEK
TESTED 20201006
+150wmrs
Break in: Yes
Fs: 78hz
Effective range 80-9000hz
On axis: 80-9600hz
Out of axis 45: 90-6700hz
Power pink noise >70hz/12dB 130wrms
Power pink noise >90hz/12dB +150wrms
Recommended filter general use >70hz 12dB
1w/1m Sensitivity 96,2dB
Component feeling a lot volume of enclosure: No
Optimal sealed volume: 8 liter
Galler medföljer.
Impedance 4 ohms
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeFOR-X
Beskrivning

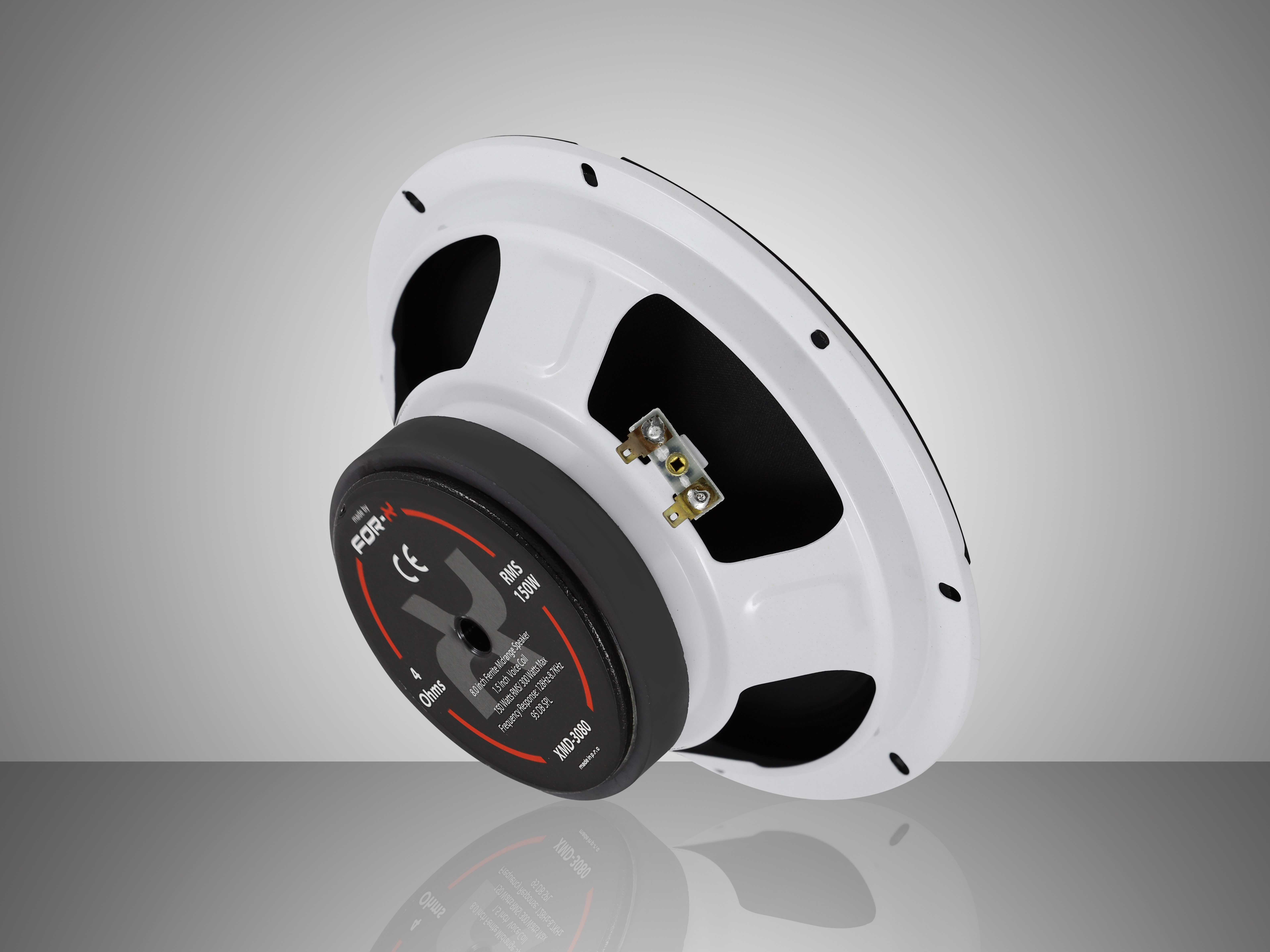

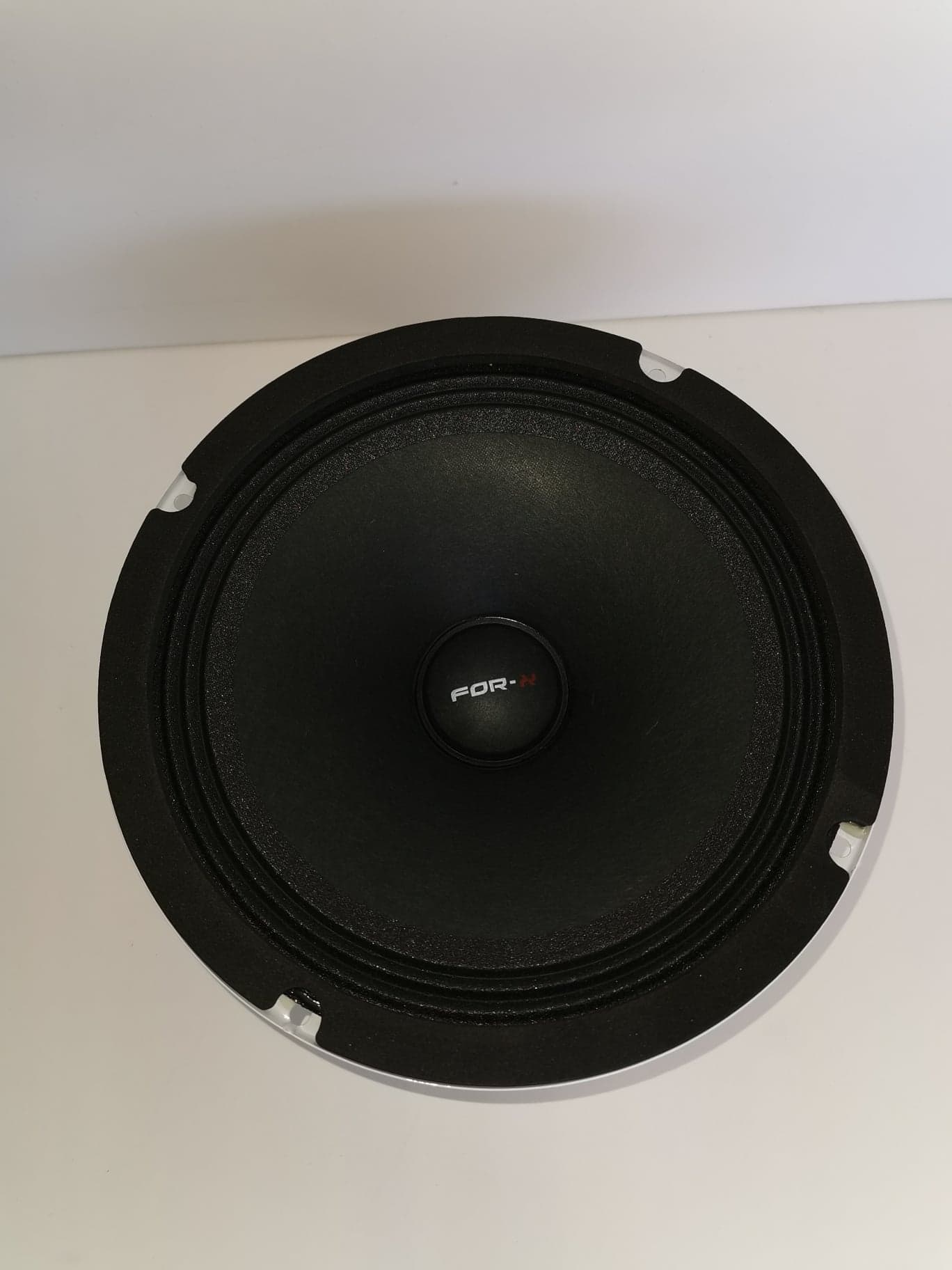

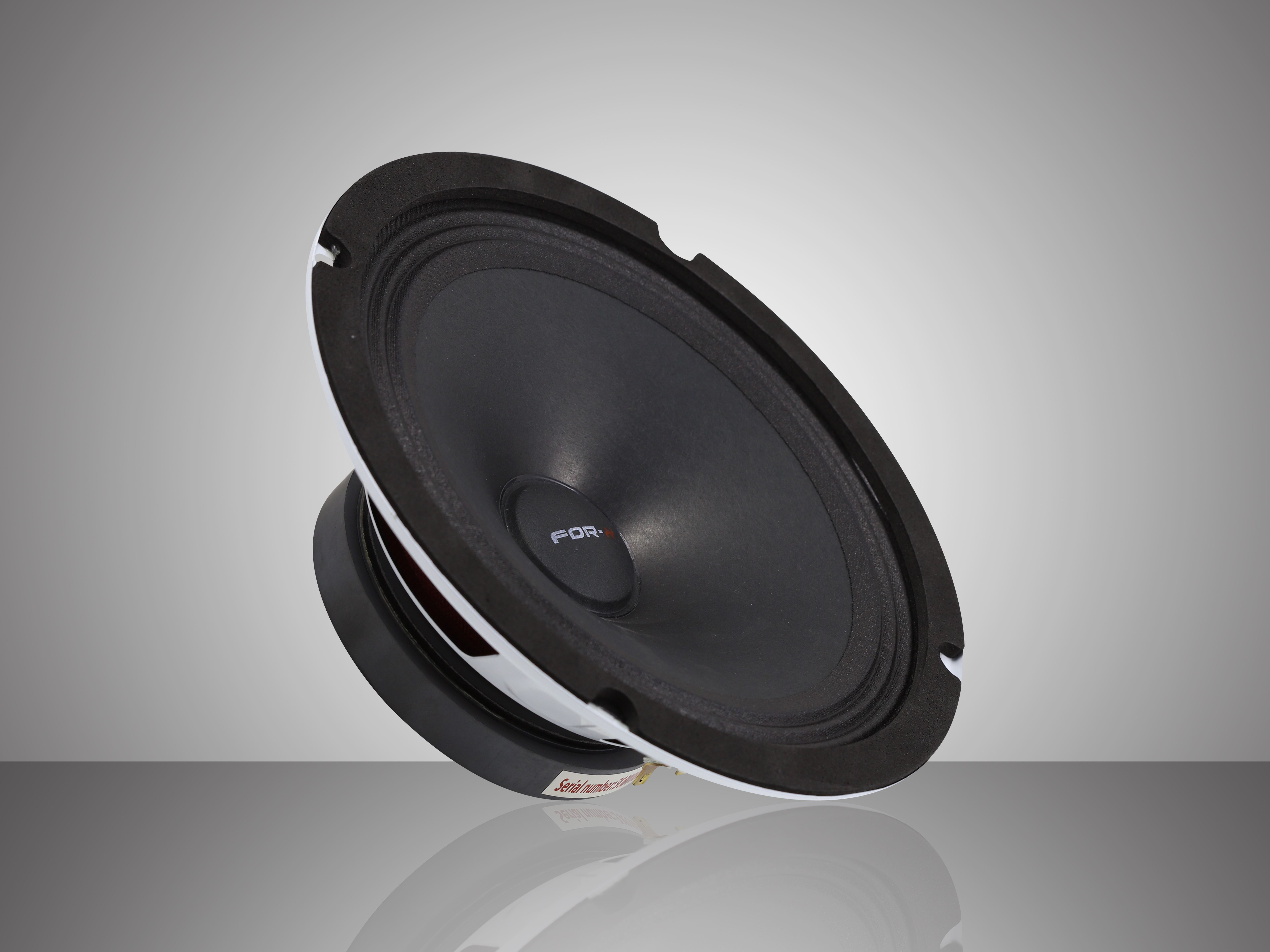

Art.nr: FOR-X XMD-3080
Non-pressed paper cone with cloth edge
Have duty steel basket
1.5 inch kccaw voice coil
High strength ferrite magnet
Sensitivity 95dB

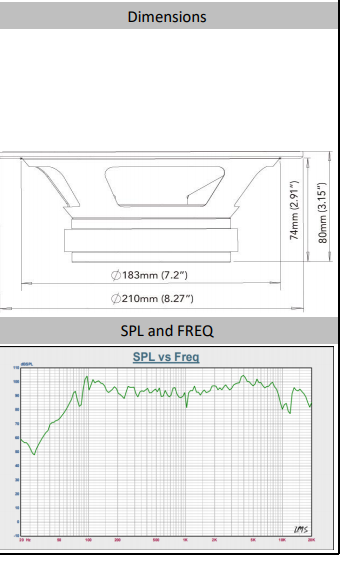

Diameter 209mm
Cutout 182mm
Depth 79mm
Overall Dimensions 210 mm
Mounting Depth 74 mm
Baffle Cutout Diameter 183 mm
Nominal Power Handing 150 W
Maximum Power 300 W
Sensitivity 96,2
Db
Cone Material Paper Cone \
Basket Steel \
Net Weight 1.5 KGS
Electrical Data Dimensions
Nominal Impedance 4 OHMS
DC Resistance 3.2 OHMS
Voice Coil and Magnet Parameters
Voice Coil Diameter 38.6 mm
Voice Coil Height 7.3 mm
HE Magnetic Gap Height 5 mm
Number of Layers 2 pc
Winding Material CCAW \
Voice Coil Bobbin Kapton \
Magnet System Type Ferrite \
Magnet Weigth 21 Oz
T-S Parameters
Suspension Compliance 187.9 Cms
Mechanical Q Factor 7.9 Qms
Electrical Q Factor 1.7 Qes
Total Q Factor 1.4 Qts
Moving Mass 13.8 Mms
Eq.Cas AIR Load 11.9 Vas
Resonant Frequency 100 Fs
Effective Piston Area 211.2cm² SD
