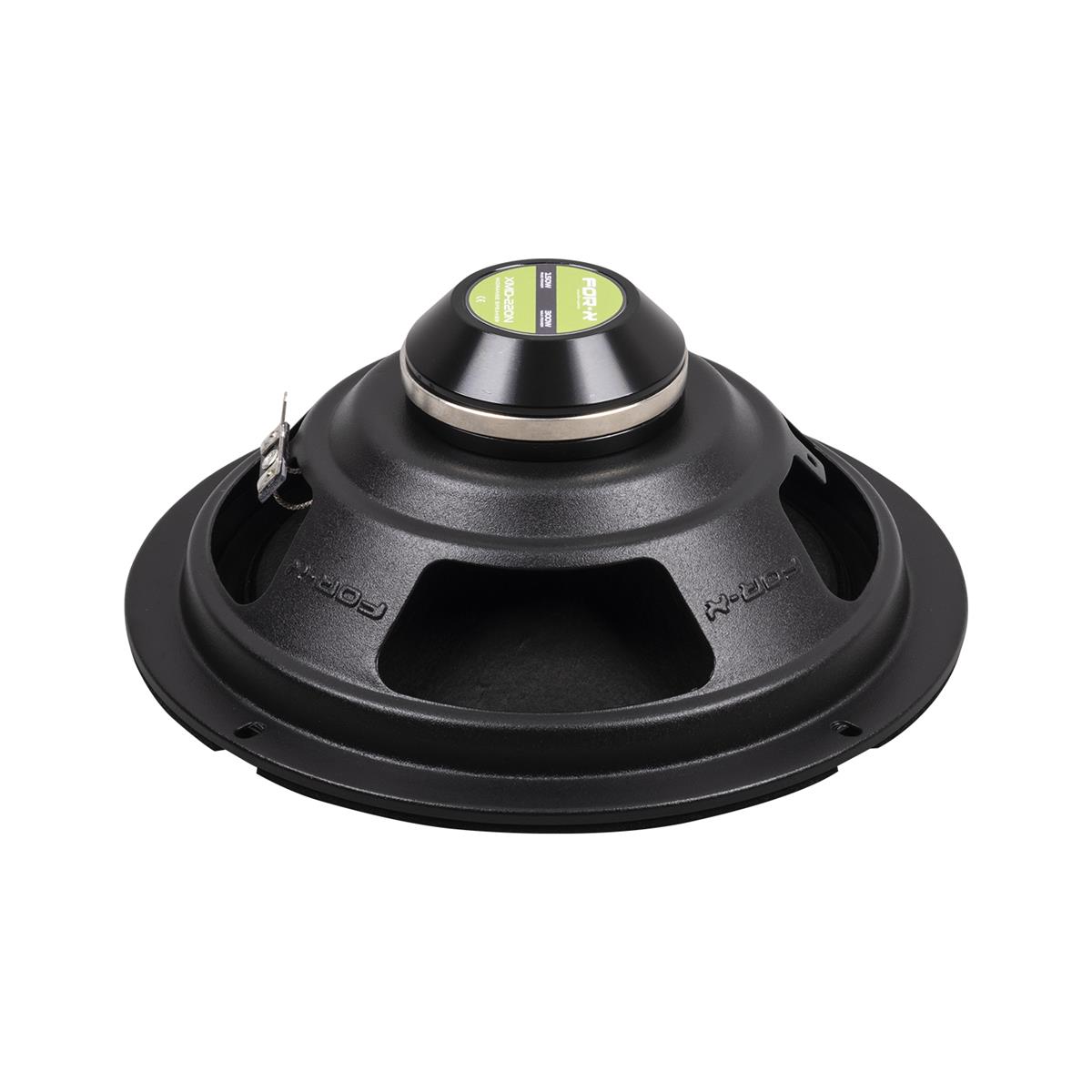

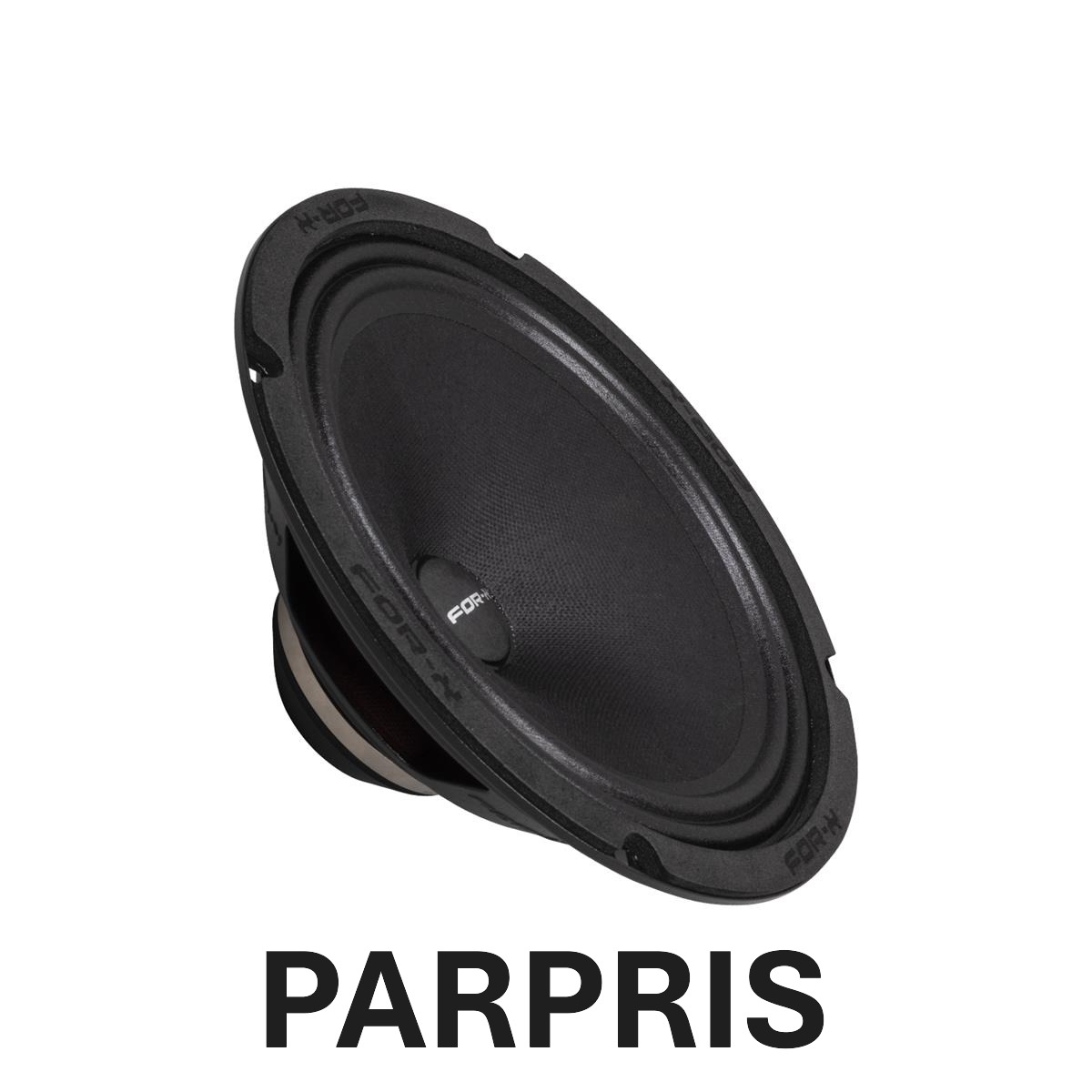

FOR-X XMD-220N
1 899 SEK
General Data
Overall Dimensions: 210*86mm
Nominal Power Handling: 150W
Maximum Power: 300W
Sensitivity: 95.2dB
Frequency Response: 95-11kHz
Cone Material: Paper
Speaker Net Weight: 0.8kg
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeFOR-X
Beskrivning
Art.nr: FOR-X XMD-220N
Electrical Data
Nominal Impedance: 4 Ohm
DC Resistance: 3.4 Ohm
Voice Coil and Magnet Parameters
Voice Coil Diameter: 30.5mm
Voice Coil Height: 11.2mm
HE Magnetic Gap Height: 6mm
Max Linear Excursion: 2.6mm
Voice Coil Bobbin: Kapton
Voice Coil Wire: CCAW
Number of Layers: 2
Magnet System Type: Neodymium
BL Product: 6.66
T-S Parameters
Suspension Compliance: 0.19 Cms
Mechanical Q Factor: 5.56 Qms
Electrical Q Factor: 0.63 Qes
Total Q Factor: 0.57 Qts
Moving Mass: 13.8 Mms
Eq.Cas Air Load: 12.9 Vas
Resonant Frequency: 95 Hz
Effective Piston Area: 213.8cm² SD
