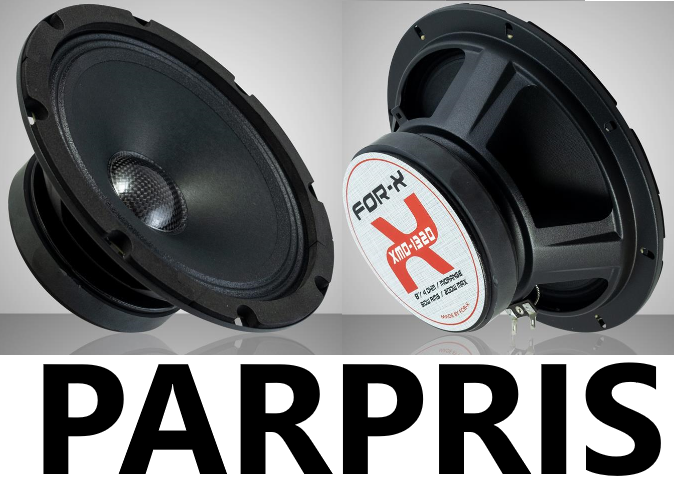

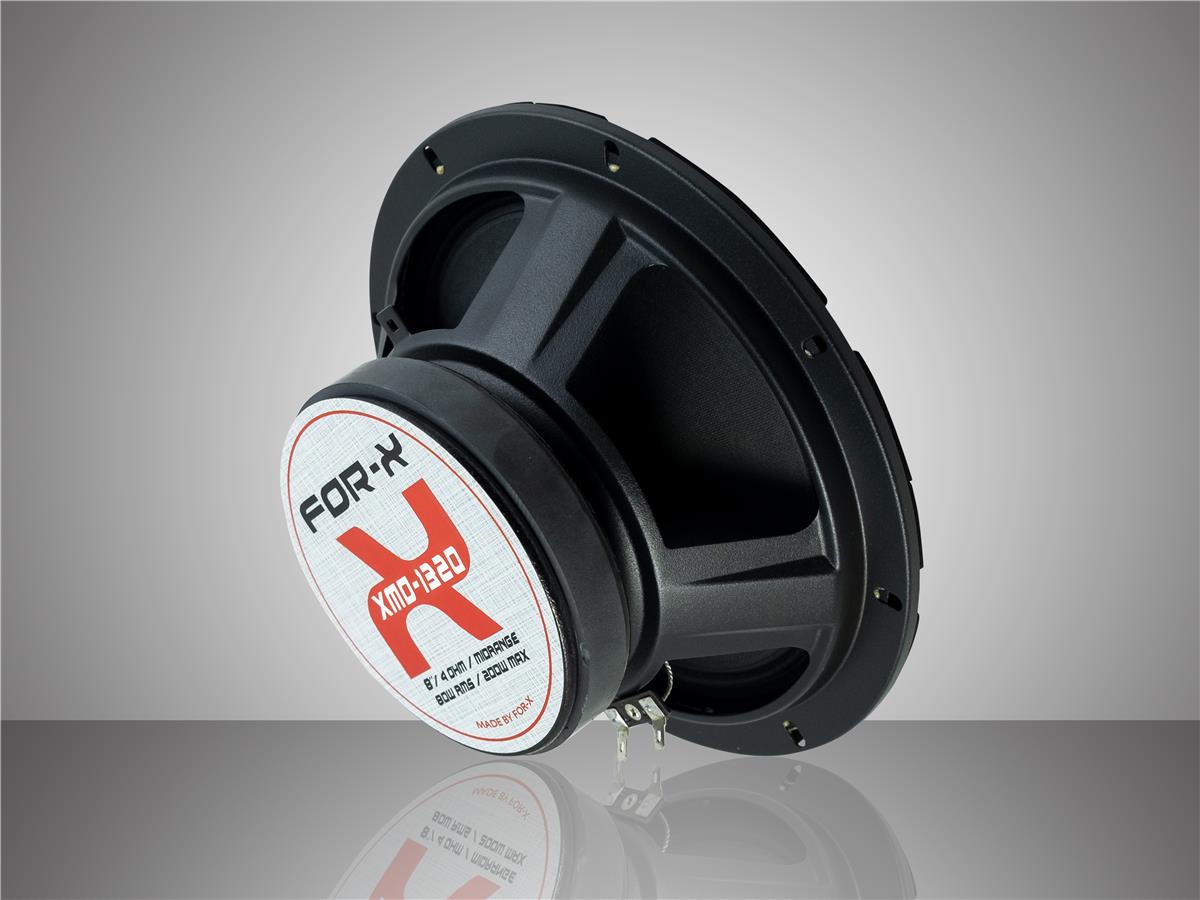

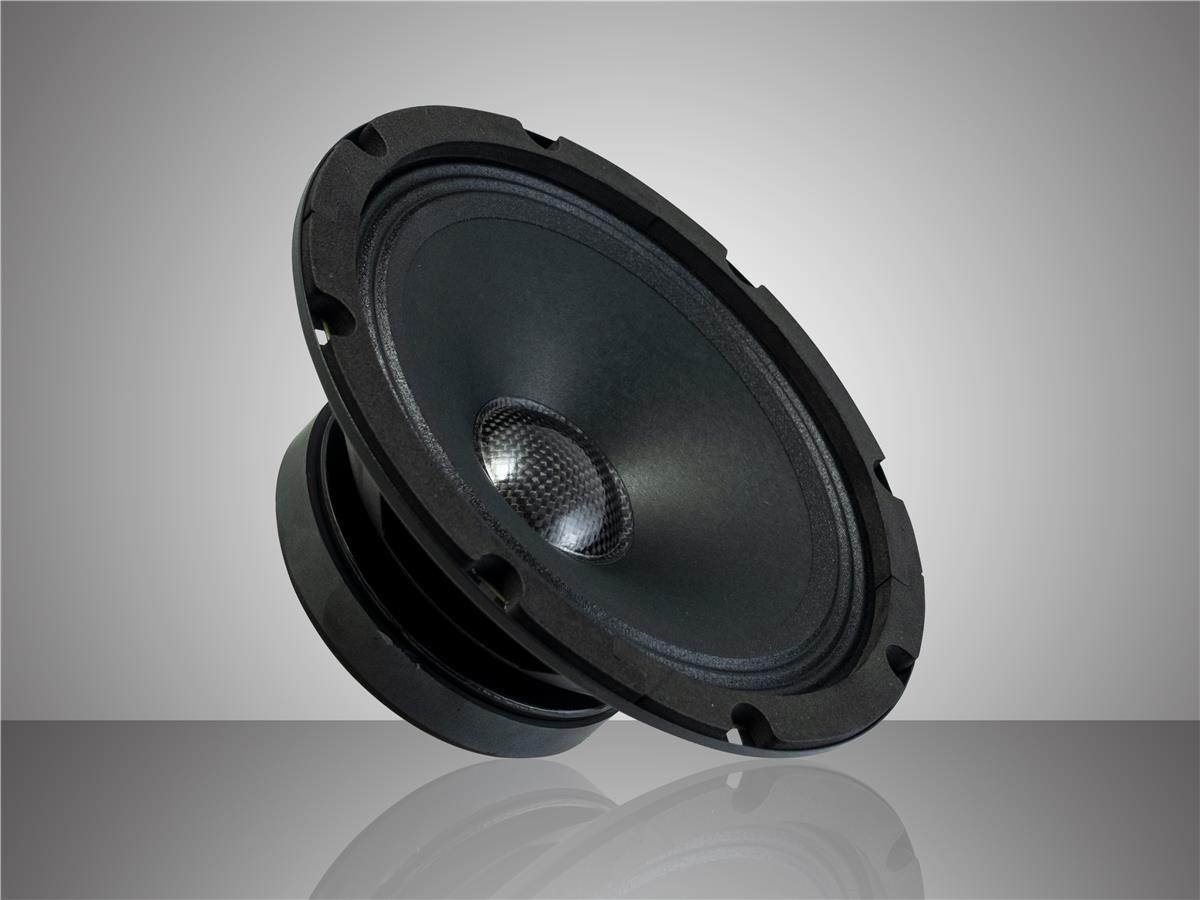

FOR-X XMD-1320

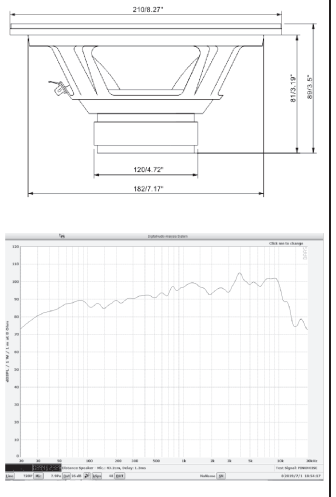

TESTED 20201009 Break in: Yes Fs: 80hz Effective range 80-7900hz On axis: 80-9000hz Out of axis 45: 80-5200hz Power pink noise >70hz/12dB 70wrms Power pink noise >90hz/12dB 100wrms Recommended filter general use >80hz 12dB 1w/1m Sensitivity 94dB Component feeling a lot volume of enclosure: Yes Optimal sealed volume: 9 liter Sensitivity 94dB Frequency Response 82-10 000hz Paper Cone Impedance 4Ohm DC Resistance 3,2 Ohm Voice Coil 1,5" Voice Coil Height 7,5mm HE Magnetic Gap 5mm Voice Coil Bobbin Kapton Numbeer Of Layers 2 Magnet System Type Ferrite T-S Parameters Suspension Compliance 0,28 Cms Mechanical Q Factor 12,2 Qms Electrical Q Factor 0,61 Qes Total Q Factor 0,58 Qts Moving Mass 13,4 Mms Eq.Cas AIR Load 17,9 Vas Resonant Frequency 82 Fs Effective Piston Area 213,8cm2 SD
