DRAGSTER DMX-82
1 999 SEK
200wrms
TESTED 20201004
Break in: Yes
Fs: 116hz
Effective range 100-9000hz
On axis: 100-9900hz
Out of axis 45: 150-7300hz
Power pink noise >70hz/12dB 100wrms
Power pink noise >90hz/12dB 200wrms
Recommended filter general use >120hz 12dB
1w/1m Sensitivity 95,5dB
Component feeling a lot volume of enclosure: No
Optimal sealed volume: 5 liter more than rated power
7 liter: rated power

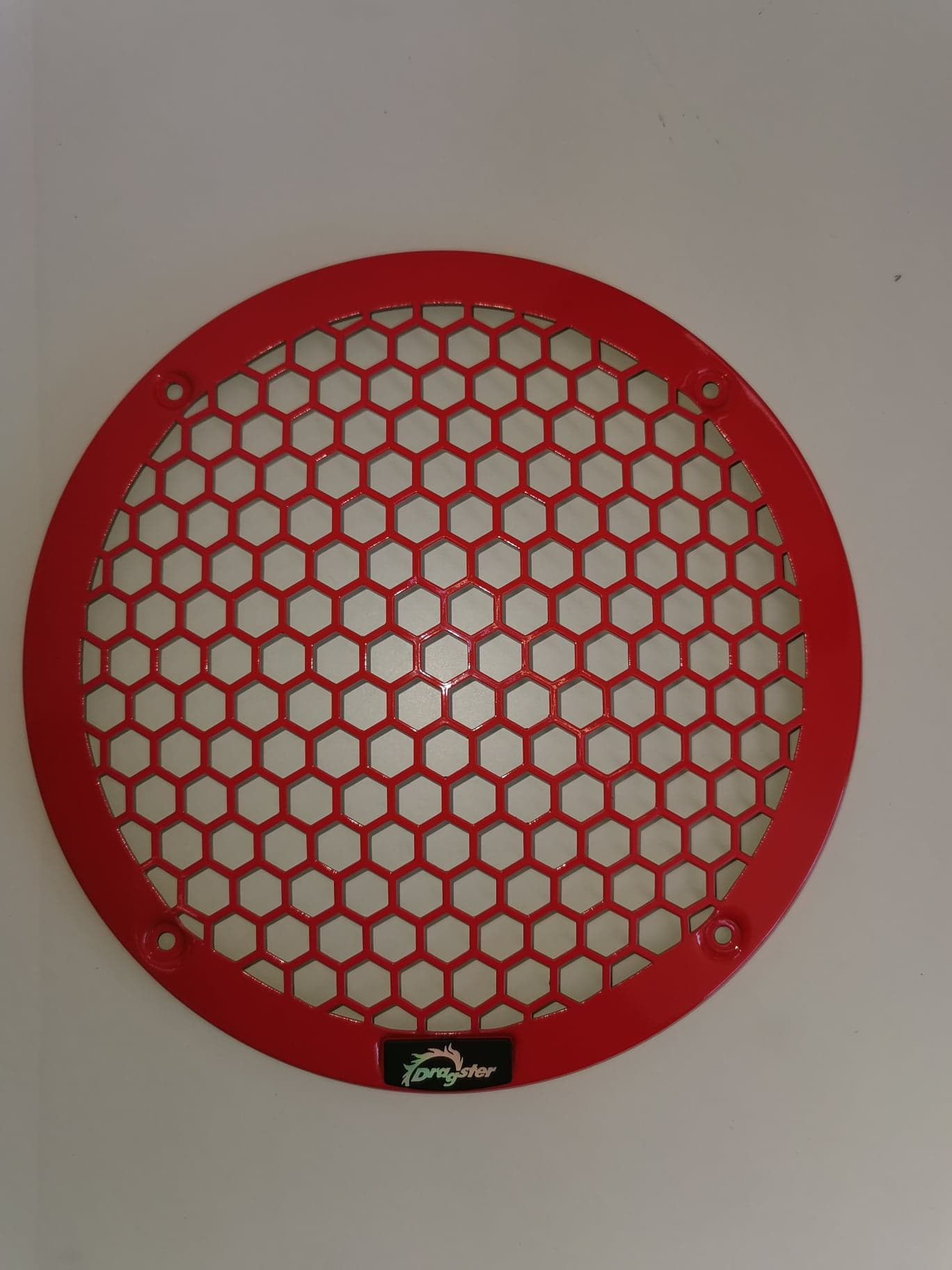

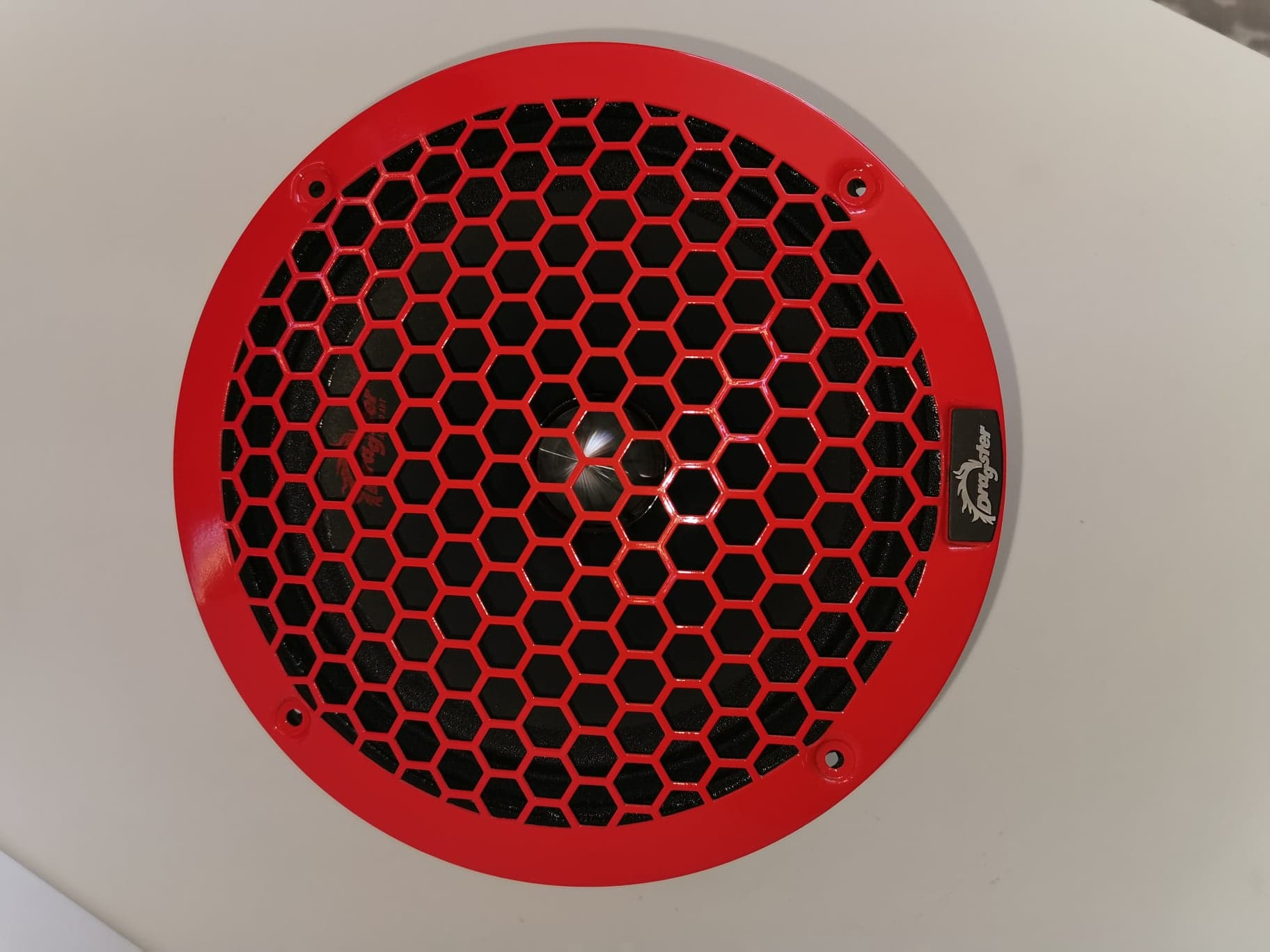

GALLER INGÅR
Mounting depth 96mm
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeDRAGSTER
Beskrivning
Art.nr: DRAGSTER DMX-82
Impedance 4 OHM,
Overall Dimensions : 210x104mm
Nominal Power : 200W
Transient Power : 400W
Frequency Response : 78-9000K Hz
Sensitivity : 95.5 dB
Cone Material : Paper
Net Weight : 3.34 kg
Electrical Data
Nominal Impedance: 4 Ohm
DC Resistance : 3.2 Ohm
T-S Prameters
Suspension Compliance : 0.08 Cms
Mechanical Q Factor : 3.77 Oms
Electrical Q Factor : 0.75 Qes
Total Q Factor : 0.62 Qts
Moving Mass : 14.21 Mms
Eq.Cas Air Load( liters) VAS : 5.21 Liter
Resonant Frequency : 149 Hz
