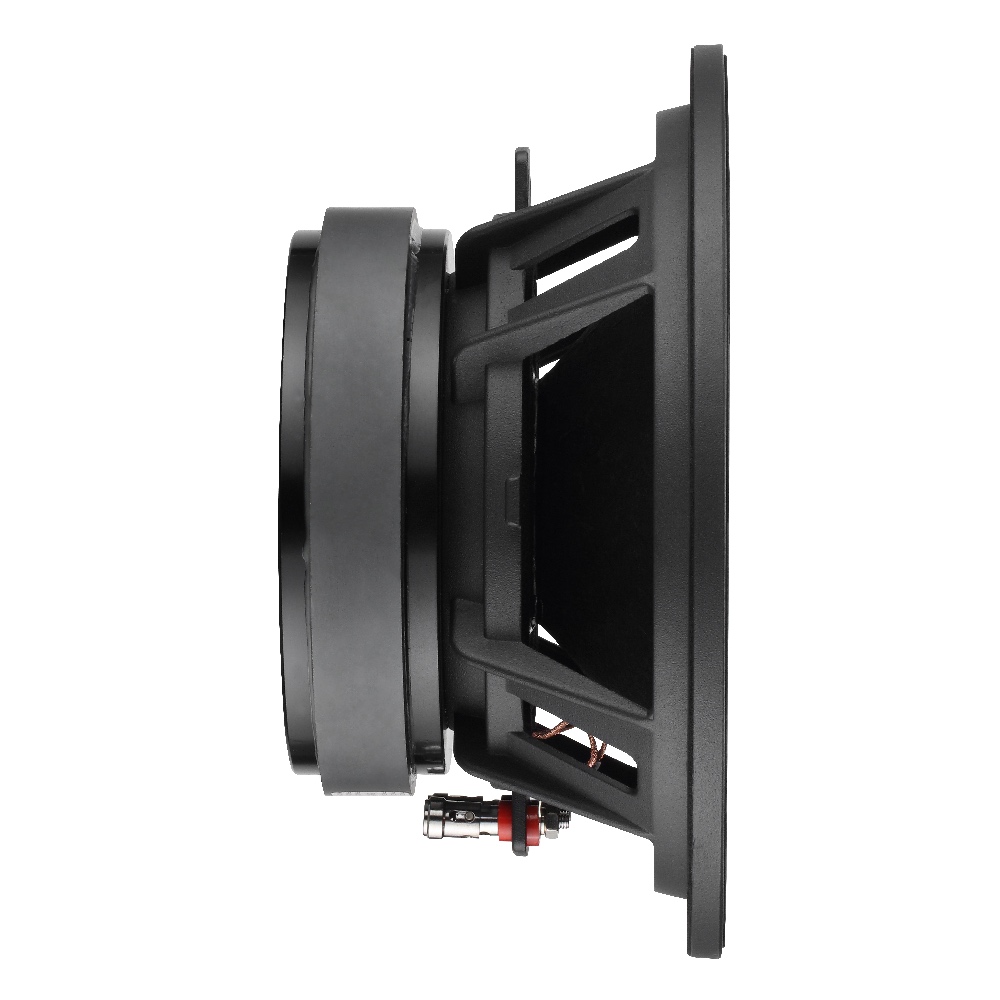

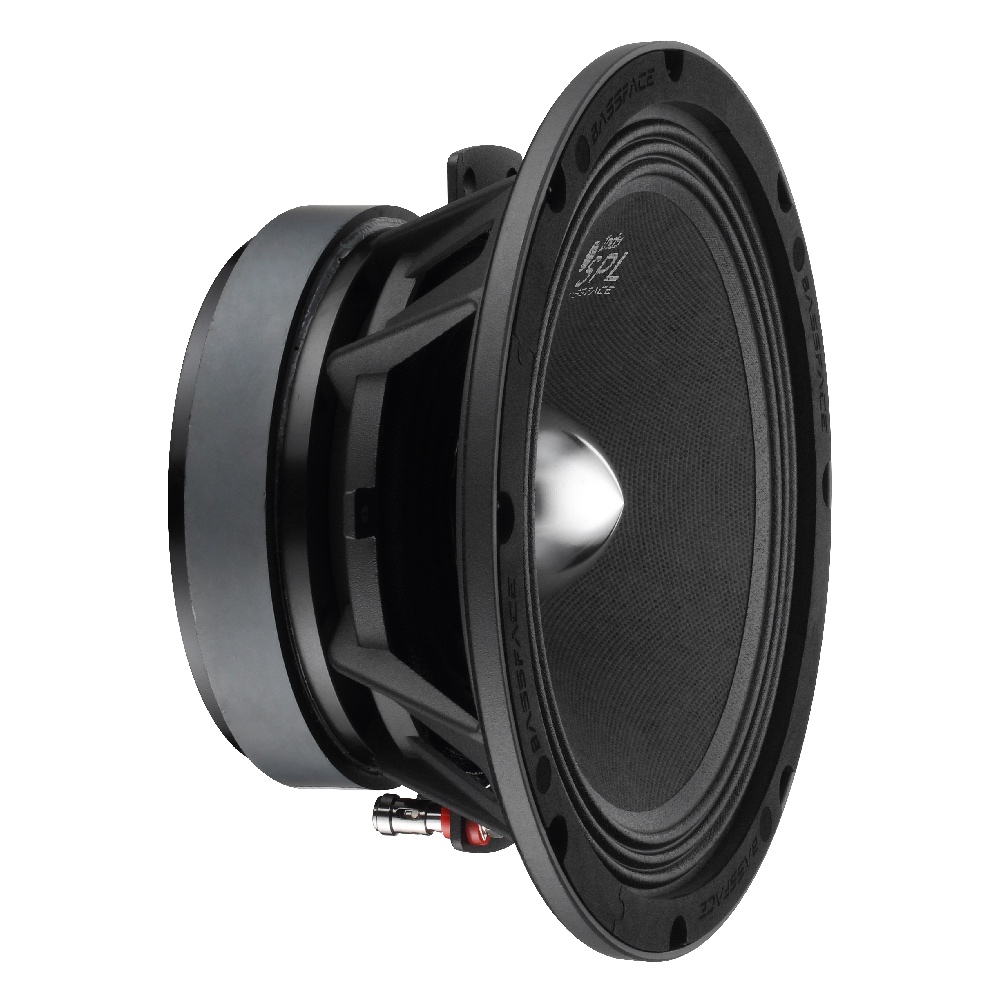

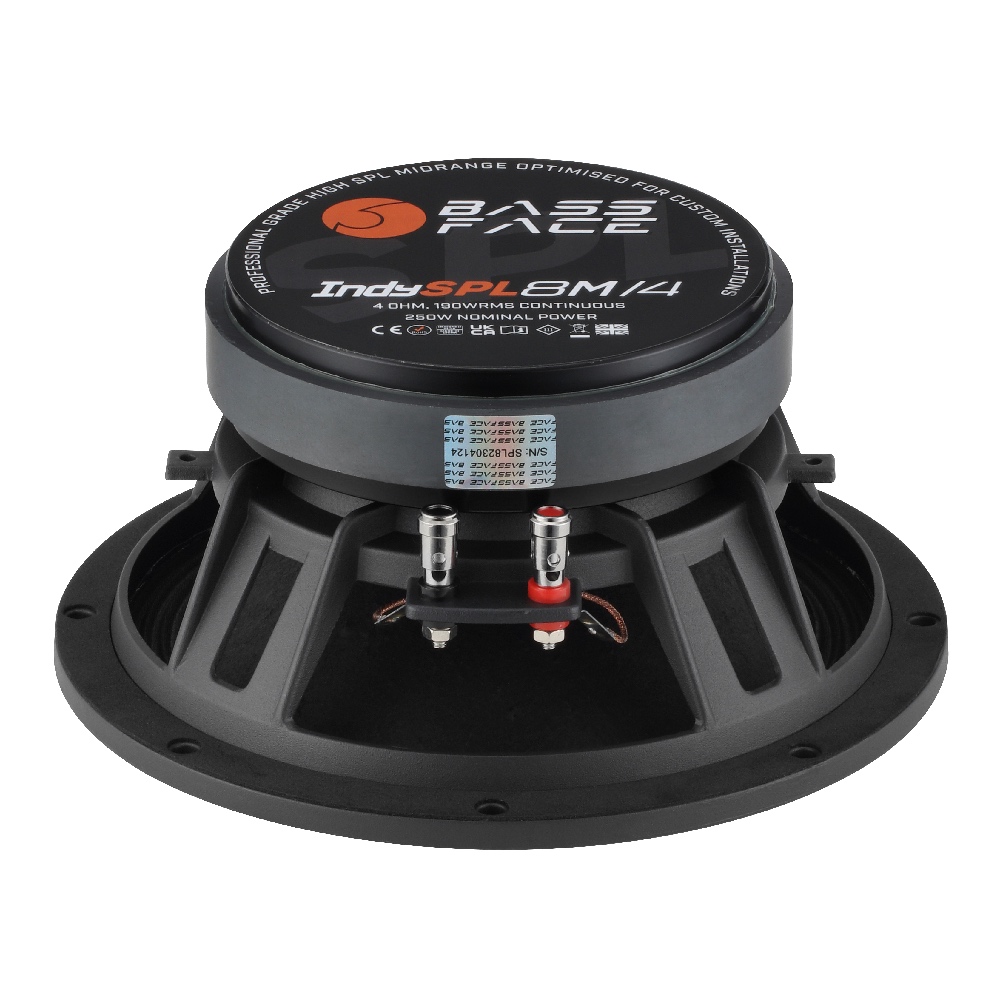

BASSFACE SPL8
1 499 SEK
Indy SPL8M/4 4Ohm SVC 250w RMS Professional High SPL Midrange
It's back! The legendary SPL series Bassface midrange - the midrange that launched our brand and made us famous in Europe! Now in this latest iteration with a slightly revised motor structure and tweaked response this speaker offers amazing on and off axis linearity from literally the low end right the way up and beyond where you should be using it! This offers totally unrivalled flexibility in system planning, allowing the installer to use the speaker in many situations. These are typically used in arrays along with some enormous tweeters to create a sound that hits you in the chest.
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeBASSFACE
Beskrivning
Art.nr: SPL8
Speaker Power Handling RMS (Watts) (One Speaker, Using Appropriate Crossover) 250
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 190
Overall Diameter (mm) 210
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 134
Installation Cut-Out Diameter (mm) 183
Overall Depth (mm) 98.5
Mounting Depth (mm) 91.5
Front Protrusion From Mounting Plane (mm) 7
System Frequency Response (Hz) (Indicative Of Usable Range But Not Suitability) 80-8000
Impedance (Ohm) (Nominal) 4
Sensitivity (db/1Wm) 96.5
Total Magnet Weight (Oz) 40
Magnet Size (mm) 134*20*1pc
Magnet Type Y35
Magnet Qty 1
Top Plate thickness (mm) 8
Back Plate Thickness (mm) 8
Voice Coil Former Spec Kapton
Voice Coil Type CCA Round Wire
Voice Coil External Diameter (mm) 50
Voice Coil Winding (Layers) 2
Cone Type Non Pressed Paper
Spider Compliance Medium
Spider Type Linear
Spider Diameter (mm) 125
Spider Design Single
Surround Triple Roll
Surround Material Cloth
Tinsel Wire Single
Terminal Push
TECHNICAL HIGHLIGHTS
Copper Shorting Ring (Faraday Ring) for Optimum Impedance Profile
2" High Temperature Voice Coil
Lightweight Paper Cone
Push Terminals
Large Ceramic Magnet
Cast Aluminium Basket
