ACADEMY DRAGSTER ACM-82F
1 299 SEK
200W RMS POWER
400W MAX POWER
97.5dB SENSITIVITY
83-7.5K Hz FREQ. RESPONSE
4 OHM IMPEDANCE
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeDRAGSTER
Beskrivning
Art.nr: ACADEMY DRAGSTER ACM-82F

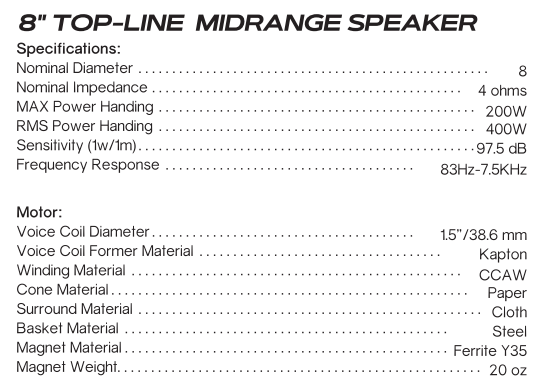

Nominal Diameter: 8
Nominal Impedance: 4 Ohms
MAX Power Handling: 200W
RMS Power Handling: 400W
Sensitivity (1w/1m): 97.5dB

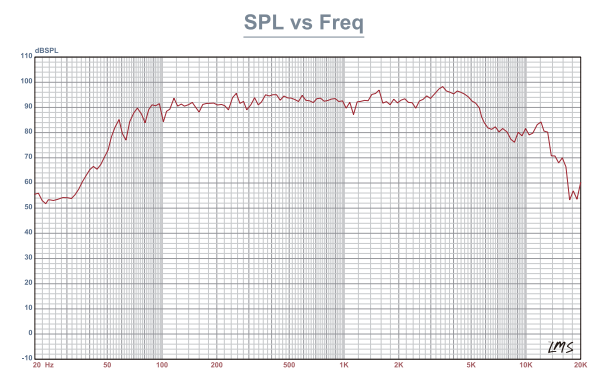

Frequency Response: 83Hz-7.5KHz
Motor
Voice Coil Diameter: 1.5"/38.6mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Cone Material: Paper
Surround Material: Cloth
Basket Material: Steel
Magnet Material: Ferrite Y35
Magnet Weight: 20 Oz/566.99g

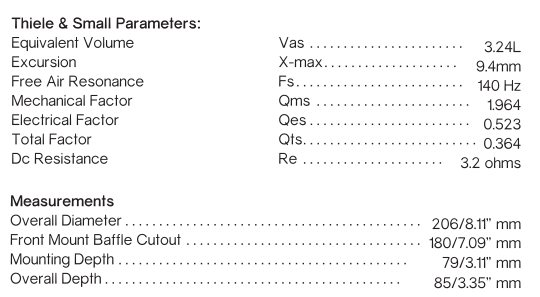

Thiele & Small Parameters
Equivalent Volume: 3.24L
Excursion: 9.4mm
Free Air Resonance: 140 Hz
Mechanical Factor: 1.964
Electrical Factor: 0.523
Total Factor: 0.364
DC Resistance: 3.2 Ohms

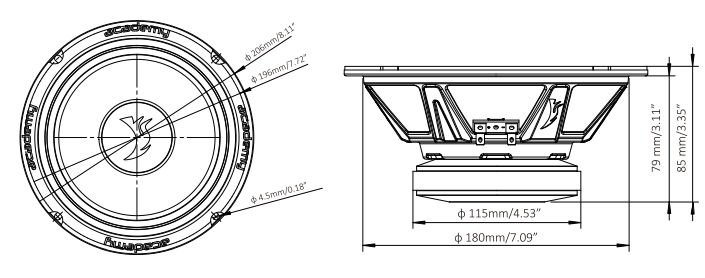

Measurements
Overall Diameter: 8.11"/206mm
Front Mount Baffle Cutout: 7.09"/180mm
Mounting Depth: 3.11"/79mm
Overall Depth: 3.35"/85mm
Filer och media
 | Specifikationer |
