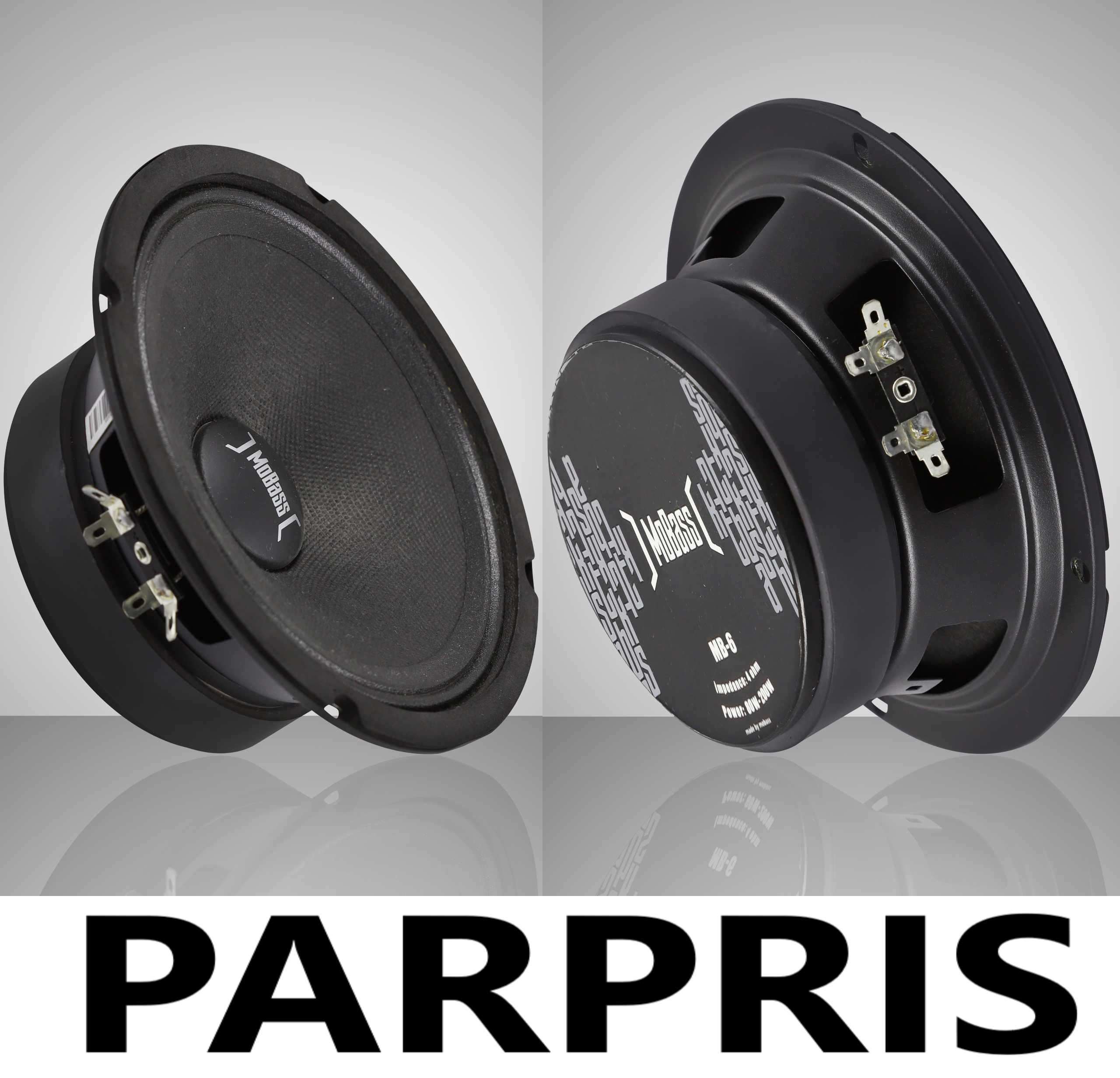

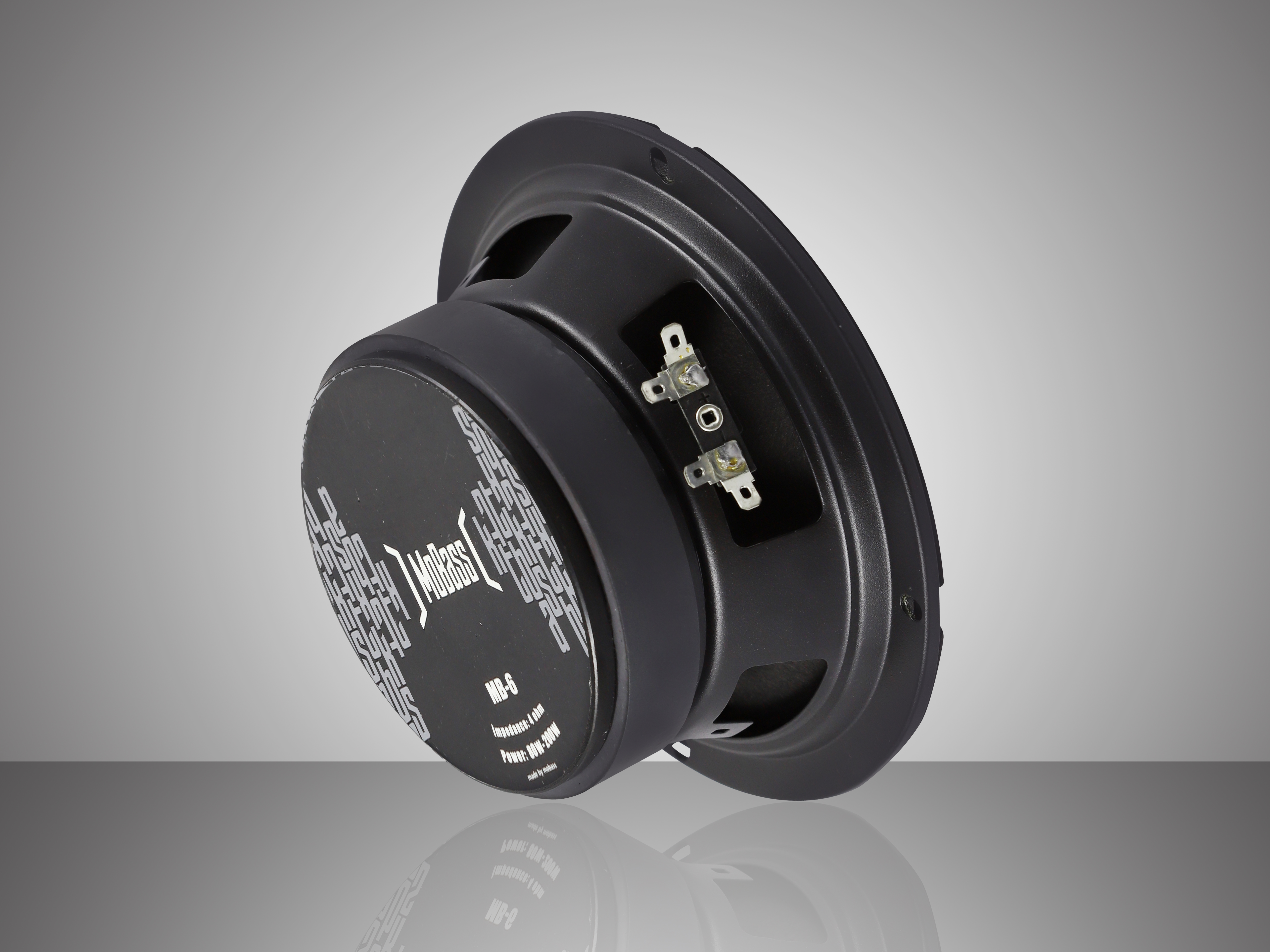

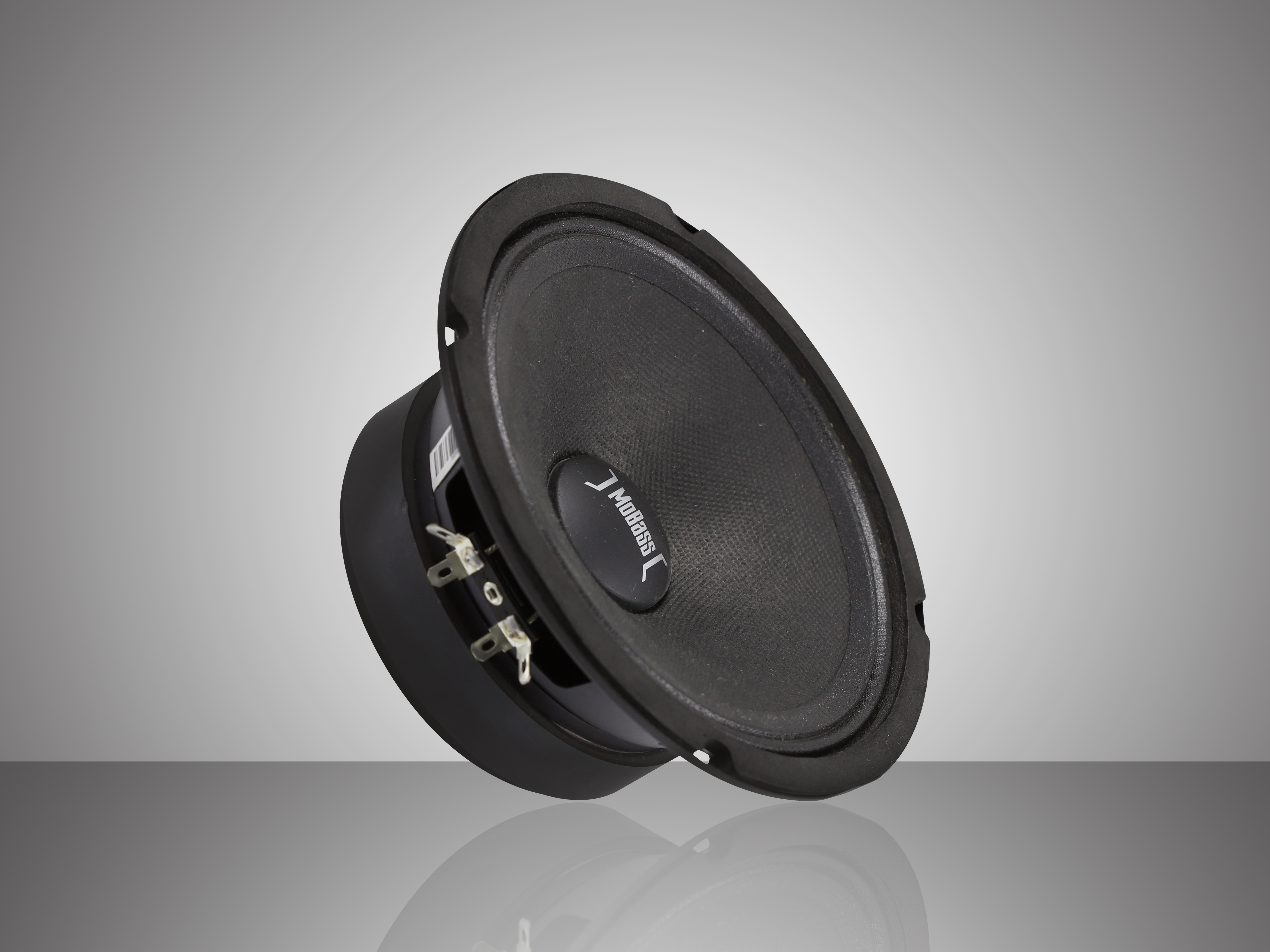

MOBASS MB-6
1 199 SEK
TESTED 20201121
Break in: Yes
Fs: 110hz
Effective range 110-12000hz
On axis: 110-11000hz
Out of axis 45: 110-9000hz
Power pink noise >70hz/12dB 50wrms
Power pink noise >90hz/12dB 100wrms
Recommended filter general use >110hz 12dB
1w/1m Sensitivity 93dB
Component feeling a lot volume of enclosure: Yes
Optimal sealed volume: 5 liter
Good in ported 9 liter tuned 110hz
Med Galler
https://youtu.be/711HLDY3e6w
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeMOBASS
Beskrivning
Art.nr: MOBASS MB-6
6.5 Inch Midrange Speaker
Steel Basket
27.5 Oz High Flux Ferrite Magnet System
1.5" Voice Coil
100 Wrms
Mounting Depth: 67mm

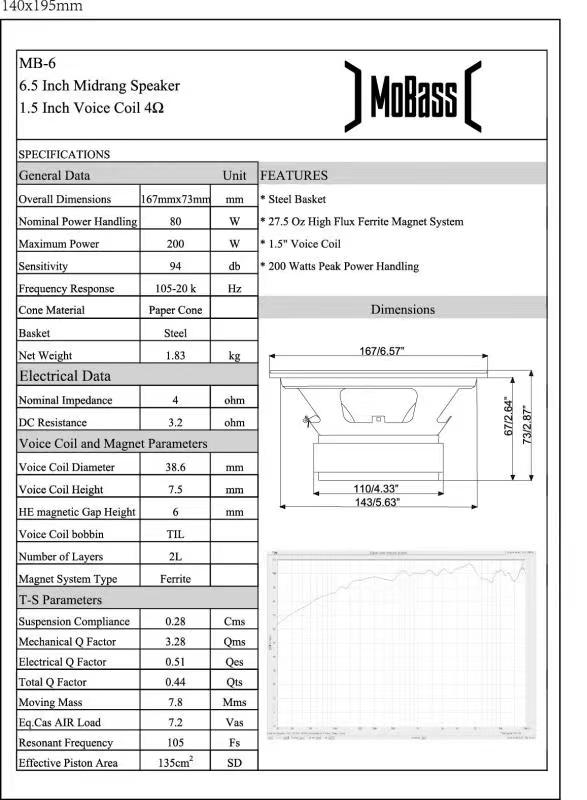

General Data
Overall Dimensions: 167*73 mm
Maximum Power: 200 W
Cone Material: Paper Cone
Basket: Steel
Net Weight: 1.83 kg
Voice Coil and Magnet Parameters
Voice Coil Diameter: 38.6 mm
Voice Coil Height: 7.5 mm
HE Magnetic Gap Height: 6 mm
Voice Coil bobbin: TIL
Number Of Layers: 2 layers
Magnet System Type: Ferrite
T-S Parameters
Suspension Compliance, Cms: 0.28
Mechanical Q Factor, Qms: 3.28
Electrical Q Factor, Qes: 0.51
Total Q Factor, Qts: 0.44
Moving Mass, Mms: 7.8
Eq. Cas Air Load (liters), VAS: 7.2 Liter
Effective Piston Area, SD: 135 cm^2
Filer och media
 | SPECS |
