FOR-X XMD-3065
849 SEK
TESTED 20201121
Break in: Yes
Fs: 90hz
Effective range 90-7000hz
On axis: 90-7000hz
Out of axis 45: 90-5000hz
Power pink noise >70hz/12dB 80wrms
Power pink noise >90hz/12dB 100wrms
Recommended filter general use >80hz 12dB
1w/1m Sensitivity 91dB
Component feeling a lot volume of enclosure: No
Optimal sealed volume: 6 liter
Nice in doors, very good for music
MED GALLER
https://youtu.be/sWkNLl8x1AM
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeFOR-X
Beskrivning
Art.nr: FOR-X XMD-3065
SPECIFICATIONS:

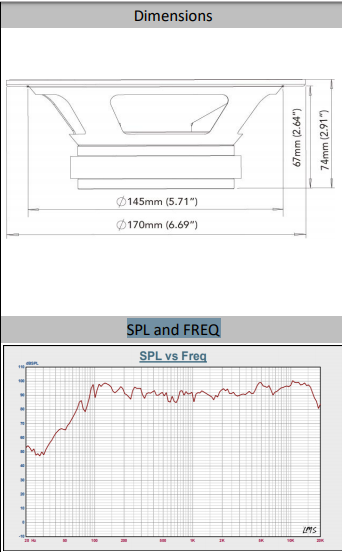

General Data Unit Pictures
Overall Dimensions 170 mm
Mounting Depth 67 mm
Baffle Cutout Diameter 145 mm
Nominal Power Handing 100 W
Maximum Power 200 W
Cone Material Paper Cone \
Basket Steel \
Net Weight 1.4 KGS
Voice Coil Diameter 38.6 mm
Voice Coil Height 7.3 mm
HE Magnetic Gap Height 5 mm
Number of Layers 2 pc
Winding Material CCAW \
Voice Coil Bobbin Kapton \
Magnet System Type Ferrite \
Magnet Weigth 21 Oz
T-S Parameters SPL and FREQ
Suspension Compliance 133 Cms
Mechanical Q Factor 9.1 Qms
Electrical Q Factor 1.4 Qes
Total Q Factor 1.2 Qts
Moving Mass 8.8 Mms
Eq.Cas AIR Load 3.5 Vas
Resonant Frequency 145 Fs
Effective Piston Area 136.8 cm² SD
Impedance 4 ohms
100 watts rms power
200 watts max power
Fs: 90hz
Effective range 90-7000hz
Non-pressed paper cone with cloth edge
Have duty steel basket
1.5 inch kccaw voice coil
High strength ferrite magnet
