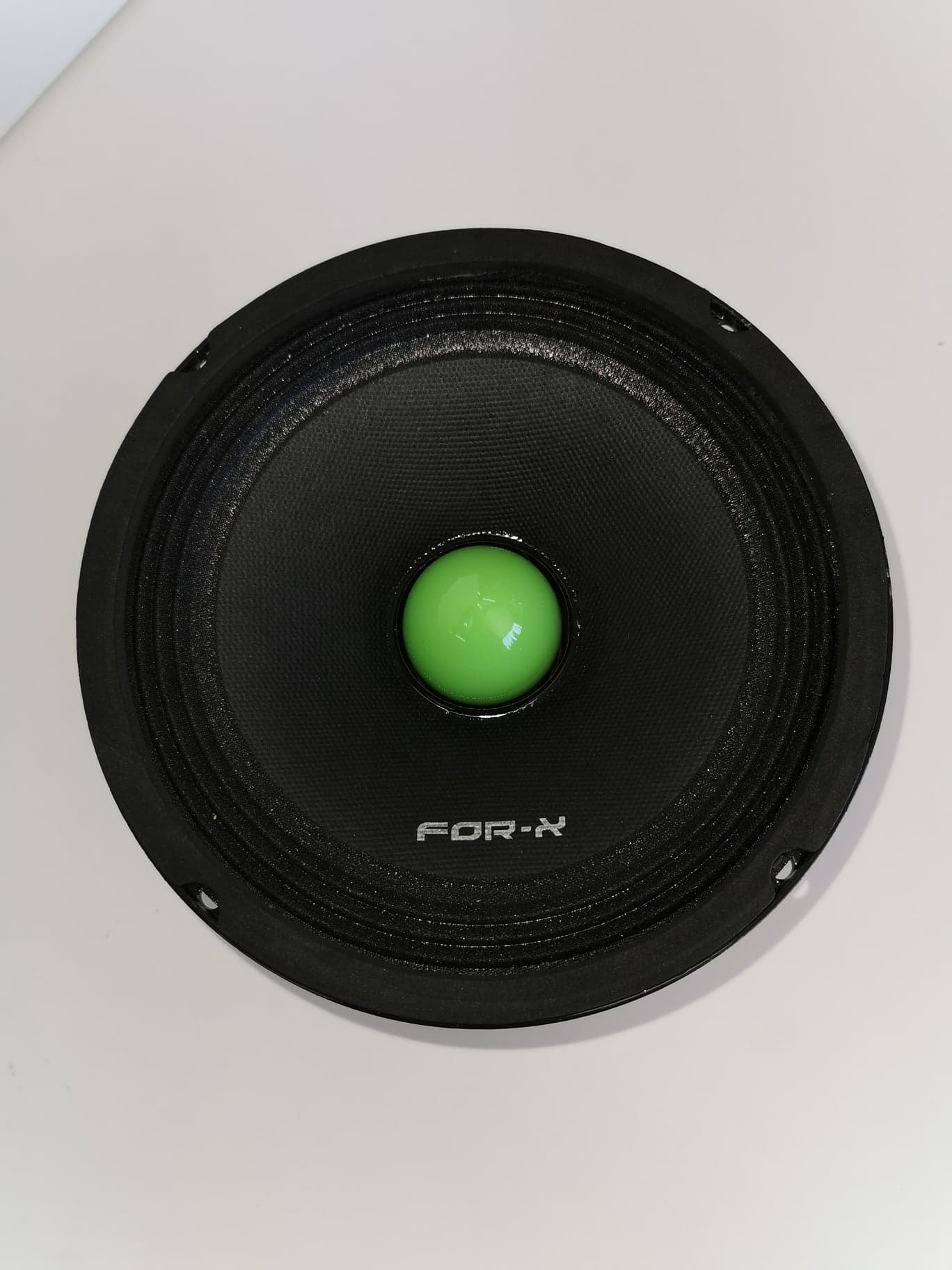

FOR-X XMD-1716 NEO
2 499 SEK

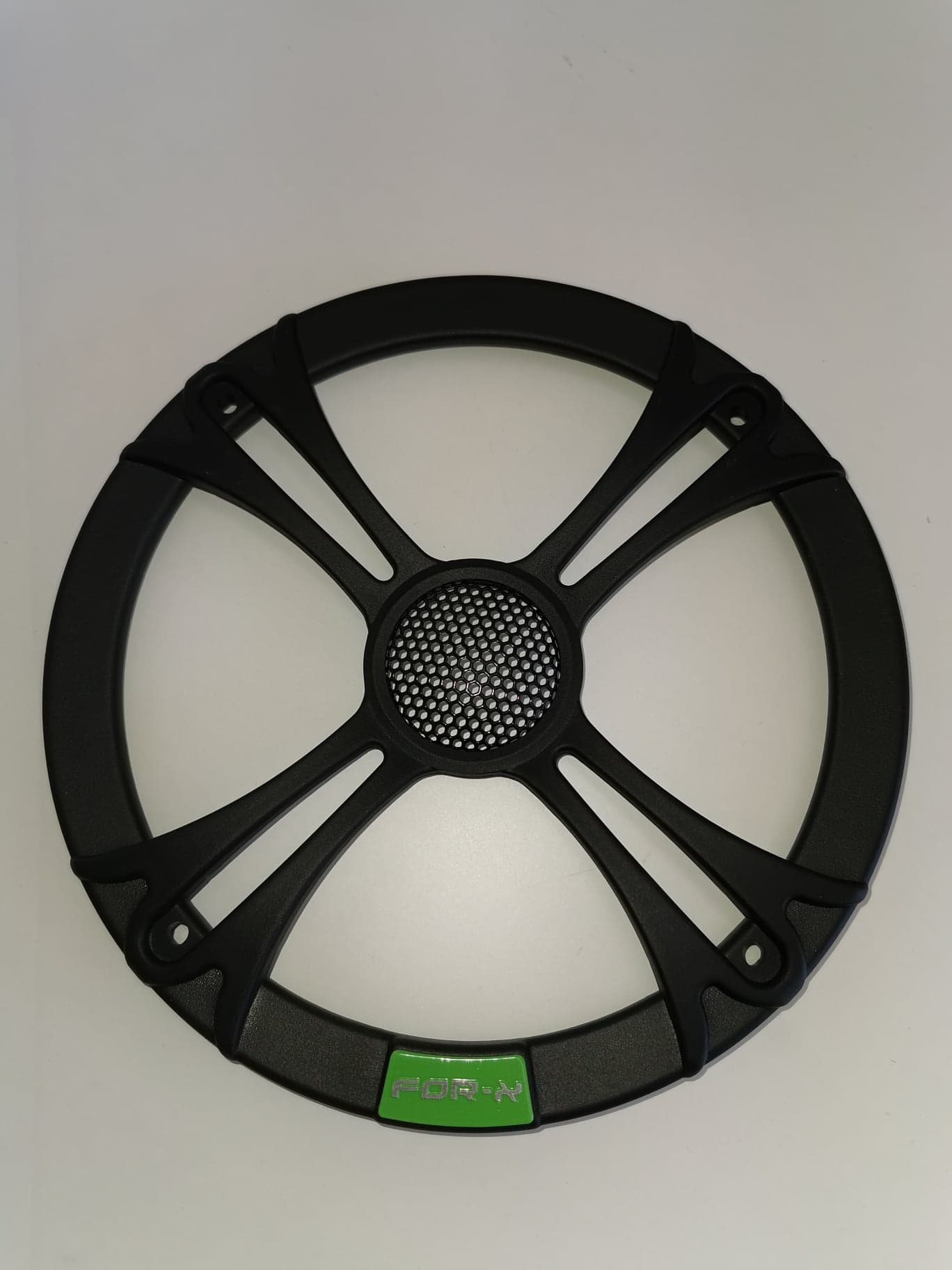

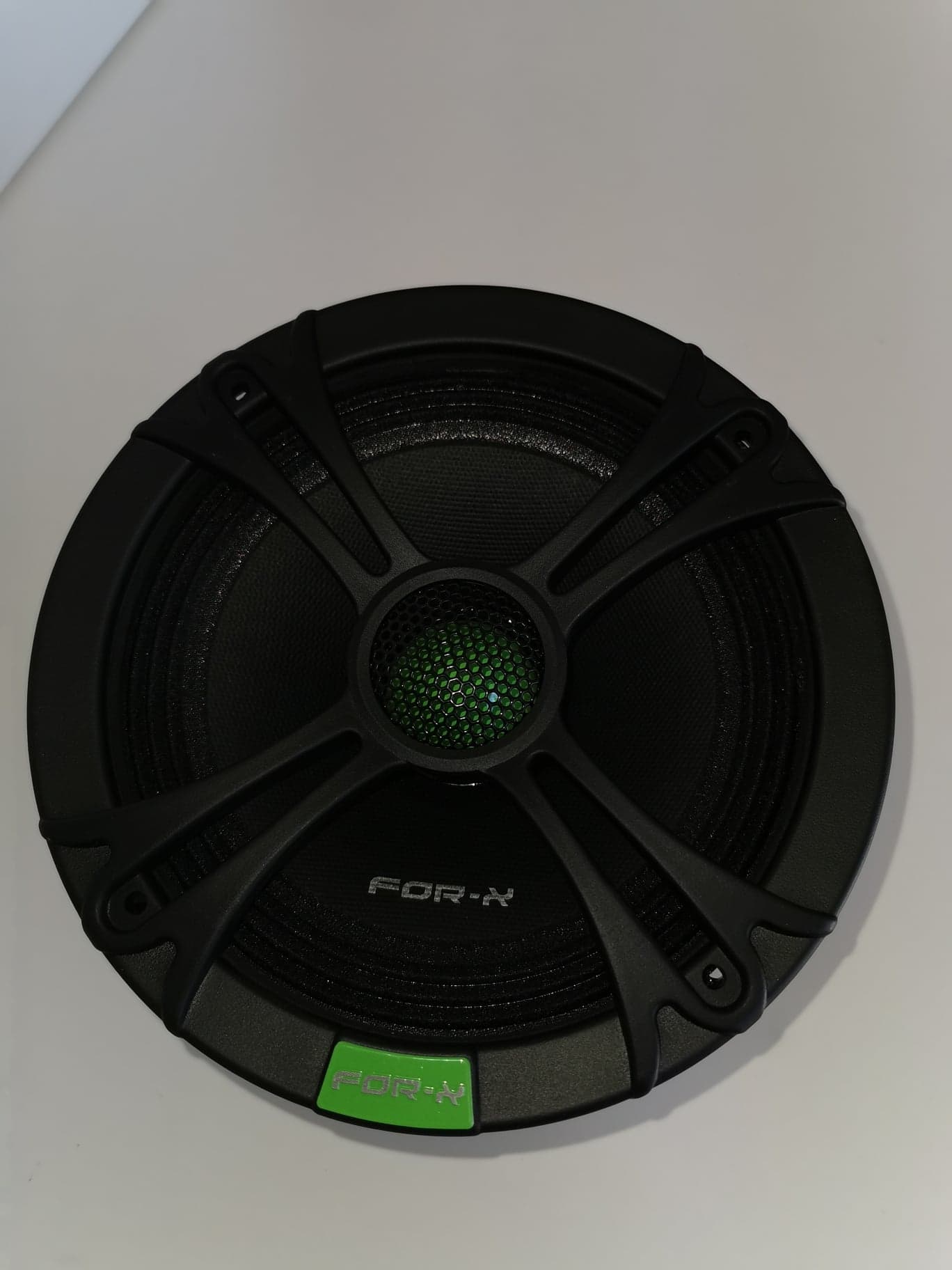

MED GALLER
Break in: Yes
Fs: 134hz
Effective range 140-8000hz
On axis: 140-8000hz
Out of axis 45: 140-5000hz
Power pink noise >70hz/12dB wrms
Power pink noise >90hz/12dB 100wrms
Recommended filter general use >120hz 18dB
1w/1m Sensitivity 95,8dB
Component feeling a lot volume of enclosure: No
Optimal sealed volume: 4,4 liter
Loud mid, over 120hz it can take a lot of power
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeFOR-X
Beskrivning

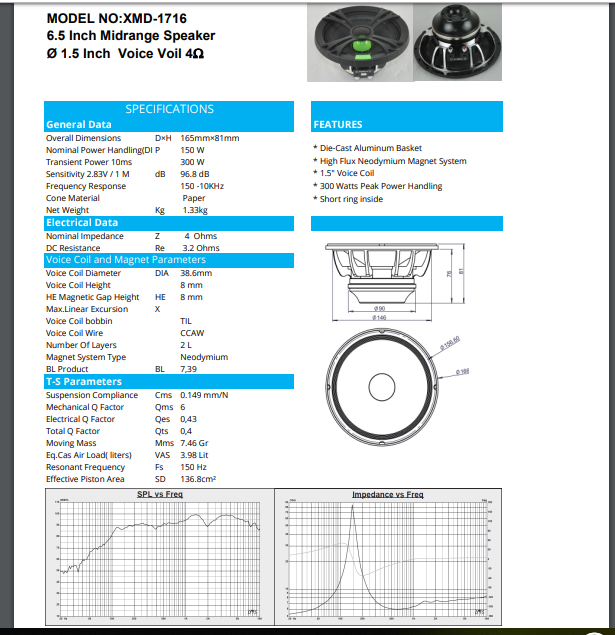

Art.nr: FOR-X XMD-1716 NEO
TESTED 20201121
Overall Dimensions: D*H 165mm*81mm
Nominal Power Handling 150 W
Transient Power 10ms 300 W
Cone Material Paper
Net Weight Kg 1.33kg
DC Resistance Re 3.2 Ohms
Voice Coil Diameter DIA 38.6mm
Voice Coil Height 8 mm
HE Magnetic Gap Height HE 8 mm
Max Linear Excursion X
Voice Coil Bobbin TIL
Voice Coil Wire CCAW
Number Of Layers 2 L
Magnet System Type Neodymium
BL Product BL 7,39
Suspension Compliance Cms 0.149 mm/N
Mechanical Q Factor Qms 6
Electrical Q Factor Qes 0,43
Total Q Factor Qts 0,4
Moving Mass Mms 7.46 Gr
Eq. Cas Air Load (liters) VAS 3.98 Lit
Effective Piston Area SD 136.8cm^2

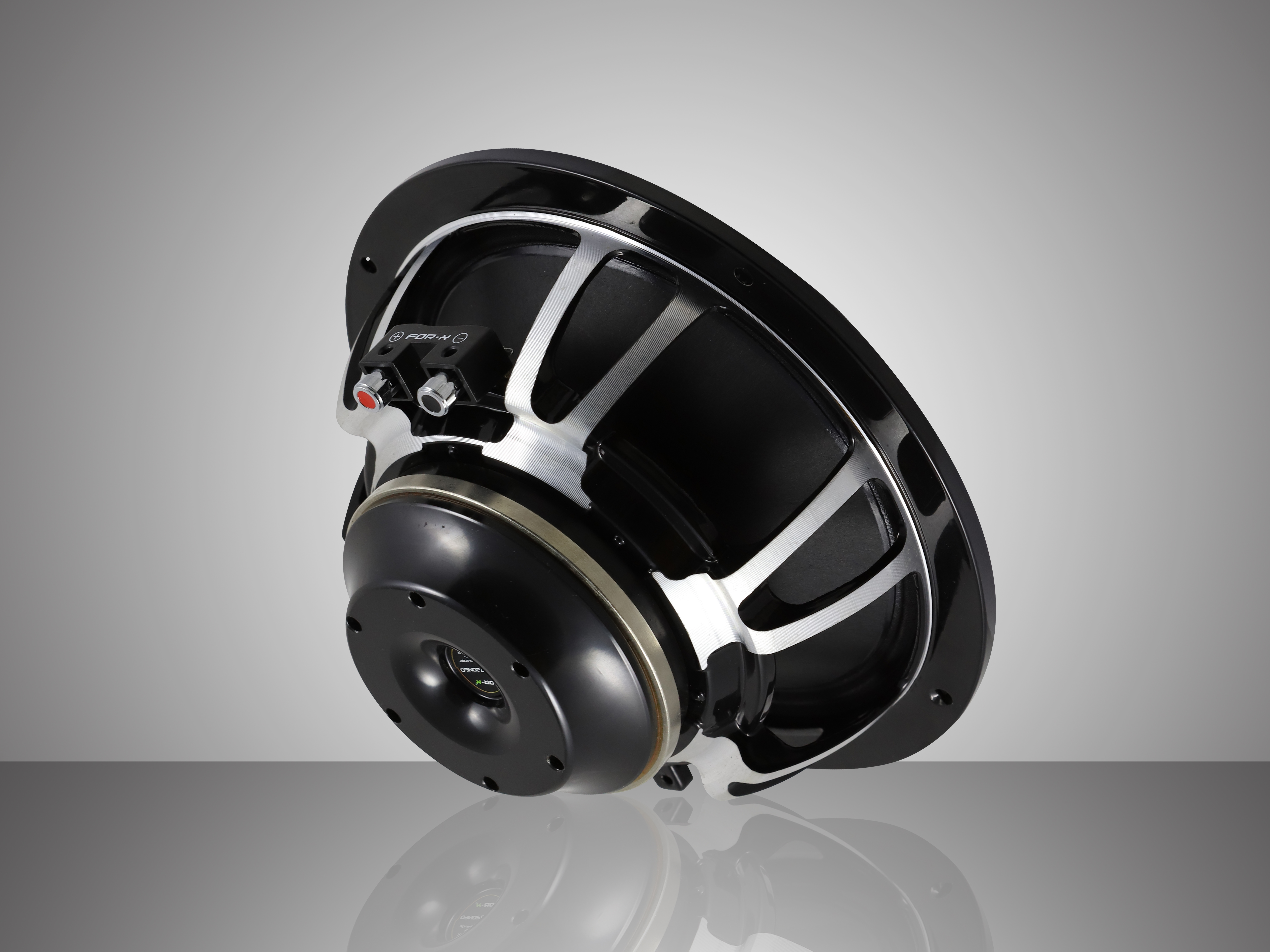

Die-Cast Aluminum Basket
High Flux Neodymium Magnet System
1.5* Voice Coil
Short Ring Inside
