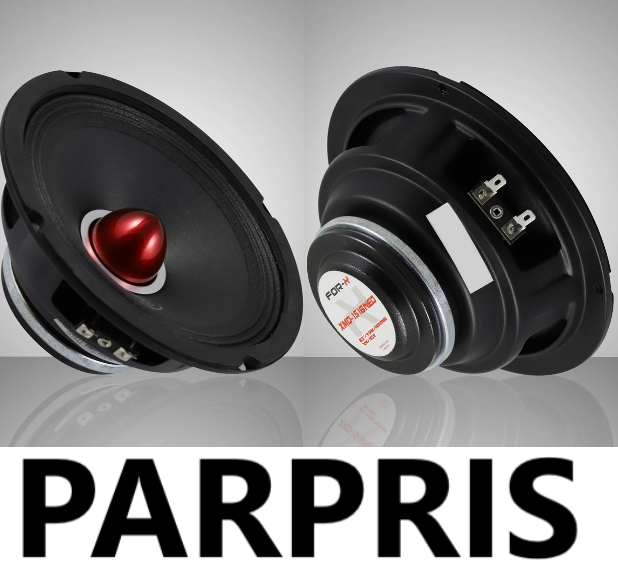

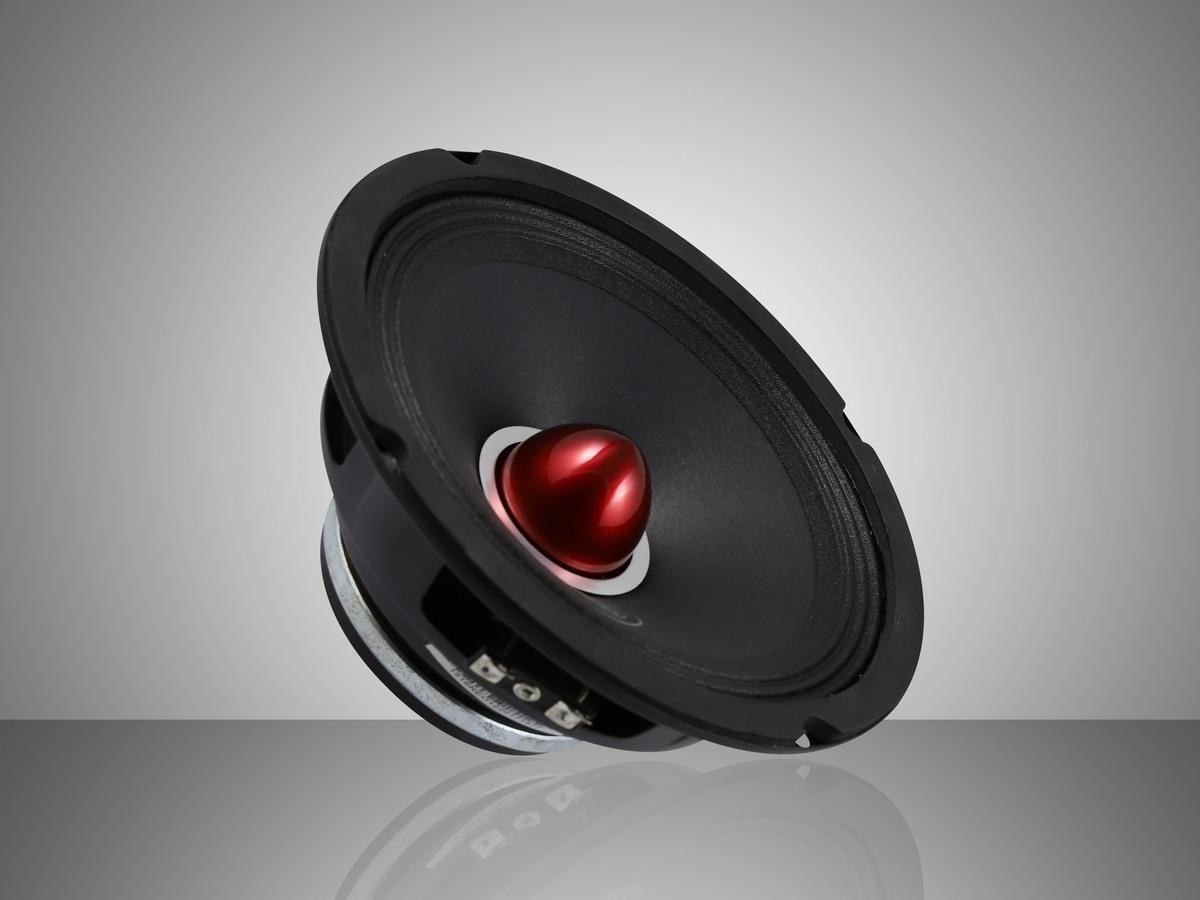

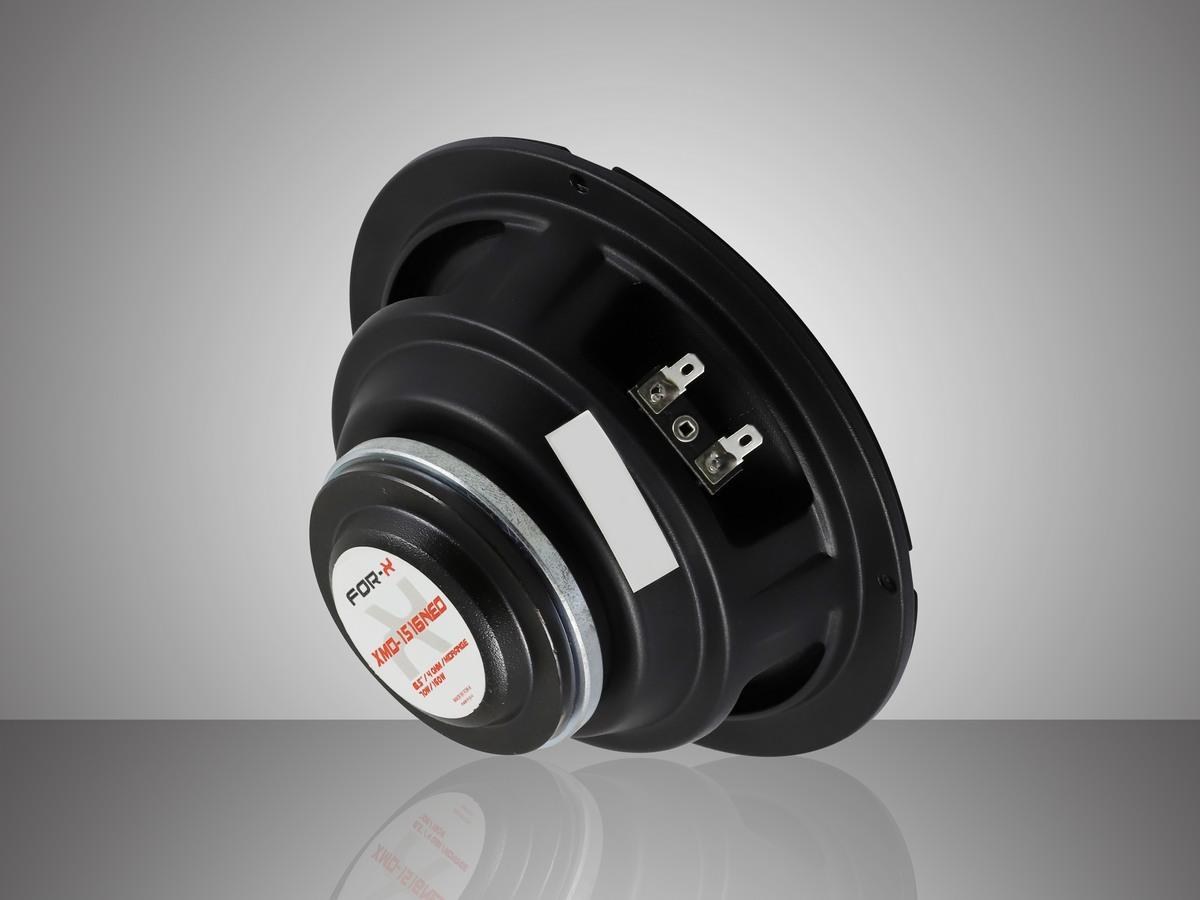

FOR-X XMD-1516 NEO
1 249 SEK
TESTED 20201121
Break in: Yes
Fs: 118hz
Effective range 120-12000hz
On axis: 120-12000hz
Out of axis 45: 120-8000hz
Power pink noise >70hz/12dB wrms
Power pink noise >90hz/12dB 75wrms
Recommended filter general use >100hz 18dB
1w/1m Sensitivity 95dB
Component feeling a lot volume of enclosure: Yes
Optimal sealed volume: 5 liter
Clean good sound sharp mids
MED GALLER
https://youtu.be/HFtPLVeplJ8
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeFOR-X
Beskrivning
Art.nr: FOR-X XMD-1516 NEO
RMS Power:75 Watts
MAX Power:150 Watts
Voice Coil:1.5” KSV
Paper cone with cloth surround
Impedance:4 Ohms
Magnet: Neodymium
Overall Dimensions 165mmx76.5mm
Nominal Power Handling 75W
Cone Material Paper
Basket Steel
Net Weight 0.87kg
Nominal Impedence 4 ohm
DC Resistance 3.2 ohm
Voice Coil Diameter 38.6mm
Voice Coil Height 7.5mm
HE Magnetic Gap Height 6mm
Voice Coil Bobbin TIL
Number of Layers 2L
Magnet System Type NdFeB
Suspension Compliance 0.22 Cms
Mechanical Q Factor 11.13 Qms
Electrical Q Factor 0.35 Qes
Total Q Factor 0.34 Qts
Moving Mass 7.1 Mms
Eq.Cas AIR Load 5.6 Vas
Effective Piston Area 133cm^2
Features
Steel basket
80x6 High Flux NdFeB Magnet System
