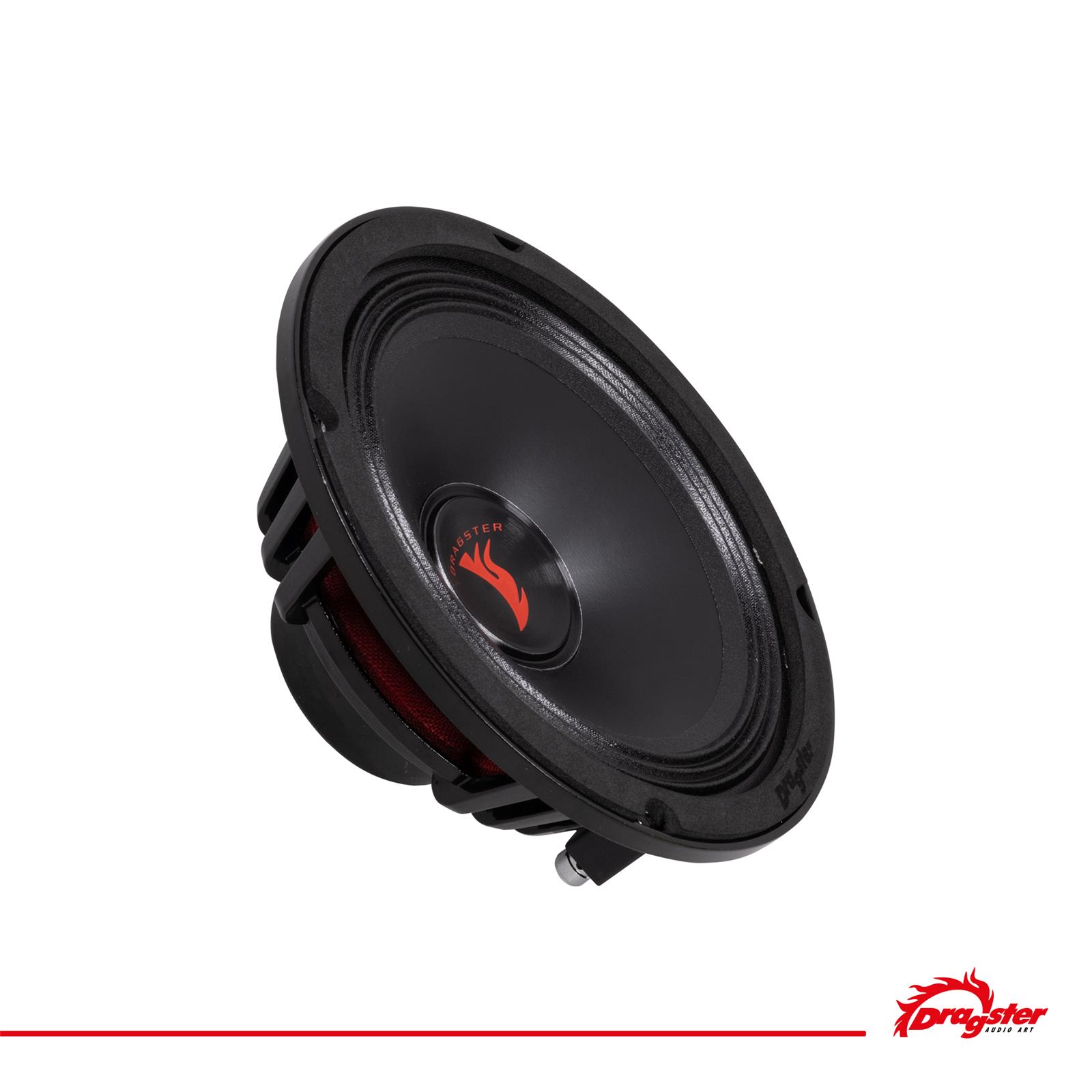

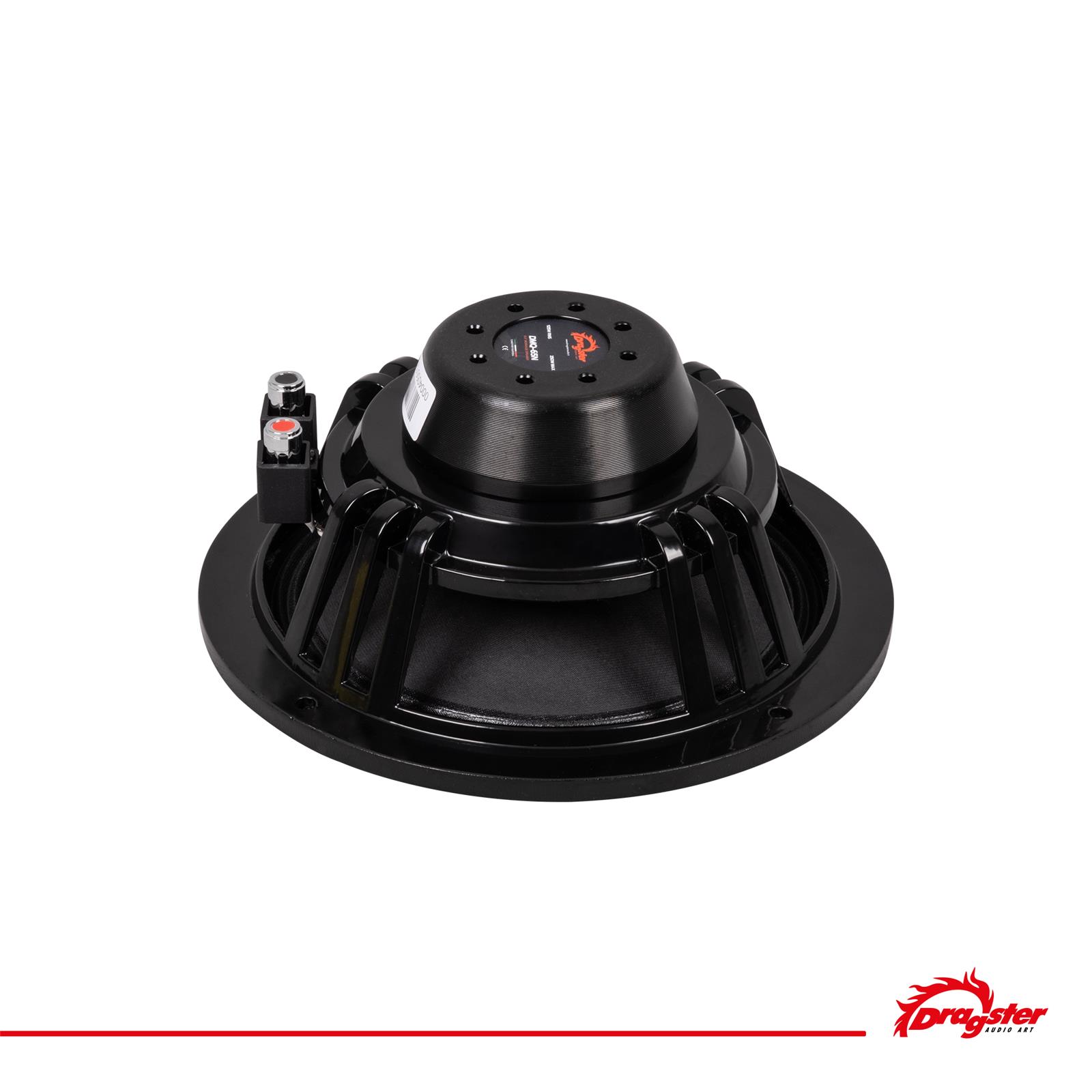

DRAGSTER DMQ-65N
1 899 SEK
6.5" NEO MIDRANGE
125W RMS POWER
250W MAX POWER
89.5dB SENSITIVITY
100-10K Hz FREQ. RESPONSE
4 OHM IMPEDANCE

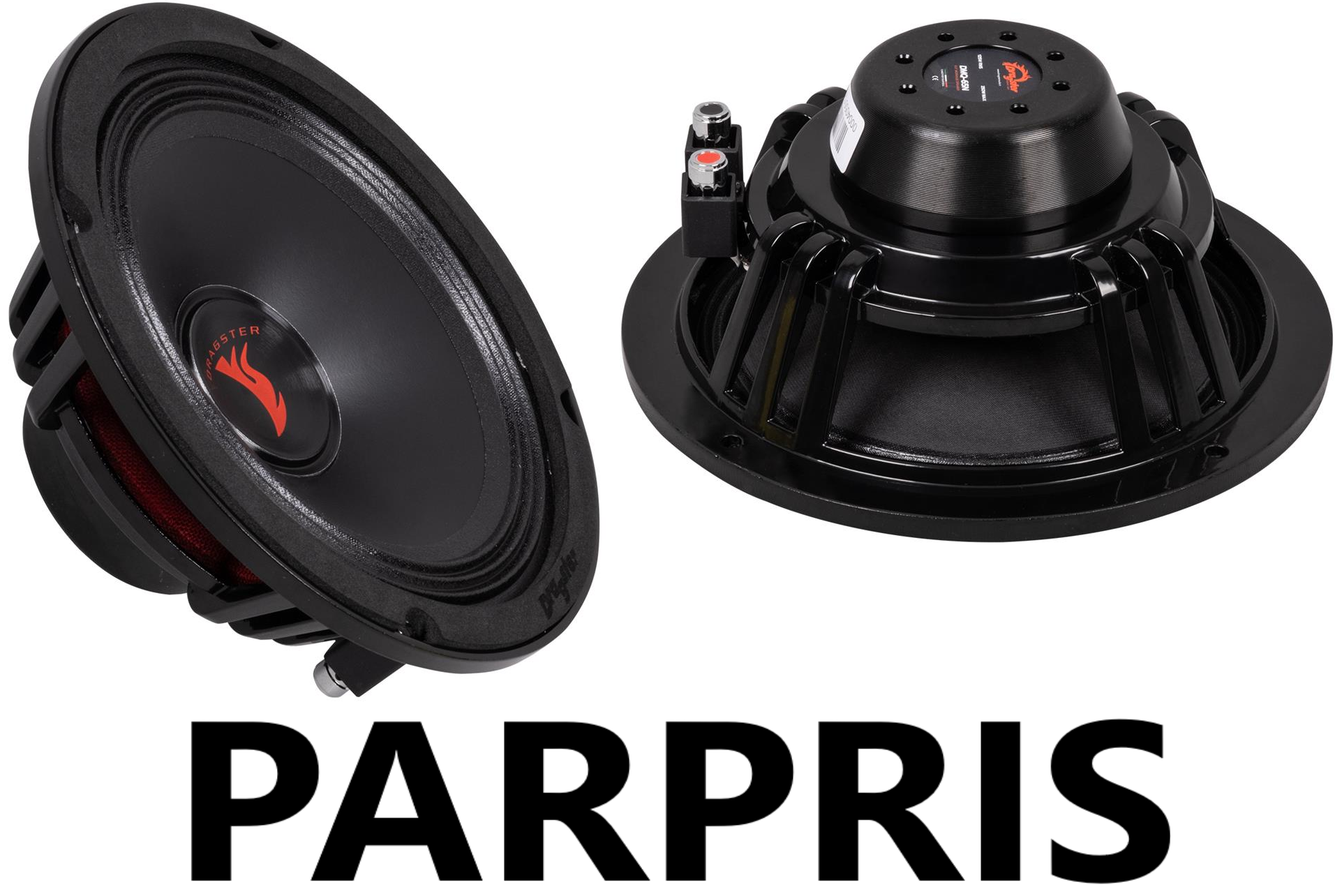

Säljs i par
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeDRAGSTER
Beskrivning
Art.nr: DRAGSTER DMQ-65N

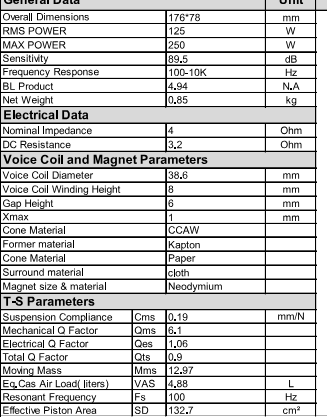

General Data

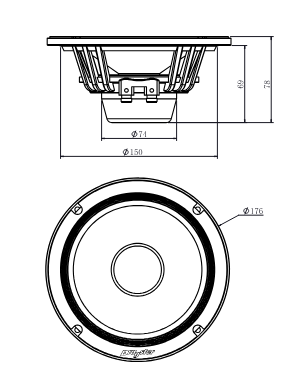

Overall Dimensions: 176*78mm
RMS POWER: 125W
MAX POWER: 250W
Sensitivity: 89.5dB
Frequency Response: 100-10KHz
BL Product: 4.94
Net Weight: 0.85kg
Electrical Data
Nominal Impedance: 4 Ohm
DC Resistance: 3.2 Ohm
Voice Coil and Magnet Parameters
Voice Coil Diameter: 38.6mm
Voice Coil Winding Height: 8mm
Gap Height: 1mm
Xmax: 1mm
Cone Material: CCAW
Former Material: Kapton
Cone Material: Paper
Surround Material: Cloth
Magnet Material: Neodymium
T-S Parameters
Suspension Compliance: 0.19 mm/N
Mechanical Q Factor: 6.1
Electrical Q Factor: 1.06
Total Q Factor: 0.9
Moving Mass: 12.97
Eq.Cas Air Load: 4.88L
Resonant Frequency: 100Hz
Effective Piston Area: 132.7cm^2
Filer och media
 | Specifikationer |
