ACADEMY DRAGSTER AMW-6
3 499 SEK

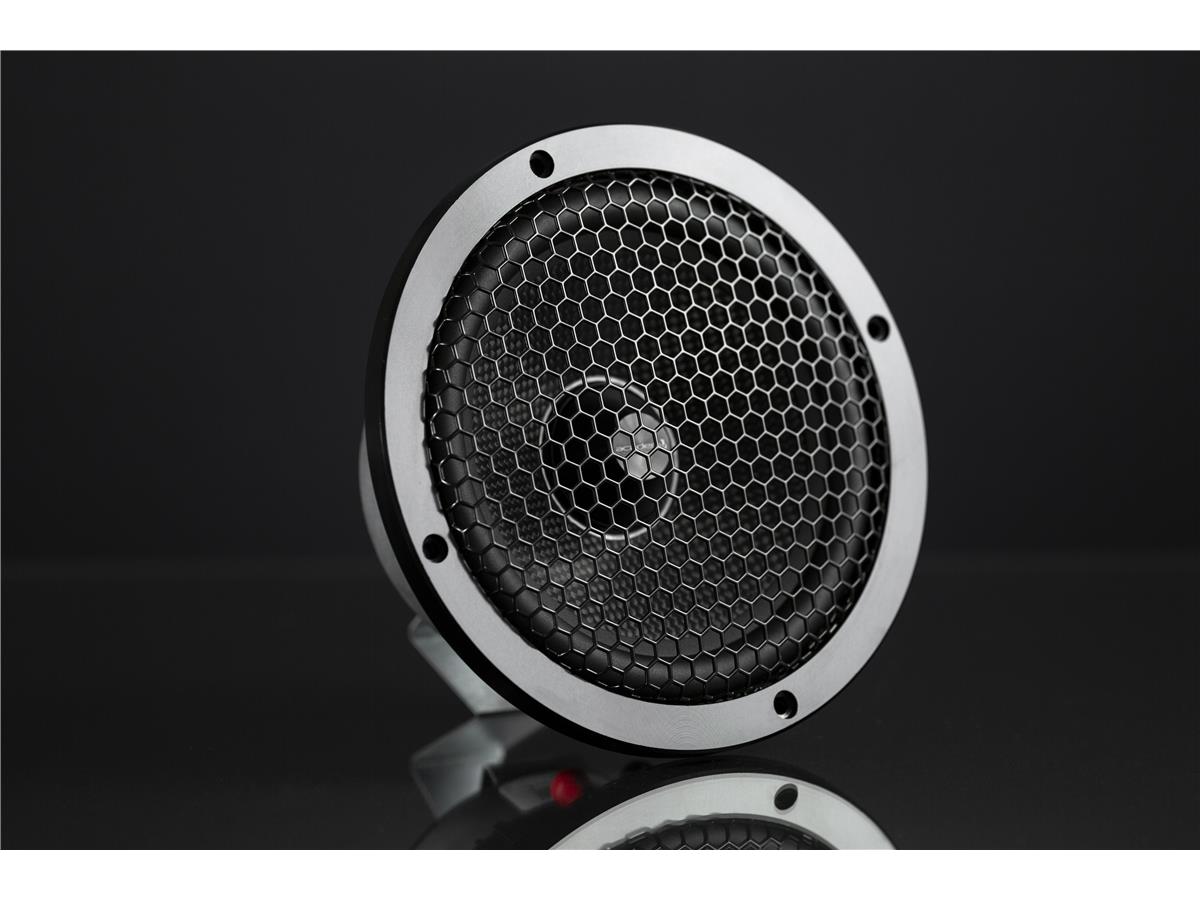

GALLER INGÅR
6.5" Midbass
Narrow mouting diameter, suit for small enclosure mounting,
FEM simulation motor structure, provide low distortion and highly motor efficiency
1.5" voice coil with ccaw wire Woofer, for high efficiency. Carbon+PMI cone provides a clear vocal output
150W RMS power, 300W MAX power, 4 Ohms
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeDRAGSTER
Beskrivning
Art.nr: ACADEMY DRAGSTER AMW-6
Frame 6.5"
Magnet Ferrite, 19.54 OZ
Voice Coil 38,6mm
Surround Rubber
Phase Plug
Cone Carbon
Spider
Power 150W RMS / 300W MAX
Impedance 4 Ohm
Efficiency 87,8dB
TESTED 20201218
Break in: Yes
Fs: 55hz
Effective range 56-3400hz
On axis: 55-4000hz
Out of axis 45: 50-3000hz
Power pink noise >70hz/12dB 100-150wrms
Power pink noise >90hz/12dB
Recommended filter general use >50hz 6-12dB
1w/1m Sensitivity 85dB
Component feeling a lot volume of enclosure: Yes
Optimal sealed volume: 5 liter
Good for ported 8 Liter 65hz
Filer och media
 | SPECS |
