ACADEMY DRAGSTER ACM-62N
1 799 SEK
6.5" NEO MIDRANGE SPEAKER
150W RMS POWER
300W MAX POWER
98.5dB SENSITIVITY
90Hz-9.6K Hz FREQ. RESPONSE
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeDRAGSTER
Beskrivning
Art.nr: ACADEMY DRAGSTER ACM-62N
General Data
Nominal Diameter: 6.5
Nominal Impedance: 4 Ohms
MAX Power Handling: 150W
RMS Power Handling: 300W
Sensitivity(1w/1m): 98.5dB

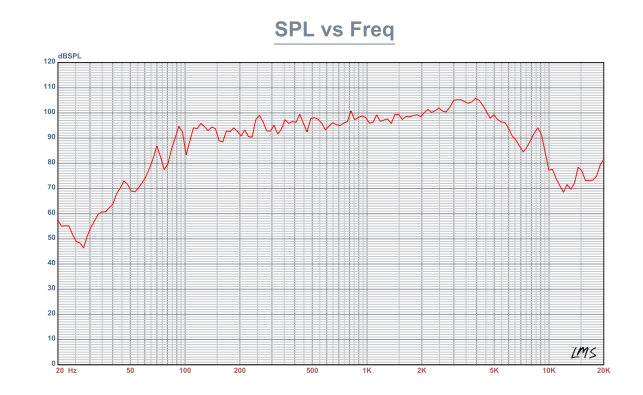

Frequency Response: 90Hz-9.6KHz
Motor
Voice Coil Diameter: 1.5"/38.6mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Cone Material: Paper
Surround Material: Cloth
Basket Material: Steel
Magnet Weight: 8 Oz/~226.796g
Thiele & Small Parameters
Equivalent Volume: 3.998L
Excursion: 7.3mm
Free Air Resonance: 145Hz
Mechanical Factor: 5.380
Electrical Factor: 0.423
Total Factor: 0.392
DC Resistance: 3.2 Ohms

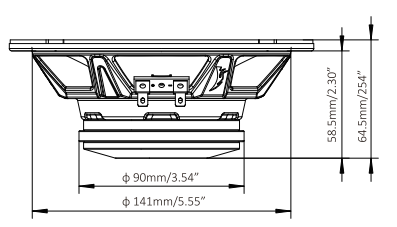

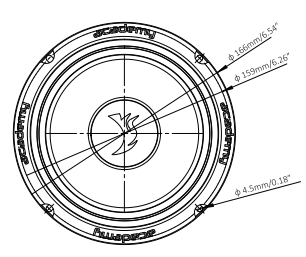

Measurements
Overall Diameter: 166"/166mm
Front Mount Baffle Cutout: 5.55"/141mm
Mounting Depth: 2.3"/58.5mm
Overall Depth: 2.54"/64.5mm
