ACADEMY DRAGSTER ACM-62F
1 199 SEK
150W RMS POWER
300W MAX POWER
96.5dB SENSITIVITY
80-6K Hz FREQ. RESPONSE
4 OHM IMPEDANCE
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeDRAGSTER
Beskrivning
Art.nr: ACADEMY DRAGSTER ACM-62F

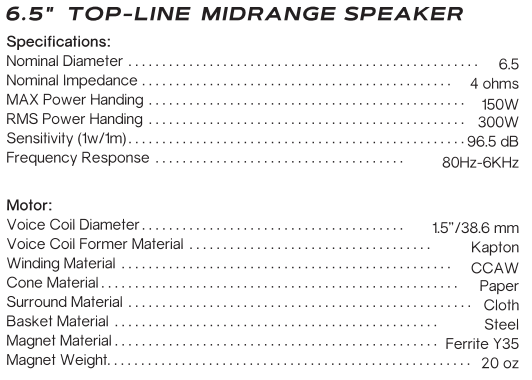

Specifications:
Nominal Diameter: 6.5
Nominal Impedance: 4 Ohms
MAX Power Handling: 150W
RMS Power Handling: 300W
Sensitivity (1w/1m): 96.5dB

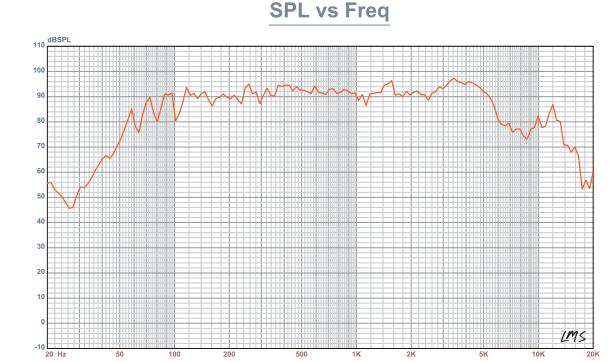

Frequency Response: 80Hz-6KHz
Motor
Voice Coil Diameter: 1.5"/38.6mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Cone Material: Paper
Surround Material: Cloth
Basket Material: Steel
Magnet Material: Ferrite Y35
Magnet Weight: 20 Oz/566.99g

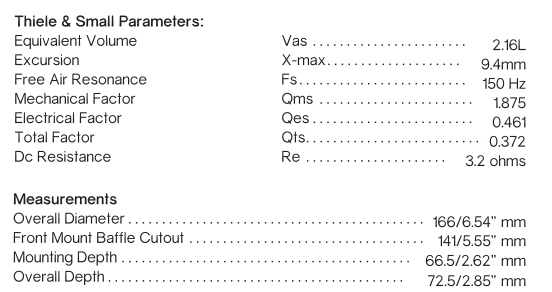

Thiele & Small Parameters
Equivalent Volume: 2.16L
Excursion: 9.4mm
Free Air Resonance: 150Hz
Mechanical Factor: 1.875
Electrical Factor: 0.461
Total Factor: 0.372
DC Resistance: 3.2 Ohm

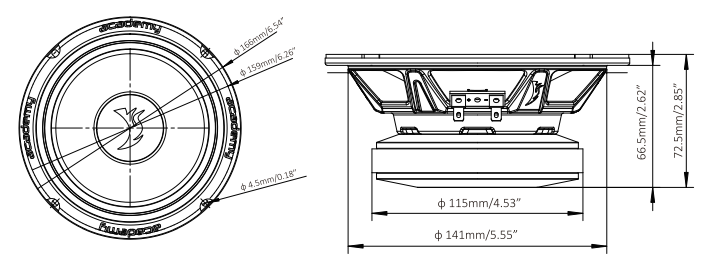

Measurements
Overall Diameter: 6.54"/166mm
Front Mount Baffle Cutout: 5.55"/141mm
Mounting Depth: 2.62"/66.5mm
Overall Depth: 2.85"/72.5mm
