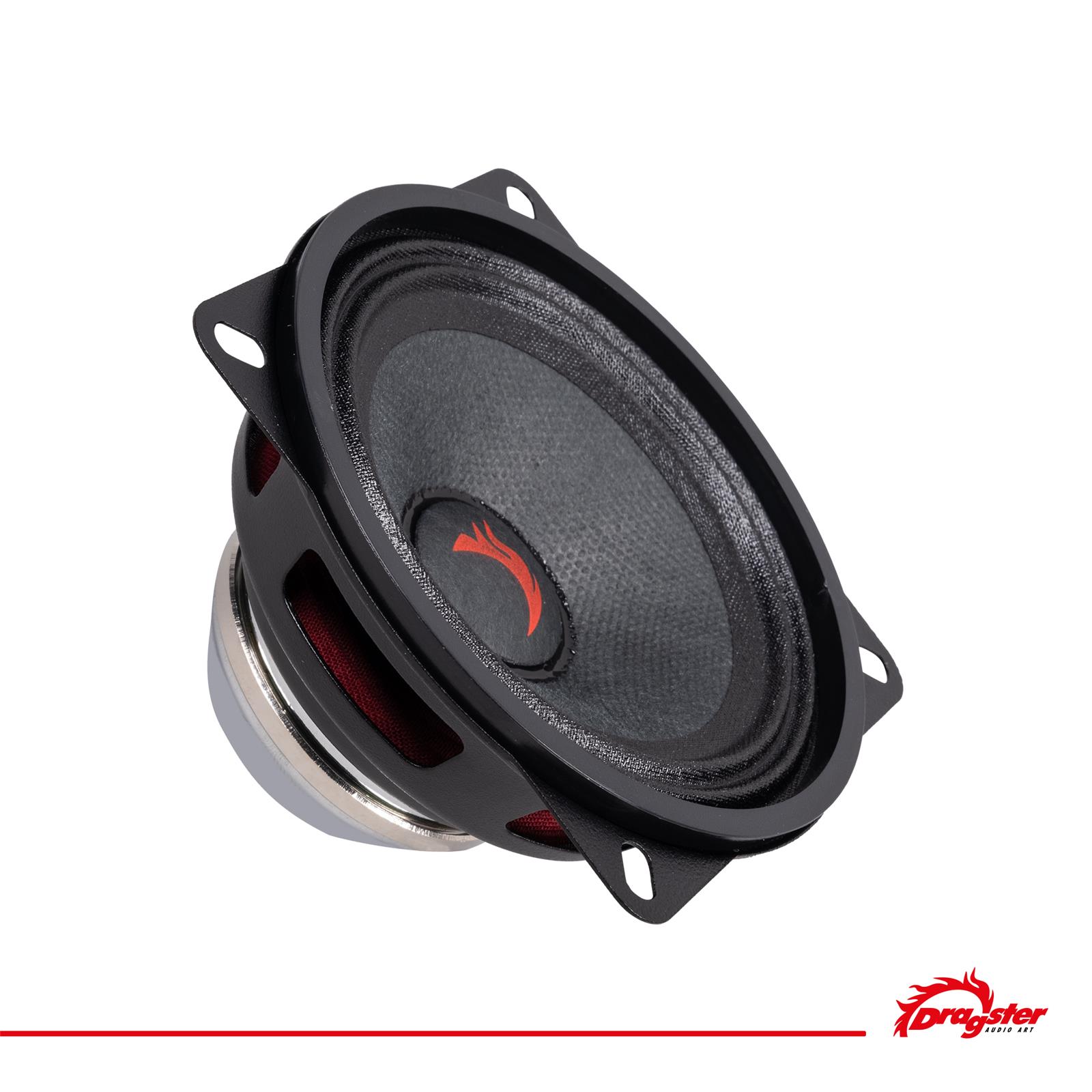

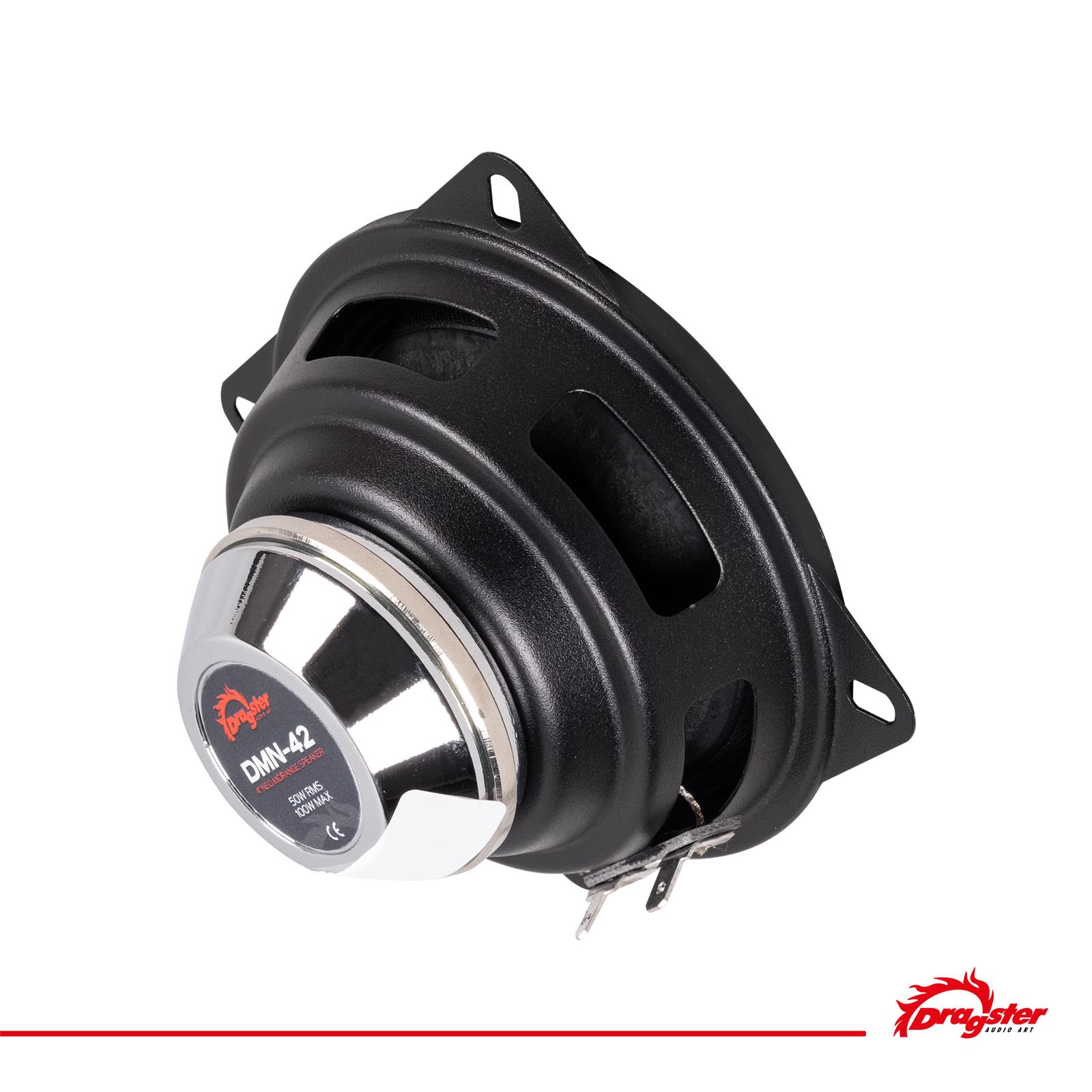

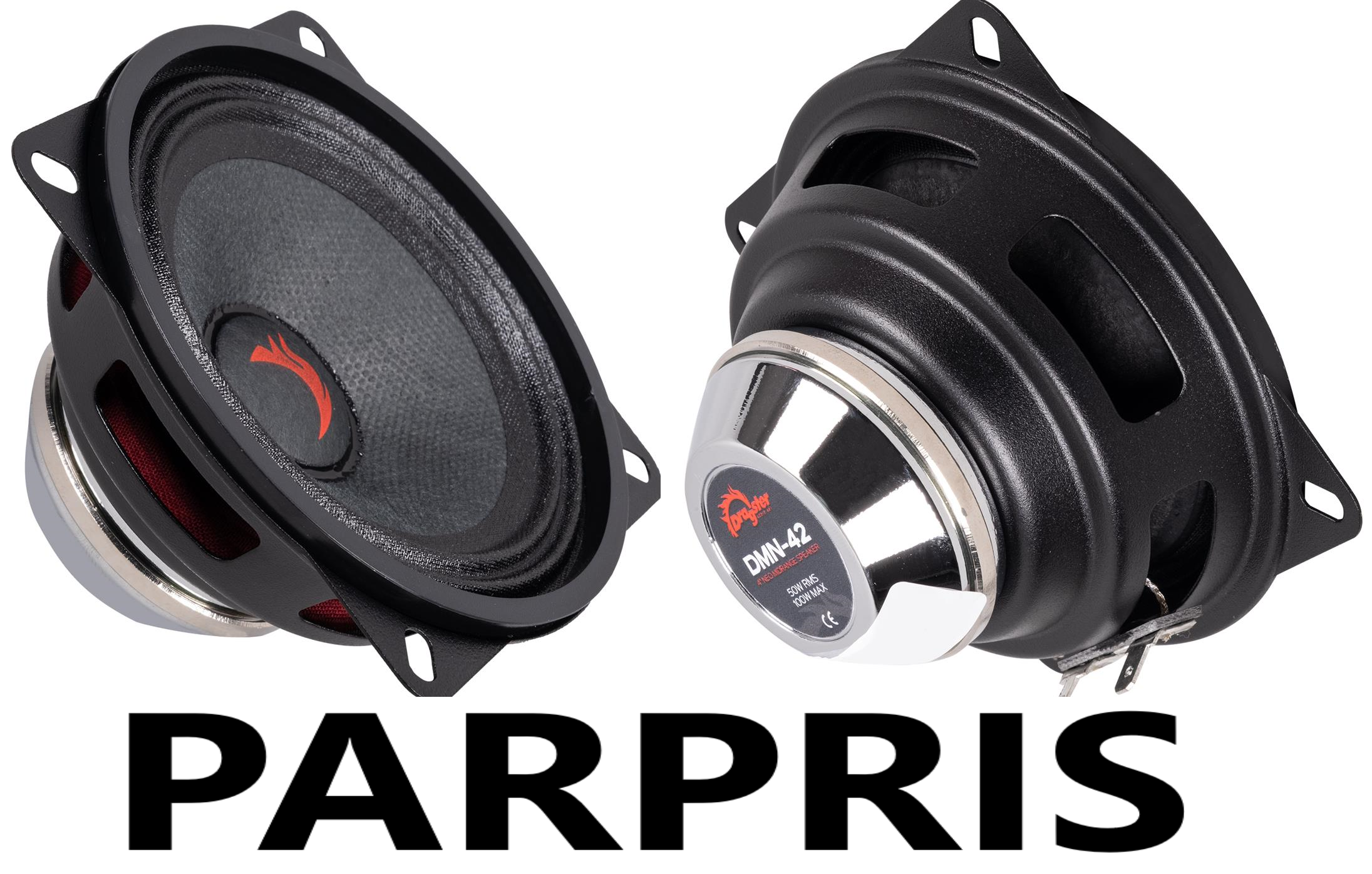

DRAGSTER DMN-42
899 SEK
4" MIDRANGE SPEAKER
50W RMS POWER
100W MAX POWER
89.6dB SENSITIVITY
134-16K Hz FREQ. RESPONSE
4 OHM IMPEDANCE
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeDRAGSTER
Beskrivning
Art.nr: DRAGSTER DMN-42
General Data
Overall Dimensions: 102*55.5mm
Nominal Power Handling: 50W
Transient Power 10ms: 100W
Sensitivity: 89.6dB
Frequency Response: 134-16KHz
Cone Material: Paper
Net Weight: 0.33kg
Electrical Data
Nominal Impedance: 4 Ohm
DC Resistance: 3.2 Ohm
Voice Coil and Magnet Parameters
Voice Coil Diameter: 25.9mm
Voice Coil Height: 7.4mm
HE Magnetic Gap Height: 4mm
Max Linear Excursion: 1.7mm
Voice Coil Bobbin: Kapton
Voice Coil Wire: CCAW
Number of Layers: 2
Magnet System Type: Neodymium
BL Product: 3.6
T-S Parameters:
Suspension Compliance: 0.42
Mechanical Q Factor: 5.59
Electrical Q Factor: 0.69
Total Q Factor: 0.61
Moving Mass: 3.3
Eq.Cas Air Load: 1.66 Liters
Resonant Frequency: 134.8Hz
Effective Piston Area: 52.8cm²
