FOR-X MAESTRO-77M
999 SEK
77mm BLACK BULLETPROOF BODY MIDRANGE
60W RMS POWER
180W MAX POWER
125-20K Hz FREQ. RESPONSE
82dB SENSITIVITY
6 OHM IMPEDANCE
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeFOR-X
Beskrivning
Art.nr: FOR-X MAESTRO-77M
Specifications
General Data
Overall Dimensions: 77*51.3mm
Nominal Power Handling (AES): 60W
Transient Power: 180W
Sensitivity 1W/1m: 82dB SPL
Frequency Response: 125 ~ 20k Hz
Cone Material: PU
Electrical Data
Nominal Impedance: 6 Ohm
DC Resistance: 5.8 Ohm
Voice Coil and Magnet Parameters
Voice Coil Diameter: 21.26mm
Voice Coil Height: 20mm
Magnetic Gap Height: 3mm
Max Linear Excursion: ±3.5mm
Voice Coil Former: Aluminum
Number of Layers: 2 Layers
Magnet System: Y30
Efficiency: ηº 0.071%
BL Product: 3.35 Na
Magnet Dimension: 60*24*9.0mm

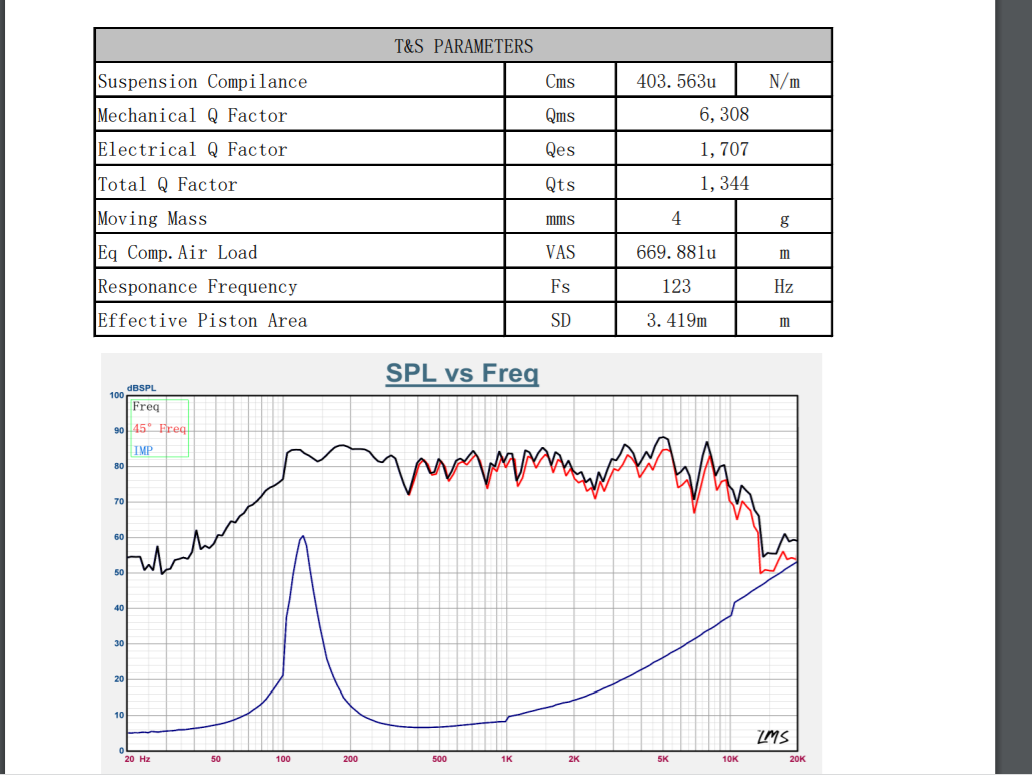

T&S Parameters
Suspension Compliance: 403.563u N/m
Mechanical Q Factor: 6.308
Electrical Q Factor: 1.707
Total Q Factor: 1.344
Moving Mass: 4g
Eq. Comp. Air Load: 669.881u m
Resonance Frequency: 123 Hz
Effective Piston Area: 3.419m
Filer och media
 | MANUAL |
