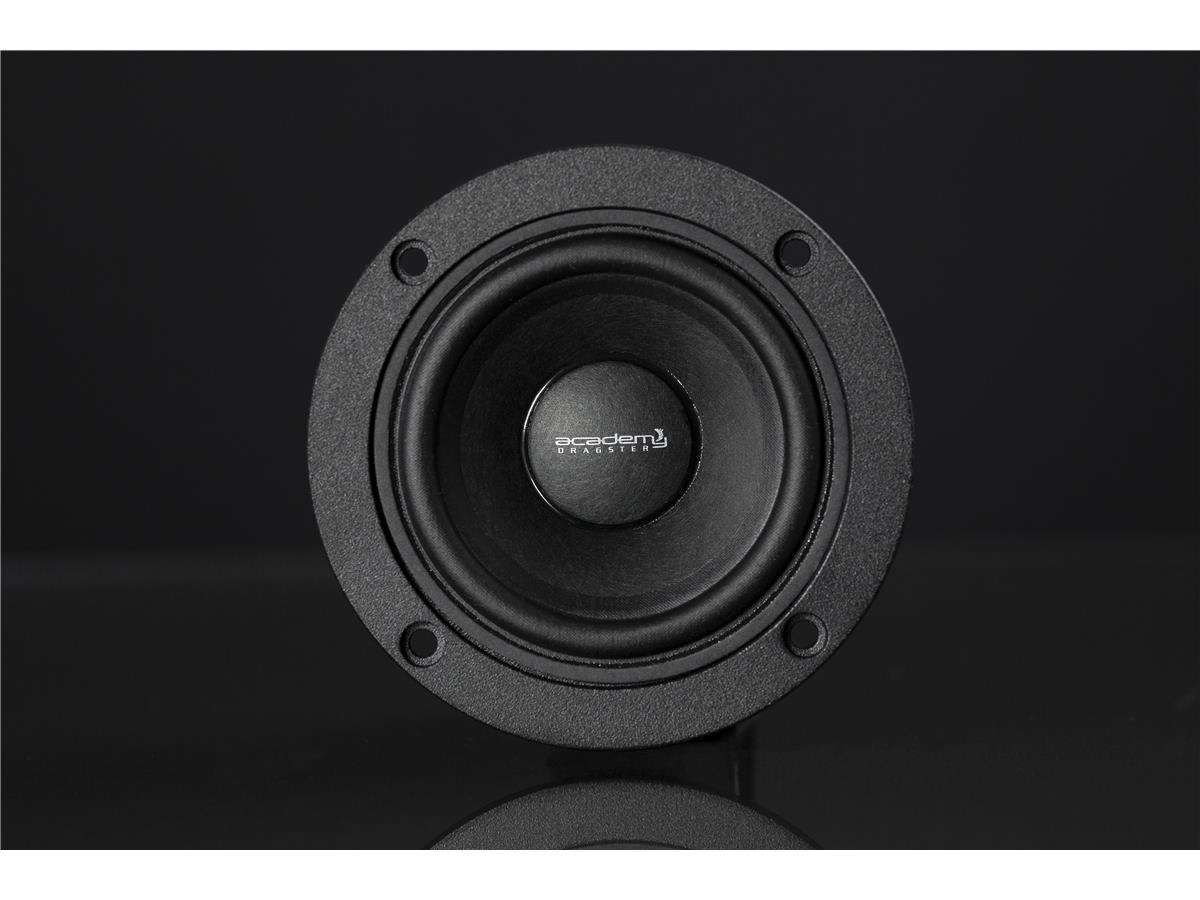

ACADEMY DRAGSTER AF-3
1 599 SEK

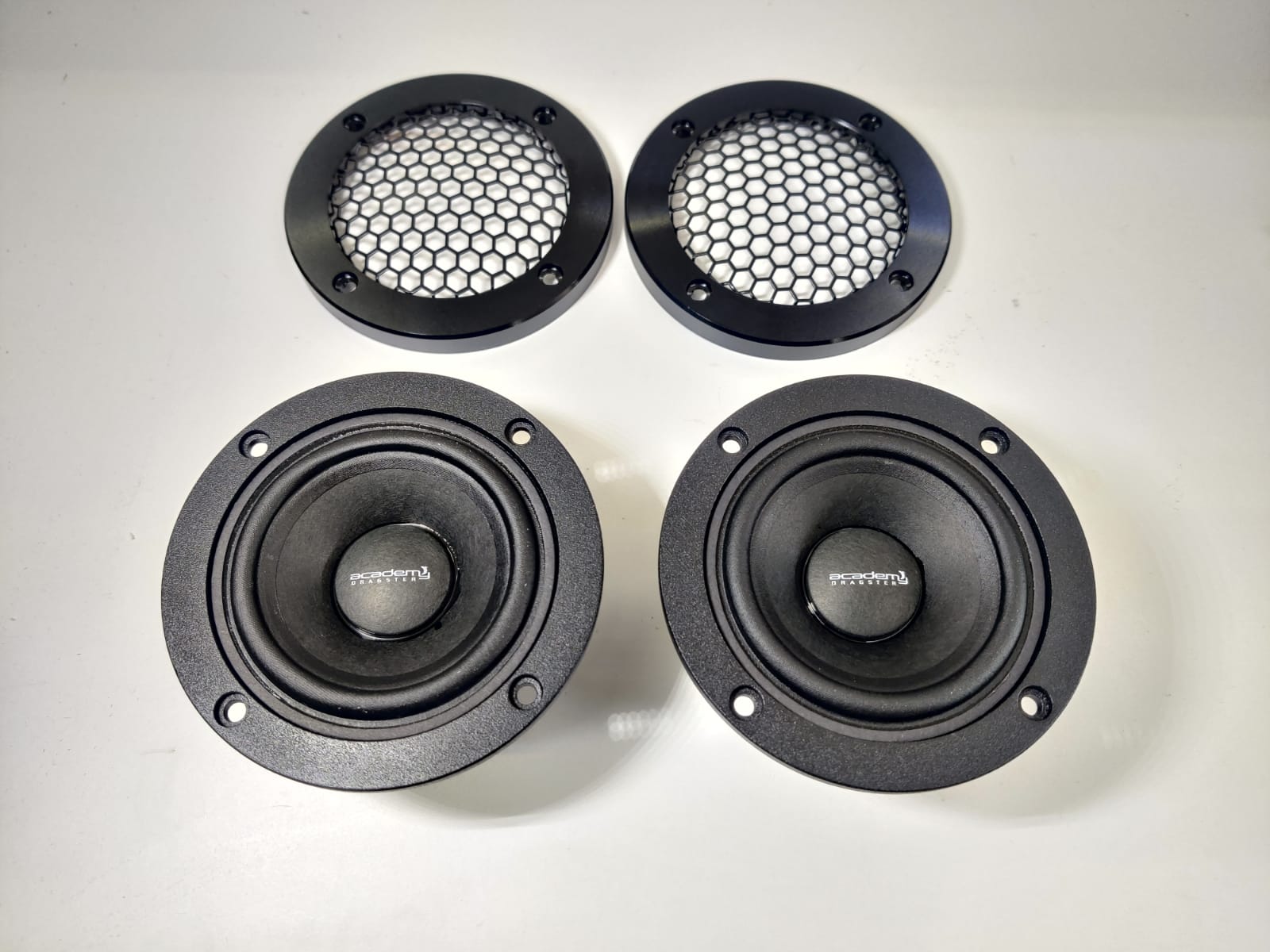

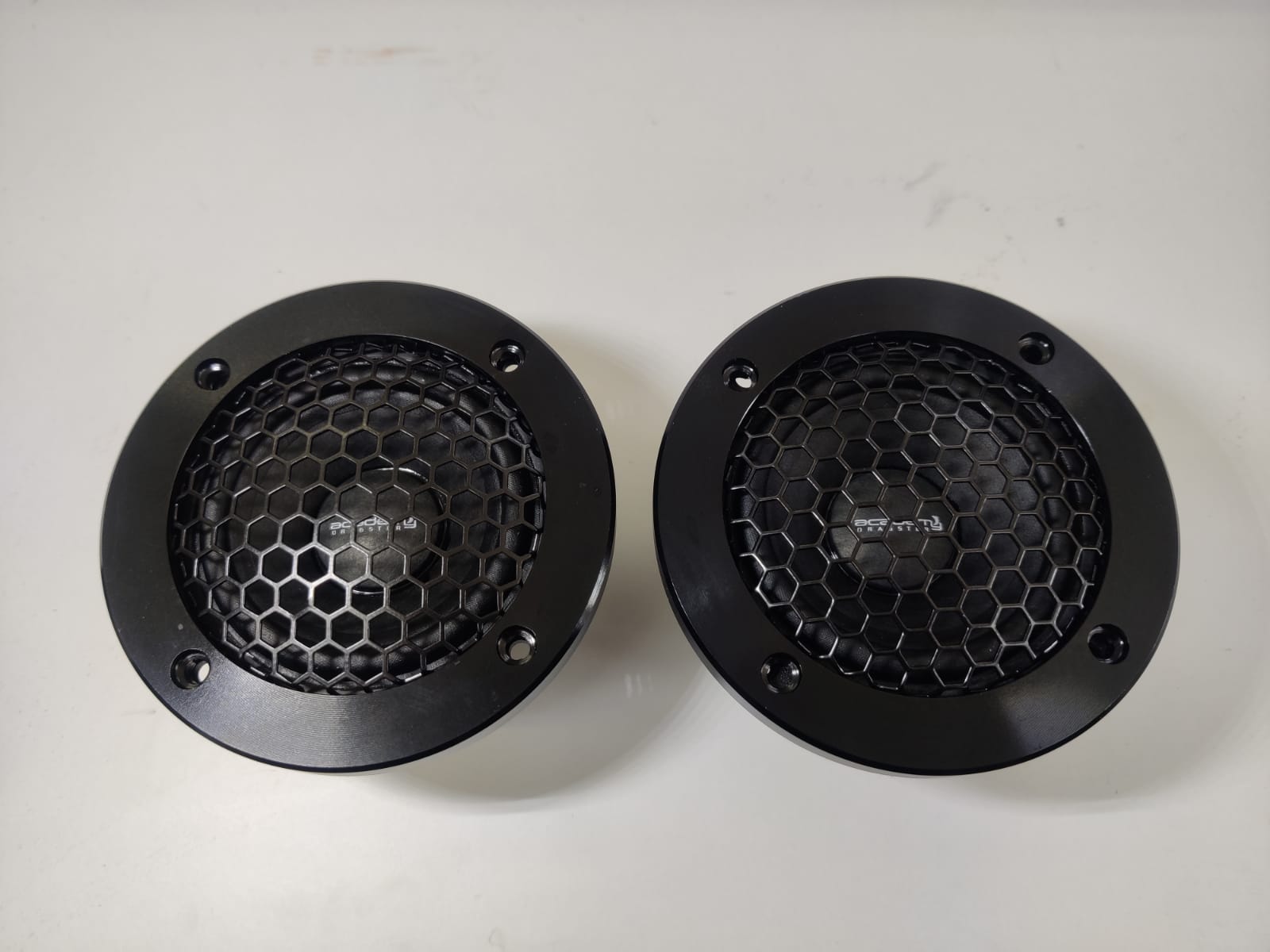

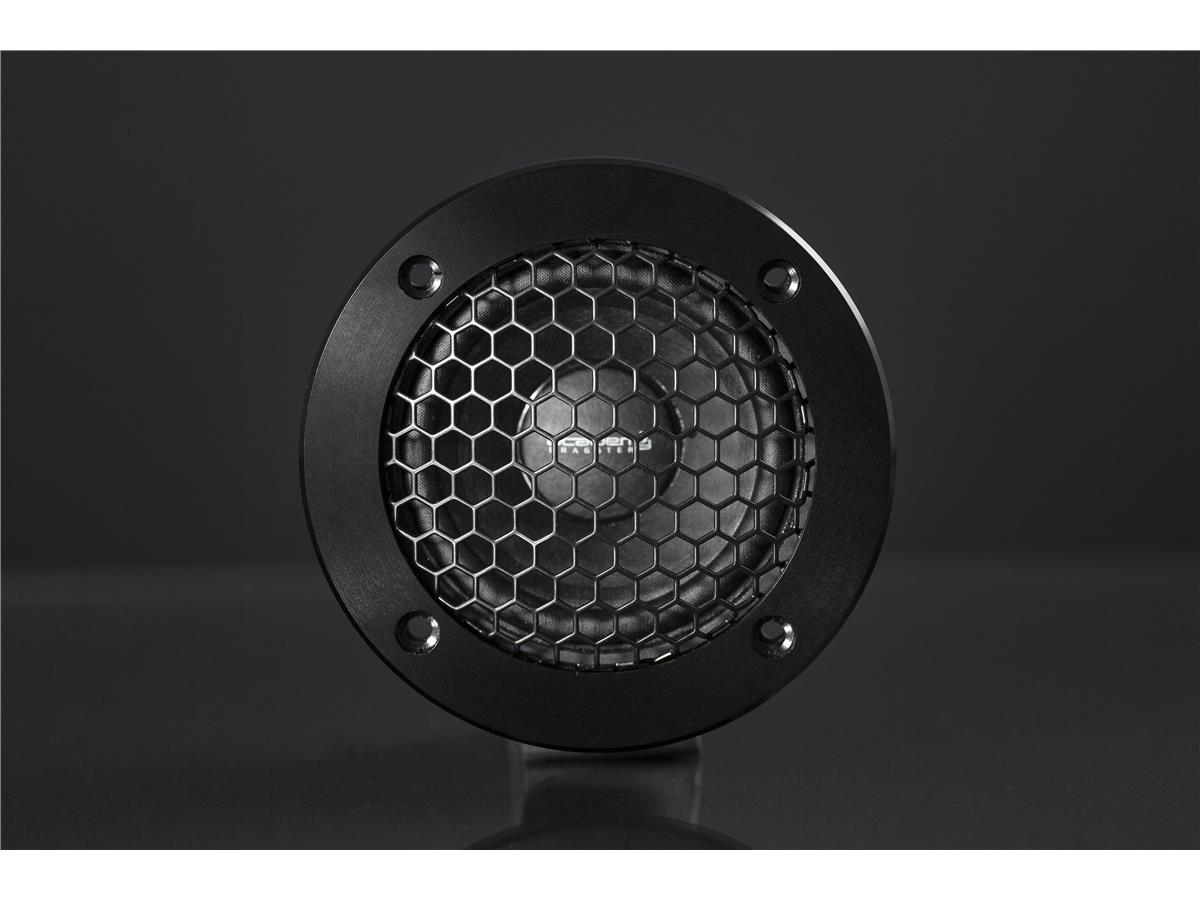

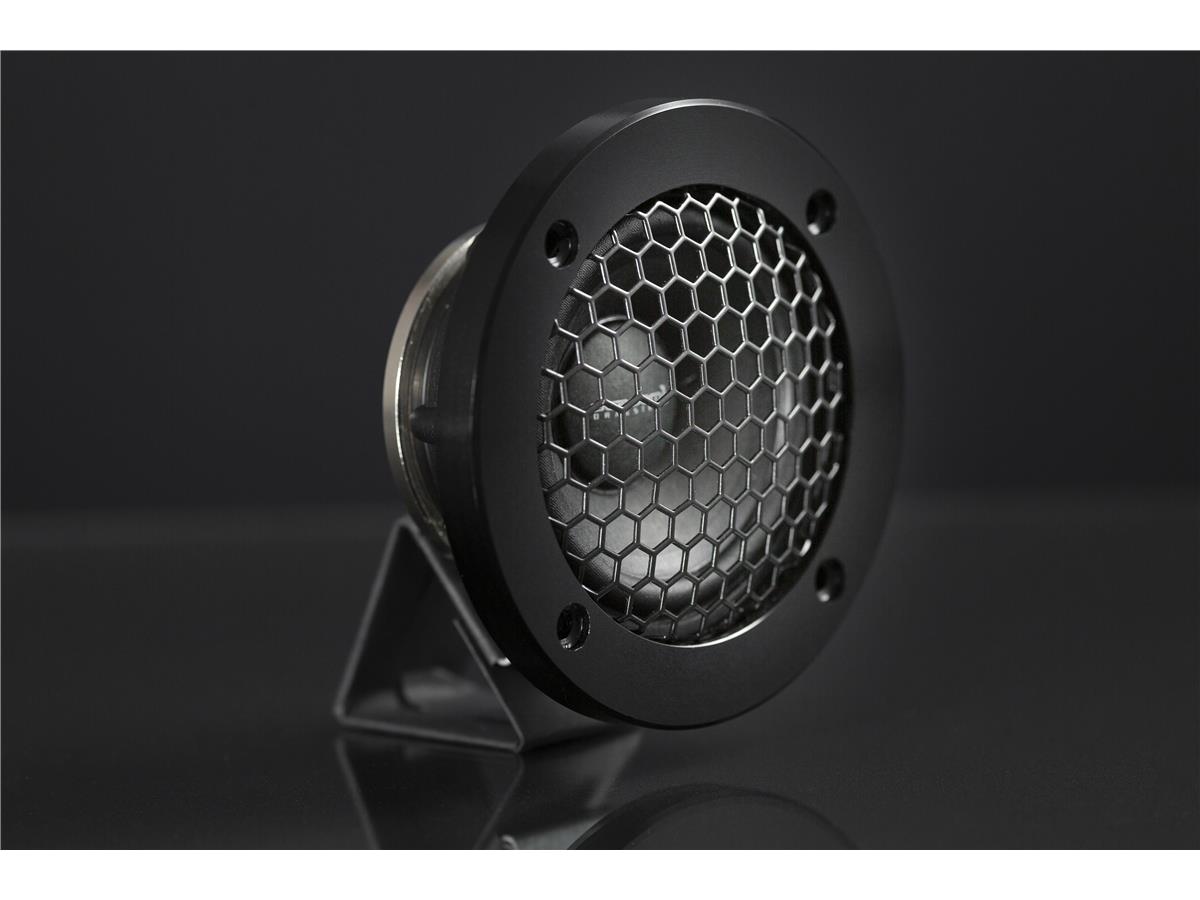

GALLER INGÅR

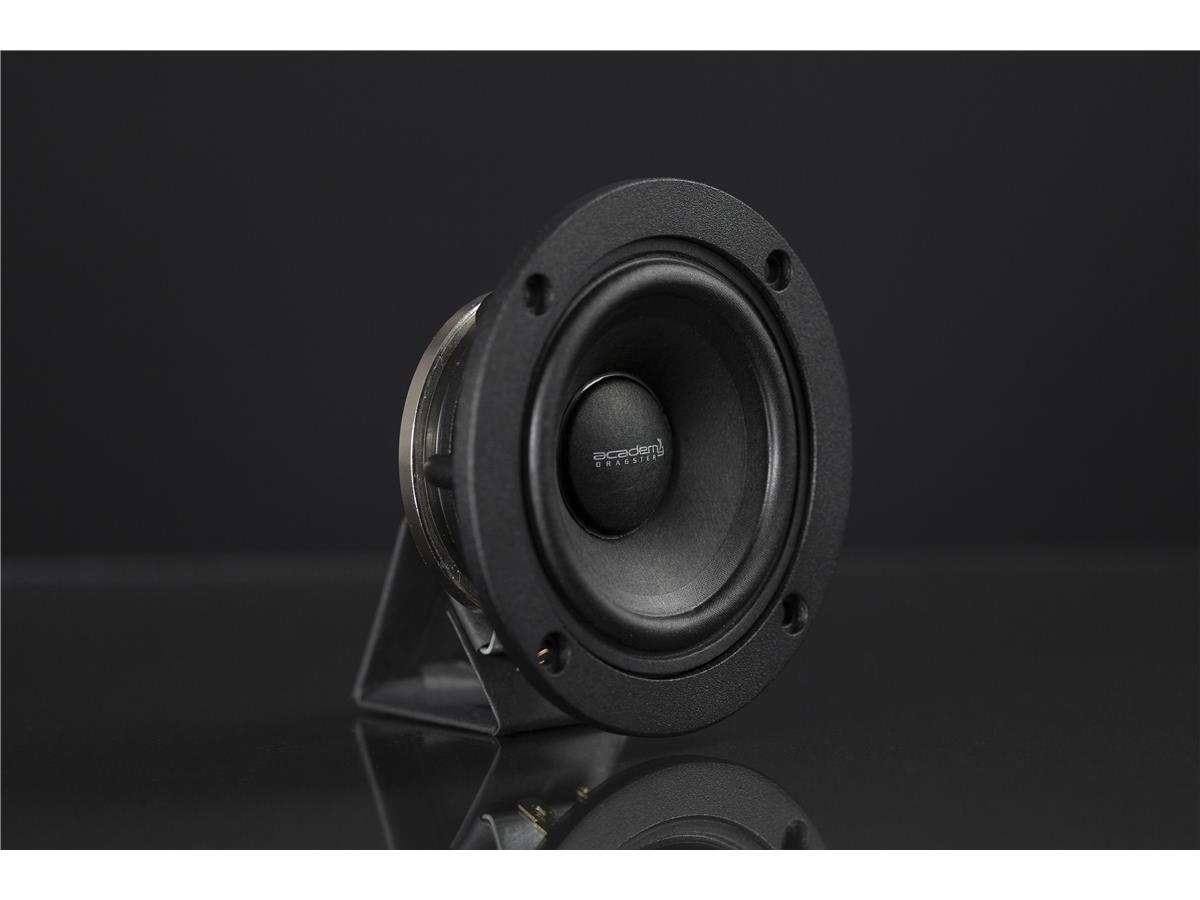

Neodymium Magnet Fullrange Speaker
Narrow mouting diameter, suit for small enclosure mounting,
FEM simulation motor structure, provide low distortion and highly motor efficiency
Fiber non-pressed paper cone, provide natual sound
1.0" voice coil with ccaw wire, for high efficiency
20W RMS power, 40W MAX power, 4 Ohms
https://youtu.be/96xOlEHFS5A
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeDRAGSTER
Beskrivning
Art.nr: ACADEMY DRAGSTER AF-3

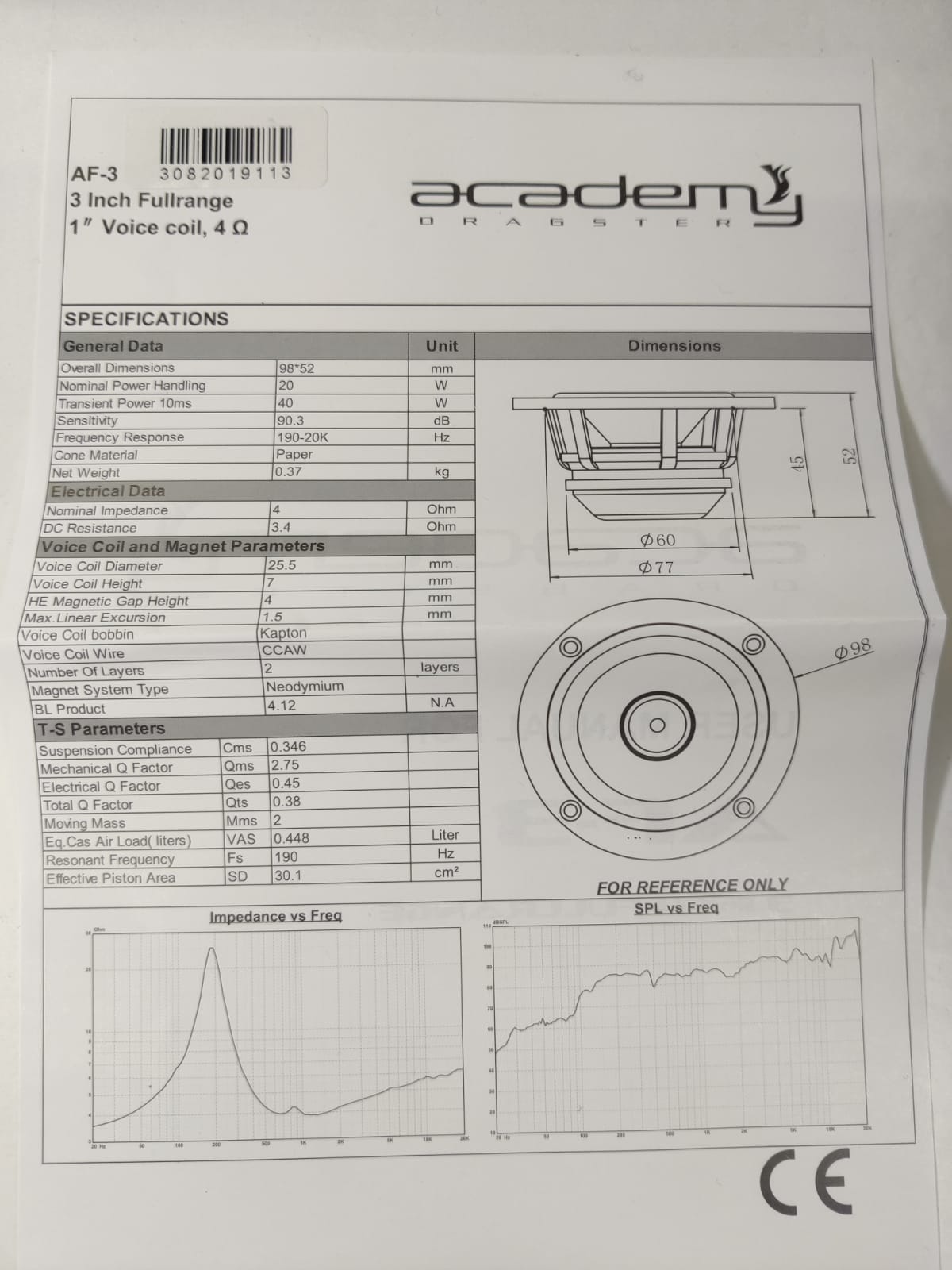

Specifications
General Data
Overall Dimensions: 98*52
Nominal Power Handling (AES): 20W
Transient Power: 40W
Sensitivity 1W/1m: 90.3dB
Frequency Response: 190 - 20K Hz
Cone Material: Paper
Net Weight: 0.37kg
Electrical Data
Nominal Impedance: 4 Ohm
DC Resistance: 3.4 Ohm
Voice Coil and Magnet Parameters
Voice Coil Diameter: 25.5mm
Voice Coil Height: 7mm
HE Magnetic Gap Height: 4mm
Max Linear Excursion: ±1.5mm
Voice Coil Bobbin: Kapton
Voice Coil Wire: CCAW
Number of Layers: 2 Layers
Magnet System Type: Neodymium
BL Product: 4.12 N.A
T&S Parameters
Suspension Compliance: 0.346
Mechanical Q Factor: 2.75
Electrical Q Factor: 0.45
Total Q Factor: 0.38
Moving Mass: 2
Eq. Comp. Air Load: 0.448 Liter
Resonance Frequency: 190 Hz
Effective Piston Area: 30.1cm²
