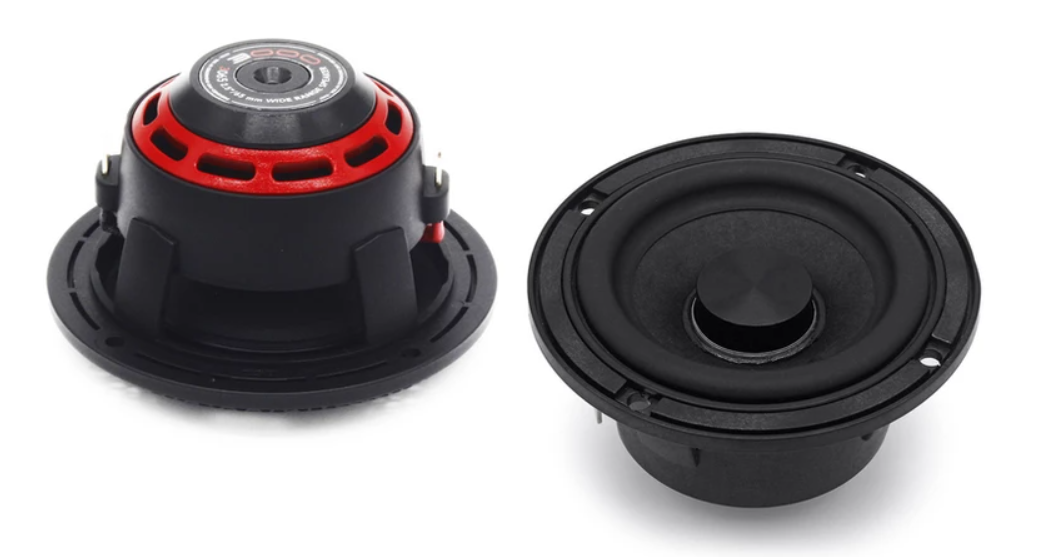

ESB 3.65

3.65 PARPRIS This 3.65 wide range speaker is designed to operate in a 3-way system, with a woofer and a tweeter, or in a 2-way system where it can replace the tweeter. Conceived and purpose-built from the ground up, it offers exceptional transient response and outstanding linearity, resulting in unsurpassed clarity and natural midrange reproduction. Distortion and non-linearities have been minimized through critical optimization of dynamic motor and suspension behaviors. The CNC aluminum center plug allows control, linearization and an increase in extension of the high frequencies. Its properly calculated sharp-edges determine refraction that linearize and extend the spectrum of reproducible frequencies. The 20 mm voice coil offers good power handling, and its reduced mass allows this component to be pushed well beyond the 20 KHz threshold. - ABS basket reinforced with fiberglass. The basket has been engineered to obtain the maximum in terms of torsional rigidity (resistance to bending), but at the same time, offers the minimum resistance to air passage. - Pressed paper cone with waterproof treatment. It is widely recognized that cones made of paper are the ideal marriage between lightness, stiffness and the ability of the cone to dampen any unwanted vibration (read: distortion). - High damping single wave Perbunan® rubber. The Perbunan rubber surround is much more stable with temperature changes than standard rubber. - The 20 mm voice coil uses an aluminum support and a double layer winding technology of copper wire with an aluminum core. - The neodymium N42 magnet: a type of magnet with significantly higher performance than "standard" magnets. 2.5"/65 mm Widerange Treated paper cone Perbunan rubber suspension N42 neodymium magnet Fiberglass reinforced ABS basket Balanced cotton spider Double layer voice coil Nominal Impedance: 4 Ohm Nominal Power Handling: 60 Watt Transient Power: 120 Watt Freq. Response: 100 Hz ~ 22 KHz Sensitivity: 83 dB 1W/1m
