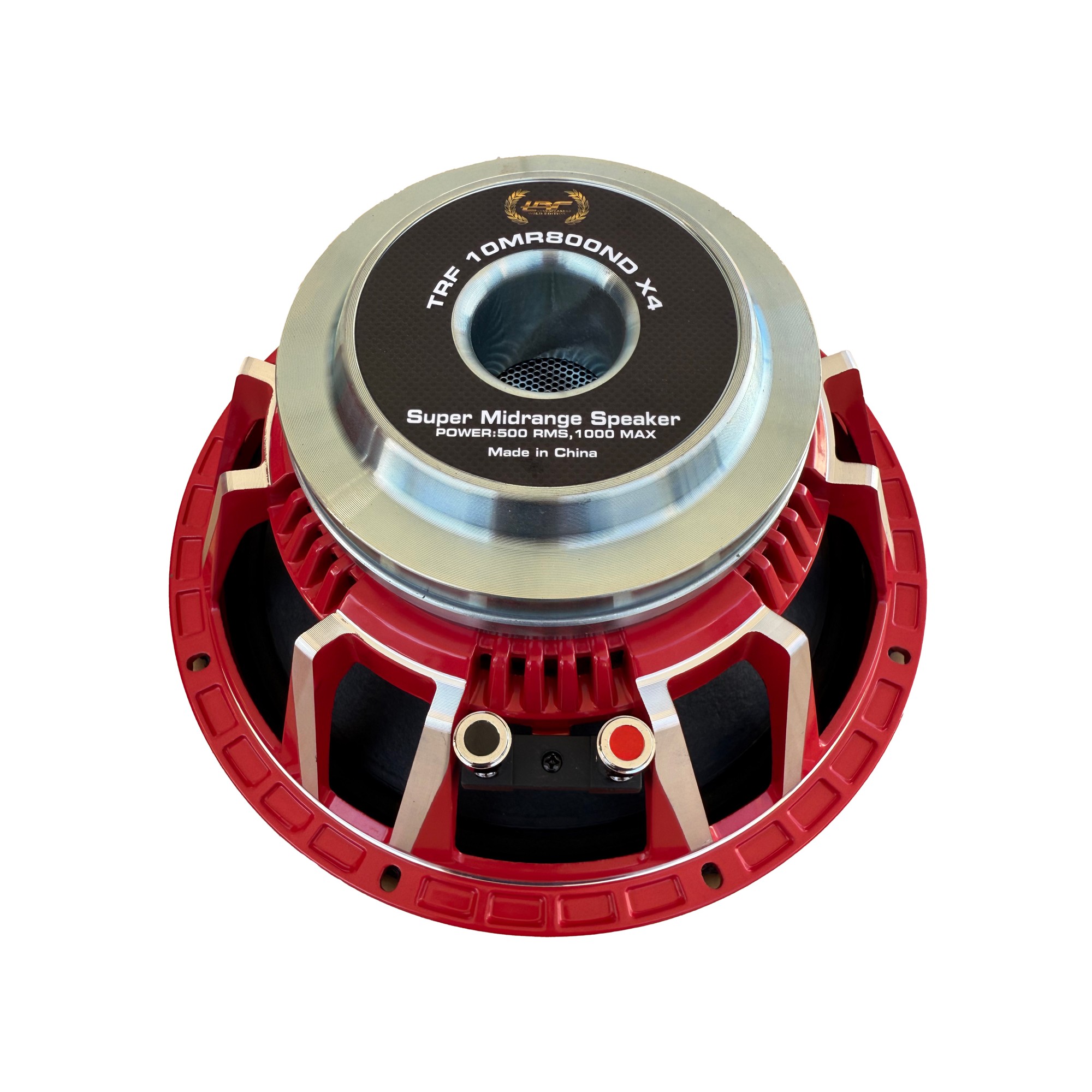

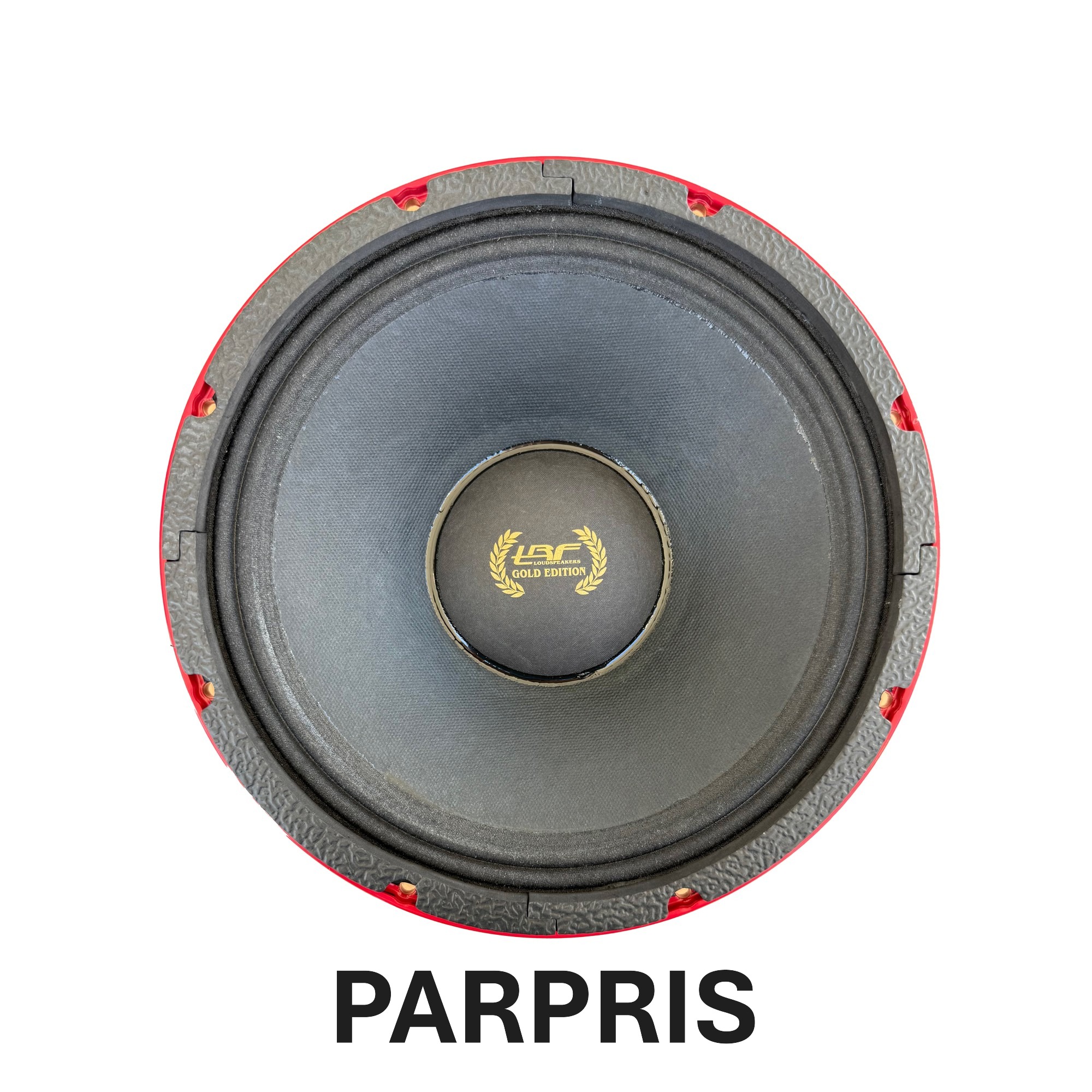

TRF 10MR800ND X4
4 999 SEK
1000 Watts Max Power Handling
3" Voice Coil
100.5dB Sensitivity
70Hz-6.5KHz of frequency response.
- Maila oss, troligen snabbaste supporten i branschen!
- För snabbast support, skriv till oss på messenger, där svarar vi i princip 24/7
- VarumärkeTRF
Beskrivning
Art.nr: TRF 10MR800ND
General Specifications
Nominal Diameter: 10"/254mm
Max Power Handling: 1000W
RMS Power Handling: 500W
Frequency Response: 70Hz-6.5KHz
Nominal Impedance: 4Ω
Sensitivity: 100.5dB
Voice Coil Diameter: 3"
Voice Coil Wire: CCAW
TL Parameters
Equivalent Volume: 25.7L
Free Air Resonance: 72Hz
Mechanical Factor: 3.35
Electrical Factor: 0.15
Total Factor: 0.14
Cone Area: 363cm²
Mechanical Mass: 35g
Bl Factor: 18.4 Tm
DC Resistance: 3.1 Ohms
Mounting Info
Overall Diameter: 10.3"/262mm
Front Mount Baffle Cutout: 9.25"/235mm
Mounting Depth: 4.07"/103.5mm
Overall Depth: 4.57"/116.2mm
